Đế Ra Chân ESP8266 ESP-07/ESP-12E/ESP-12F/ESP-12N

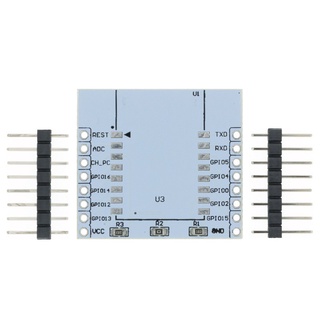

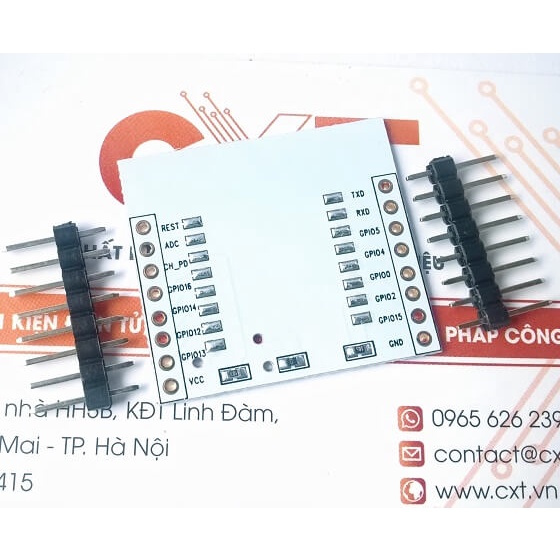

DIY serial port WIFI ESP8266 module adapter board ESP_07 ESP_12 (without module) Note: (Remarks: By default, the 3.3V voltage regulator tube is not welded, only the space is left, and there is no voltage regulator tube to send. The voltage regulator tube model is: HT7333) 1. This product can be connected to ESP_07, ESP_07S, ESP_12E, ESP_12S, ESP_12F, these 5 kinds, 2. This product is a non_welding pin header: 2 pin headers, 1 panel module If the VCC power supply is 5V, the 0 ohm resistor R2 must be removed! ! ! Only after welding the voltage regulator chip HT7333 on the back can it be used normally, otherwise there is a risk of burning out the module The middle one is welding 0 ohms, and the two sides are welding 103, please note this in the description. _____________________________________________________________________________ Linhkien.CXT.VN – Linh kiện điện tử CXT _ Chuyên cung cấp linh kiện điện tử, thiết bị và vật tư ngành điện _ Thông tin minh bạch, giá cả cạnh tranh _ Hỗ trợ tư vấn kỹ thuật triển khai dự án _ Hotline &
