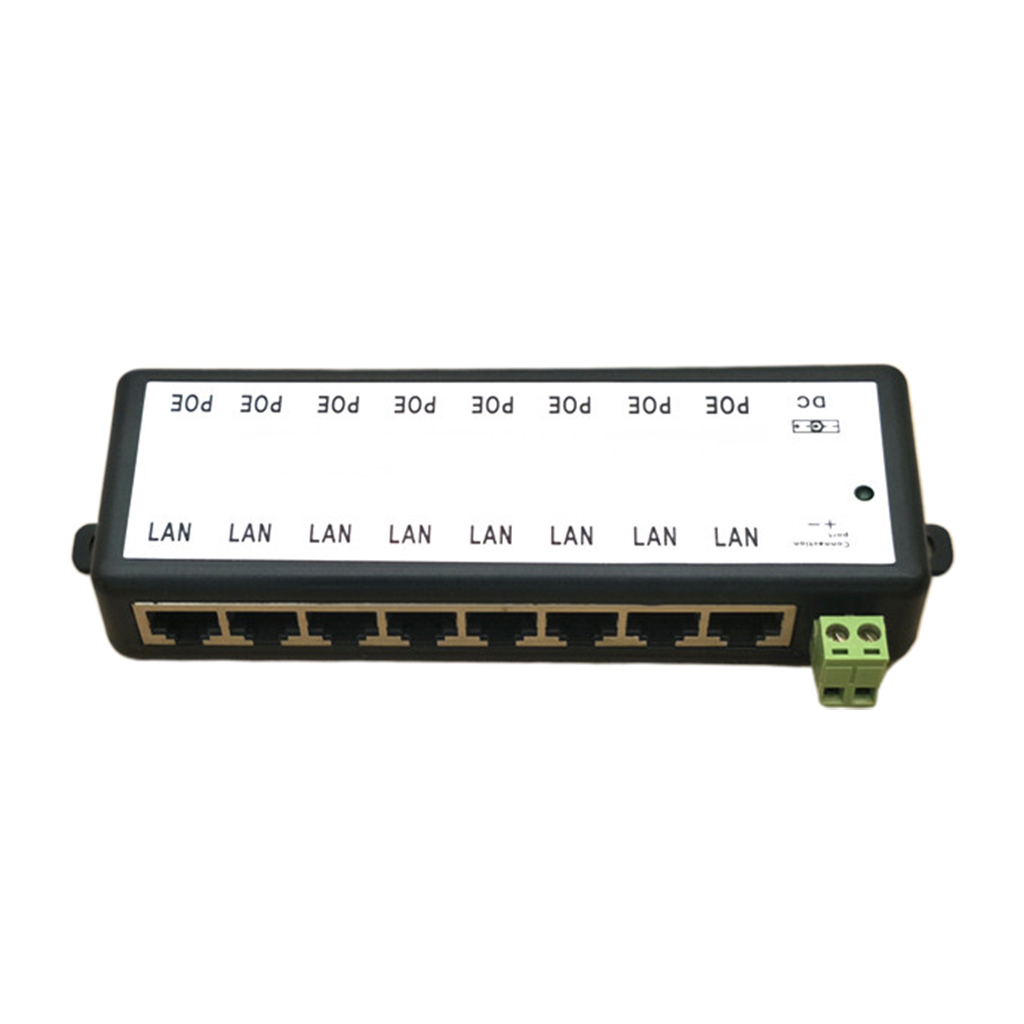

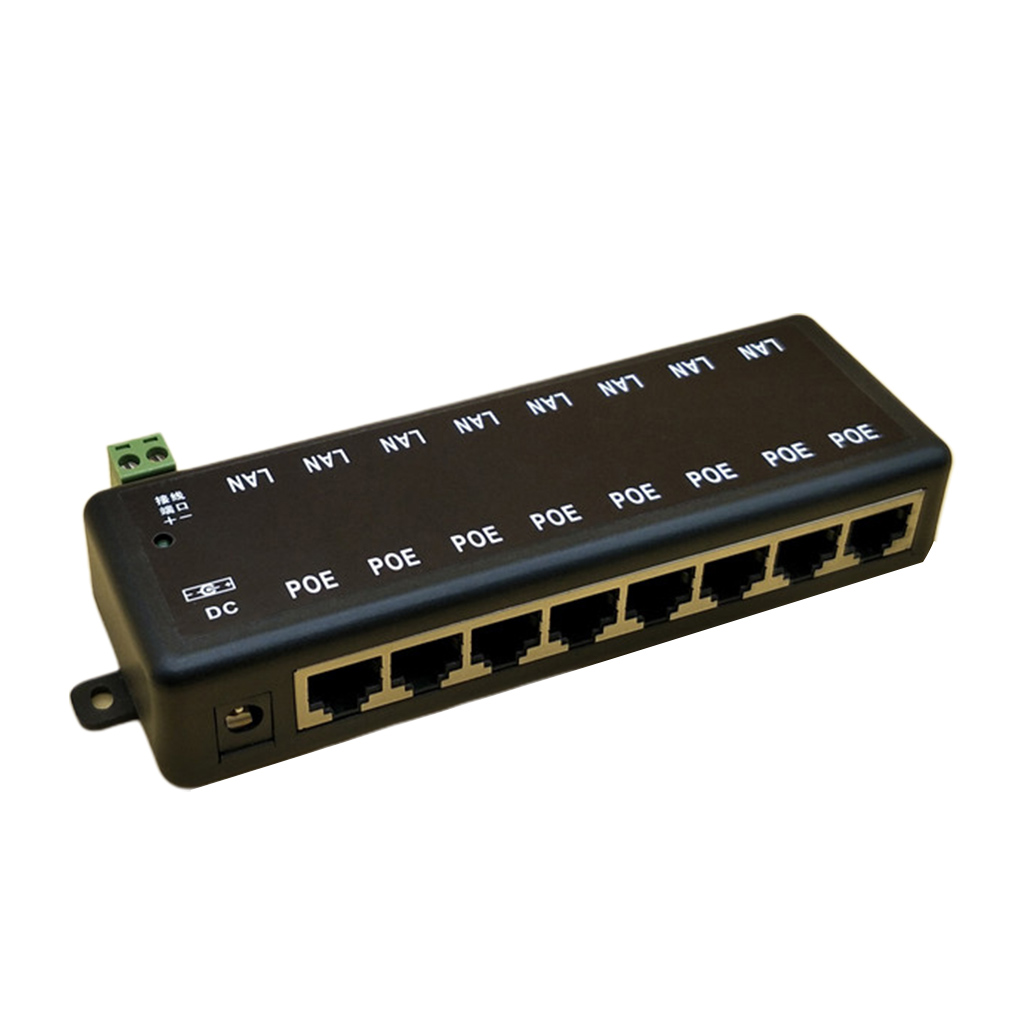

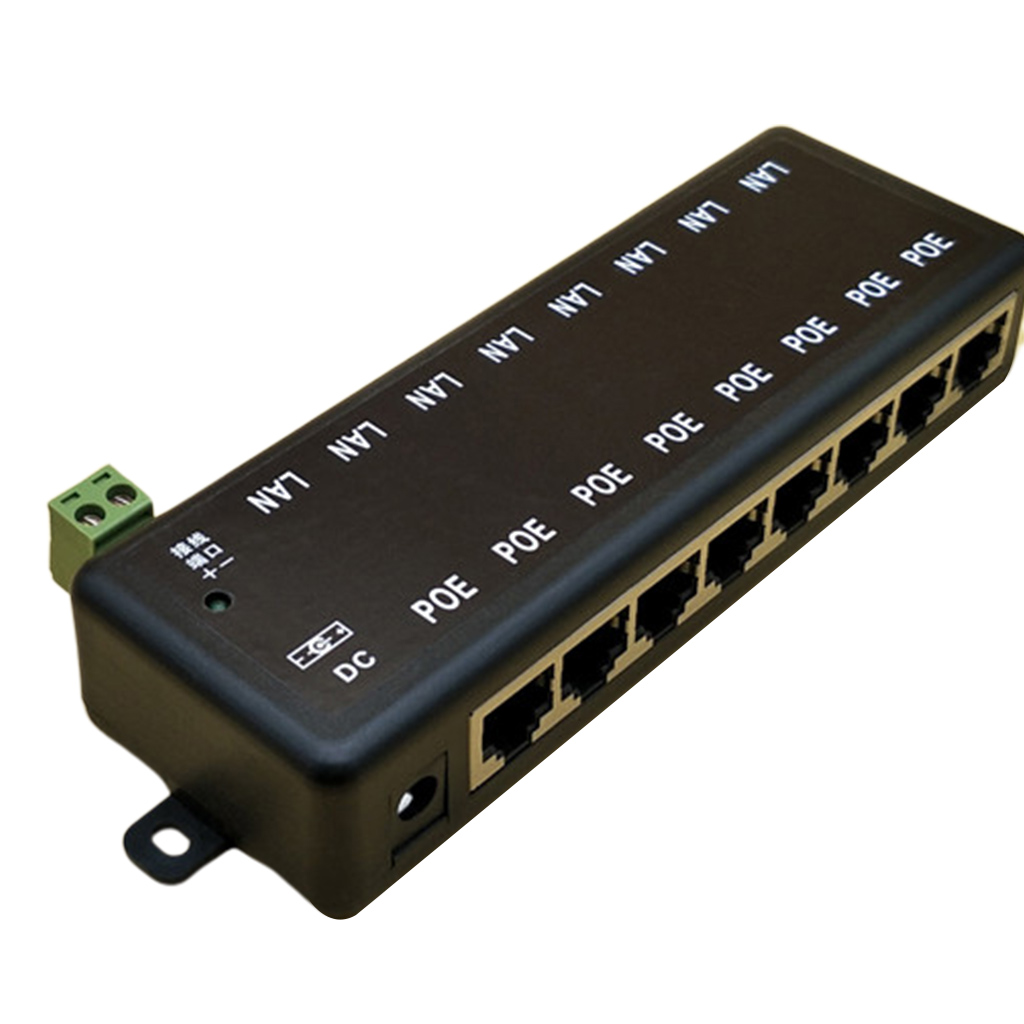

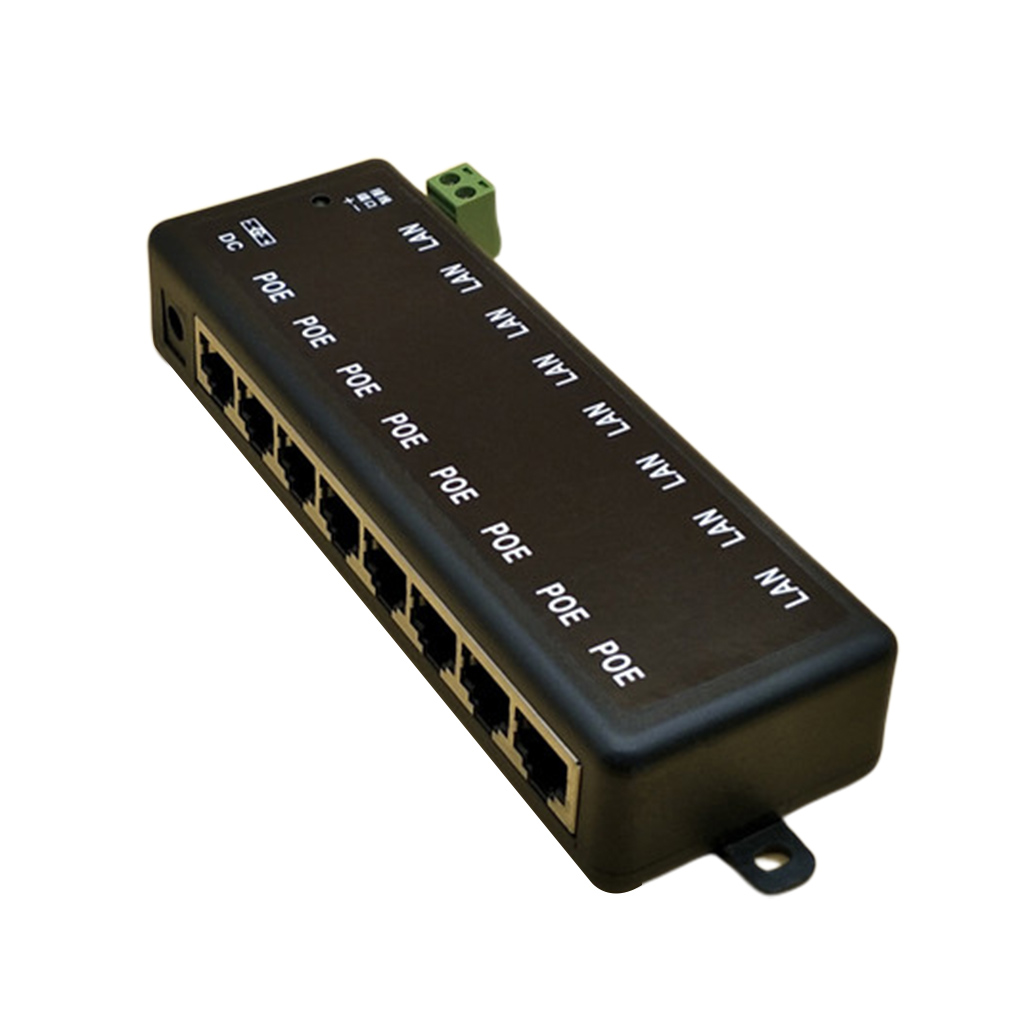

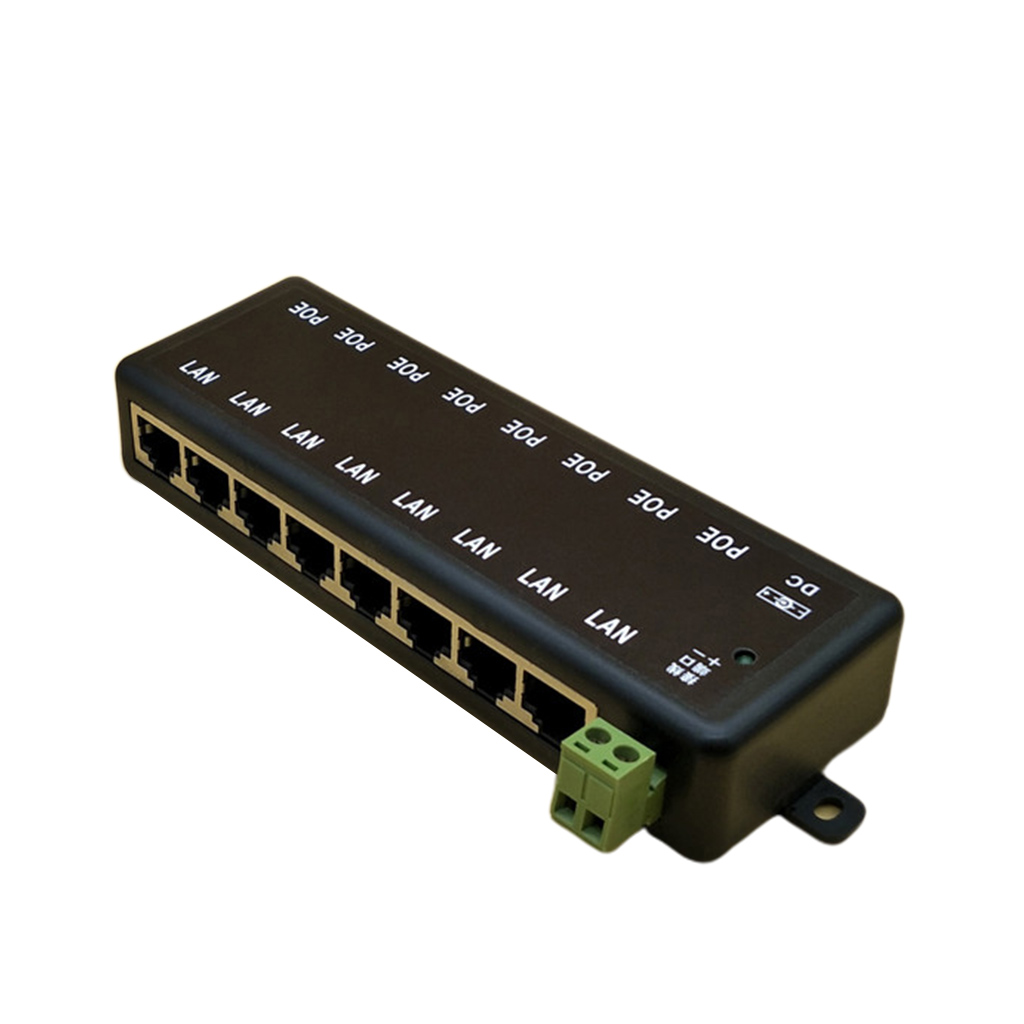

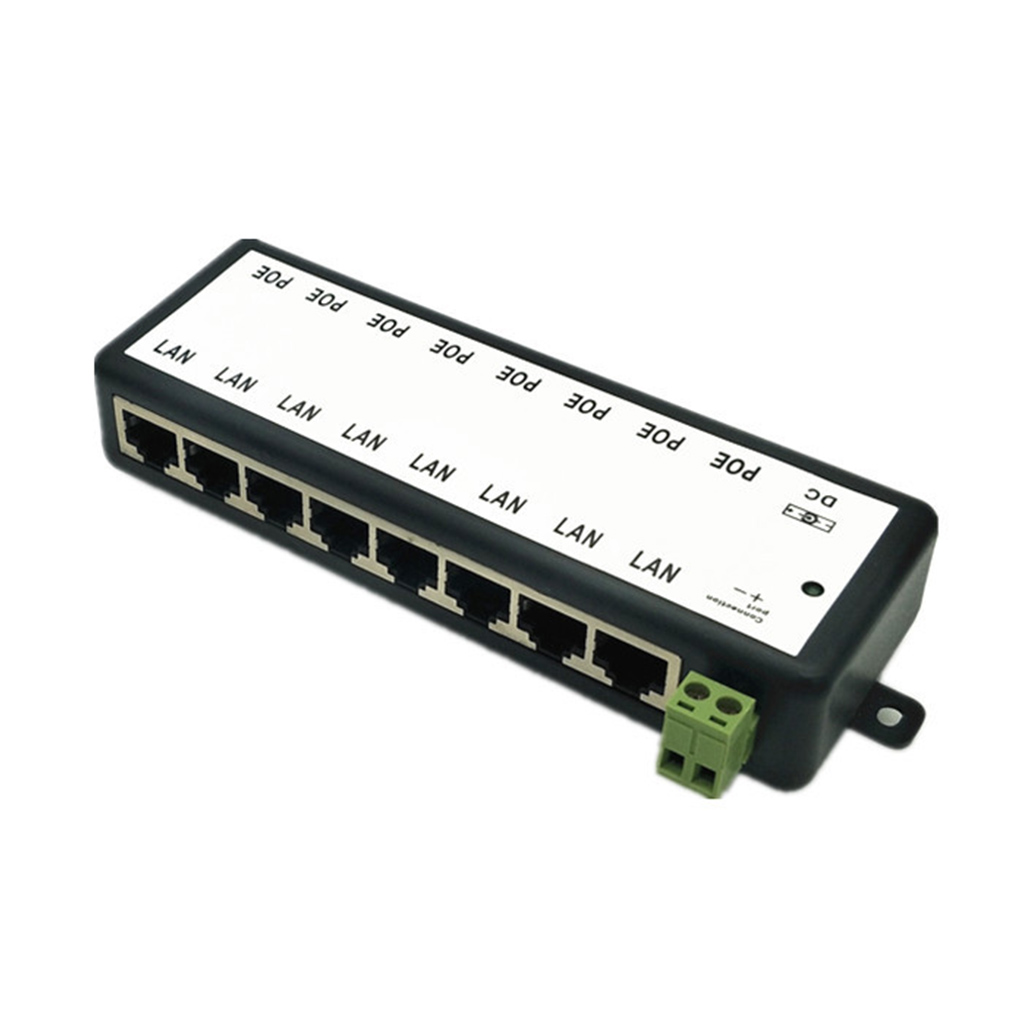

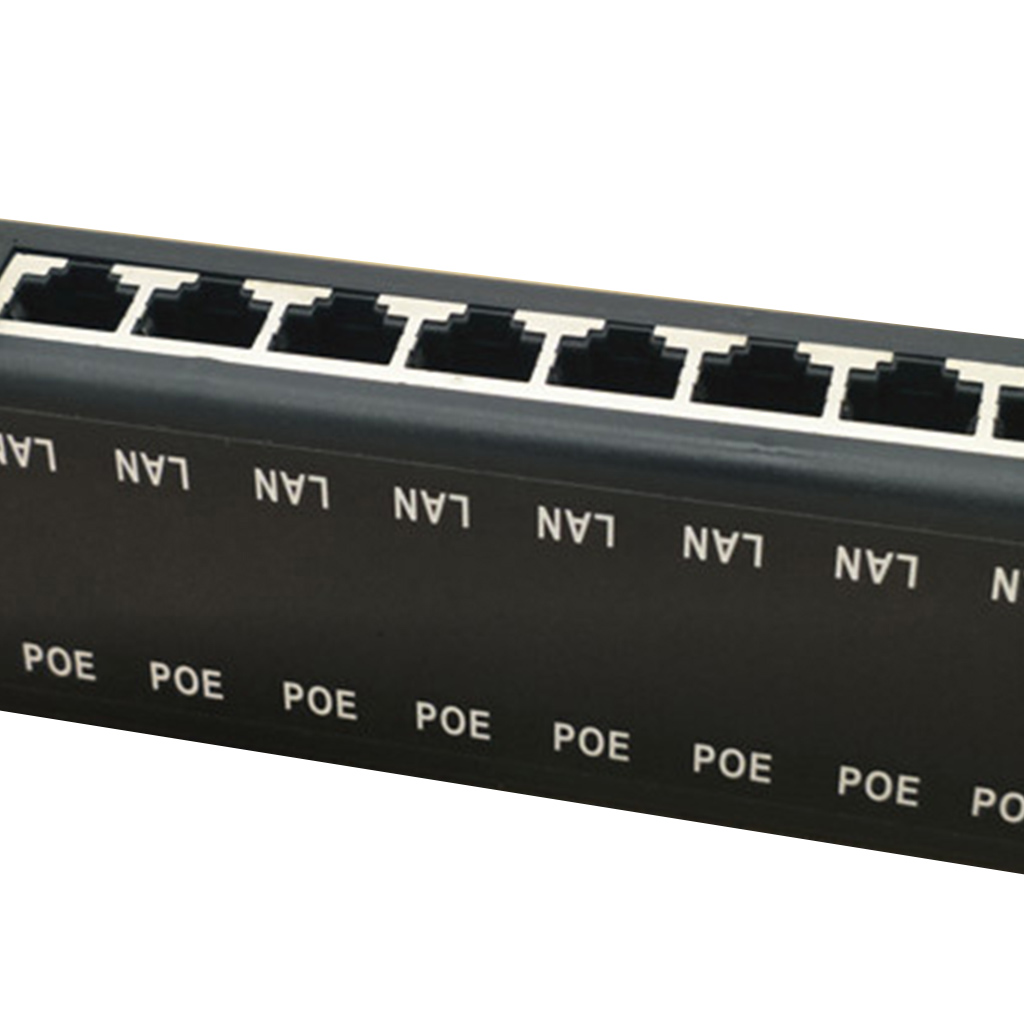

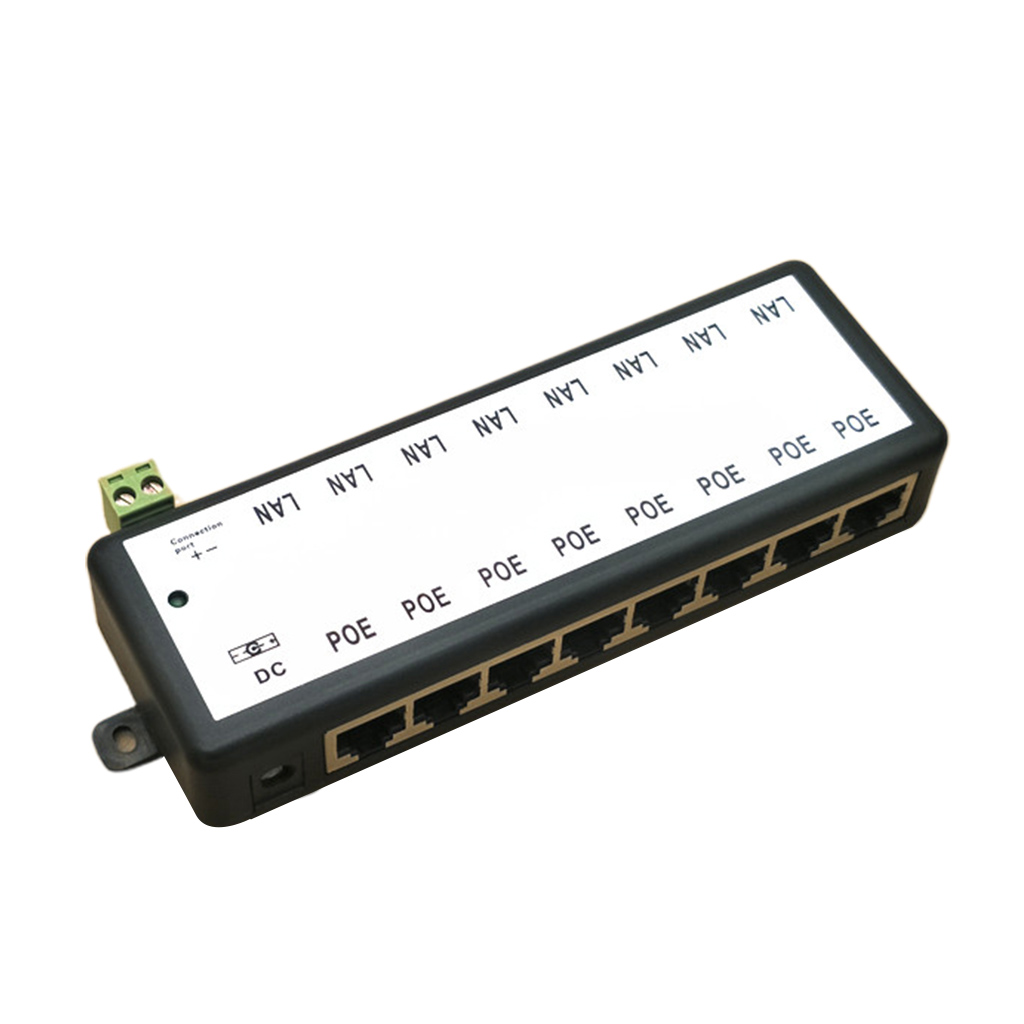

DC12-48V 10/100Mbps POE Splitter for CCTV Network POE Camera Power Over Eth

Description:


Features:
brand new and high quality.
• 4/8 LAN ports, 4/8 LAN and power ports
• Power VOIP phones, IP cameras, WiFi access points, and so on
• Same voltage to all ports, power is shared equally
• 2.1 x 5.5 mm for DC plug
• LED power light
• Works with any Ethernet switch or router
• Uses 48 V power adapter to output 48 V power supply
• Plastic case
• Network cable equipment to line standards:
Straight through 568B; (positive line, that is straight through line, standard 568B: the same end line order, from left to right line order: white orange. orange. white green. blue. white blue. green. white brown. brown)
• POE port: connection bridge AP CPE device WAN interface (used with POE separation line)
LAN port: connect to the router switch or directly connect to the host computer network interface
for DC socket: external -5.5mm* inner +2.1mm
POE port = 4 5 pin positive 7 8 pin negative
1 2 3 6 feet data
LAN port = 1 2 3 6 pin data
Note: The green terminal is connected to the for DC jack supply voltage.


Specifications:
INPUT CHARACTERISTICS:
Nominal Voltage:12-48V DC
Input Current:0-10A
Input data transfer:1/2/3/6 feet
Transmission rate:10/100Mbps
OUTPUT CHARACTERISTICS:
Input Voltage:12-48V DC
Output data transmission:1/2/3/6 feet
Output transmission rate:10/100Mbps
Output transmission power:4/5 positive 7/8 negative
Material:Fireproof material
Size:16.4*6.2*2.8cm


Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)
1 X 8 Ports POE Splitter
