DC Motor Speed Controller 220VAC Input 200VDC Output ABS Wide Speed Range Motor Speed Switch for Replacement

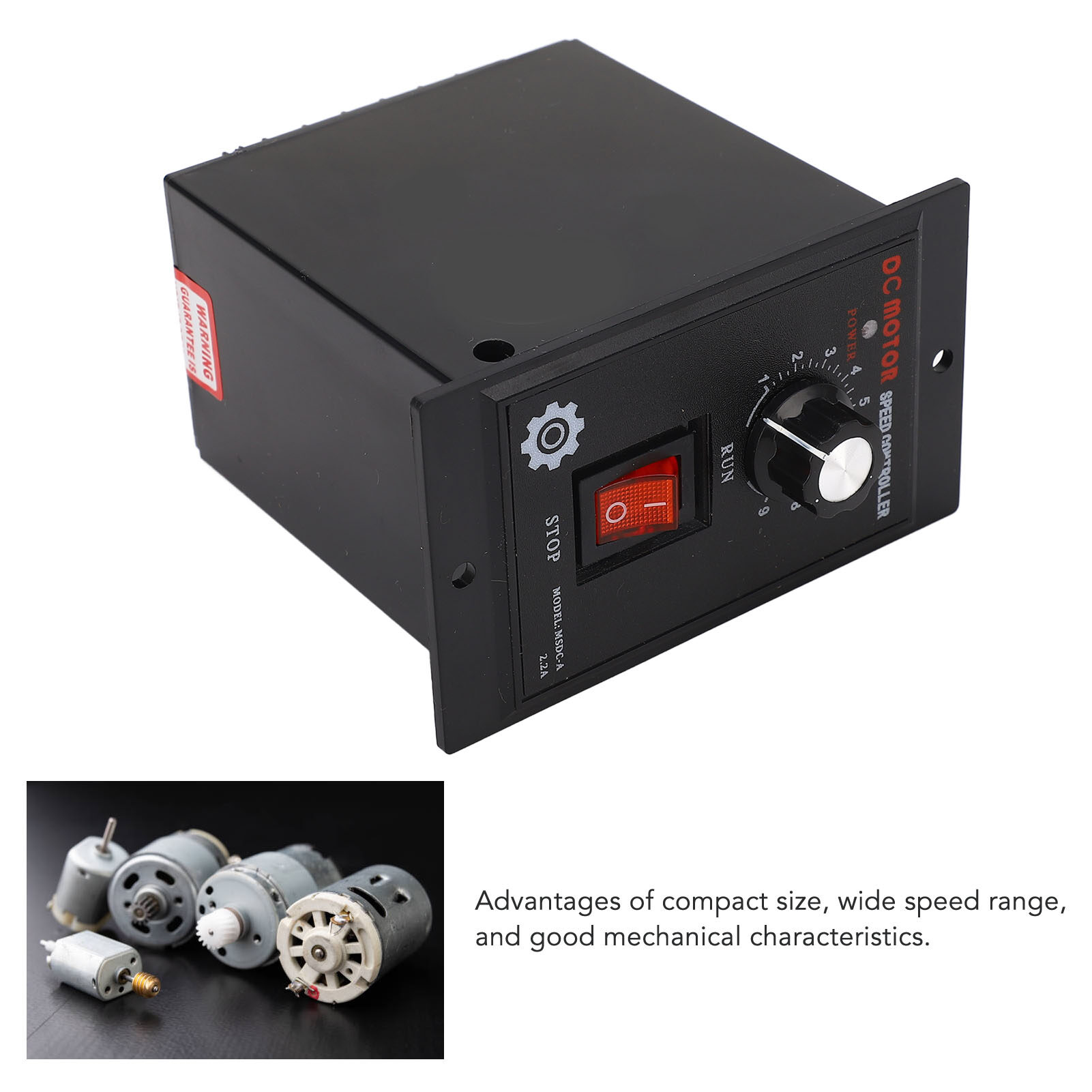

1. SPEED CONTROLLER: This speed controller has the advantages of compact size, wide speed range, and good mechanical characteristics.
2. PRODUCT DETAIL: Electronic DC governor is an electromechanical integrated product that is directly started by DC voltage, combined with brush and brushless DC motors, micro gear reducers, and speed sensors.

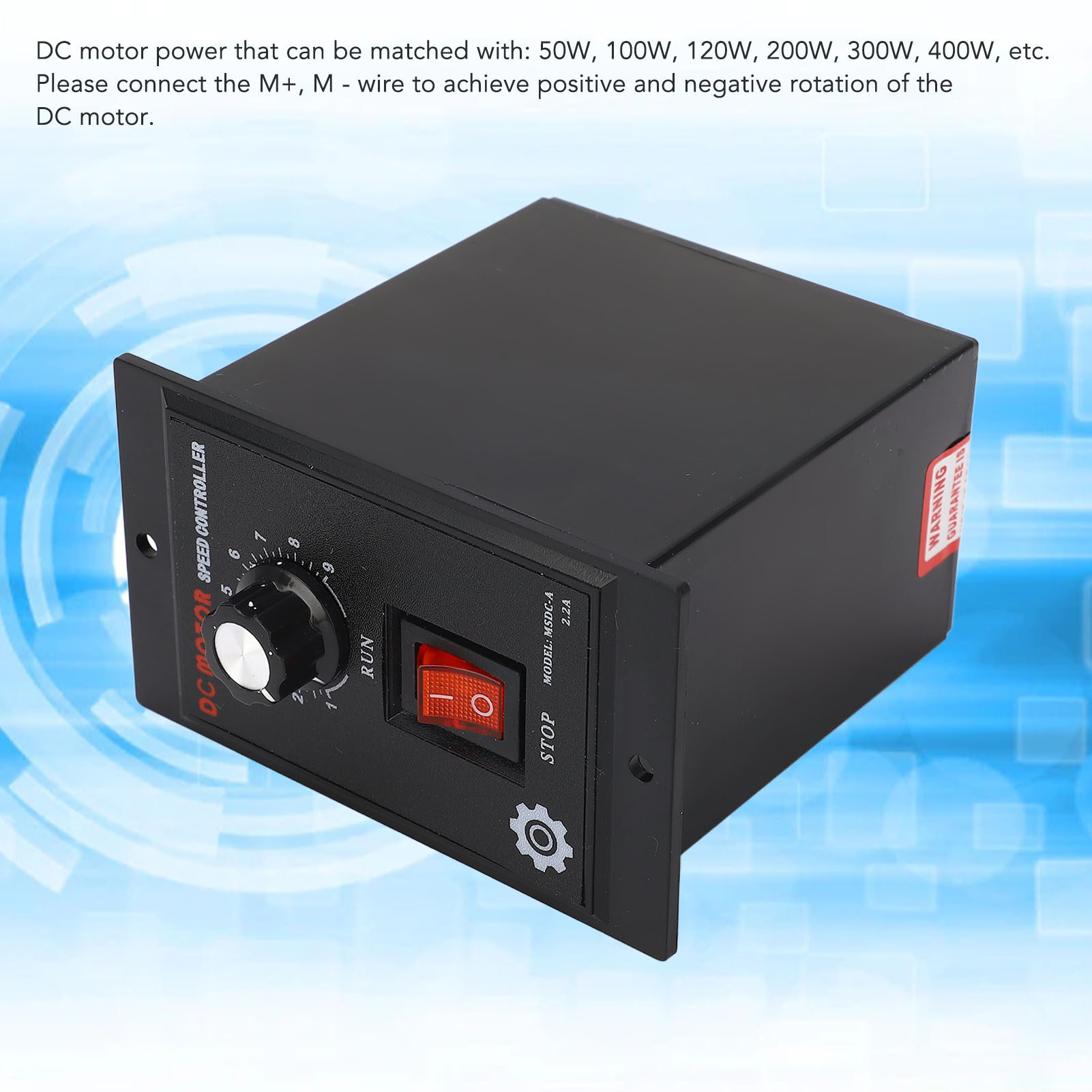

3. USE INDICATION: DC motor power that can be matched with the controller, 50W, 100W, 120W, 200W, 300W, 400W, etc. Please connect the M+, M ‑ wire to achieve positive and negative rotation of the DC motor.
4. SHORT CIRCUIT PROTECTION: DC speed controller uses a built in fuse for overcurrent or short circuit protection. If blows, the controller should be replaced with a fuse of the same specification.
5. IDEAL REPLACEMENT: Wonderful replacement for the old and damaged parts, fine workmanship, attention to details, helps you improve the working efficiency!

Specification:
Item Type: DC Motor Speed Controller
Material: ABS
Input: 220VAC
Output: 200VDC

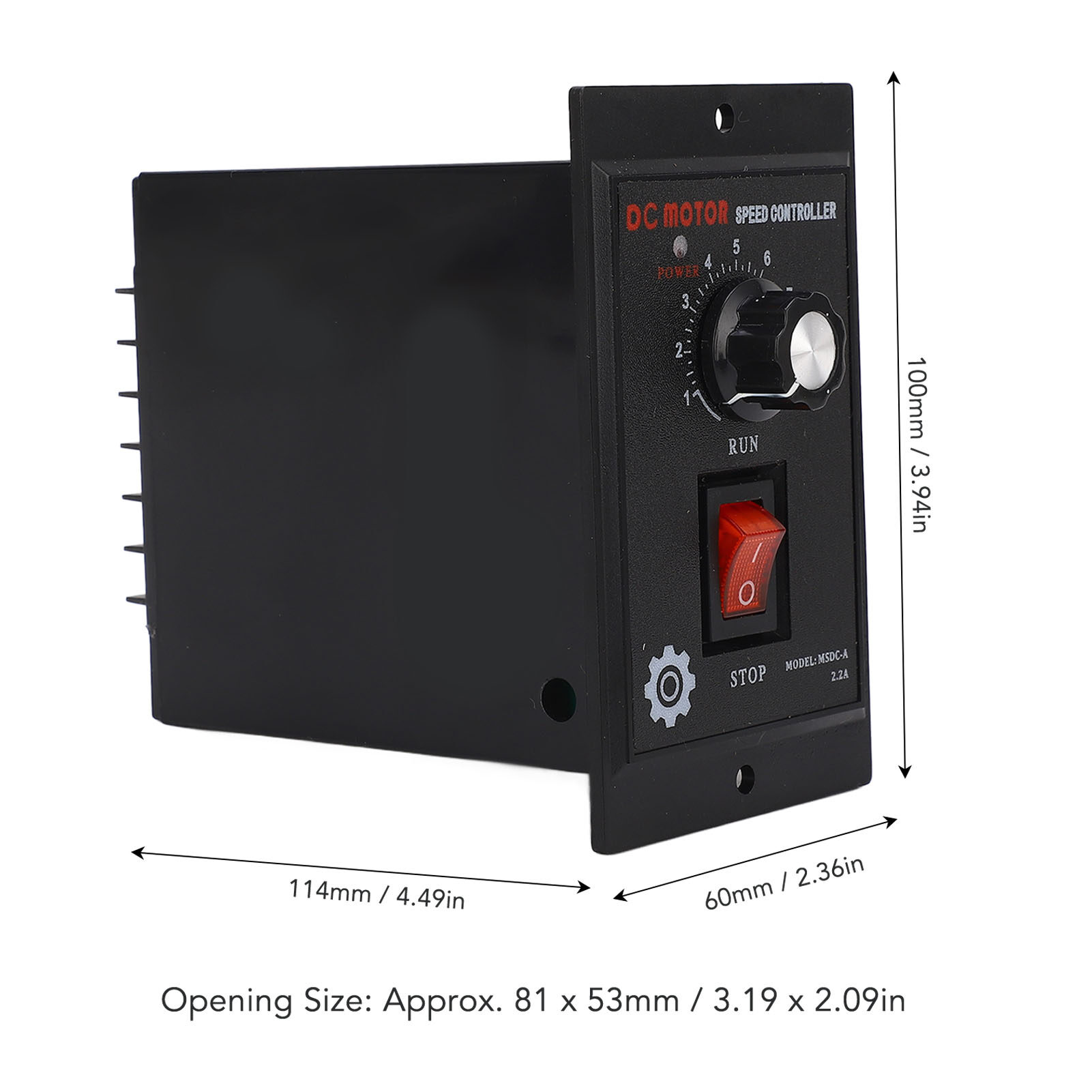

External Size: Approx. 100 x 60 x 114mm / 3.94 x 2.36 x 4.49in
Opening Size: Approx. 81 x 53mm / 3.19 x 2.09in
Installation Method: Panel screw installation

How to Use:

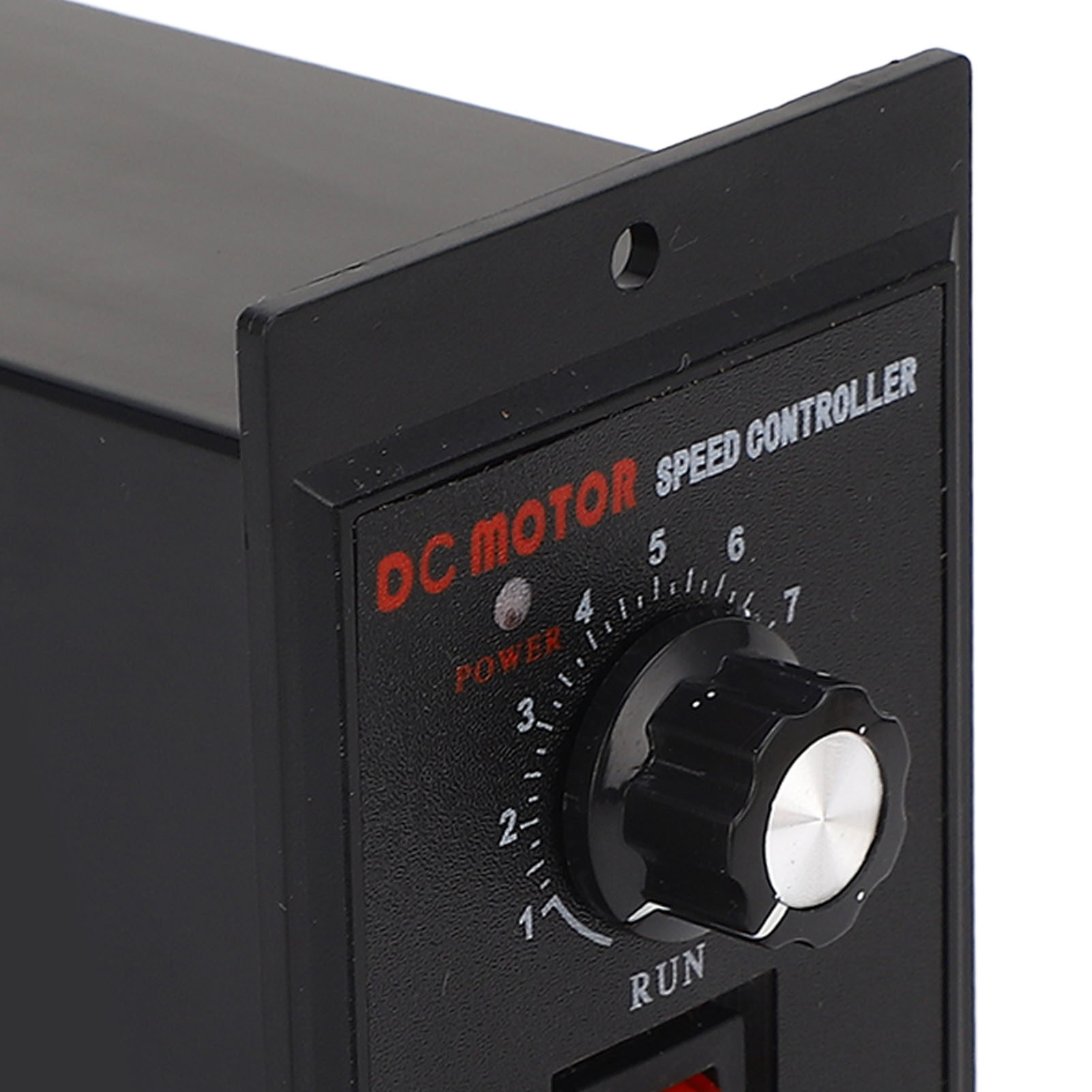

1.Beforeuse,pleaseadjusttheexternalspeedknobto"0"toavoidgeneratinginstantaneoushighcurrentanddamagingthecontroller.

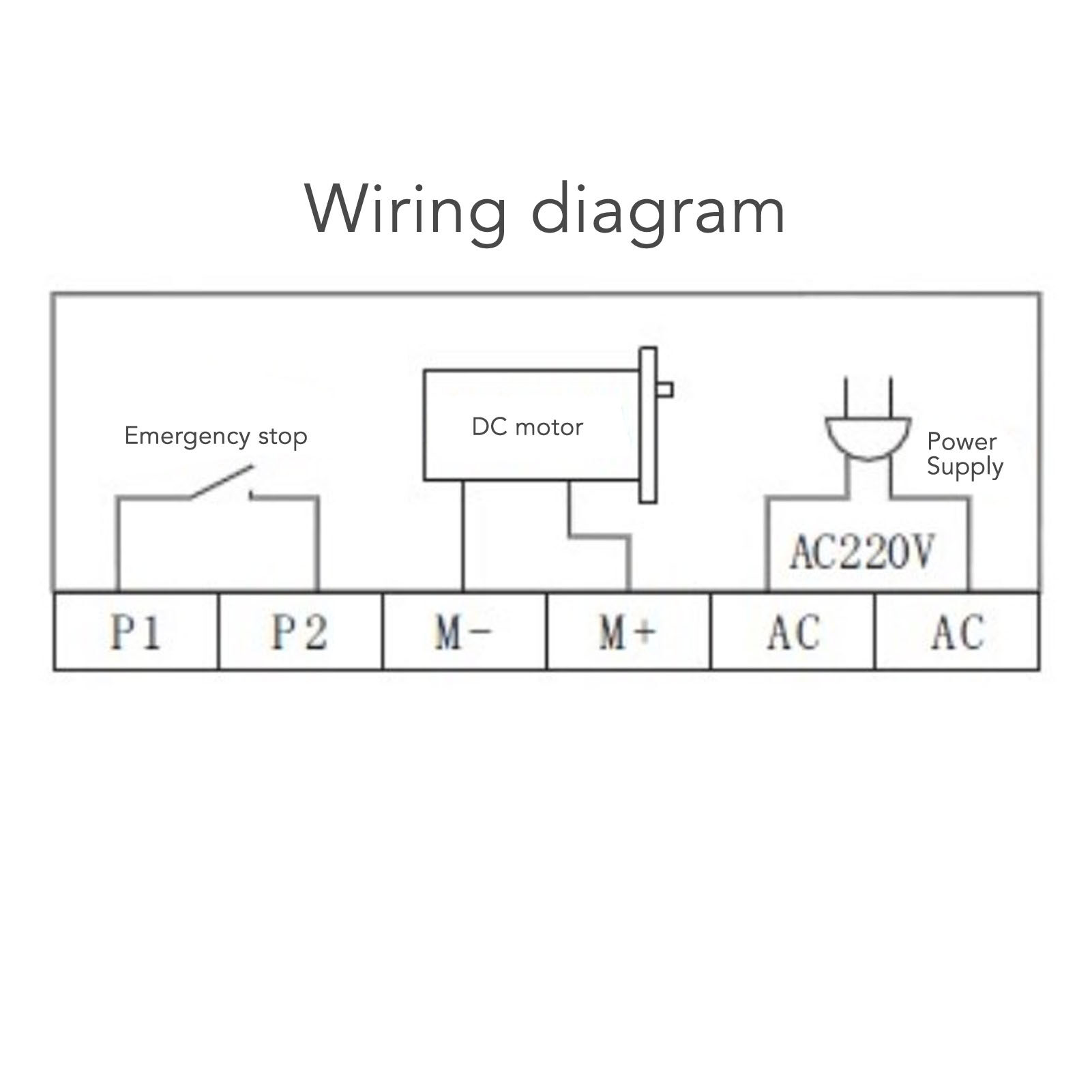

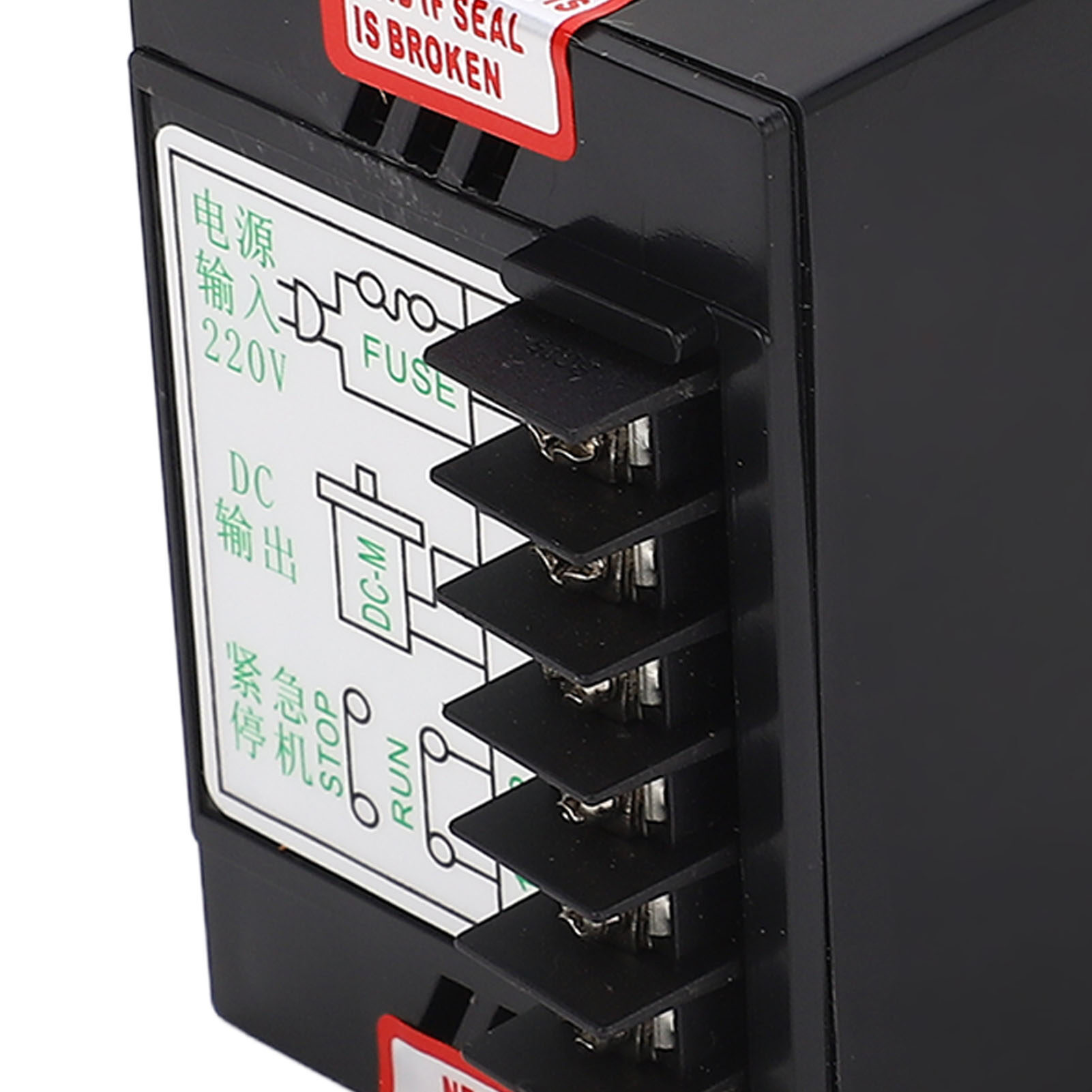

2.Therearwiringterminal"AC"representstheACinputvoltage,"M+"and"M‑"indicatethattheDCpoweroutputisconnectedtotheDCmotor,and"P1"and"P2"aretheemergencystopterminals.WhenP1andP2areshortcircuited,themotorstopsrunning.
3.Thisproductusesabuiltinfuseforovercurrentorshortcircuitprotection.Ifitblows,itshouldbereplacedwithafuseofthesamespecification.Thepanelactionswitchonlycontrolstheactionorstopofthemotorandisnotusedinthepowersupply.

Package List:
1 x

DC Motor Speed Controller
