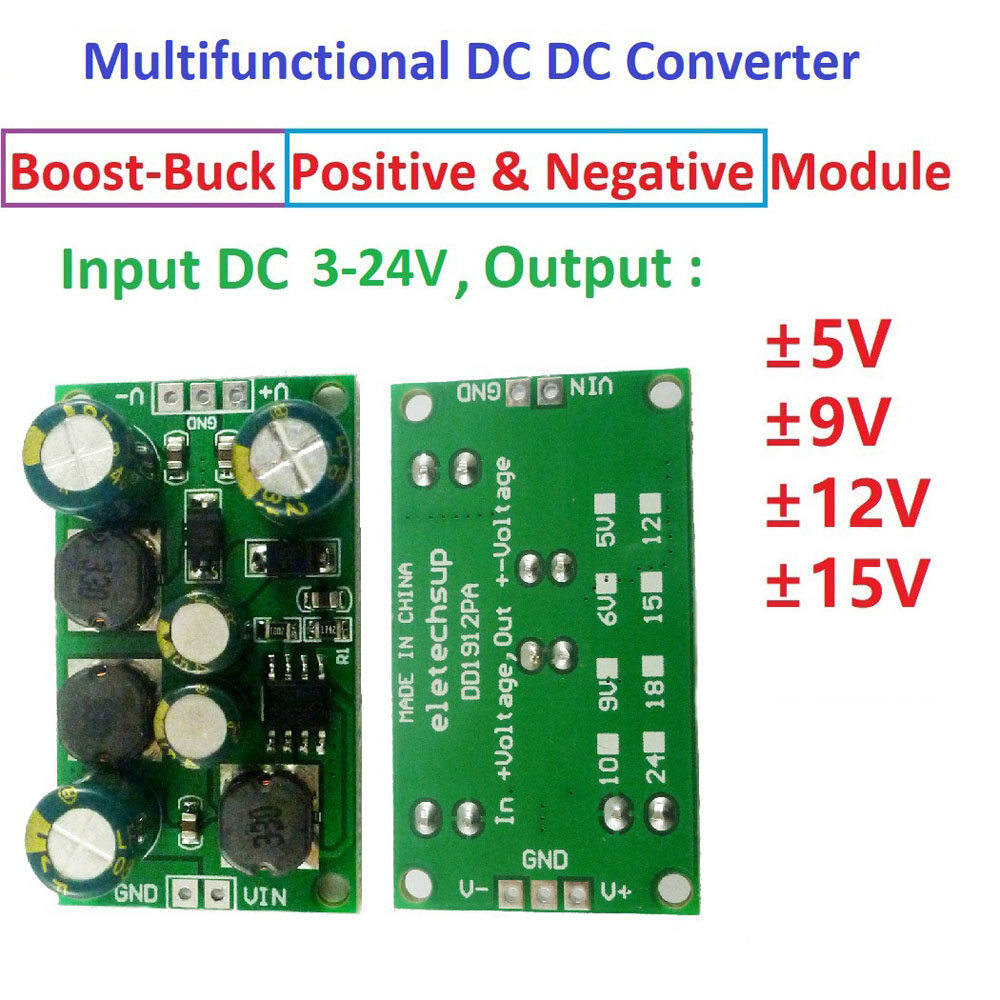

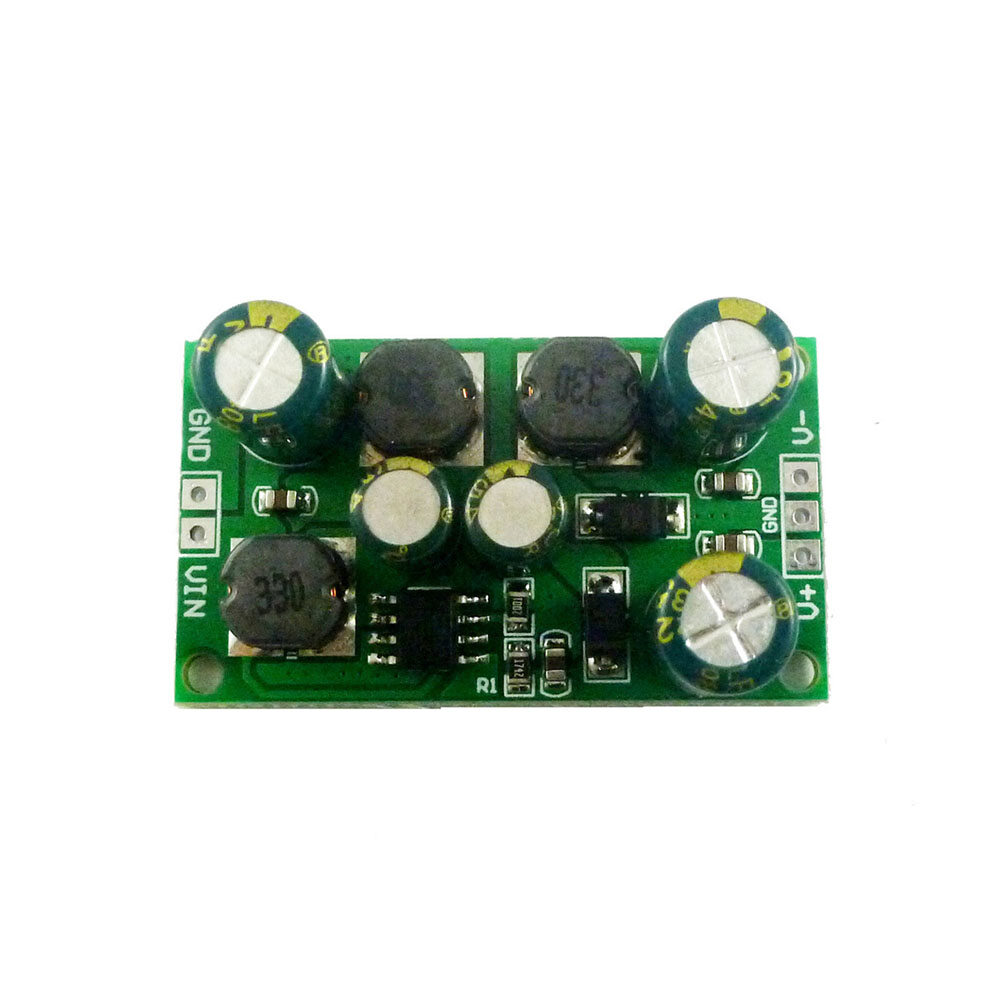

DC-DC Voltage Converter Boost-Buck Power Supply Module Positive Negative Voltage Dual Output 3-24V to ±5V ±9V ±12V ±15V Module

Features:

A variety of options, output optional

High efficiency up to 90%

Built-in frequency compensation

Built-in soft start function

Built-in thermal shutdown function

Built-in current limiting function

Specifications:

Input voltage 3~24V

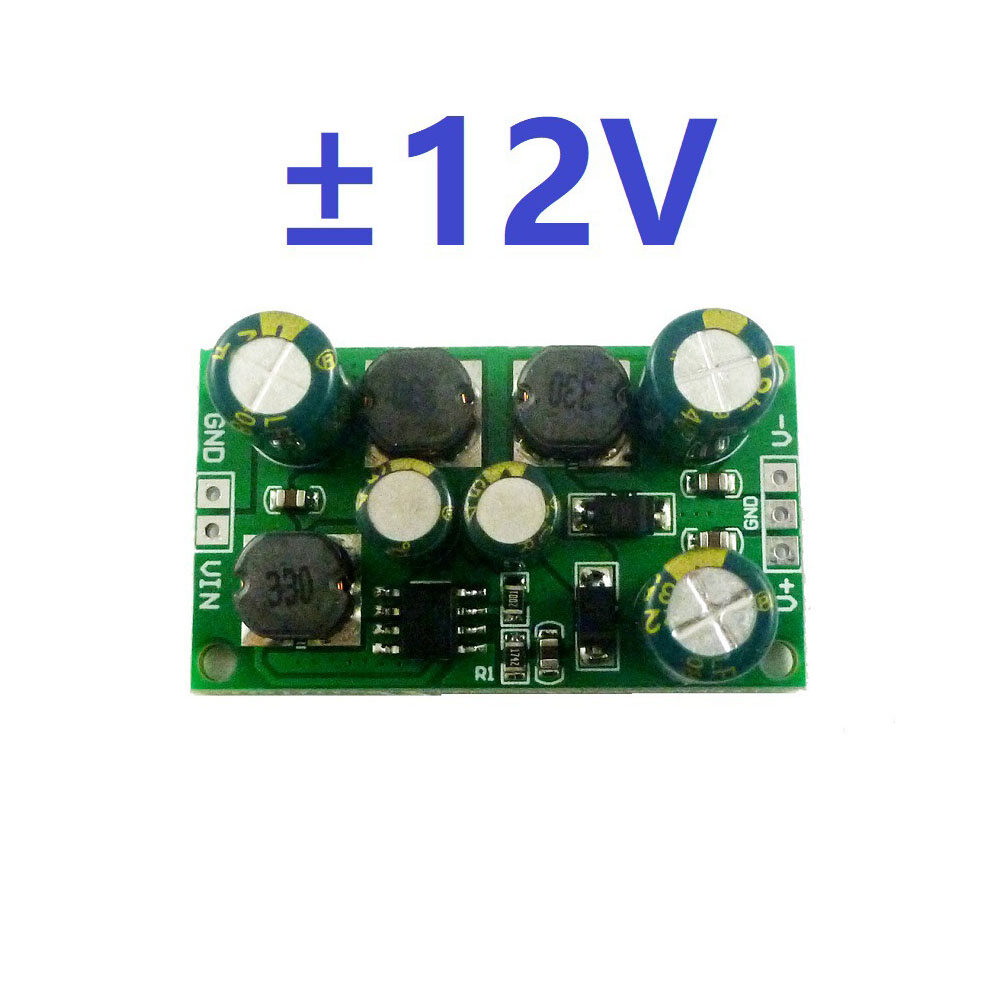

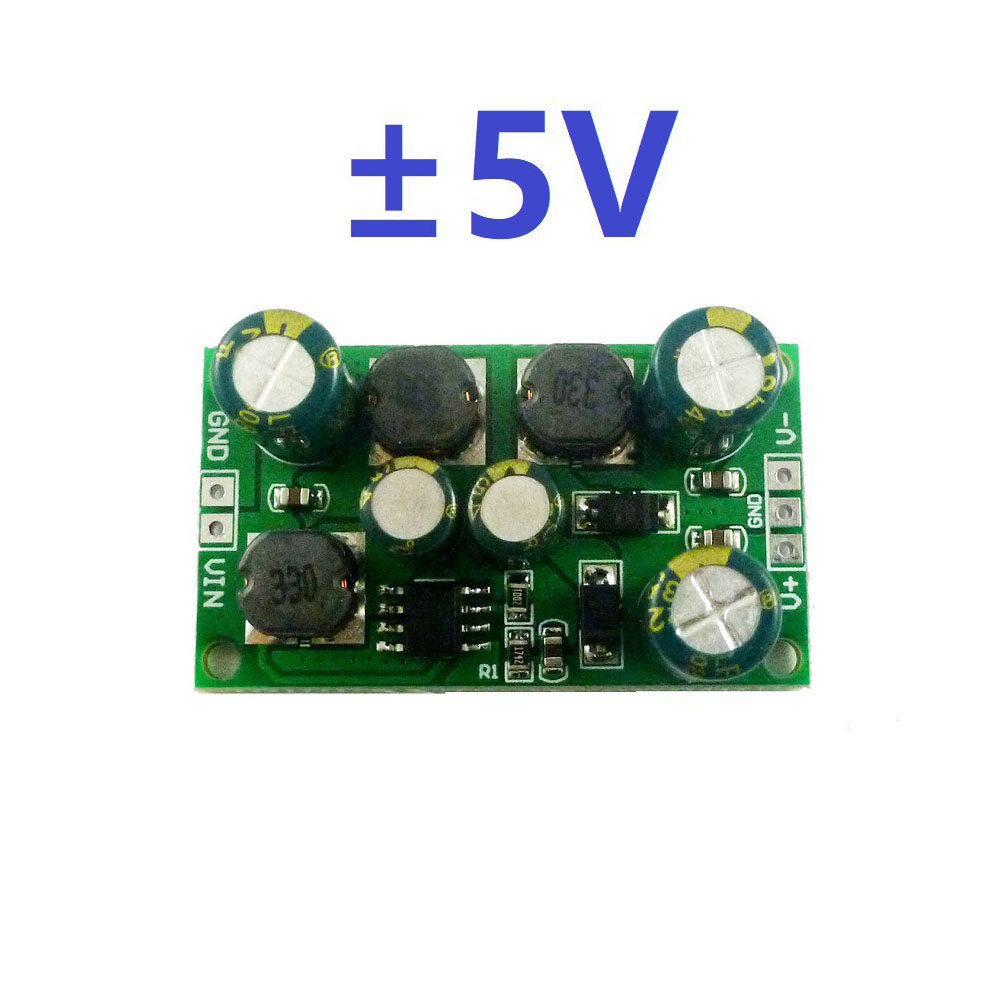

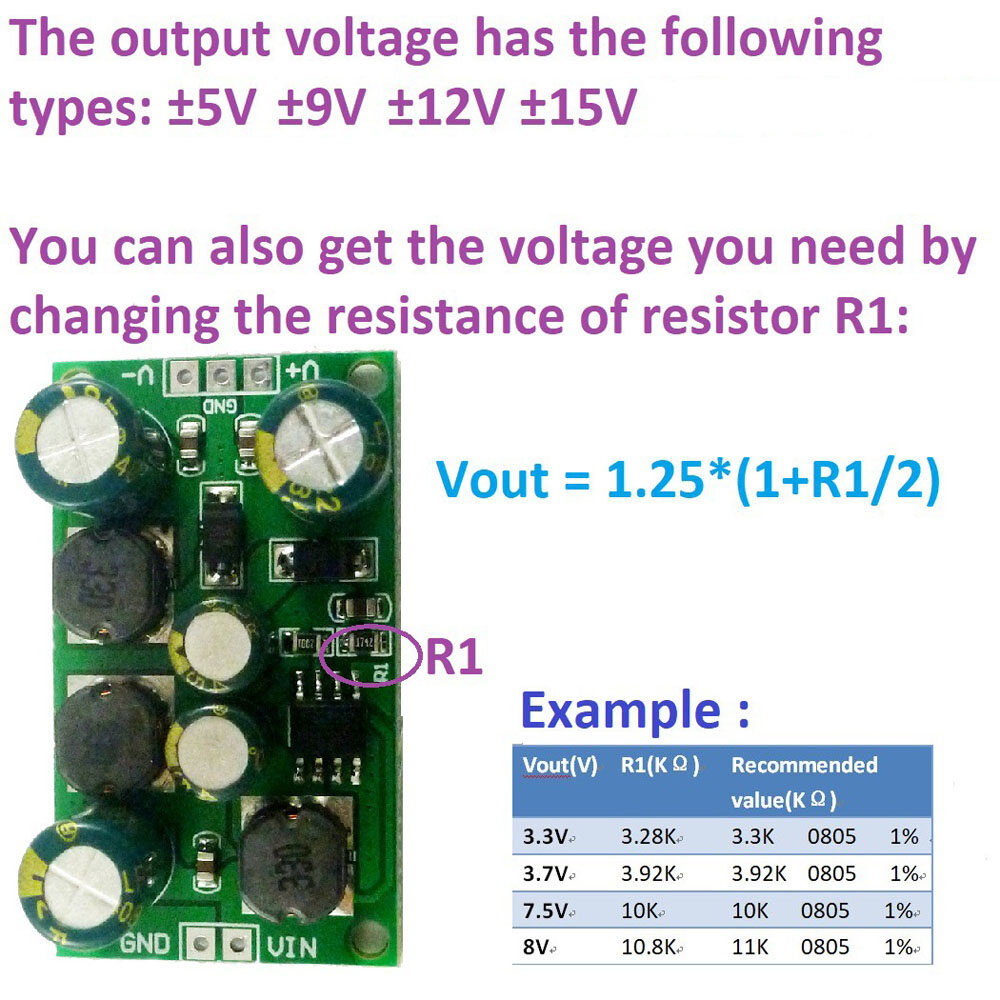

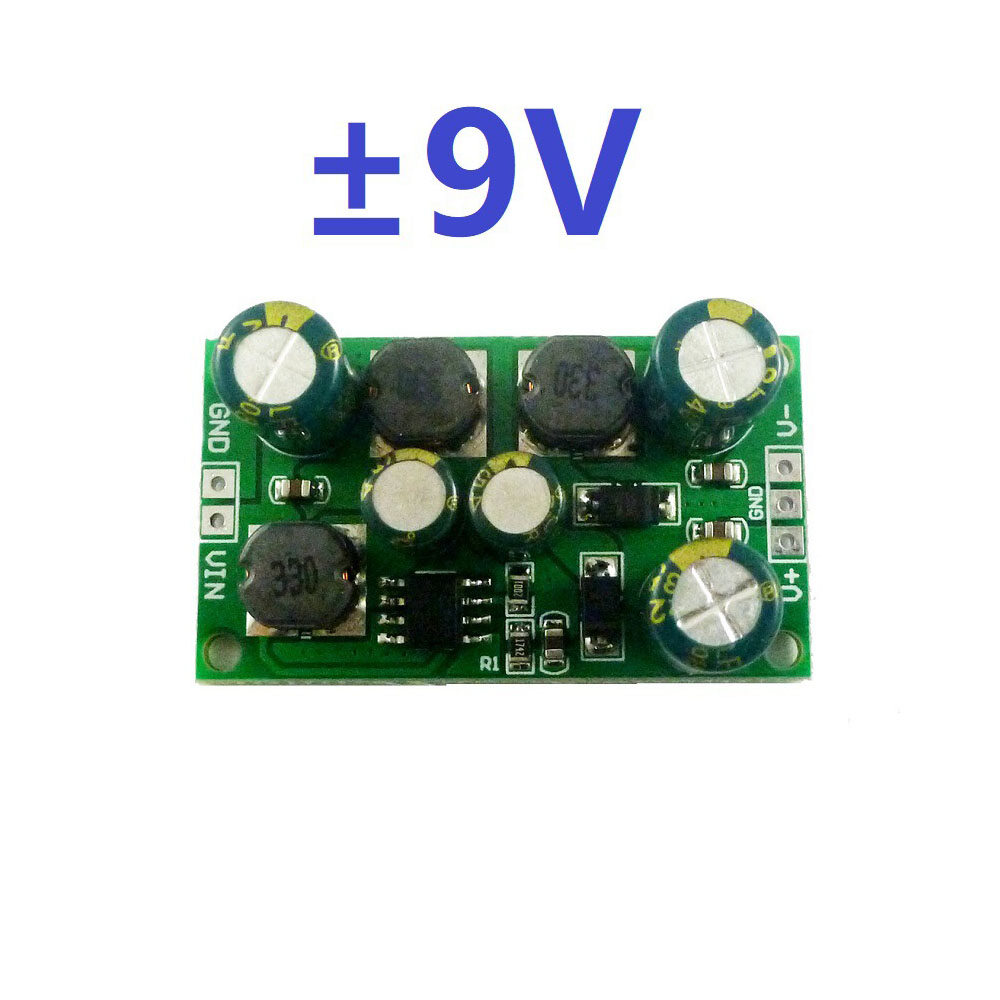

Output optional ±5V/±9V/±12V/±15V

Maximum output power: 1-8W (For details, please refer to the bottom description or consult us.)

Conversion efficiency: 70-90%

Quiescent current: 3-4mA

Accuracy: positive voltage ±3%, negative voltage ±5%

8W DC-DC Boost-Buck converter operating frequency 400KHZ.

Working environment temperature: -40~+85 degrees Celsius

Dimensions : 42x24x15mm

Application:

ADC/DAC/Op amp reference voltage

RS232 RS485 RS422 bus

Audio equipment

Low power audio power supply

Car audio amplifier dual power board

LCD power supply

Instrumentation

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

3. In order to obtain a more stable voltage, it is recommended that the output be greater than 10MA

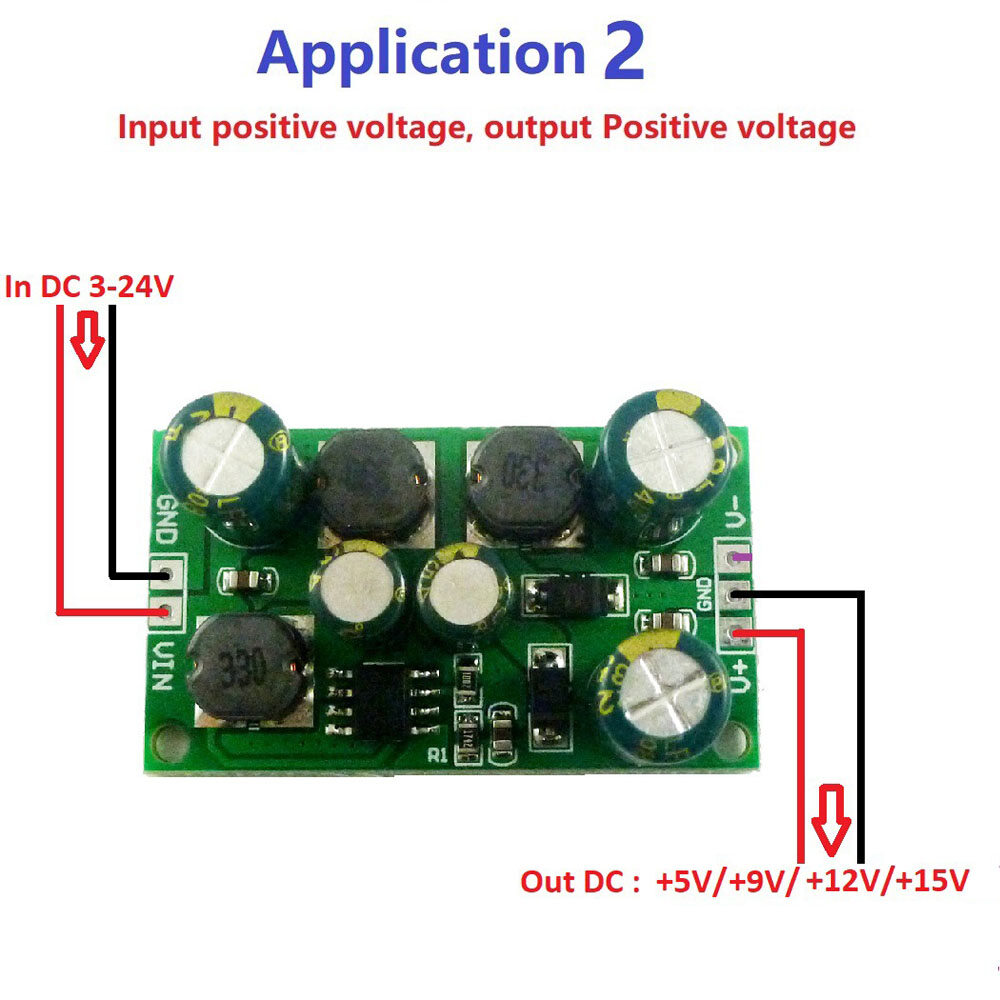

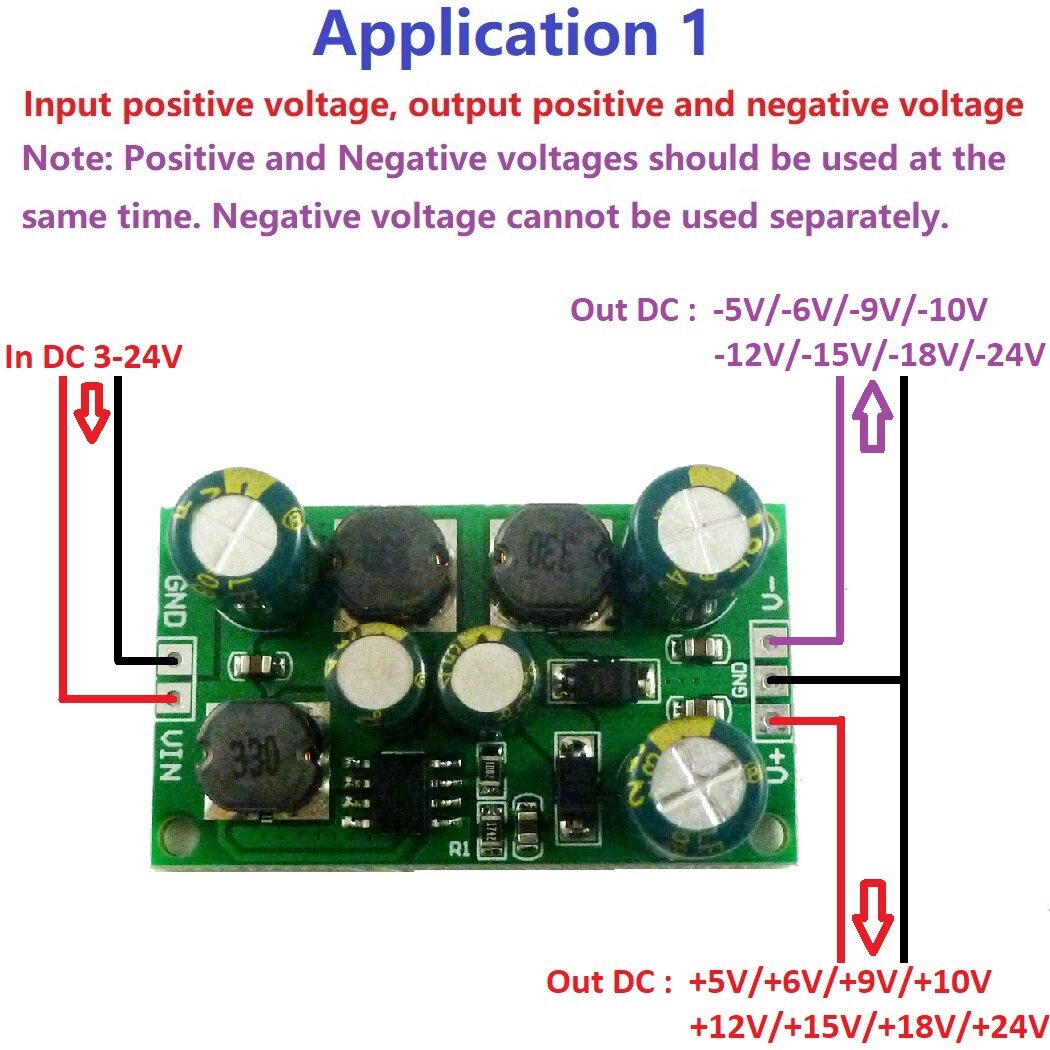

4. 2V can not be used alone, or no voltage output. But you can use V+

5. The input voltage cannot be greater than the maximum input range

6. The output power cannot be greater than the maximum load for a long time

7. The input power must be greater than the output power, because the power consumption of the module itself

Package Included:

1x Power Supply Module
