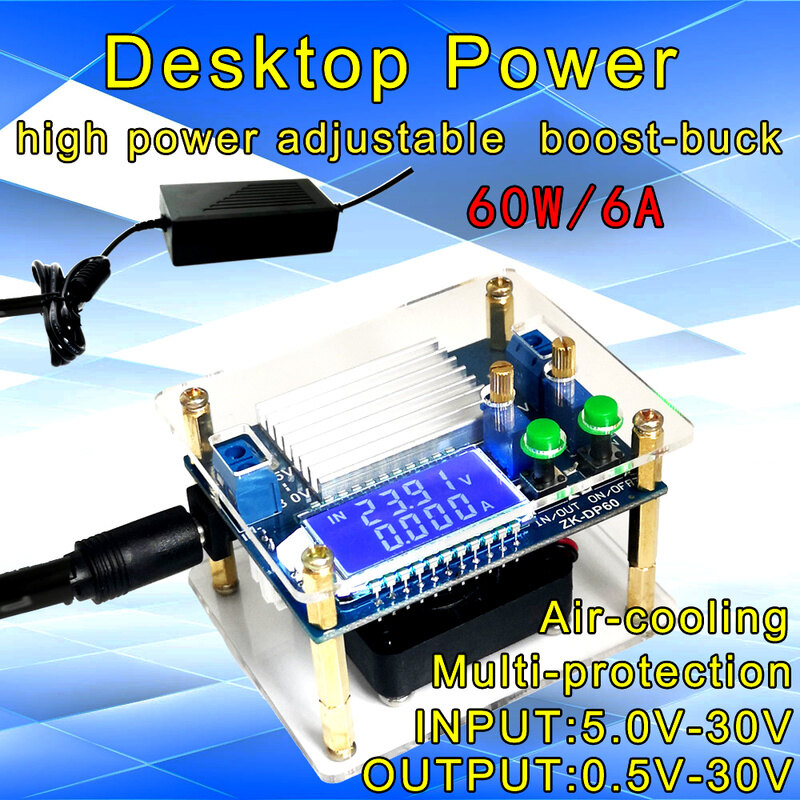

DC DC Automatic Boost/Buck Converter CC CV Power Module 0.5-30V 6A 60W Adjustable Regulated Power Supply Voltmeter Ammeter

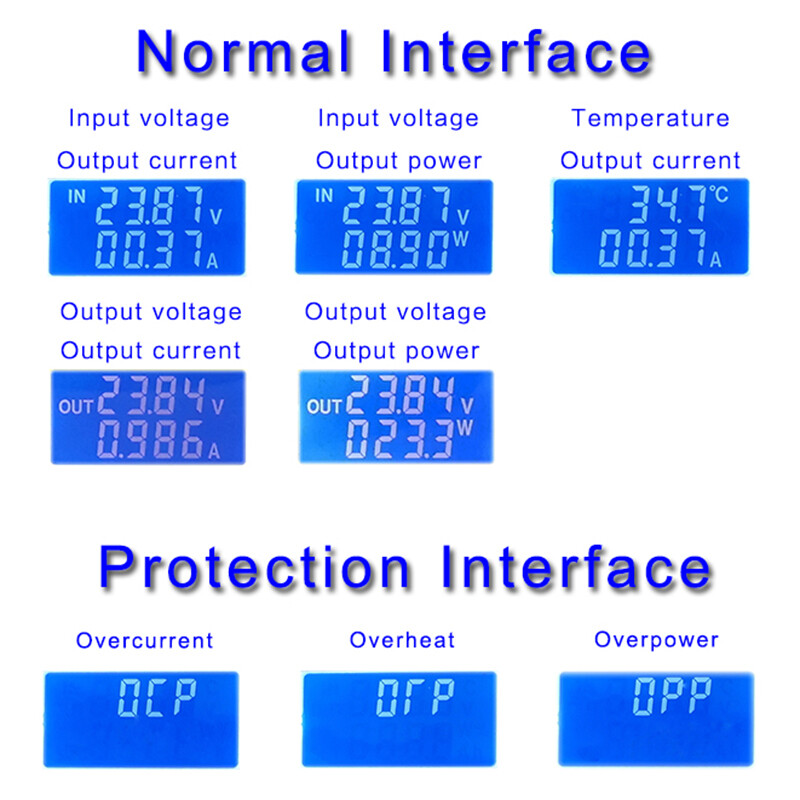

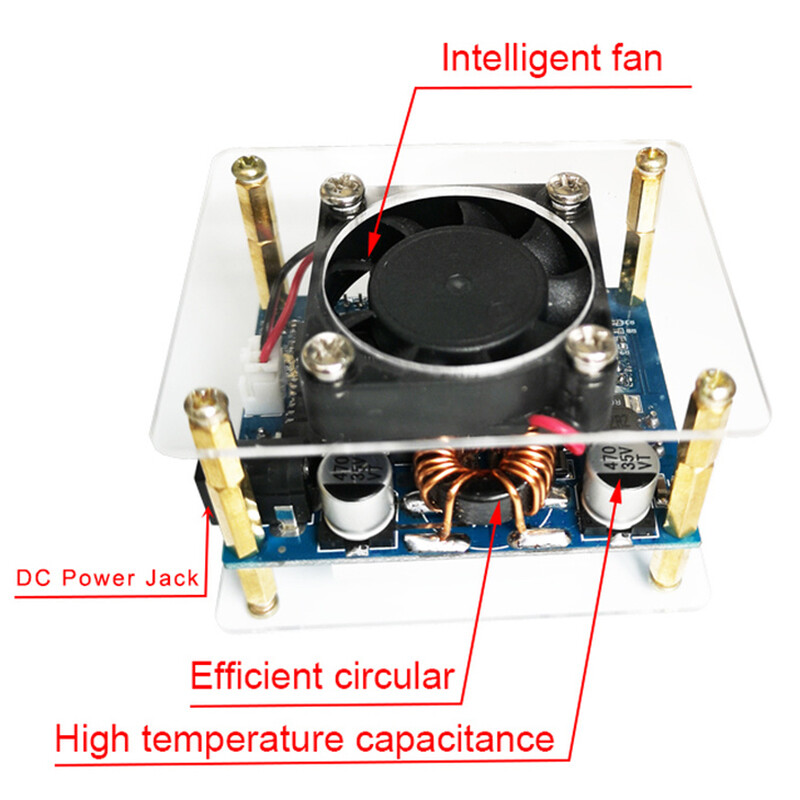

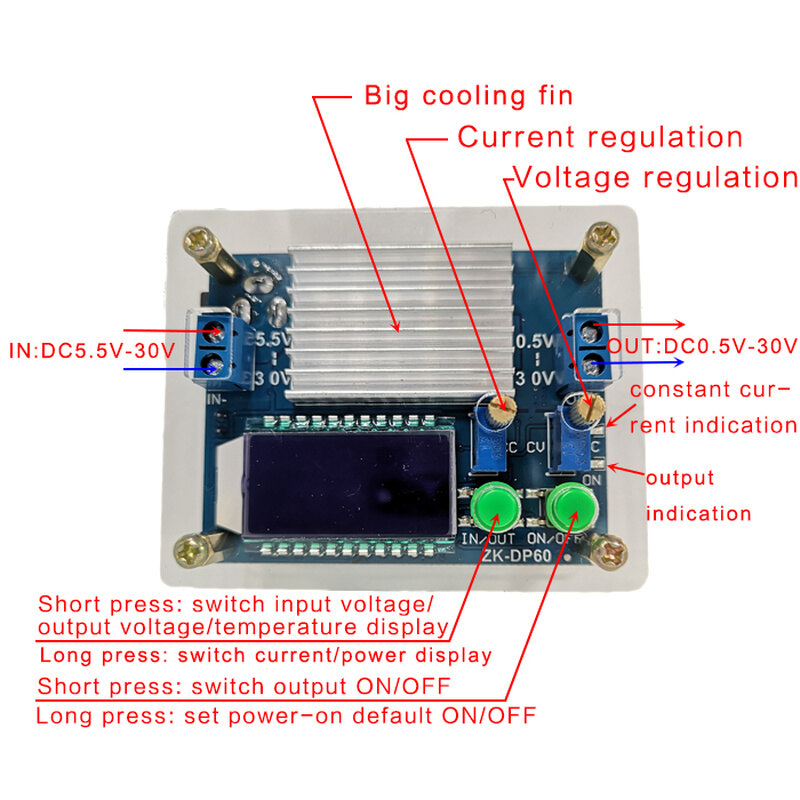

1. Highlights: 1.1. The long handle potentiometer adjusts the voltage and current. It can be operated manually without the need for a magnetic knife. 1.2. Features a large capacity heat sink and case. Optional fan.1.3. LCD input voltage, output voltage, temperature, output current, output power; 1.4. Hardware protection: The input has reverse connection protection and will not be burned; the output is anti-return water, and there is no need to add a reverse-feed diode when charging. Software protection: over-current protection, over-power protection, over-temperature protection. 1.5. It can be boosted and stepped down, the output voltage can be adjusted arbitrarily from 0.5-30V, and the current can be adjusted arbitrarily to 0-6a; 1.6. The button controls the output on/off state, and can be turned on or off by default; 1.7. The output ripple is small, LC filter; 2 .Parameters: Input voltage: 5.5-30V (5V input voltage, usually can achieve boost, but the voltage and current meter value is not accurate; less than 4.7V, power protection low voltage) Output voltage: 0.5-30V Output current: Output current: no fan Version can work 4A stably for a long time, fan version can reach 6A Output power: 35W fanless version, 60W fan version Voltage display resolution: 0.01V, 1% accuracy error Current screen resolution: 0.001a, 1% accuracy error Conversion efficiency: About 88% Soft start: Yes (it is very strong when starting the load, the start may fail) Input reverse polarity protection: Yes Intrusion Output Output: Yes Short circuit protection: Yes Temperature protection: 100 degrees Celsius Power protection Power: 60W Overcurrent protection: 6A Operating frequency : 180KHz fan rotation: current is greater than 3A, or power is greater than 20 watts, or temperature is greater than 40 degrees Celsius Dimensions: fanless version length * width * height 72*59*32mm long i version fan * width * height 72*59*43mm installation Hole: diameter 3mm3. Function description: 3.1. The module has input/output, on/off two buttons: the input/output button switches the input voltage and displays the output voltage, long press to switch the display current output source; the on/off button controls the output on or off, long press the power supply, the default output state is on or off. 3.2.CC is the current setting potentiometer. Turn clockwise to increase the current setting. When the load current reaches the set current, it enters the constant current state, and the CC constant current indicator (red) is on; the CV on the right is the voltage setting potential , turn it clockwise to increase the output voltage. The on indicator is the output status indicator, the output voltage is on, otherwise it is off. For more details, please contact us for help, thank you ^^
