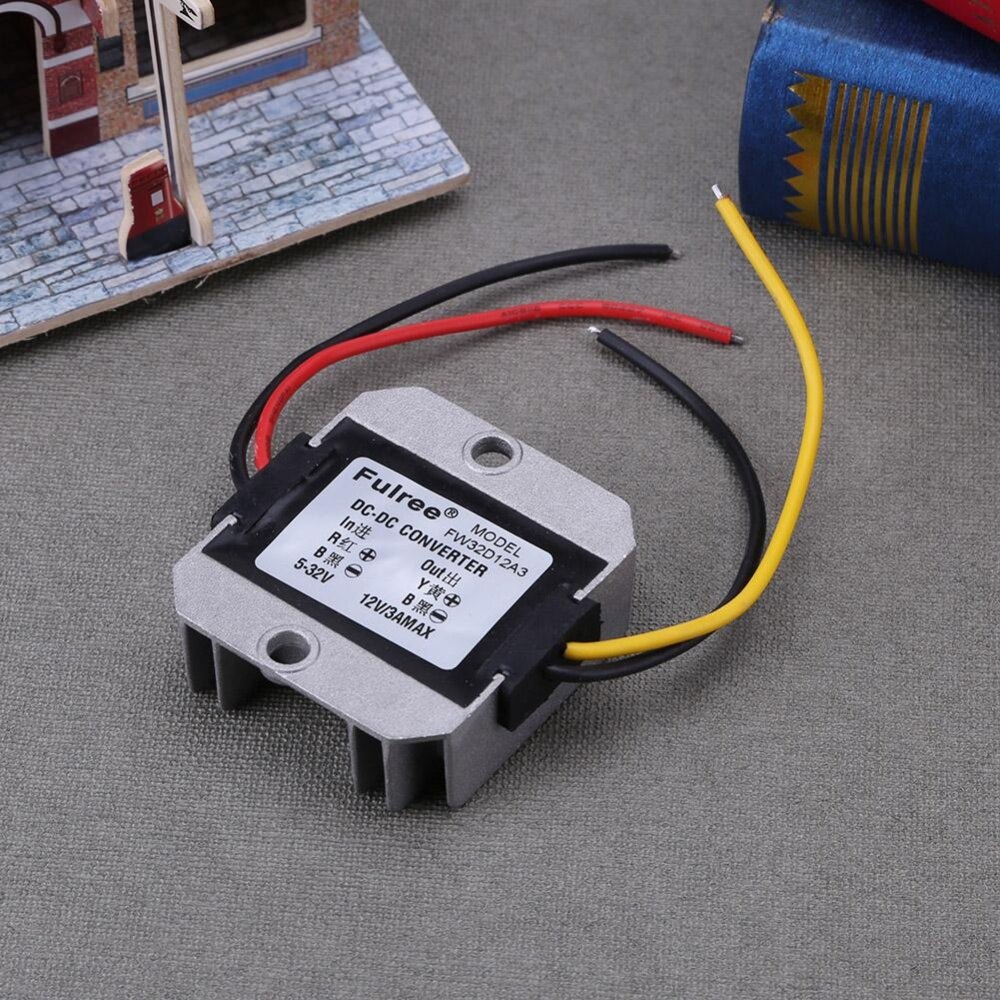

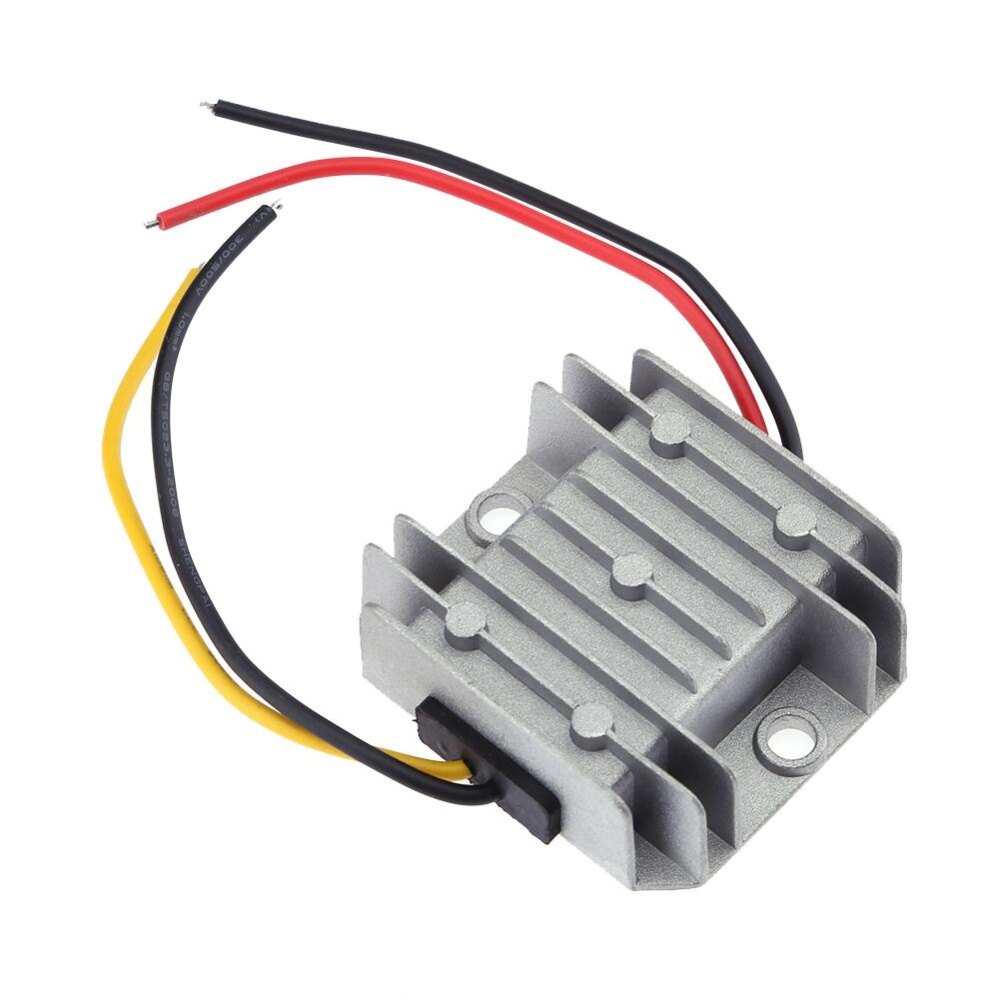

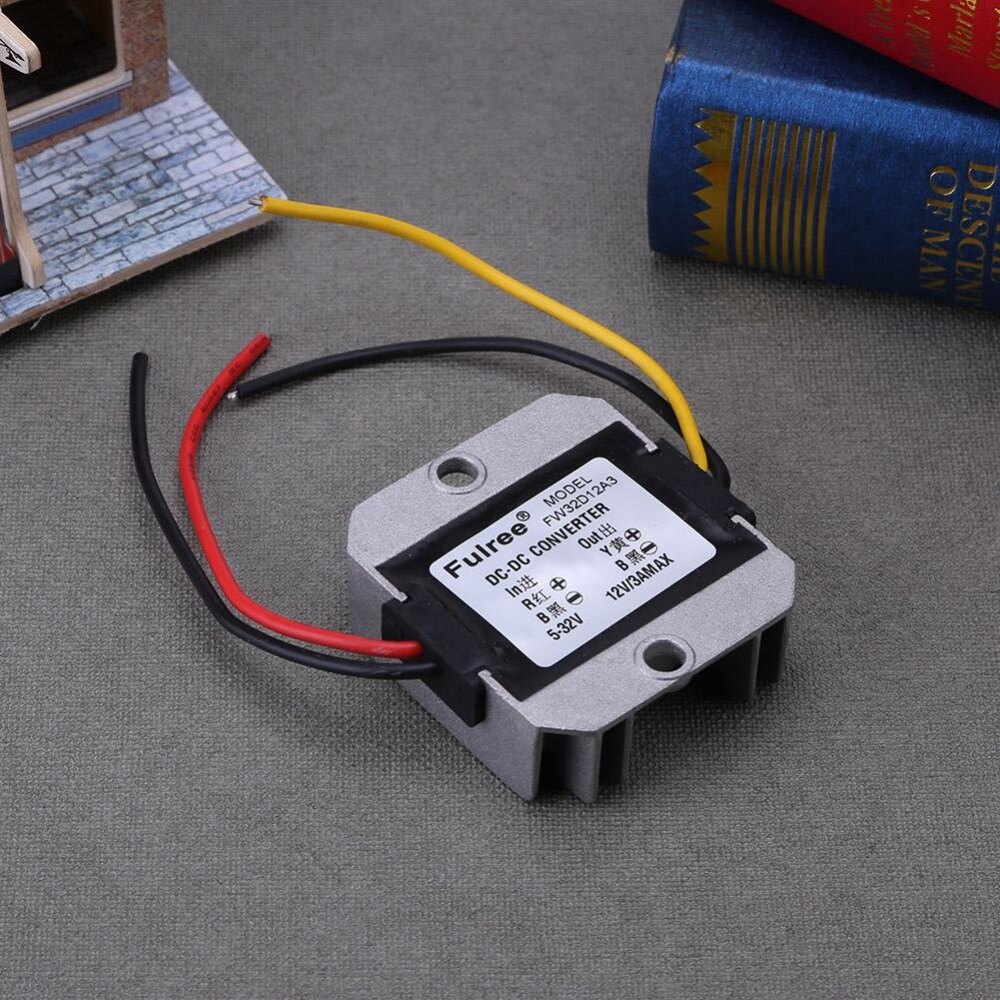

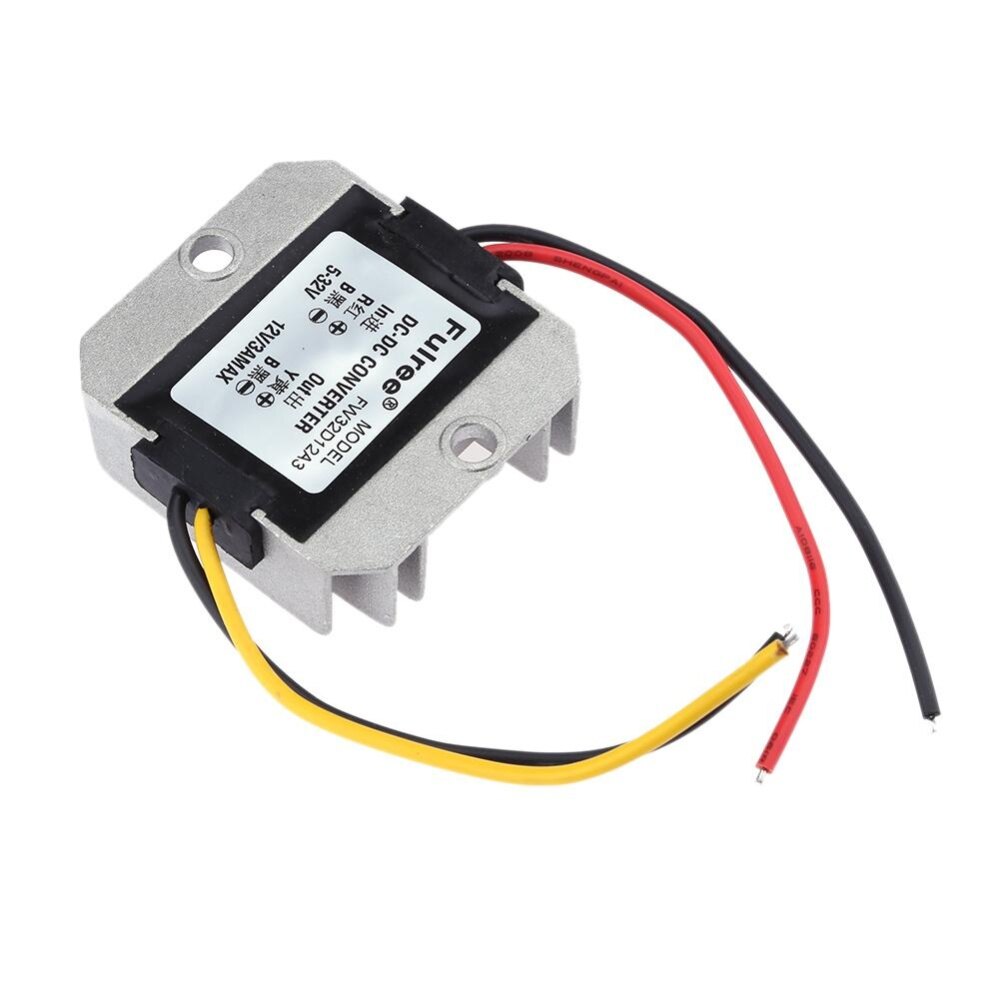

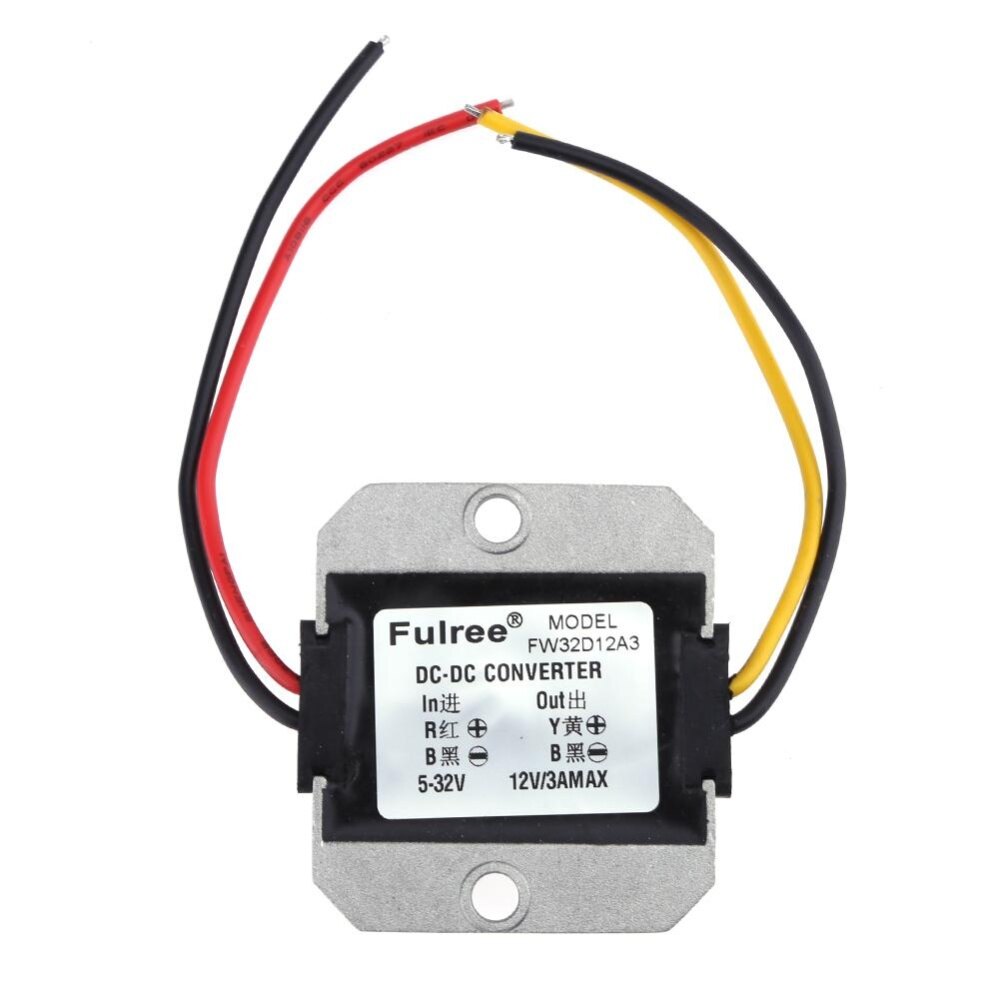

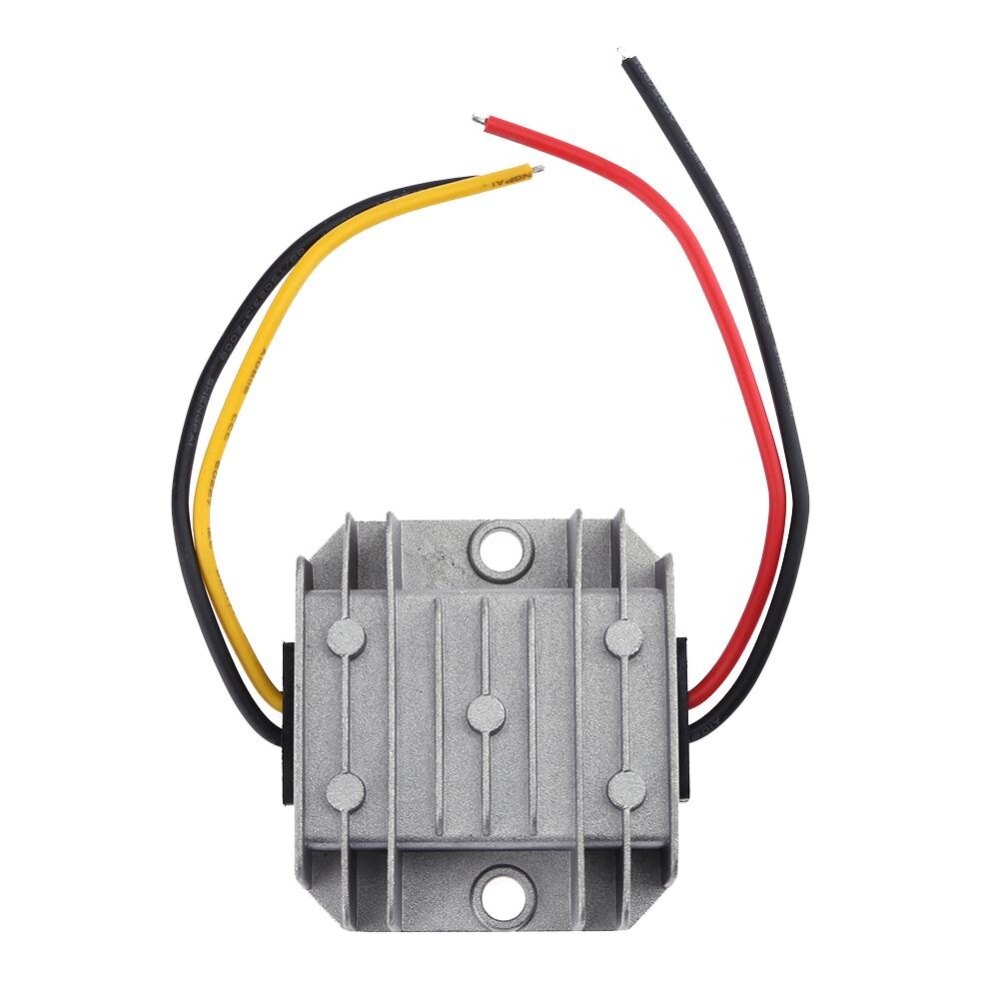

DC-DC 5-32V to 12V3A Automatic Voltage Stabilizer Power Converter Regulator

DC-DC 5-32V to 12V 3A Automatic Voltage Stabilizer Power Converter Regulator

Features:
Short circuit protection, over current protection, over heating protection, under voltage protection.
Built in multiple protection, with high conversion and stability, the maximum conversion rate of more than 95%, low heat, stable and reliable.
Organic silicon packaging technology, better thermal conductivity, IP67 cgrade waterproof, shockproof, moisture-proof, dust-proof.
With aluminum alloy shell, it is safer and better heat dissipation than traditional plastic one.
Applicable to audio, routers, surveillance cameras, LED lights, printers, security systems, portable DVD, photovoltaic panels, LED car displays and a variety of 12V voltage applications.

Specifications:
Input voltage: DC 5-32V
Output power: 36W
Input current: 3A
Output voltage: DC 12V
Operating temperature: -40~80℃
Conversion efficiency:Maximum over 95%
Installation cable length: approx. 13-14cm/5.11-5.51''
Mounting hole spacing: pprox.52mm/2.04''
Mounting hole size: pprox.5mm/0.19''
Product size: approx. 66*60*22mm/2.59*2.36*0.86''
Heat dissipation: natural heat dissipation

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
