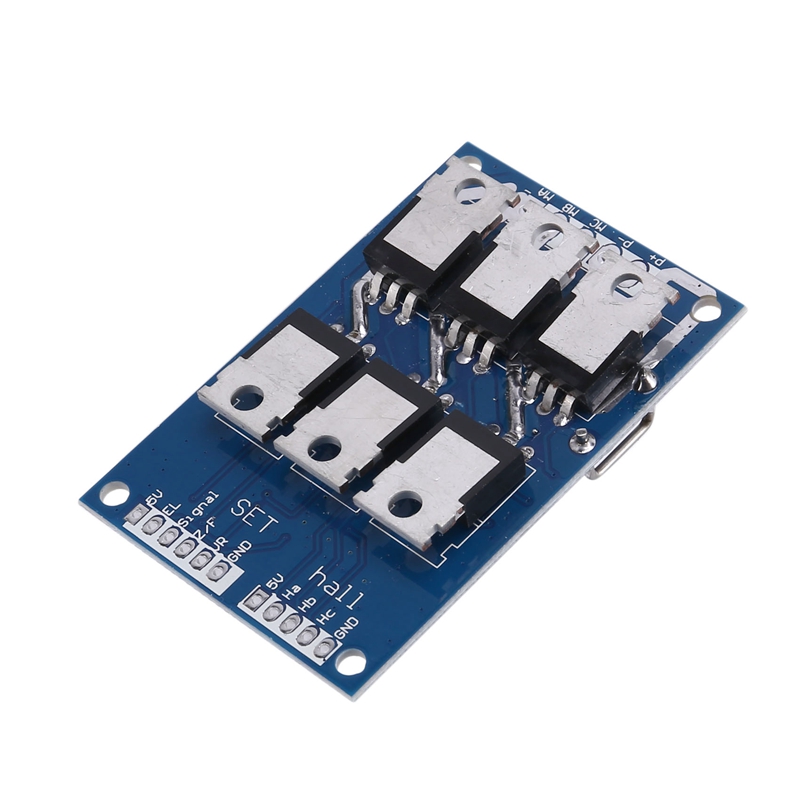

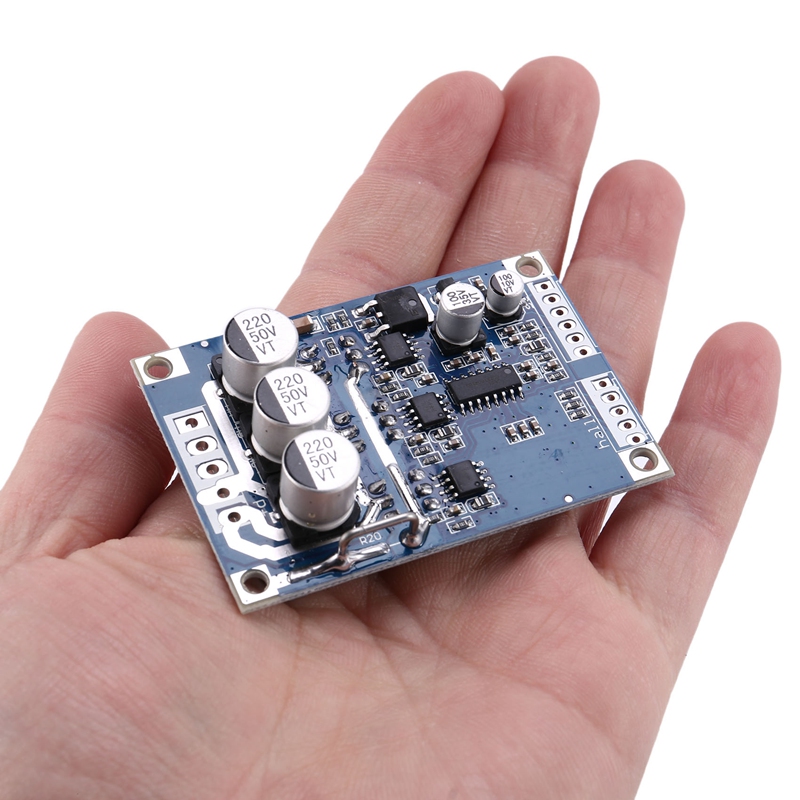

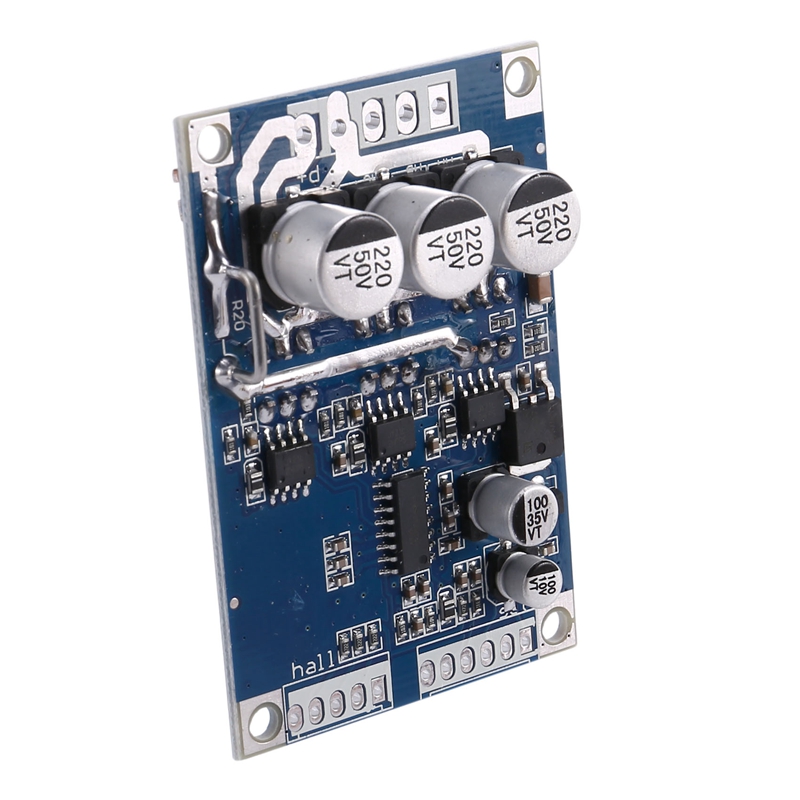

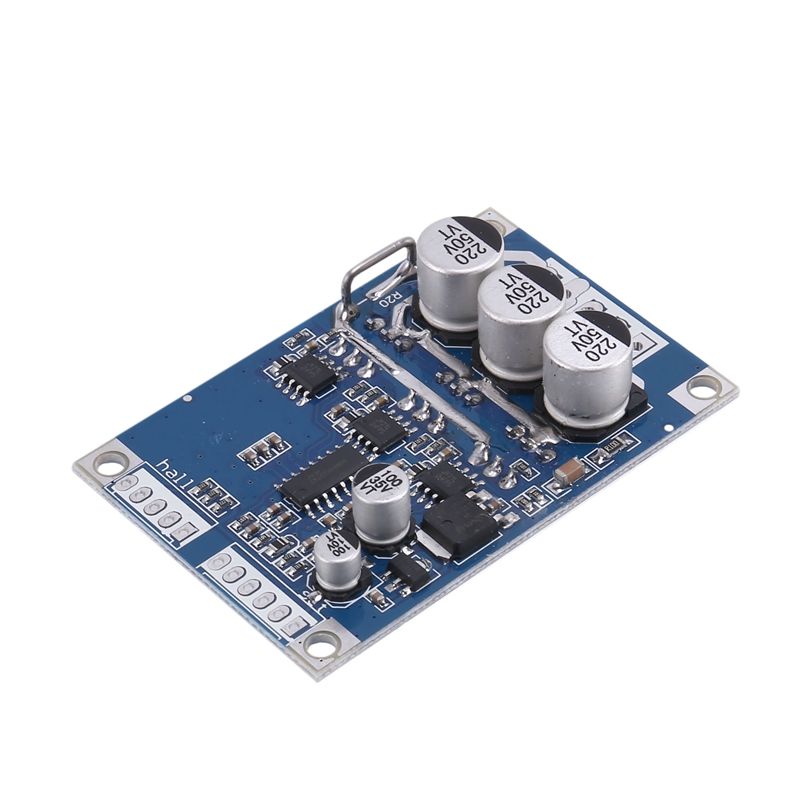

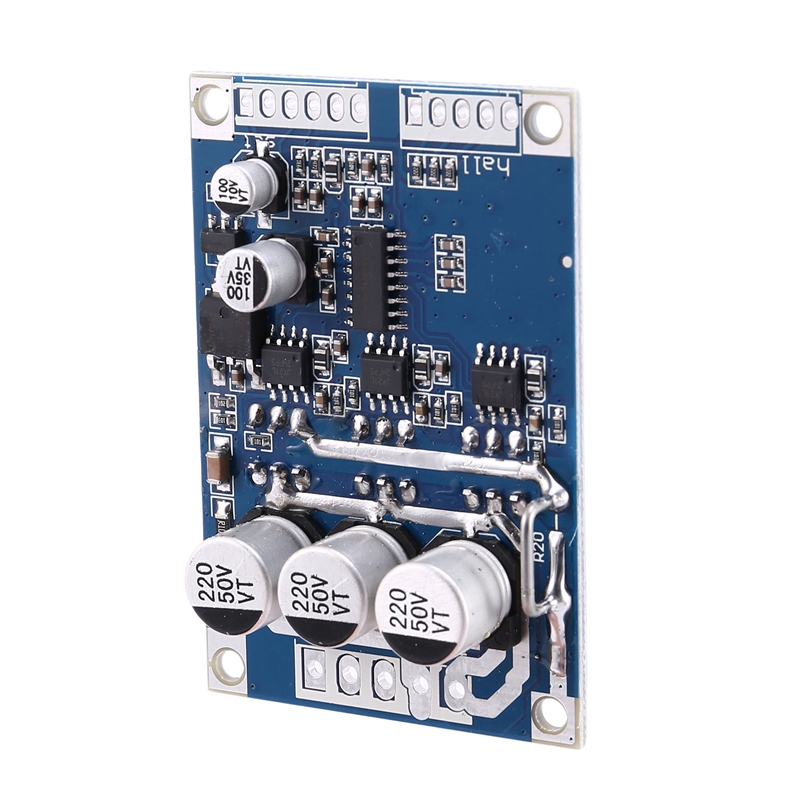

DC Brushless Motor Controller 12V-36V Balancing Automotive Balanced Car Driver Control Board

DC Brushless Motor Controller 12V-36V Balancing Automotive Balanced Car Driver Control Board

Details

Operating voltage: DC 12V-36V; Operating Current: less than or equal to 15A; Driver Power: less than or equal to 500W; Speed Voltage: 0.1V-5V; Operating Temperature:-40-85C; Humidity: 90%RH; Stall protection:Yes; Enable Control: Yes; Over-current protection: Yes; Steering control: Yes; Speed control signal: Yes; Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm

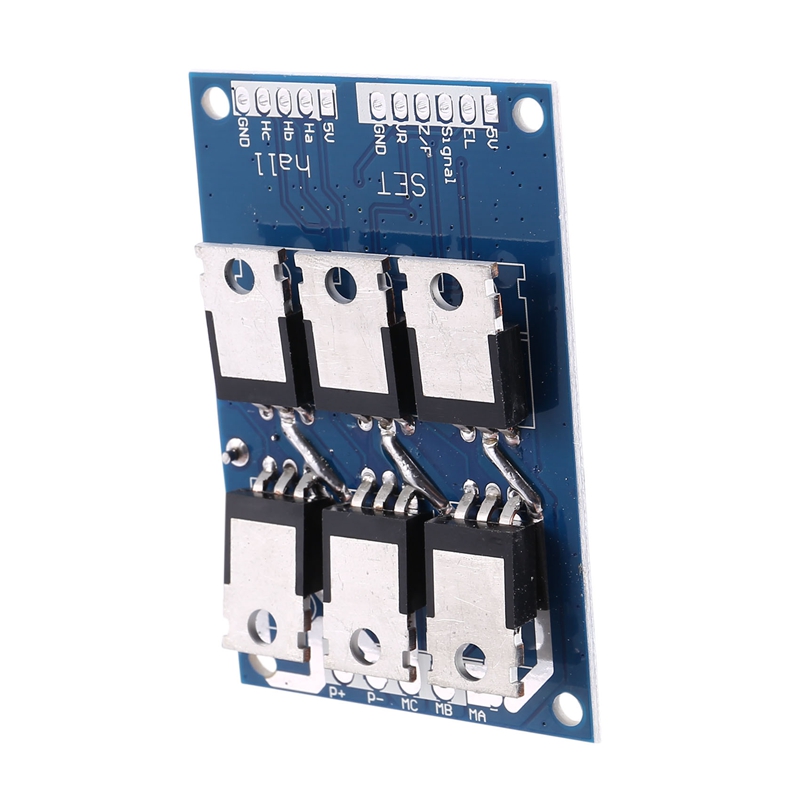

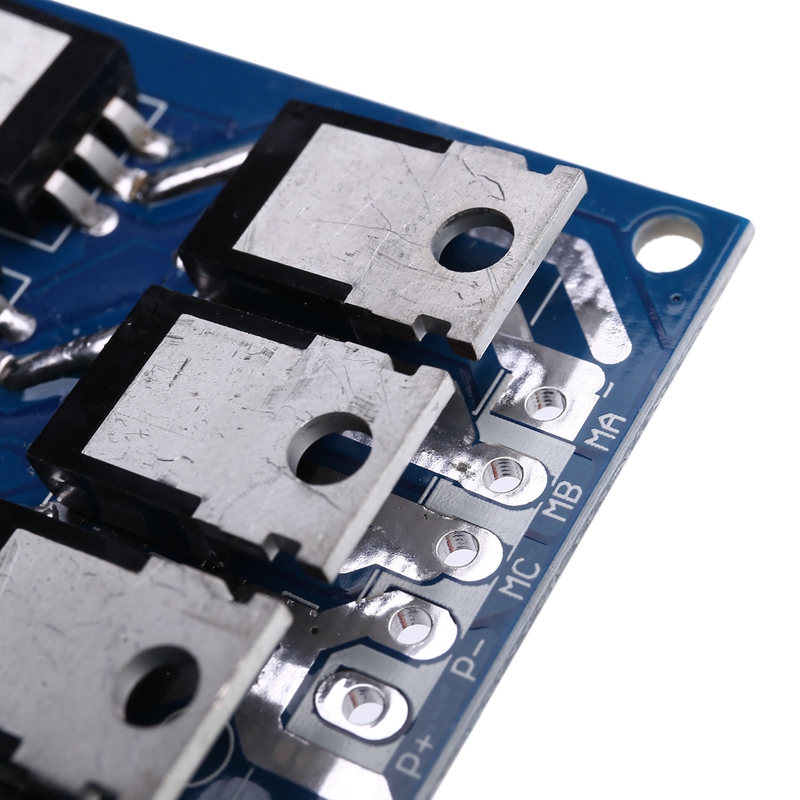

Power terminal Out: VCC(positive power supply); GND(negative one); MC(motor phases W); MB(motor phases V); MA(motor phase )
Wiring: Control terminal for SET: 1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster
2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V
3. Pulse speed signal: high and low output . IC can not understand the information with the customer request

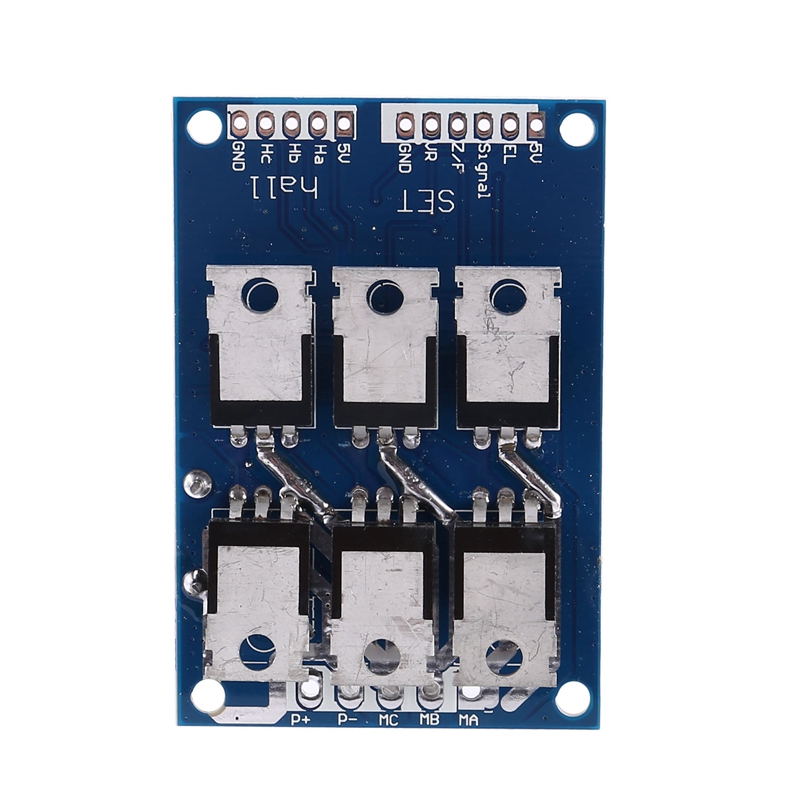

Set for the control side:
GND control terminal ground
VR the governor end 0-5V(corresponding to 10% of motor speed -100%)
ZF reversing control(connected to 5V or ground can charge the motor rotation direction)
M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number)
EL enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops)
5V 5V control terminal
HALL for the hall terminals:
5V, Hall power positive
Ha, Hall signal
Hb, Hall signal
Hc, Hall Signal
GND, Hall negative
Hall signal inputs for hall:
Wiring diagram is shown, one c
