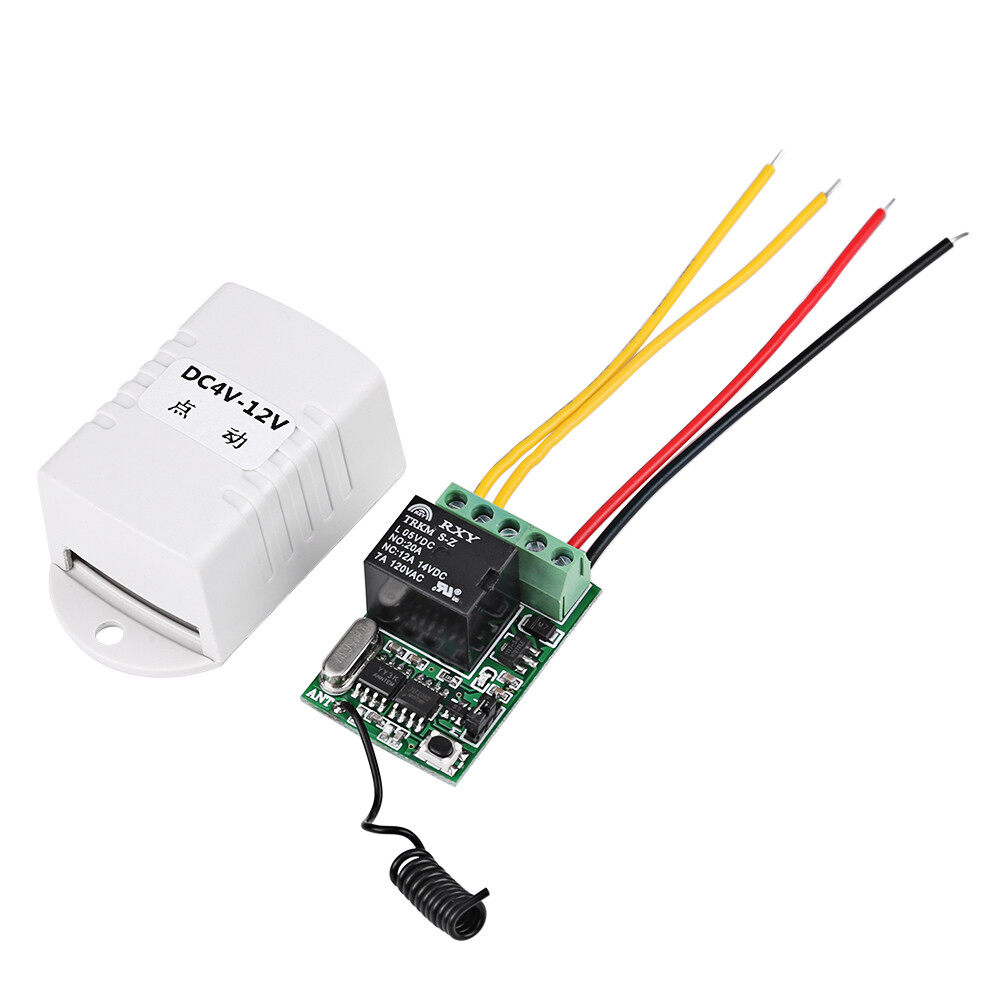

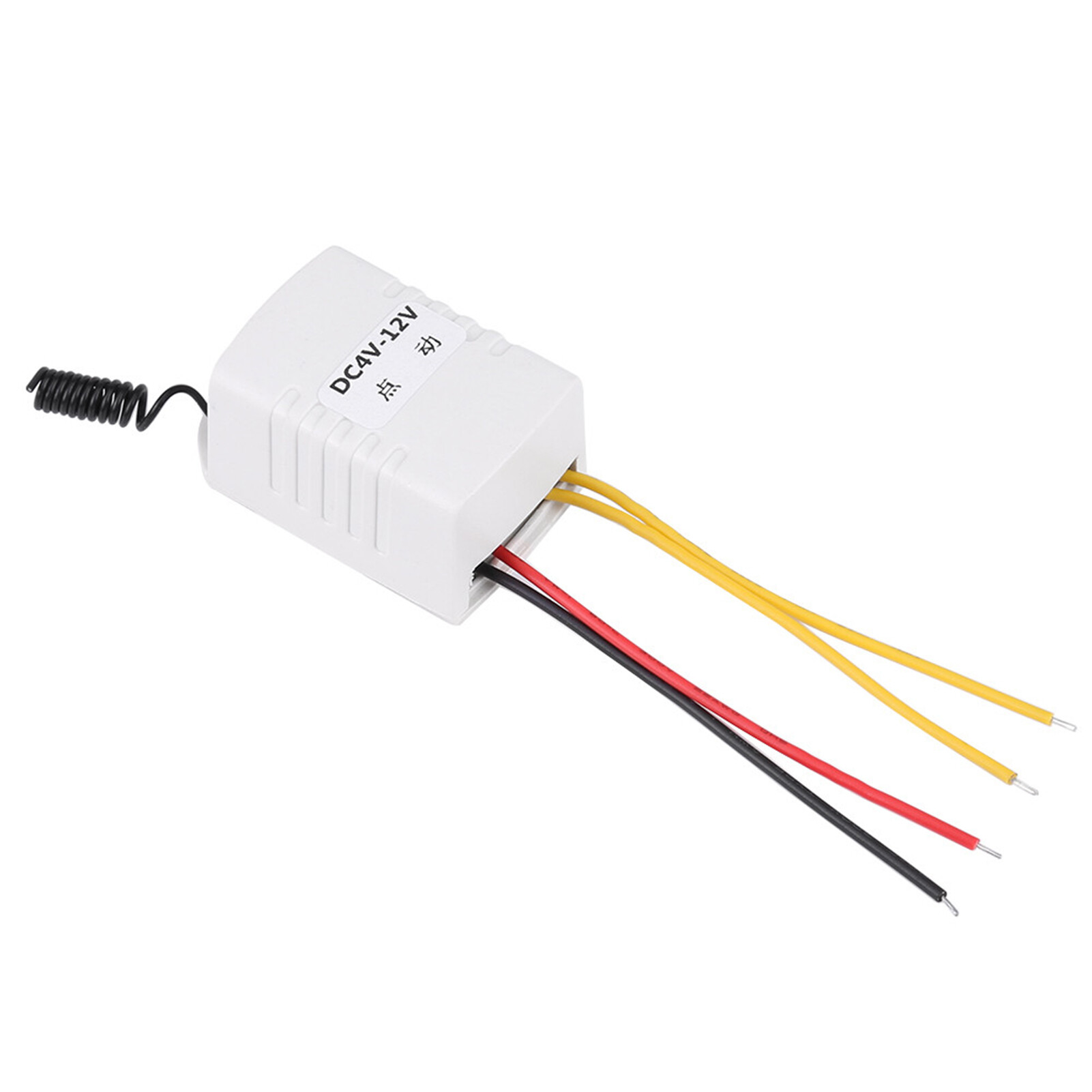

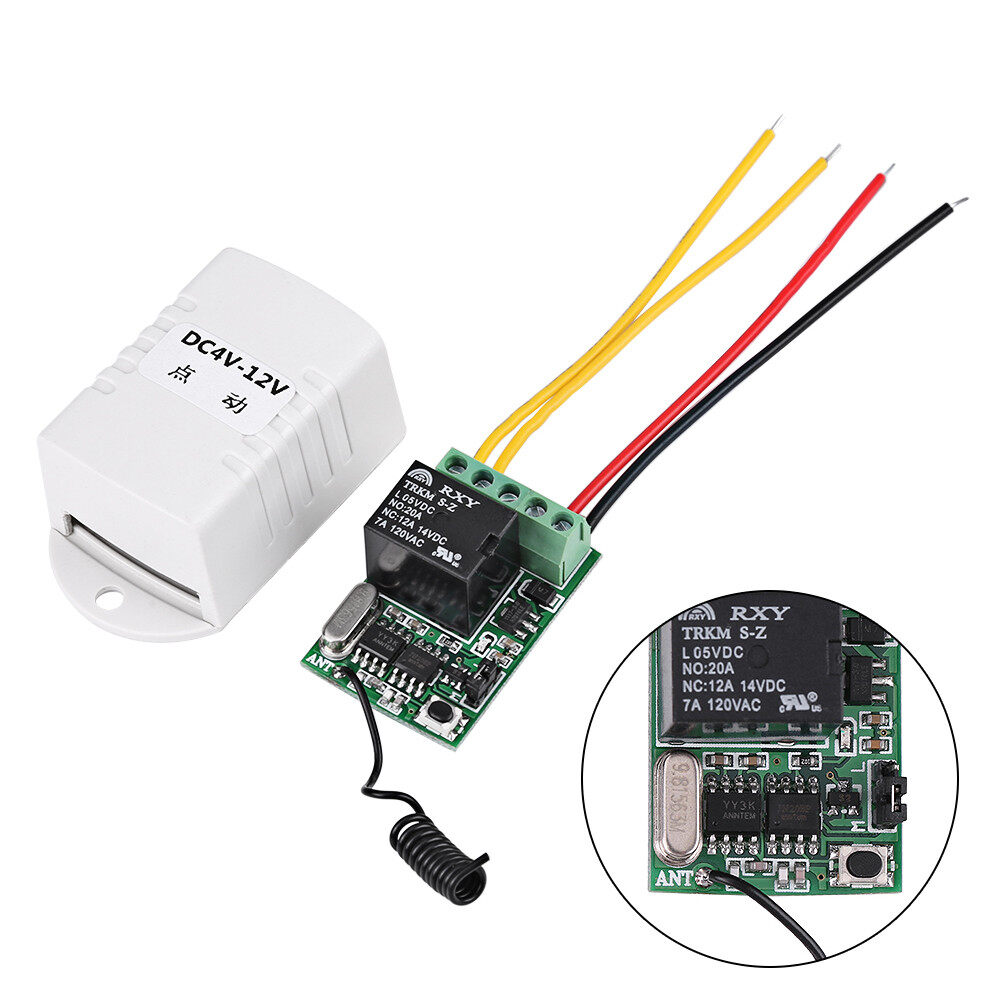

- It is a learning code wireless remote control switch(receiver). It is easy to match the transmitter(remote control).
- Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
- The volume is small and the performance is stable and reliable, high receive sensitivity.
- It covers application ranging from like auto door, window, lifting equipment, entrance access, etc.

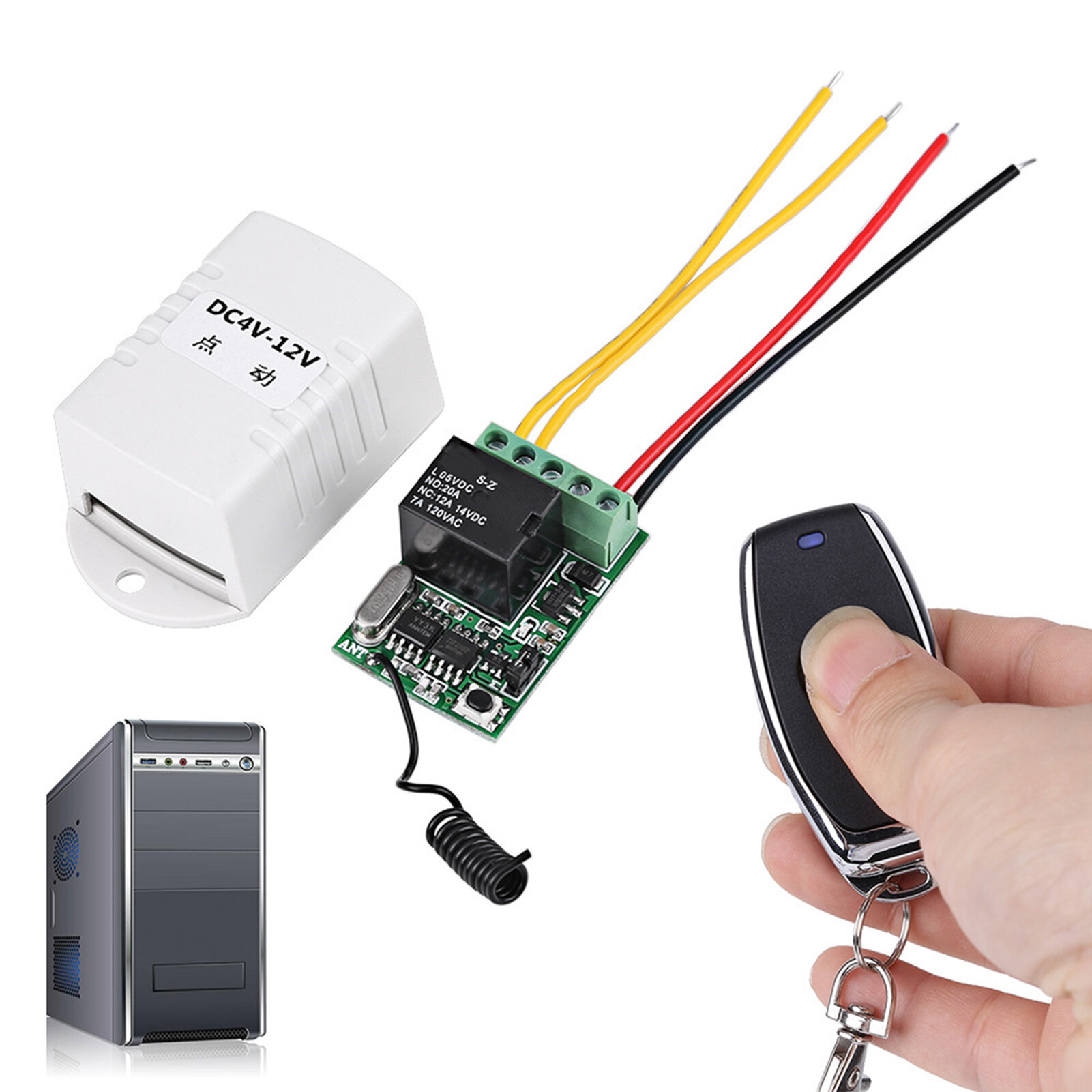

- Perfect wireless relay remote control for computer mainframe.









Specifications:
Working Voltage: DC4V 12V(DC4V 4.5V 5V 6V 7.4V 9V 12V)
Standby Current: 7-9mA
Working Current: 70-130mA

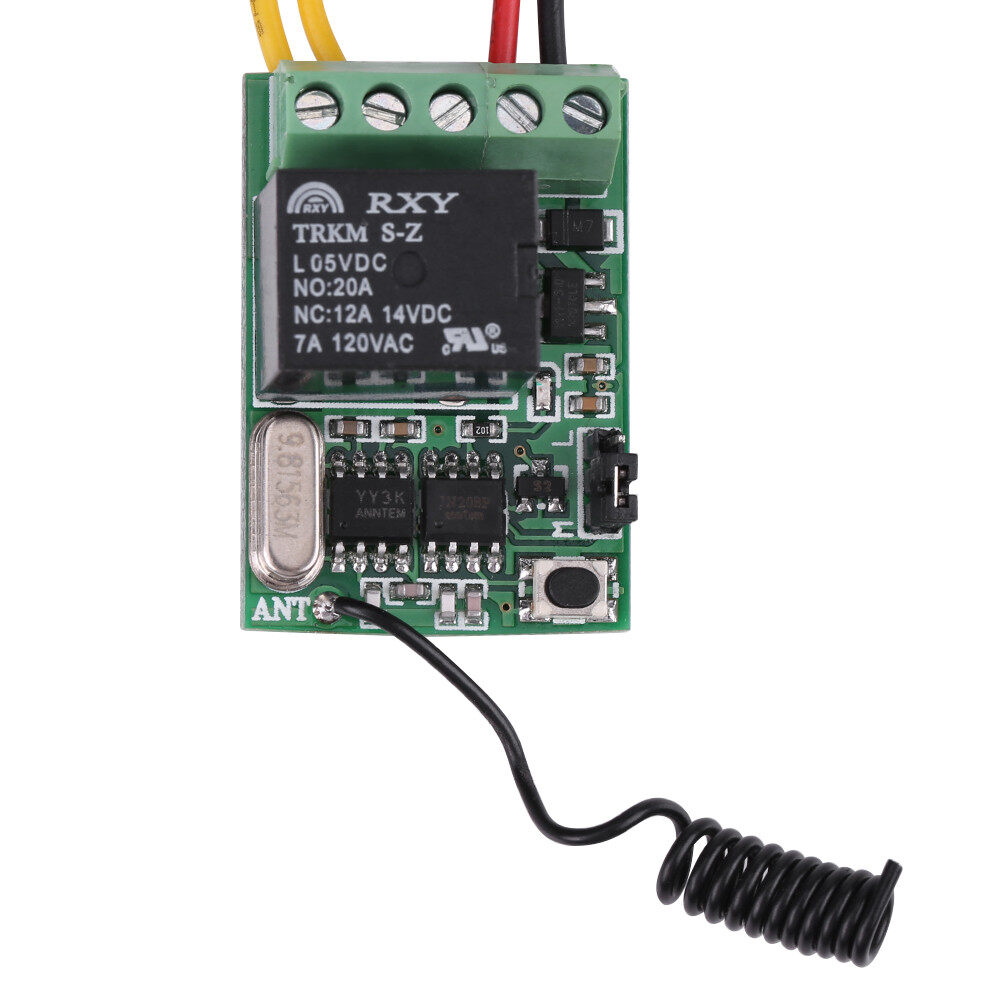

Relay Standard: 20A( 14VDC 12A120VAC 7A)
Max Load: 10A (better load is less than 7A)
Learning Code: Learning Button to add Transmitter
Working Mode: Momentary Toggle adjusted by Jumper
Compatible: For computer mainframe
Size: Approx. 43 x 30 x 22mm / 1.69 x 1.18 x 0.87inch
Remote Size: Approx. 60 x 30 x 12mm / 2.36 x 1.18 x 0.47inch
Quantity: 1PC
Package Weight: 50G
Package Included:
1 x Relay Remote Control Switch

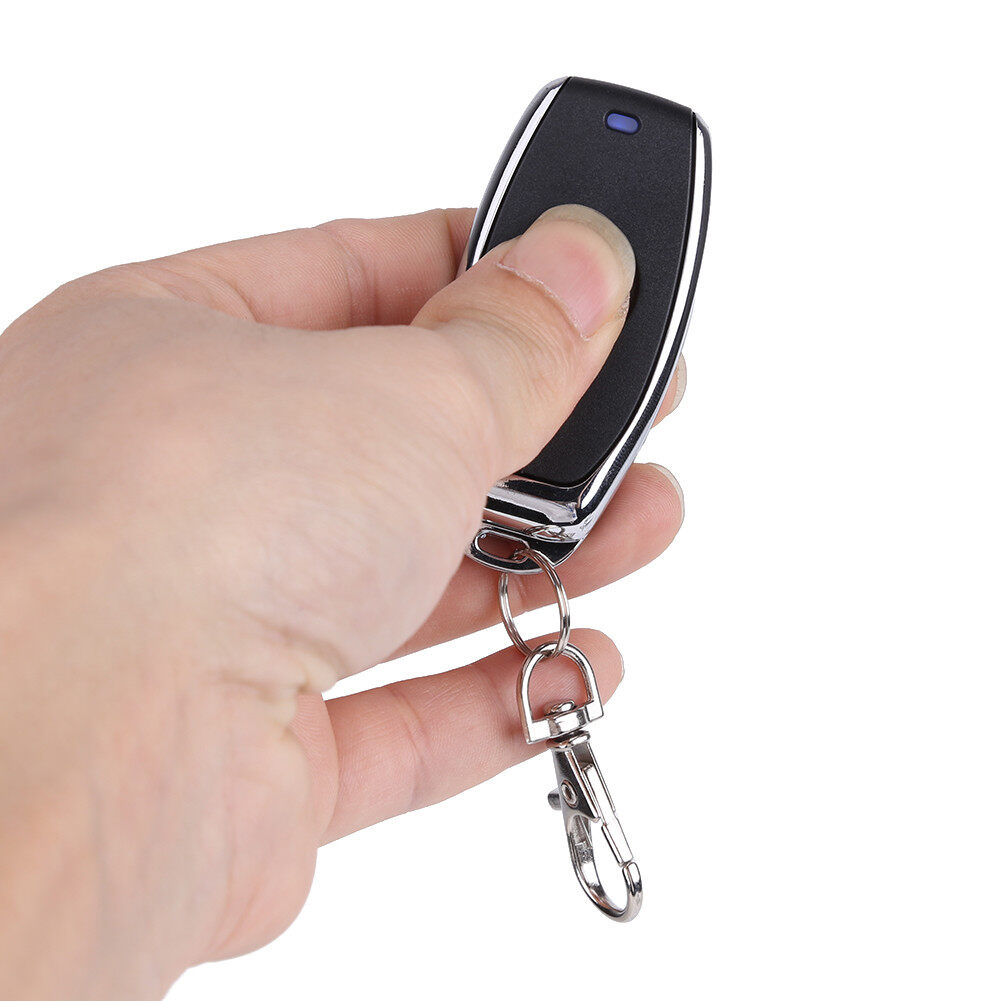

1 x Transmitter
(Other items in the picture are not included)
Momentary----Press and Hold----ON, Release----OFF
Toggle----Press one time----ON. Press it again----OFF

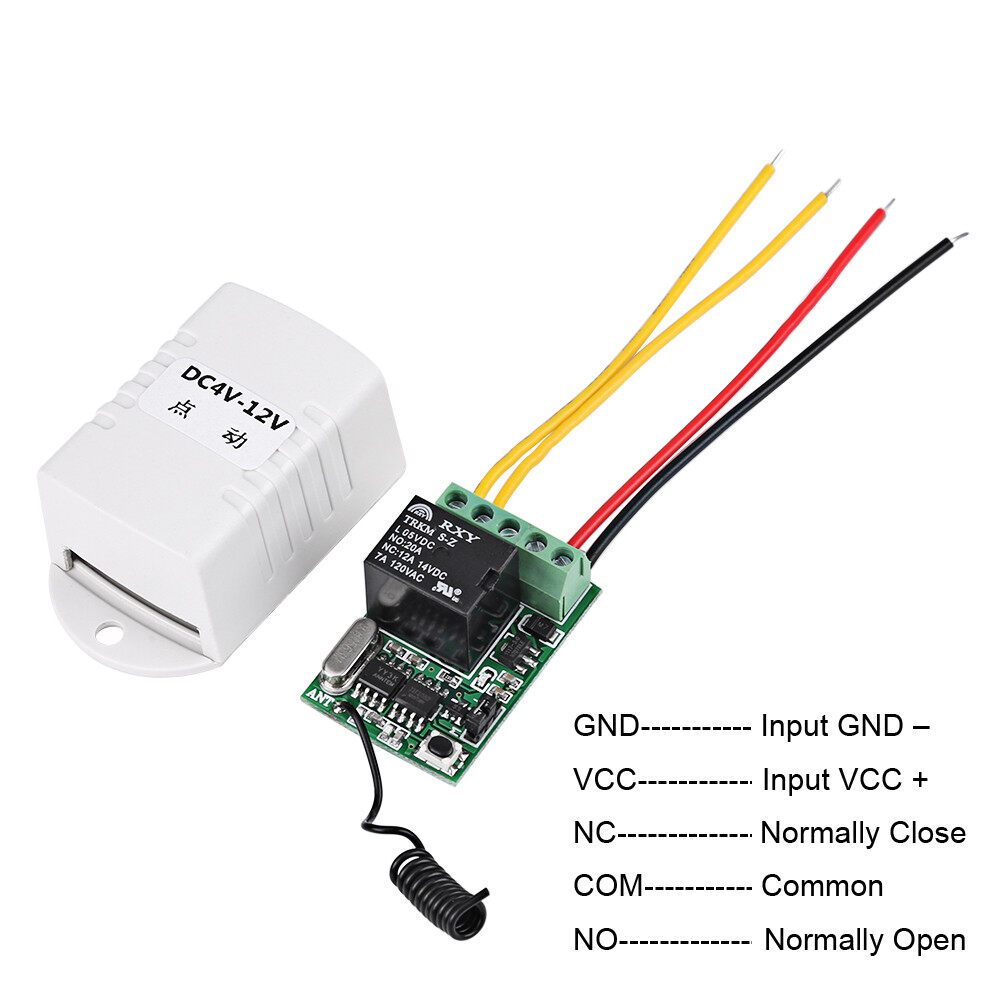

GND----Input GND -
VCC----Input VCC +
NC----Normally Close
COM----Common
NO----Normally Open
Clearing Code:
Press the receiver learning button and hold for about 5s until the receiver LED indicator from ON to OFF, it means the code have been cleared.
Learning Code:
Momentary/Toggle Mode:
Press the receiver learning button, the receiver LED indicator flash slowly, it means entering into learning state, press the transmitter button, the receiver LED indicator flash fast for 2 times and then flash slowly, it means learning is successful. Press the learning button again to turn off the LED indicator, it means learning is finished.
