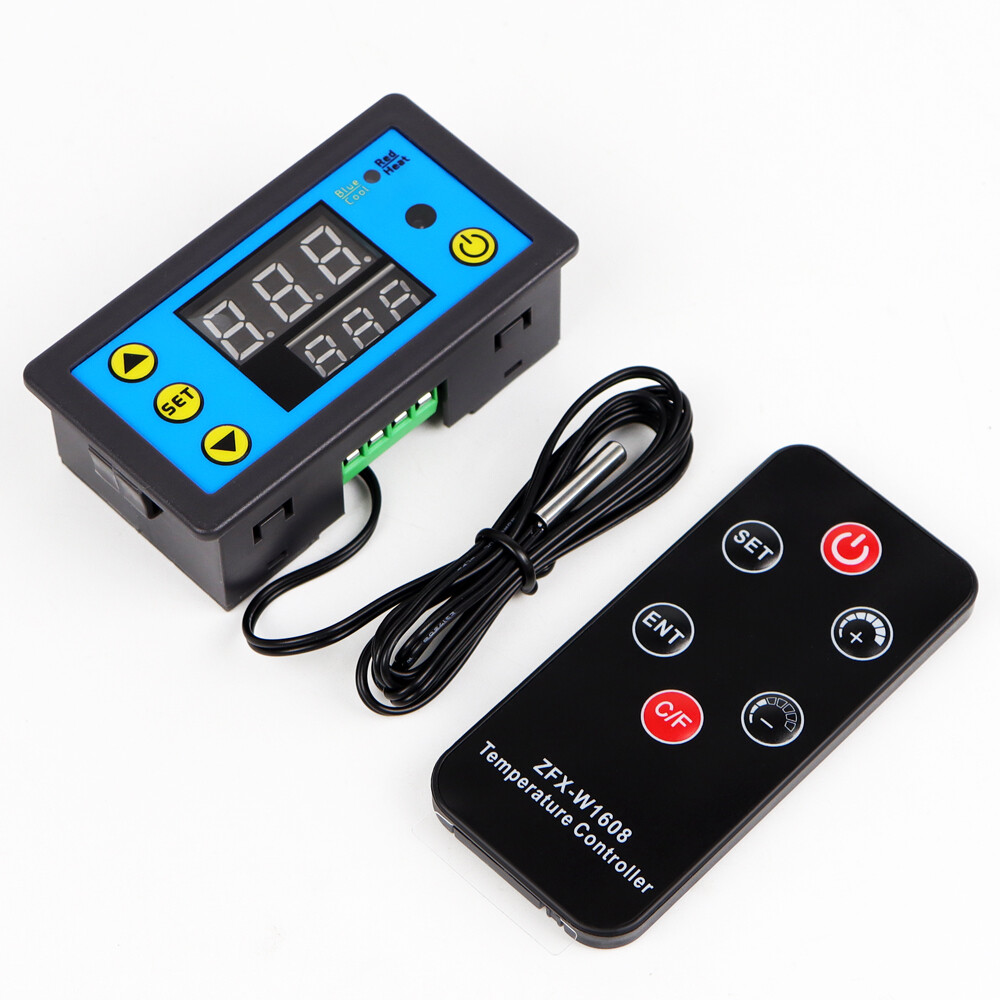

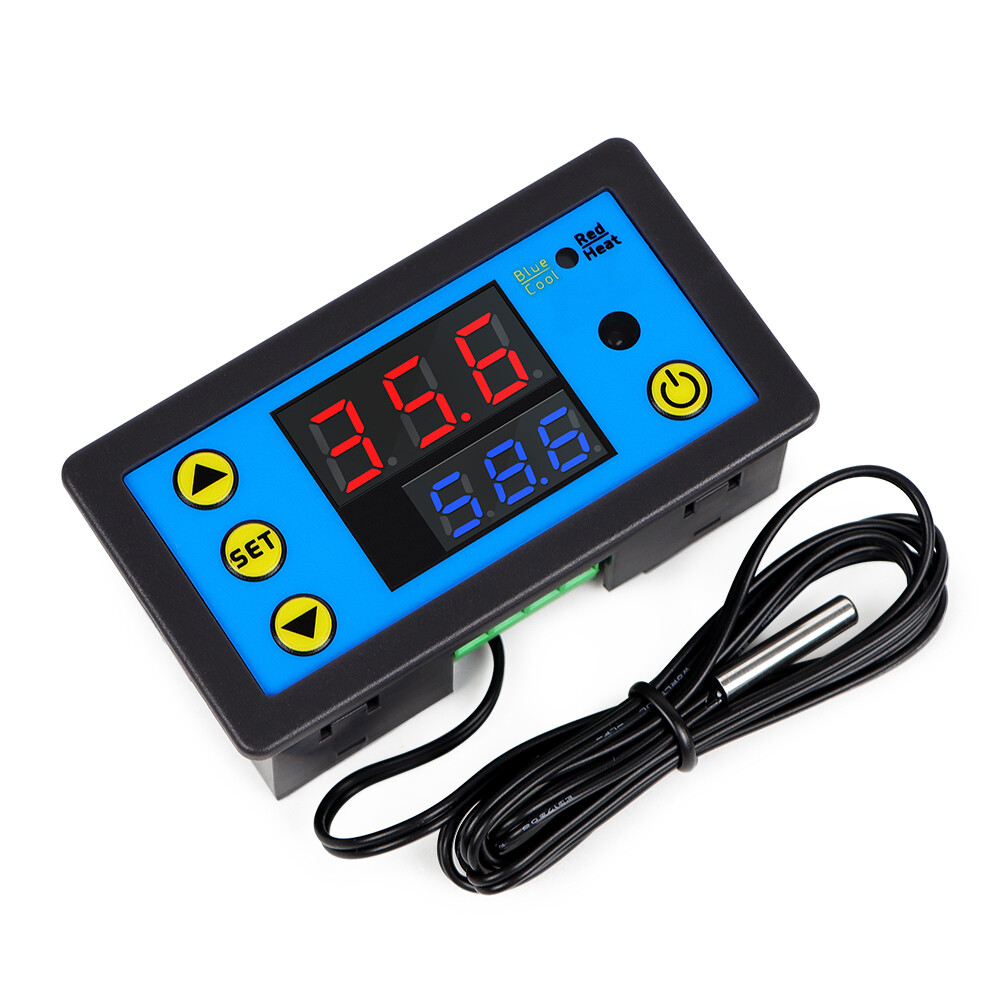

DC 12V Digital Temperature Controller with Remote Control NTC Sensor Thermostat Regulator

DC 12V Digital Temperature Controller with Remote Control NTC Sensor Thermostat Regulator for Refrigerator Indoor Freezer

Features:

1. High-precision temperature control probe, outstanding temperature control performance and accuracy

2. High cost performance, wide temperature control range, simple setting

3. It can be directly installed and used or embedded in the panel of industrial control equipment, which is convenient and practical

4. Widely used for cabinet temperature control, poultry incubation, air conditioning system, temperature protection and other occasions

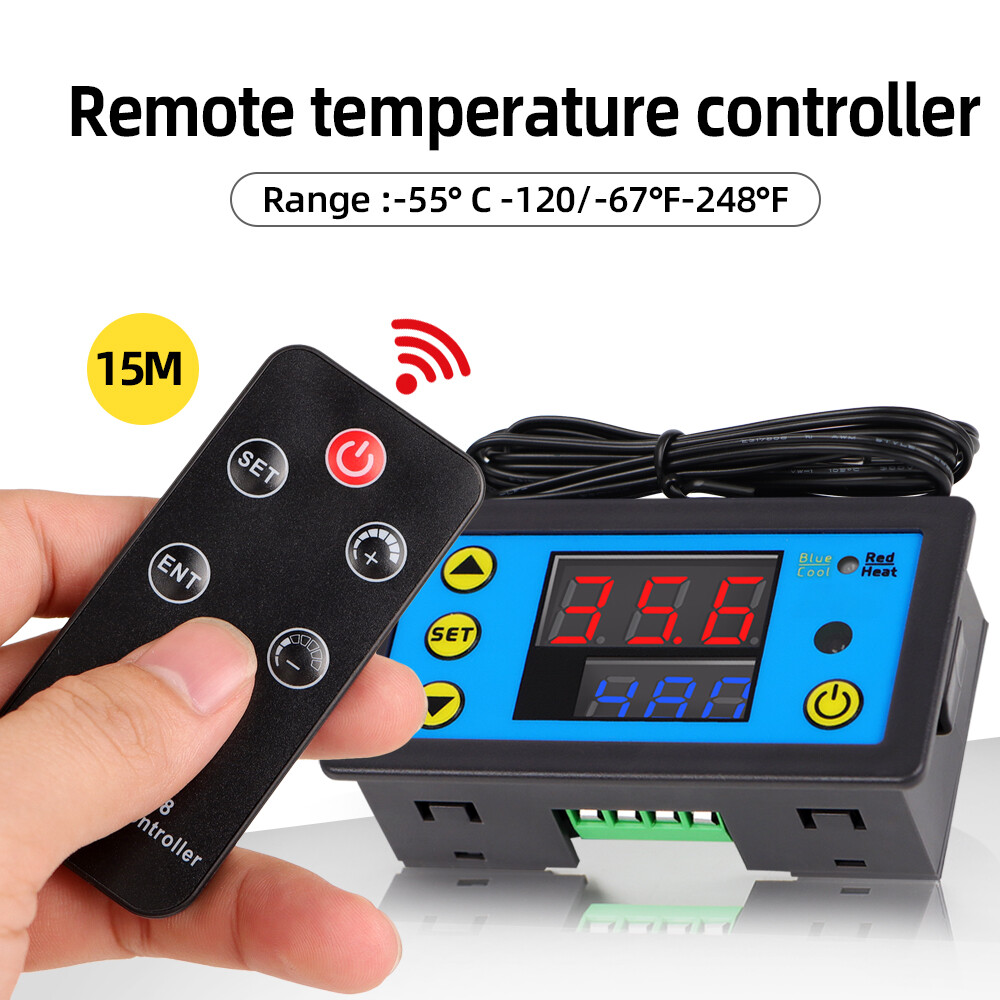

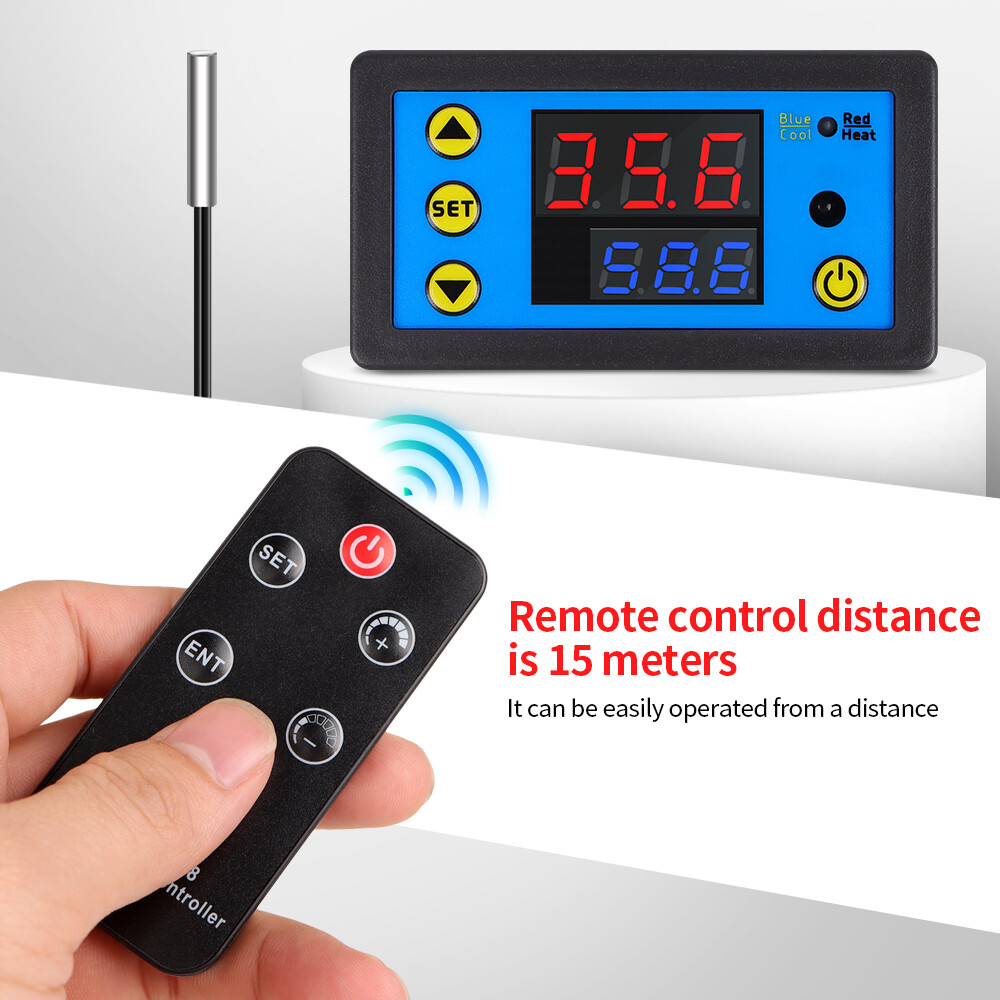

5. It can be controlled by remote control, the farthest remote control distance can reach 15 meters

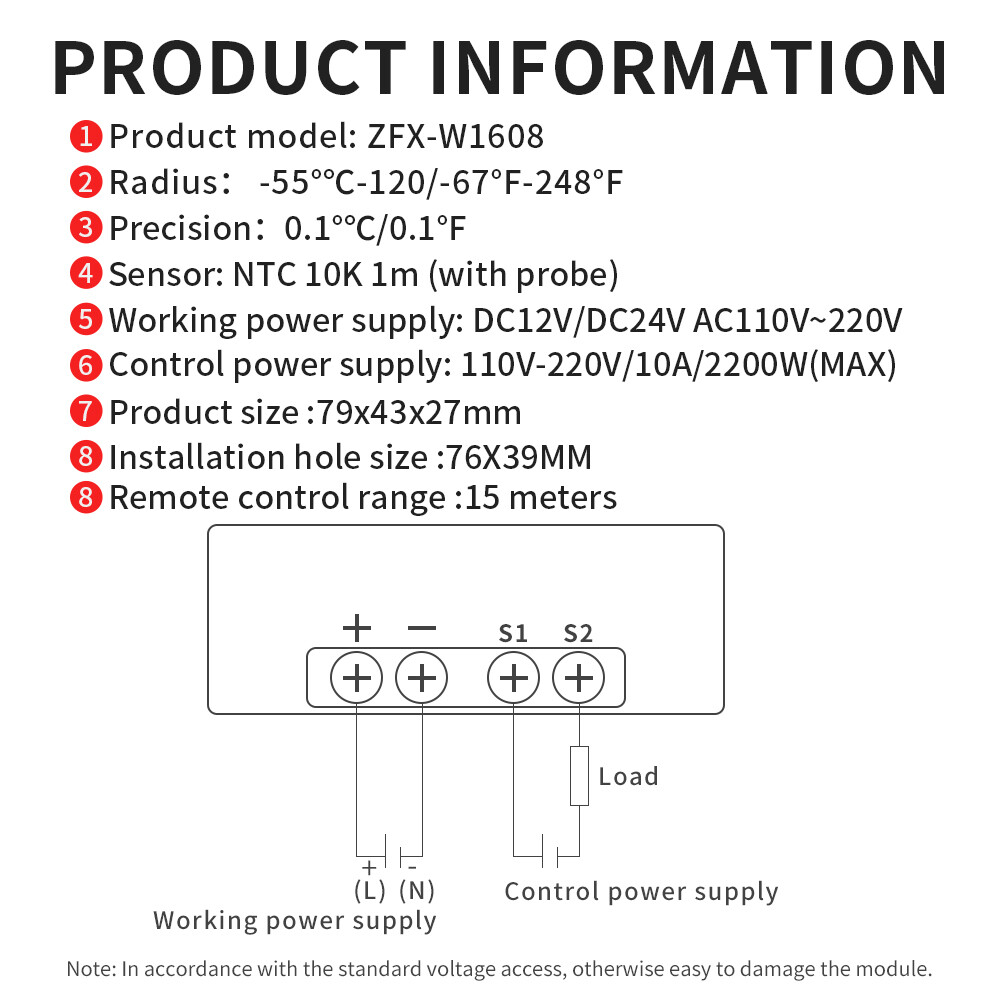

Specifications:

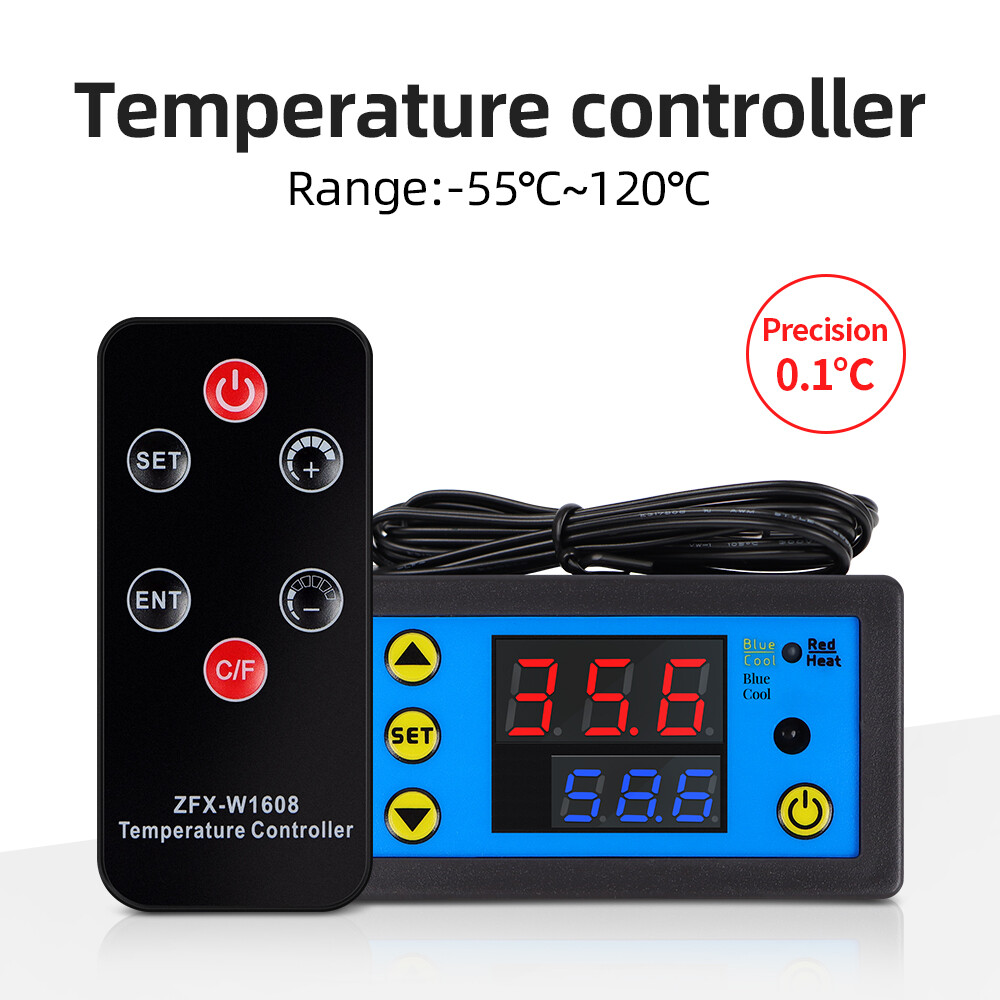

Temperature control range: -55℃~120℃/-67℉~248℉

Temperature control accuracy: 0.1℃/0.1℉

Display color: red + blue

Power supply: DC12V

Sensor: NTC 10K 1 meter (including probe)

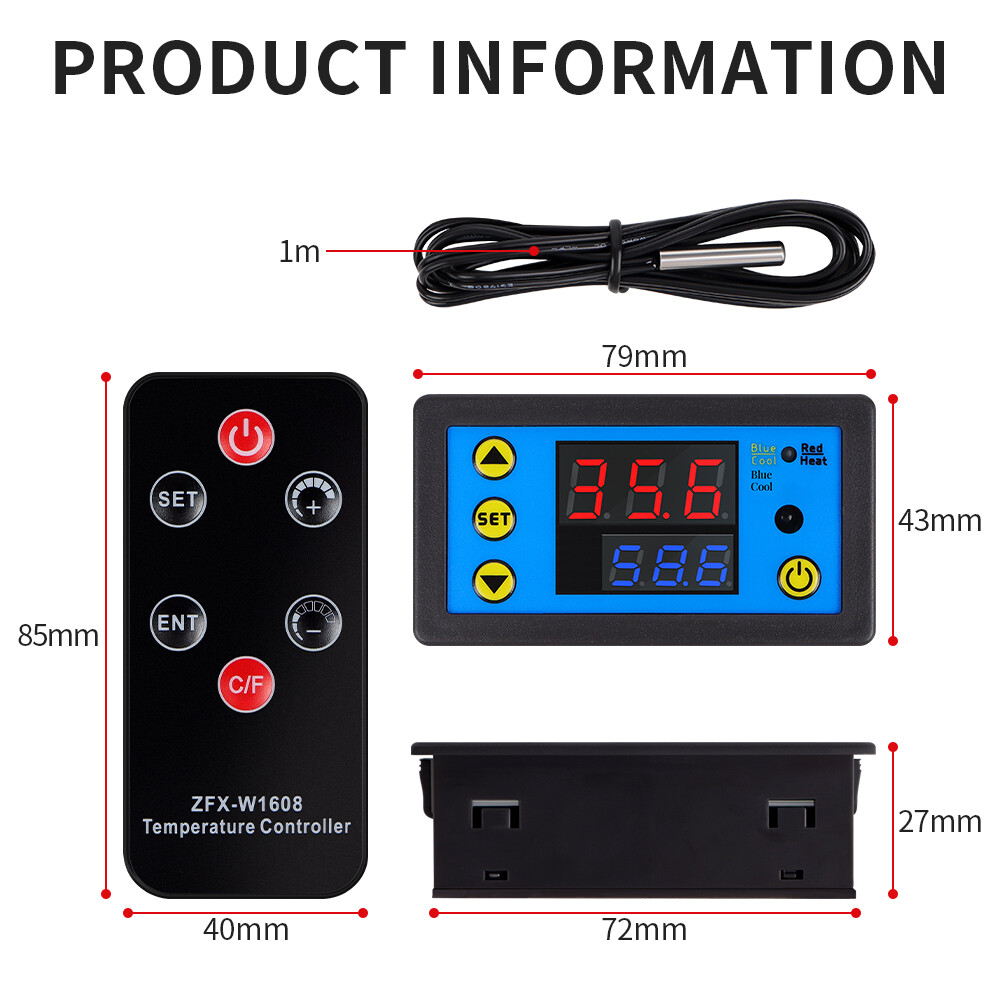

Product size: 79.2mm×41.9mm×26.3mm

Hole size: 72.1mm×39.2mm

Remote control distance: 15 meters (the quality of the infrared receiver itself, obstacles in the middle and other factors will affect the remote control distance)

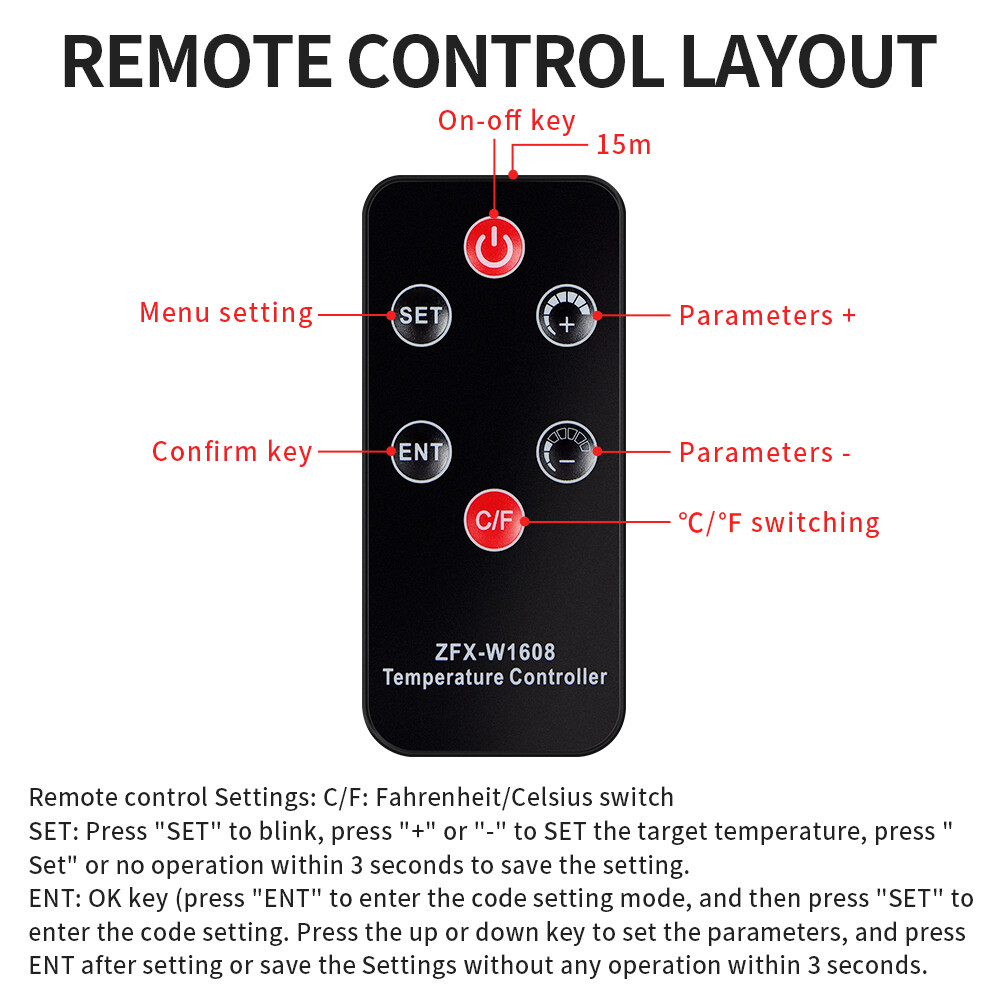

Remote control settings:

C/F: Fahrenheit/Celsius switch

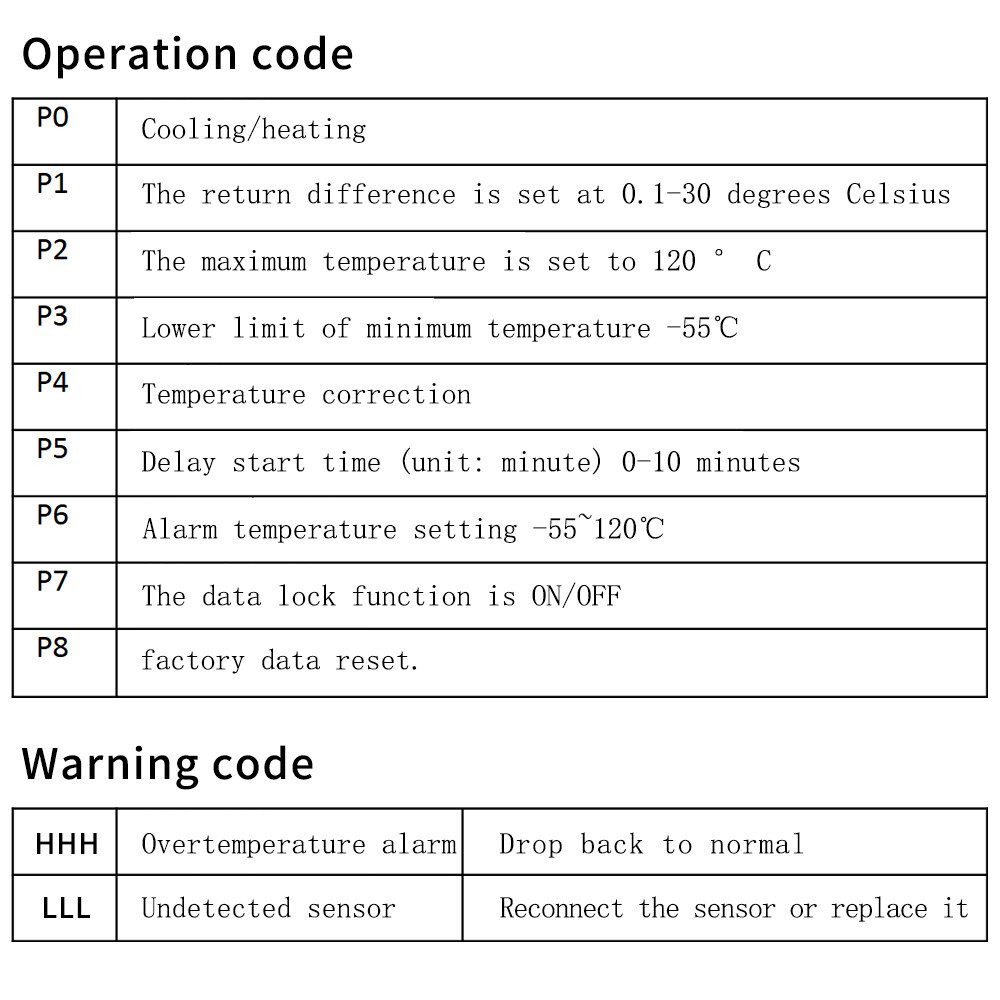

ENT: Enter key (short press "ENT" to enter code setting mode, short press "SET" after selection to enter code setting, press up and down keys to set parameters, press "ENT" key after setting or save the setting without operation within 3 seconds.

Set: Short press the "SET" small digital tube flashes, press "+" or "-" to set the target temperature, press the "SET" key or no operation within 3 seconds to save the setting.

Package list:

Thermostat X1

Remote control X1
