DC 12V 1CH Relay Receiver Module RF Transmitter 433Mhz Wireless Remote Control Switch

Description:
• Input Voltage: 12 V, RF working mode: Superheterodyne
• Receiver sensitivity: > 97 dBm
• Transmitting distance:> 100 m ( open space)
• Decoding mode: MCU software decoding
• Remote storage: 20
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s, 10s, 15s )
• Output terminal: NO, NC, COM
• Dimension of PCB:35 x 30 x 18 mm (L,W,H)
• Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V

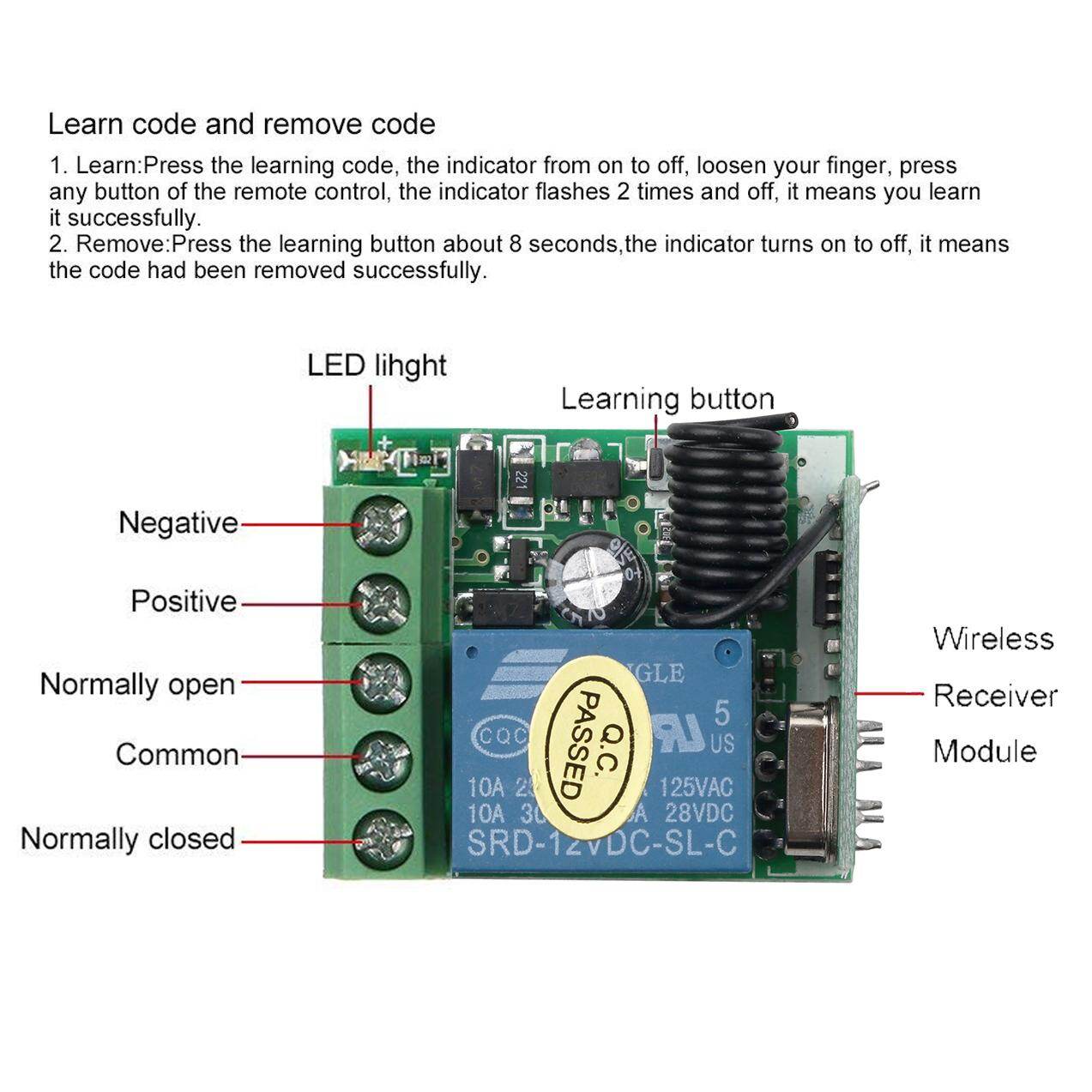

Remote programming
-Clearing the code :
Push the learning button on the receiver 8 times, the codes will be reset.
After clearing the code, remotes will need to be recalibrated

-Momentary mode
Please contact us for detailed use instructions

-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.)
Press the learning key on the receiver 2 times, Wait for a moment, the LED will be off, it comes into learning state.

-Push the learning key on the receiver 3 times, the LED (on the Receiver)will blink 3 times.
When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times.
Push the remote button B, Led flash 3 times.
After 3 seconds, the LED indicator will be off, Learning to succeed.

Package including

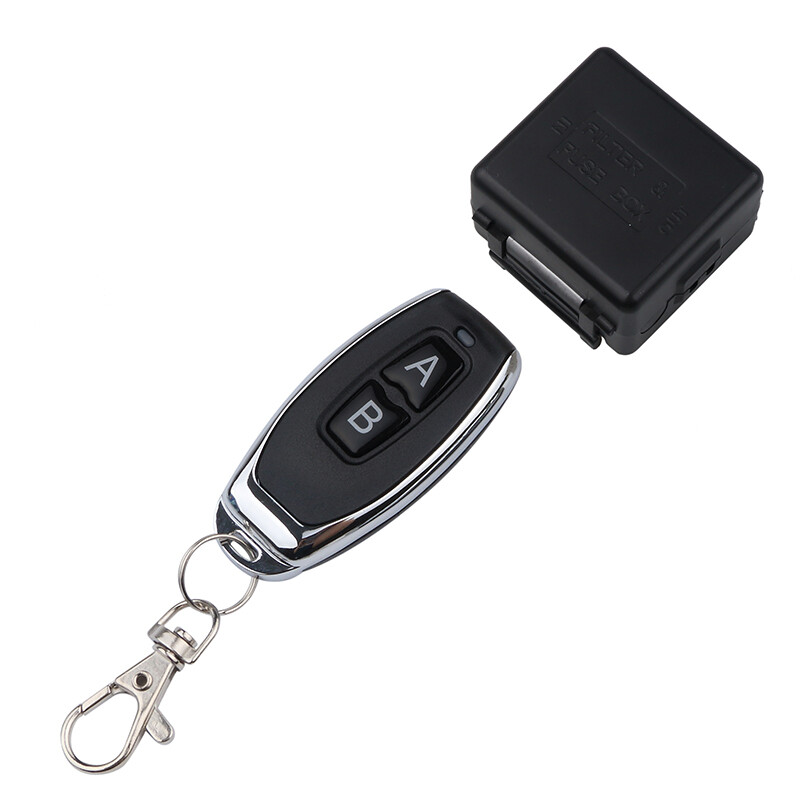

Receiver module* 1

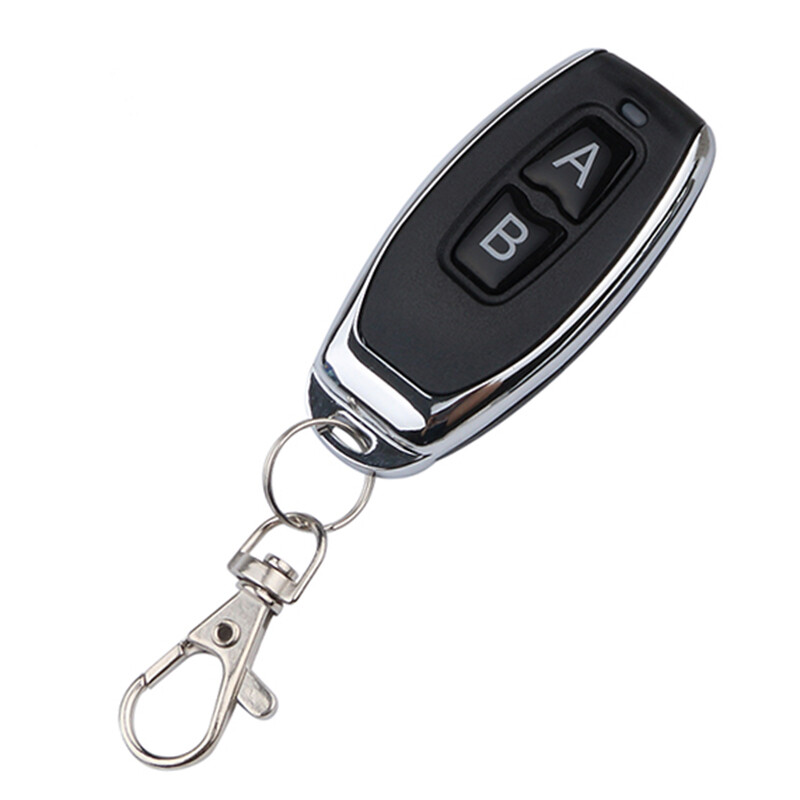

Remote Control*2

No retail box will be included, but we/'ll pack well before shipping.

​
