🌸ĐẦY ĐỦ 🌸USB SALEAE 24M 8CH Logic Analyzer 24M 8 Channel FPGA debugging tool With buffer

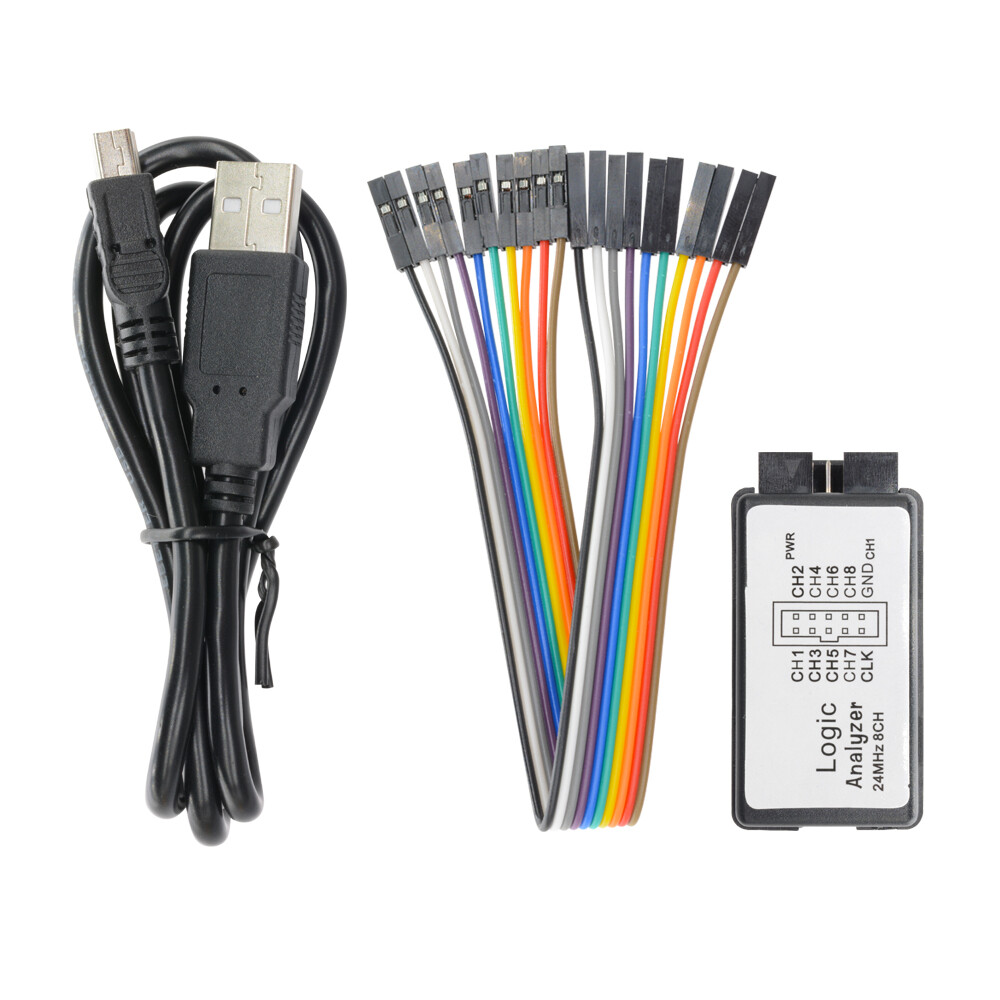

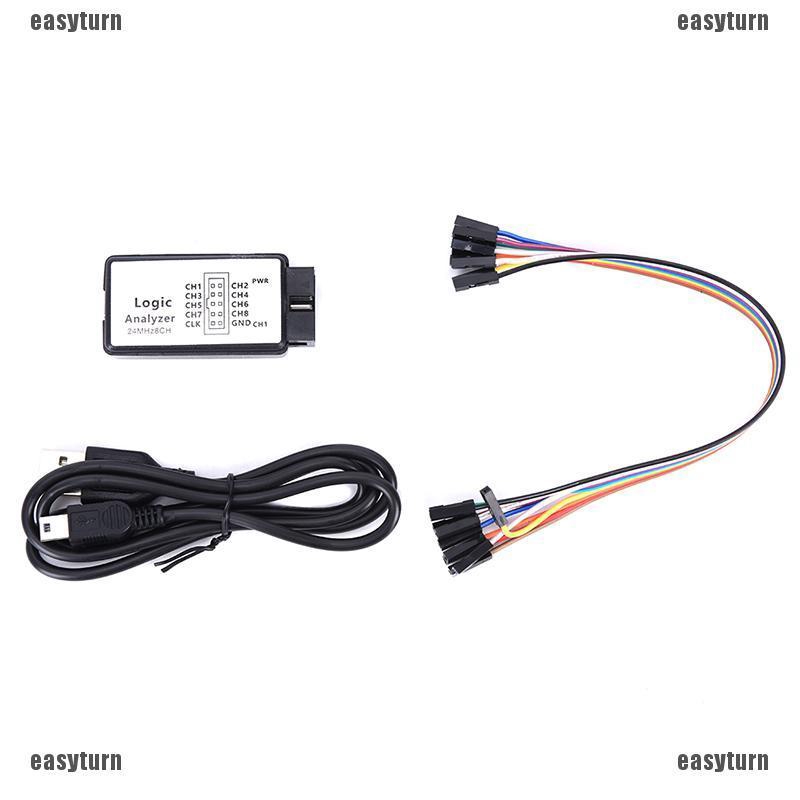

welcome to easyturn.vn 🌸ĐẦY ĐỦ 🌸USB SALEAE 24M 8CH Logic Analyzer 24M 8 Channel FPGA debugging tool With buffer Note: This logic analyzer requires a PC with a high-speed USB 2.0 interface. Support the following systems: support WINXP/2000, WIN7, VISTA, LINUX The performance of Saleaa8 is different from that of salesaa16. The number of channels is 8 and the speed is up to 24M. The video software usage can be referenced but not the same. Shipping packing list: 1, 24M 8CH logic analyzer host 1 unit. 2, color DuPont line 10 lines (10 different colors) 10 pieces. 3, high quality USB-MINI line (NOKIA dedicated line) 1 piece. Product size: 50mm X 28mm x 14mm Sample speed up to: 24 MHz The sampling speed of each channel of the logic is 24M/sec. The general application is about 10M, which is enough for various occasions. 8 channels Logic 8 input - can be collected at the same time. It is analyzed by signal, such as I2C, UART and other sampling analysis. 10 billion samples Logic can sample up to 10 billion samples, allowing you to capture even the most elusive events. Voltage range Slave logic: 5V voltage, accepts 5.25 V, has a standard CMOS threshold logic of 0.8V low level. 2.0 V logic high level. The input impedance is approximately 1 MΩ and more specifications are seen (10 pF) Protection Input resistance for protection logic overvoltage protection conditions, and buffer chip. Better protection equipment for safe work. #🌸ĐẦY #Analyzer #🌸USB #buffer #With #tool #Logic #ĐỦ #SALEAE #24M #debugging #Channel #24M #8 #8CH #FPGA #Logic-Analyzer #With-buffer
