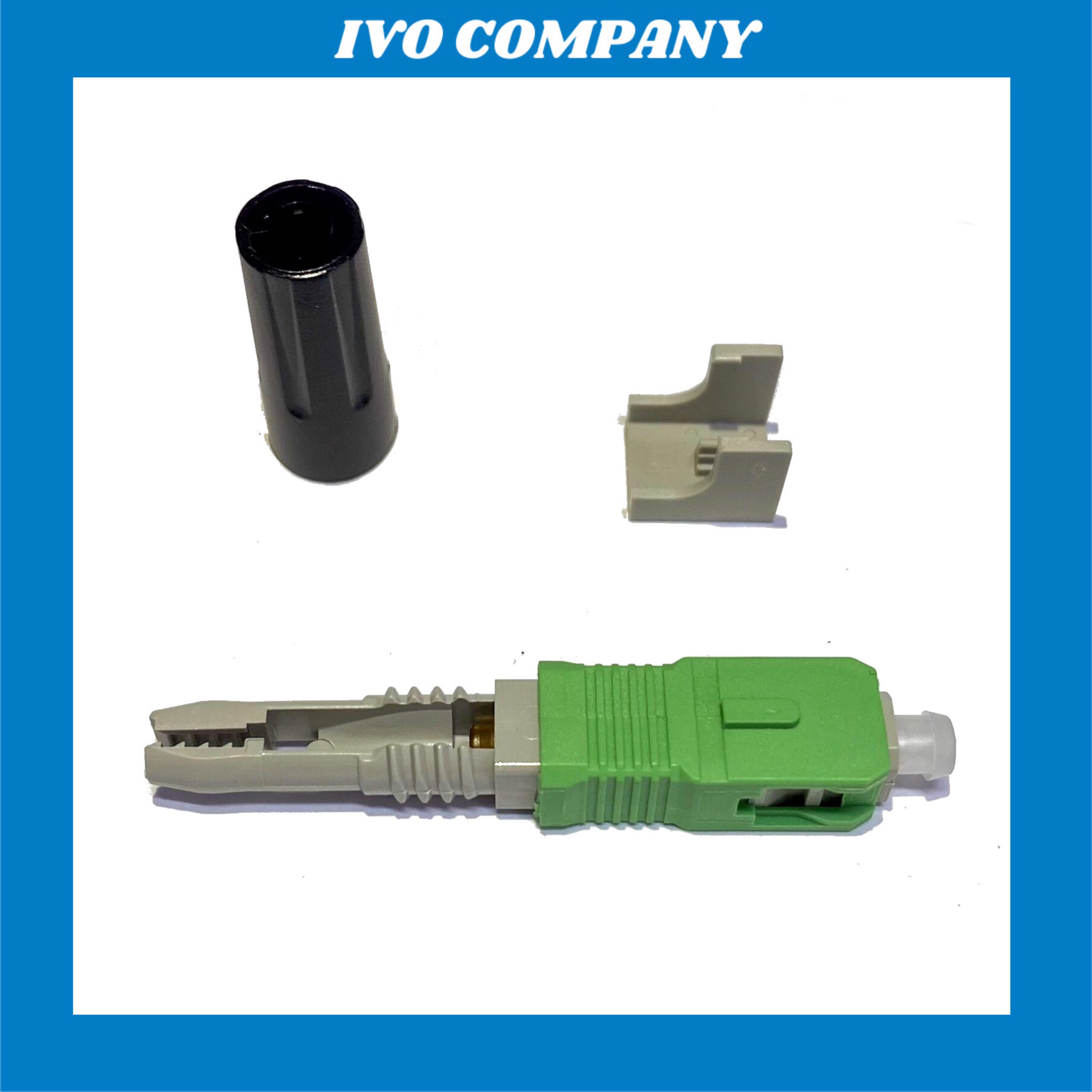

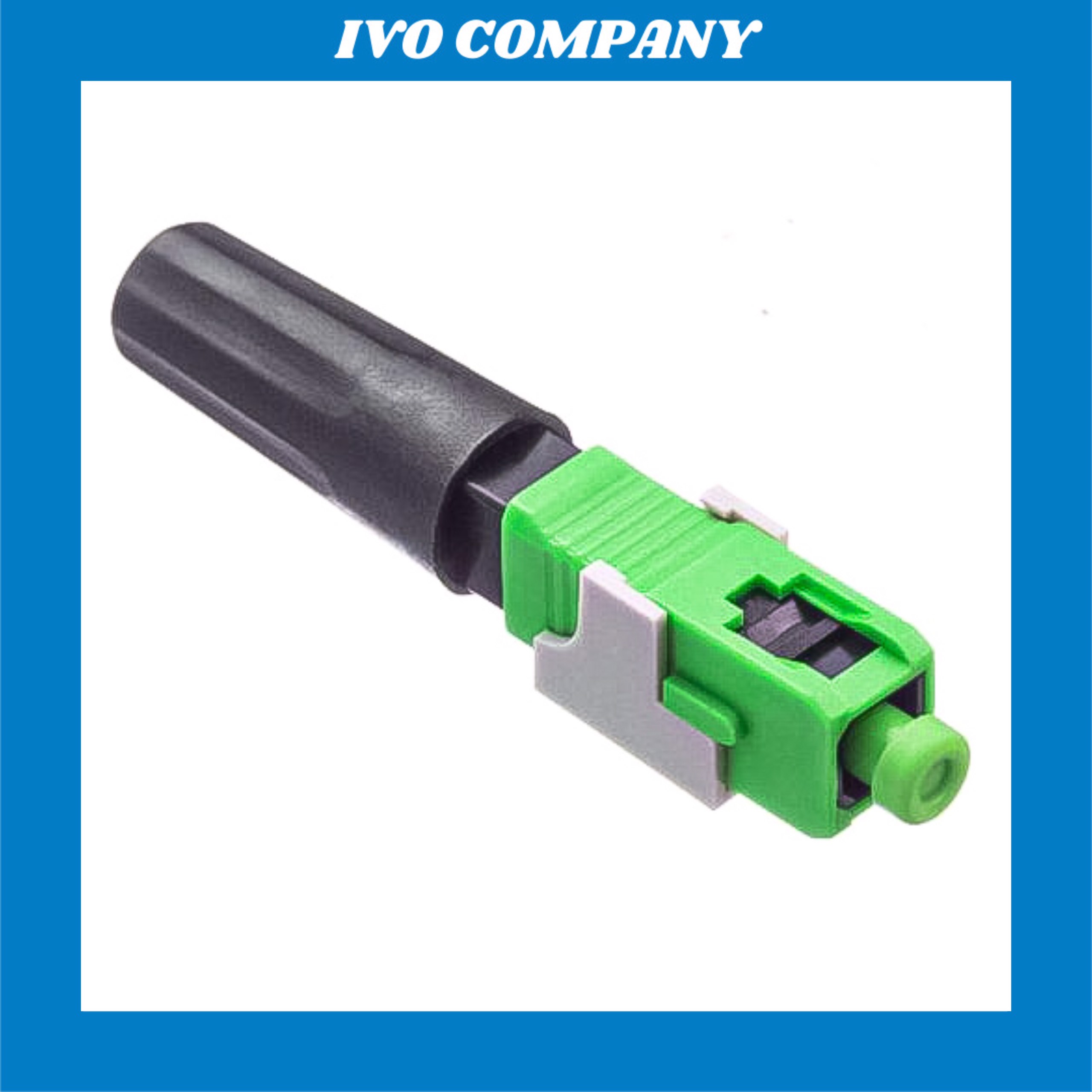

Fast Connector GPON SC/APC
Newly manufactured goods, quality assurance, easy to manipulate fiber optic connection (with attached instruction sheet), can be reused many times, widely and popularly used by major carriers such ...
Fast fiber optic connectors, otherwise known as fast connectors, are an integral part of fiber optic network construction, especially with FTTH network system, which is gradually taking over the market today.
Fast fiber optic connector saves the maximum cost of fiber optic cable construction in terms of time, money as well as not requiring a highly qualified person to do it.
The Fast SC connector is used to connect directly to the optical fiber without having to use the welding machine.
- Affordable price and good response to demand
- Can be reused multiple times (10 depreciations do not exceed 0.3dB) cum cost savings
- The connection is simple
- It doesn't take a lot of tools to do it.
- Quick connection time of only 3 minutes saves construction time
- A type of optical connector with a lifetime of up to 25 years
- Low junction attenuation in the range of 0.25 dB only
- Heat resistance up to 200°C
- No need to use arc welding machine to connect
- Shorten the operation stage for the installer
- GEO density for lubrication and protection of multilayer and high-quality optical coatings.
Specifications:
- Insertion loss: ≤ 0.3dB
- Operating temperature: 40 ~ 75 +
- Cable diameter: φ 3.0, φ 2.0, φ 0.9
