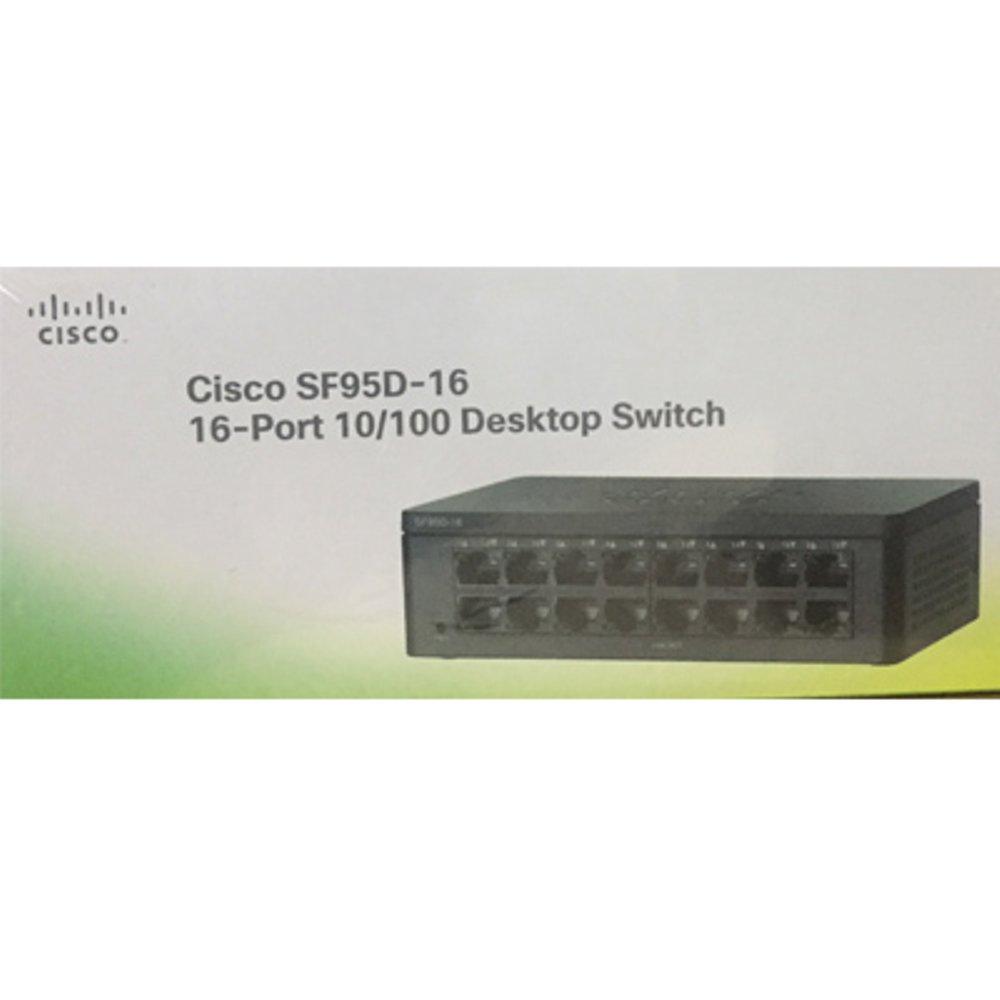

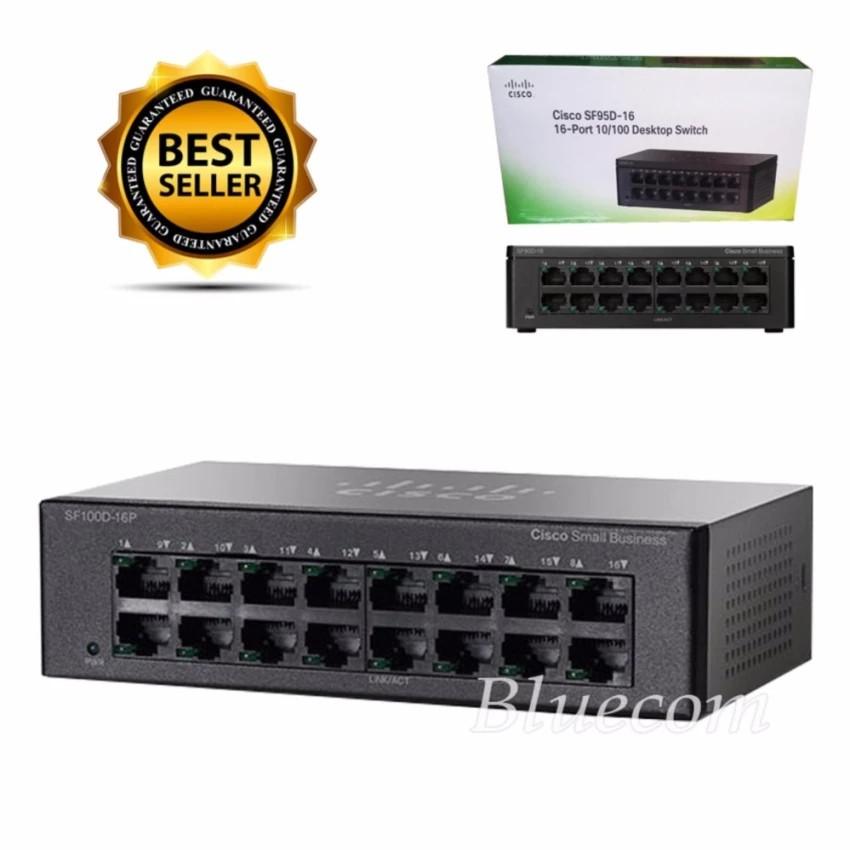

Cisco SF95D-16 16-Port 10-100 Desktop Switch
|
rts |
SF95D-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices |
|
Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet |
|
Cabling type |
Category 5e or better |
|
LED indicators |
System/PWR, link/activity, 100M*, cable diagnostics, loop detection, gigabit,* mini-GBIC* (*if present) |
|
Power supply |
SF95D-16: DC 12V, 1.0A |
|
Physical dimensions (W x D x H) |
SF95D-16: 160x43.5x90 mm |
|
Weight |
SF95D-16: 1.03 lb. (0.46 kg) |
|
Switching capacity |
SF95D-16: 3.2 Gbps |
|
Forwarding capacity |
Forwarding rate in million packets per second (mpps) (based on 64-byte packets): SF95D-16: 1.4 mpps |
|
Compliance/certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* |
