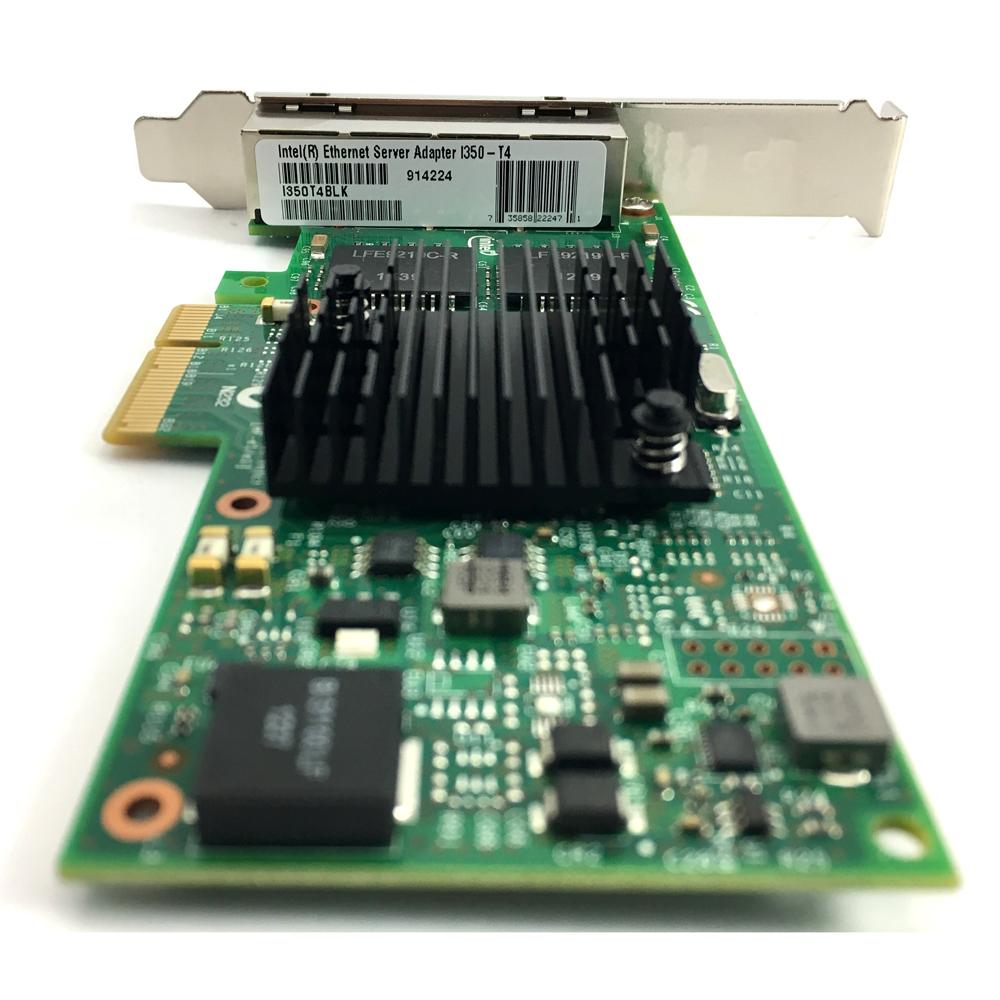

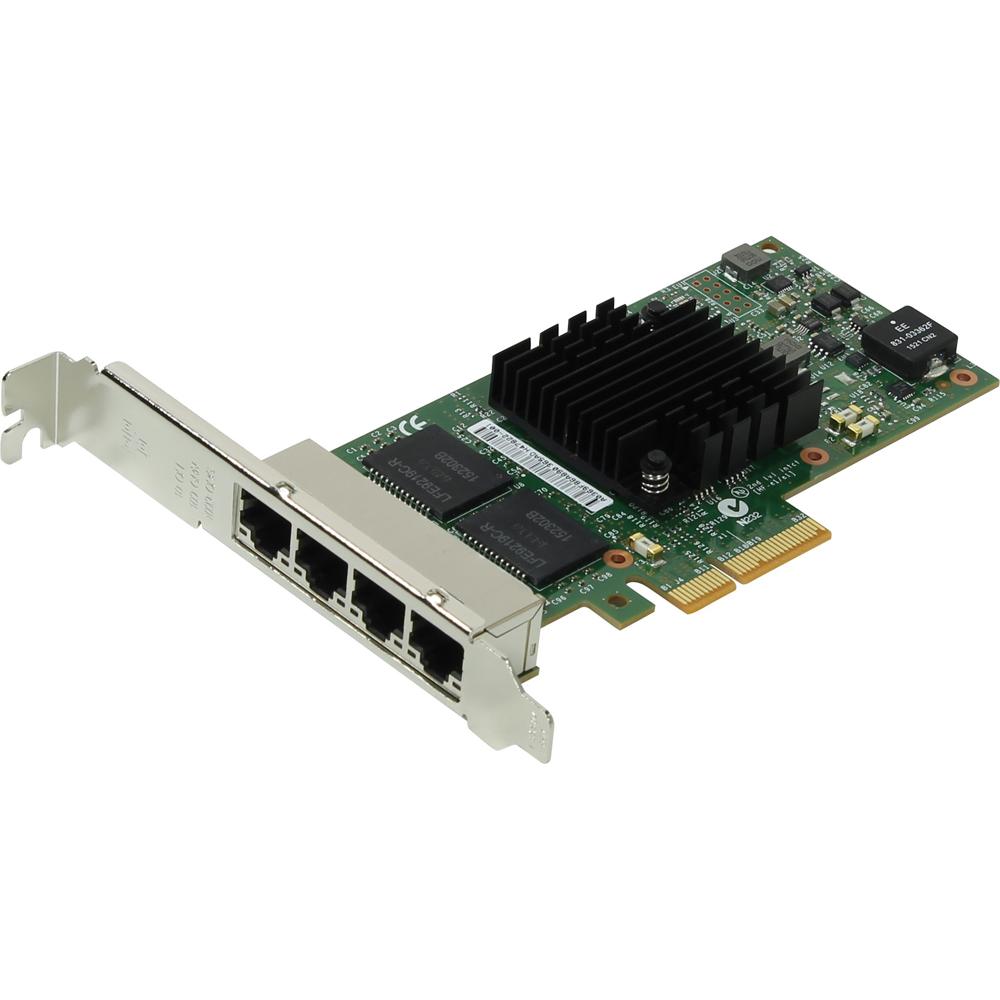

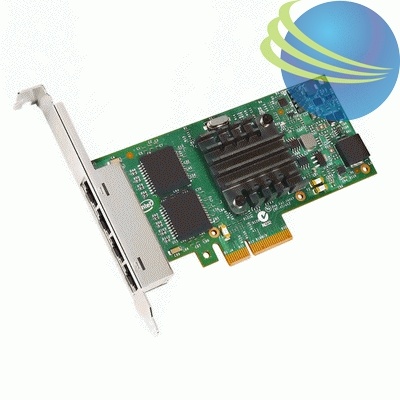

Card mạng Intel Ethernet Server Adapter I350-T4 (Xanh lá)

Card Intel Ethernet Server Adapter I350-T4

- Part number : I350-T4
- Type : Network adapter
- Manufacturer : Intel
- Feature : PCI Express* 2.1 (5 GT/s)
- Connect : RJ-45 (Copper), LC Fiber Optic (Fiber) Gigabit Ethernet x 4
- Data transferate :  10/100/1000 Mbps (Copper), 1000 Mbps (Fiber)
- Bandwidth : 4-lane PCI Express; operable in x4, x8 and x16 slots

Thông số kĩ thuật

Specifications

General	Card mạng Intel Ethernet Server Adapter I350-T4
Device Type	Network adapter
Connectors	• RJ-45 (Copper) • LC Fiber Optic (Fiber)
IEEE standard/network topology	• IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
Cabling:	•  Copper: Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation •  Fiber: MMF 62.5/50 um
Data rate supported per port:	•  10/100/1000 Mbps (Copper), 1000 Mbps (Fiber)
Bus type	•  PCI Express* 2.1 (5 GT/s)
Bus width	•  4-lane PCI Express; operable in x4, x8 and x16 slots
Interrupt levels	•  INTA, INTB, INTC, INTD, MSI, MSI-X
Hardware certifications	•  FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Controller-processor	•  Intel Ethernet Controller I350
Power consumption (typical)	•  Copper:  I350T2V2 4.4 W I350T4V2 5.0 W •  Fiber:  I350F2 5.5 W I350F4 6.0 W
Operating temperature	•  0 °C to 55 °C (32 °F to 131 °F)
Storage temperature	•  -40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity	•  90% non-condensing relative humidity at 35 °C
Connect Speed LED Indicators	•  Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper)  •  Green=1 Gb/s. Not illuminated=no link (Fiber)
Connectivity Technology	Wired
Interface (Bus) Type	PCI Express 4 x 1000Base-T - RJ-45
Ports	Gigabit Ethernet x 4
Data Link Protocol	GigE
Công suất tiêu thụ :	• Copper: I350T2V2 4.4 W I350T4V2 5.0 W • Fiber: I350F2 5.5 W I350F4 6.0 W



Hệ điều hành hỗ trợ :

Windows 10*
Windows Server 2012*
Windows 8*
Windows Server 2008 R2* SP1
Windows 7* SP1
Windows Server 2008* SP2
Windows Vista* SP2
Windows Server 2003 R2*
Windows Server 2003* SP2
Windows XP Professional x64 Edition SP2
Windows XP Professional SP3
Linux* Stable Kernel version 3.x, 2.6,x
Red Hat Enterprise Linux* 5, 6
SUSE Linux Enterprise Server* 10, 11
FreeBSD 9*
