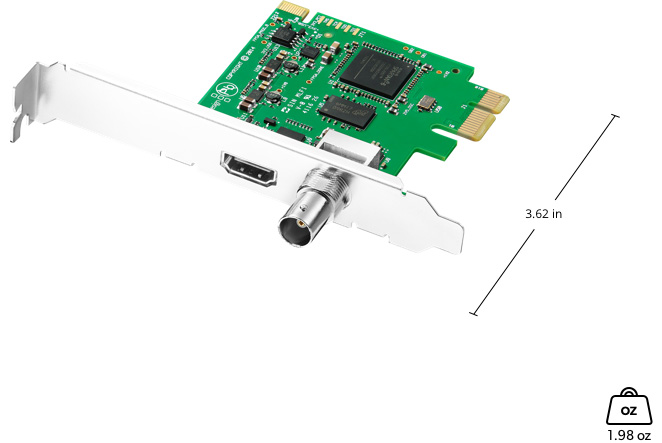

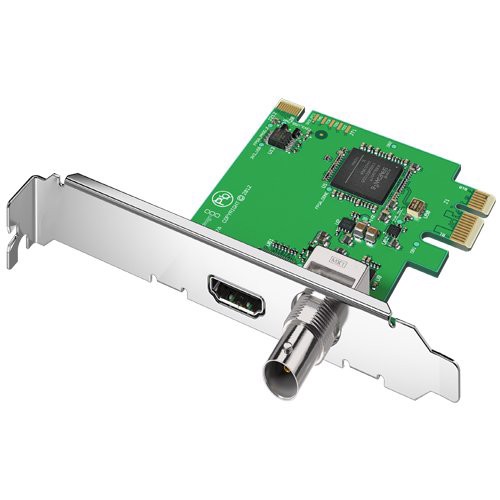

Card Kỹ Xảo Blackmagic Design DeckLink Mini Recorder HD

Record video 10-bit không nén từ các source SDI và HDMI! Hỗ trợ SD và HD.

TÍNH NĂNG NỔI BẬT

● Card capture 1-Lane PCIe Slot● SDI và HDMI input● Input video 10-bit không nén● 4:2:2 Video Sampling● 16 Ch Audio được nhúng trong HD SDI● 8 Ch Audio được nhúng trong SD SDI● 8 Ch Audio được nhúng trong SD và HD HDMI● Tương thích với hệ điều hành OS X, Windows và Linux

Connections

SDI Video Input

1 x 10-bit SD/HD switchable.

SDI Audio Input

8 channels embedded in SD and HD.

HDMI Video Input

1 x HDMI 1.4 type A connector.

HDMI Audio Input

8 Channels embedded in SD and HD.

Computer Interface

PCI Express 1 lane, compatible with 4, 8 and 16 lane PCI Express slots.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation

PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications

DaVinci Resolve

Adobe Premiere Pro CC

Avid Media Composer

Adobe Photoshop CC

Media Express

Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 259M and 292M.

SDI Metadata Support

RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

Color Precision

8-bit & 10-bit.

Video Sampling

YUV 4:2:2.

Color Space

REC 601, REC 709.

Multiple Rate Support

SDI and HDMI are switchable between standard definitlon and high definition.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Colorspace Conversion

Hardware based real time.

HD to SD Down Conversion

Software based down conversion during video capture.

HD Up Conversion

Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.

Physical Specifications

Operating Systems

Mac 10.13 High Sierra,Mac 10.14 Mojave or later.

Windows 7, 8.1 and 10, all 64-bit.

Linux

Power Requirements

Power Consumption

5 Watts

EMC Certifications

FCC, CE and C-Tick.

Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

DeckLink Mini Recorder

Low profile slot bracket

SD card with software and manual
