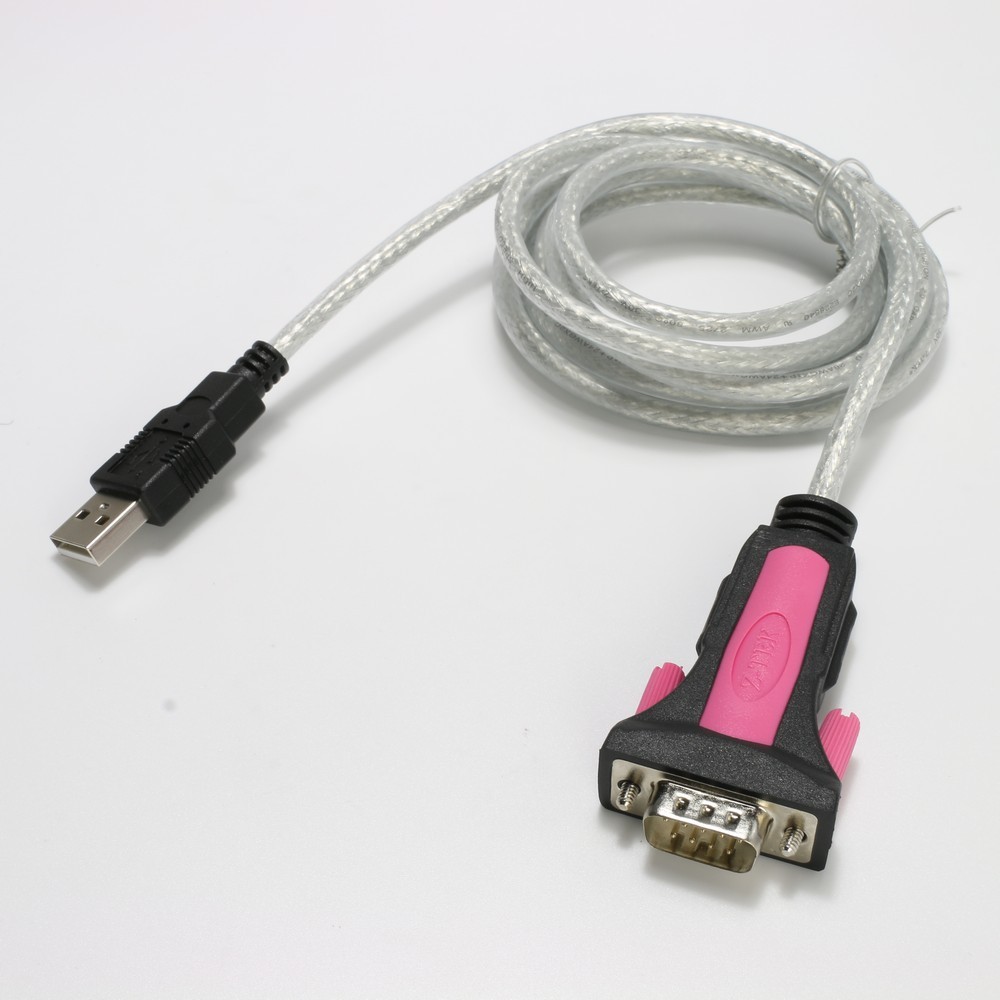

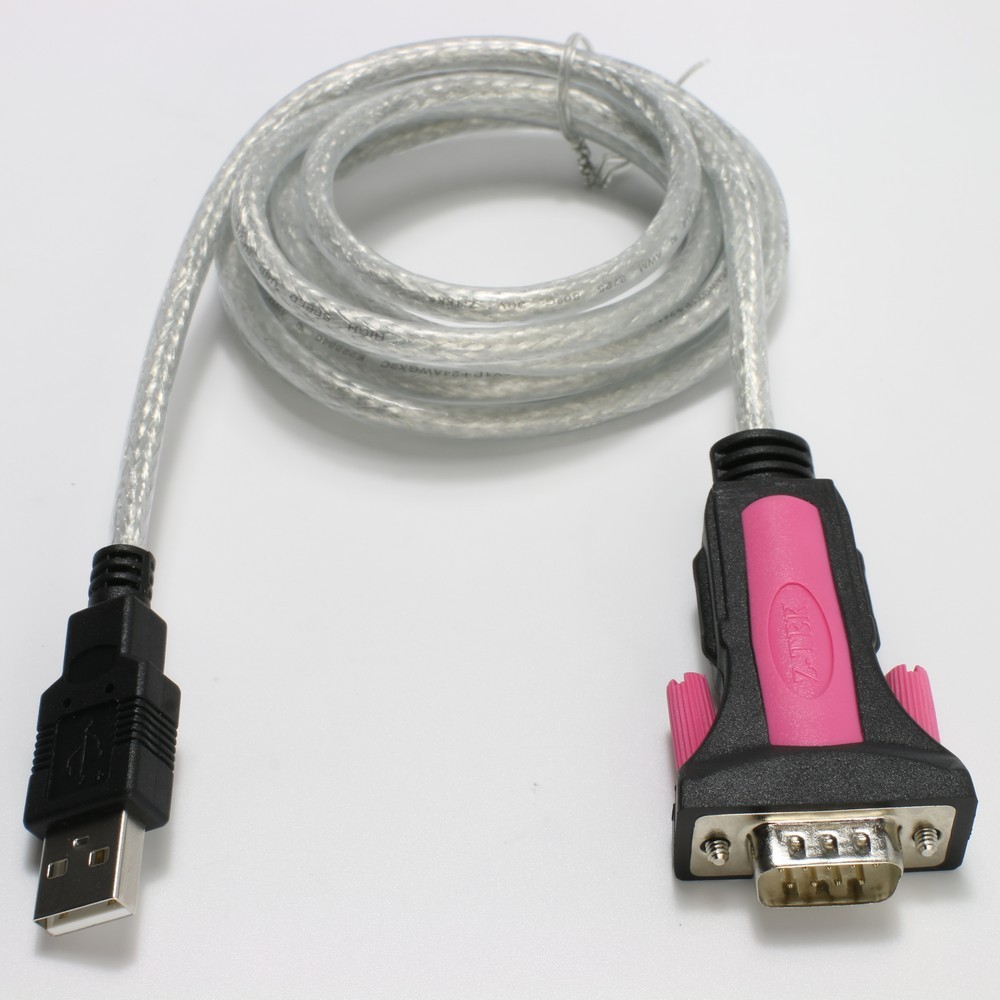

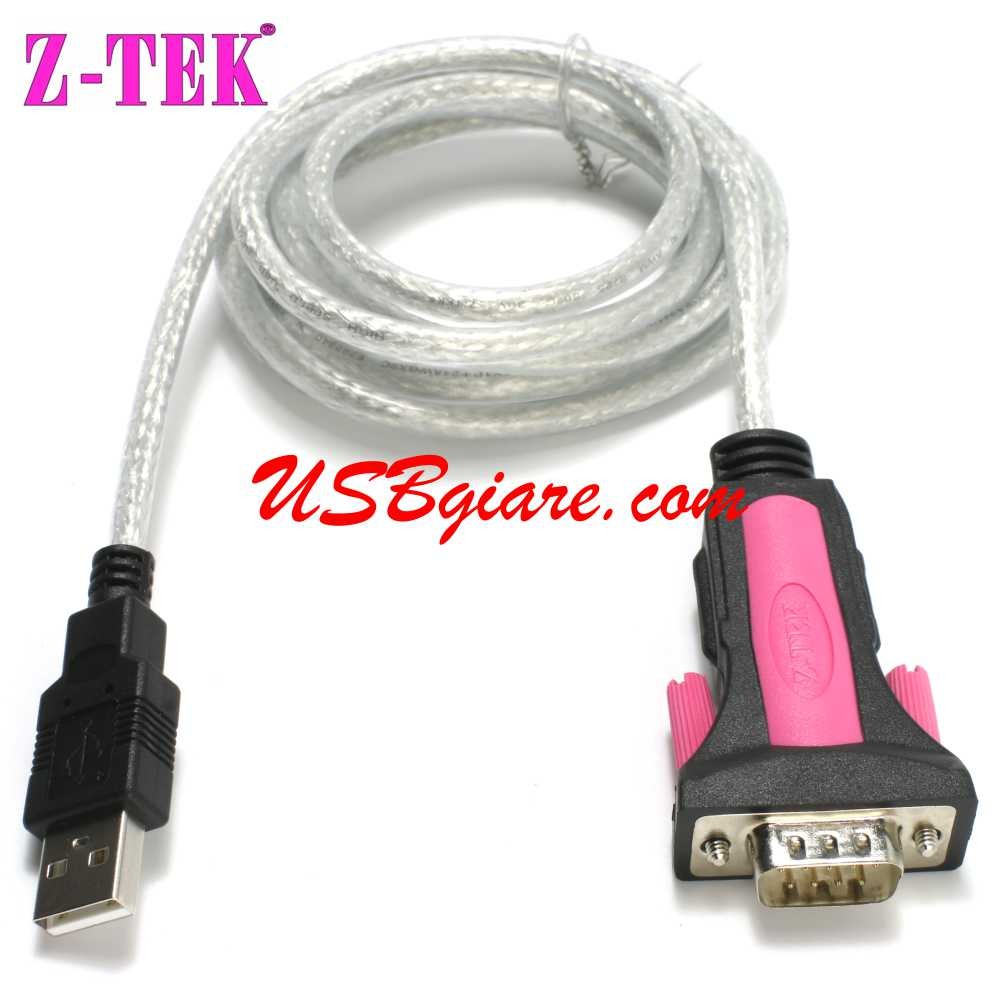

CÁP USB SANG RS232 1.8M ZTEK ZE533A - USB SERIAL PORT FT232

Dây cáp USB Serial Port 9Pin RS232 Z-Tek ZE533A

• Chipset: FTDI FT232
• Cổng kết nối: USB 2.0 / UART DB9 male
• Chiều dài cáp: 1.8M
• Model: ZE533A
• Tương thích PDA, Modem, các thiết bị RS232 port
• Hỗ trợ Win XP, Vista, 7, 8, 10, Mac OS, Linux

The FT232R is a USB to serial UART interface

with the following advanced features:

• Single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled on the chip. No USB specific firmware programming required.
• Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
• Fully integrated USB termination resistors.
• Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
• Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
• 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
• FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
• Unique USB FTDIChip-ID™ feature.
• Configurable CBUS I/O pins.
• Transmit and receive LED drive signals.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
• FIFO receives and transmits buffers for high data throughput.
• Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
• Device supplied pre-programmed with unique USB serial number.
• Supports bus powered, self-powered and highpower bus powered USB configurations.
• Integrated +3.3V level converter for USB I/O.
• Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.
• True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
• Configurable I/O pin output drive strength.
• Integrated power-on-reset circuit.
• Fully integrated AVCC supply filtering - no external filtering required.
• UART signal inversion option.
• +3.3V (using external oscillator) to +5.25V (internal oscillator) Single Supply Operation.
• Low operating and USB suspend current.
• Low USB bandwidth consumption.
• UHCI/OHCI/EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to 85°C extended operating temperature range.
• Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).
•
