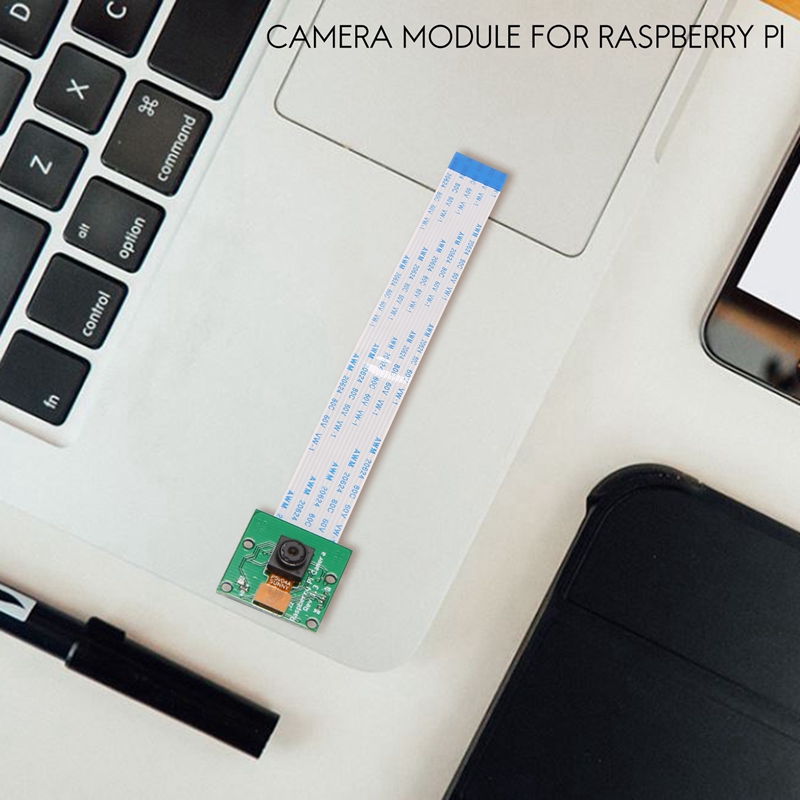

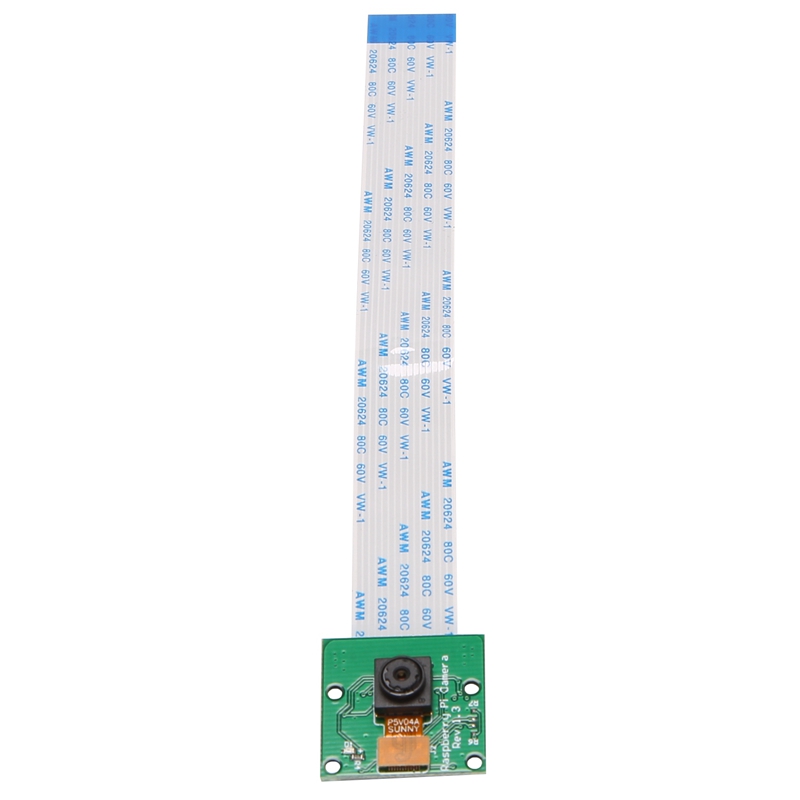

Camera Module Board 5MP Webcam for Raspberry Pi Zero W/Zero/ Raspberry Pi 3 Model B /4B

Camera Module Board 5MP Webcam for Raspberry Pi Zero W/Zero/ Raspberry Pi 3 Model B /4B

Details

Material: Copper
Photo Color
for Raspberry Pi Zero W/Zero/ Raspberry Pi 3 Model B /4B with the cable for it.
5MP Omnivision 5647 Camera ModuleWhy choose Aokin Camera Module Board for Raspberry Pi?

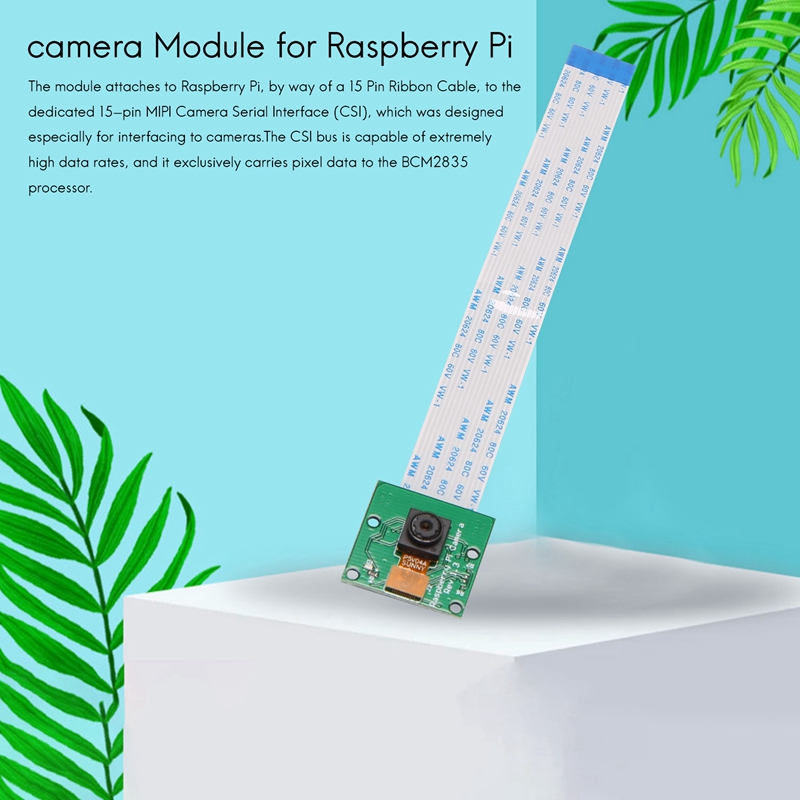

The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras.The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor.
The board itself is tiny, at around 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important.

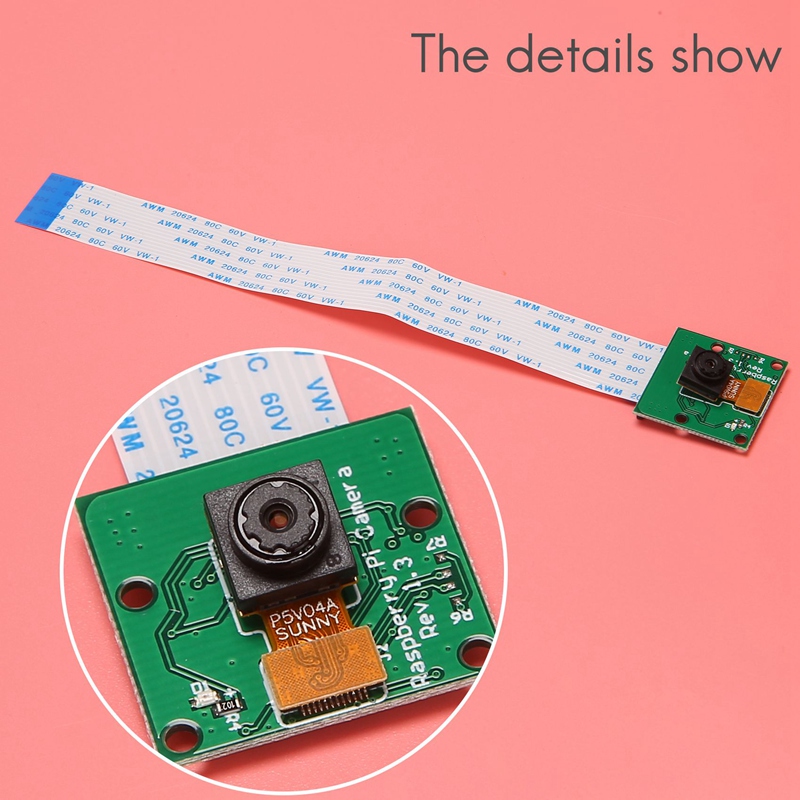

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard.
In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording.
Specification and Application:
Specification:
Viewing angle: 72 degrees
Sensor type : Omni Vision OV5647 5MP
Still Picture Resolution: 2592 x 1944
Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording
5-pin MIPI Camera Serial Interface - Plugs Directly into the Raspberry Pi Board
Application:
Cellular phones,PDAs,Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms
Package Contents:

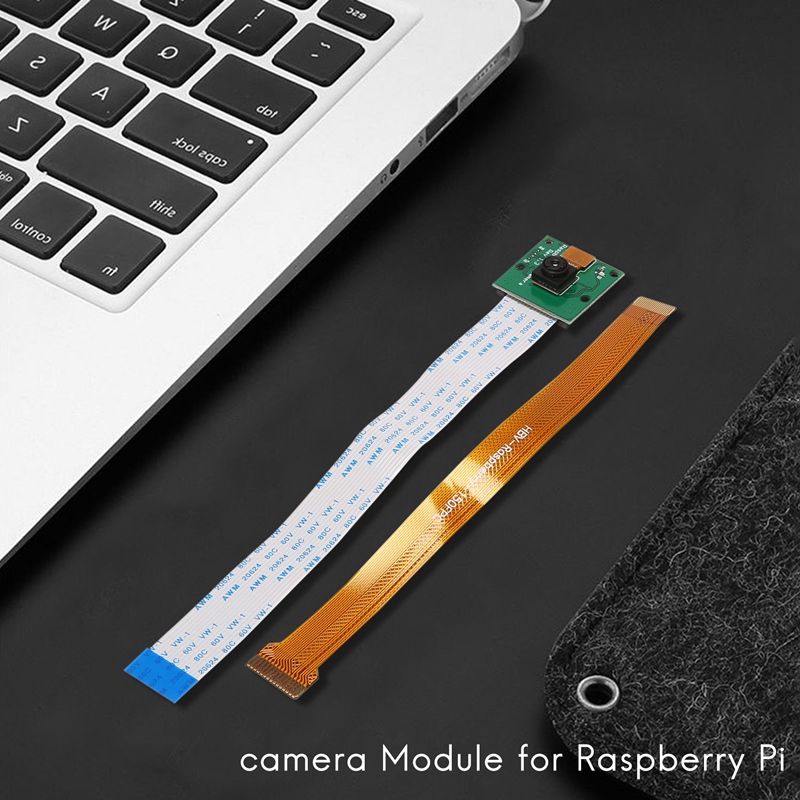

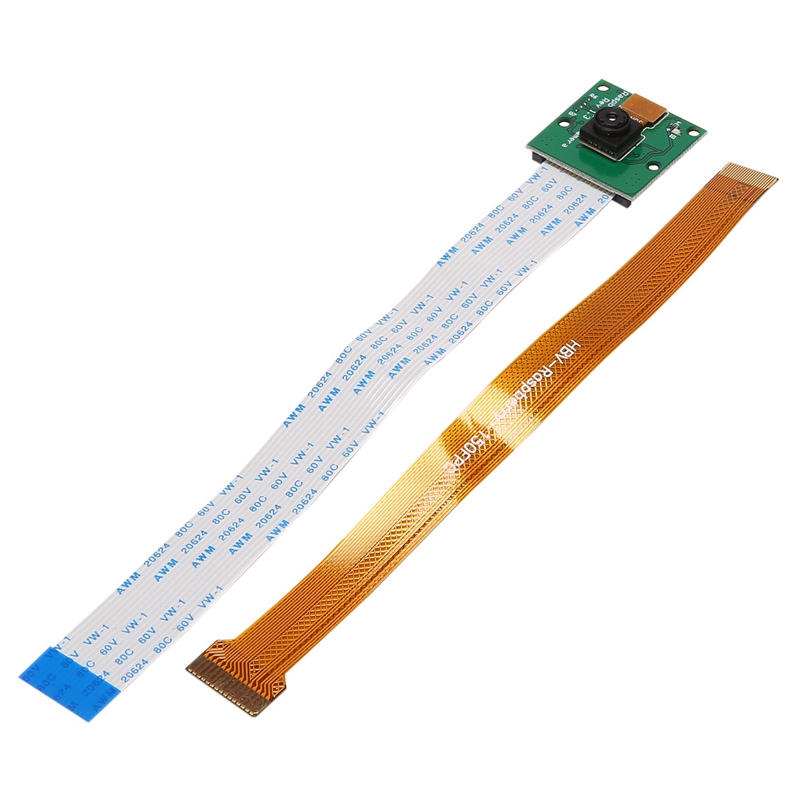

1 x Camera Module Board

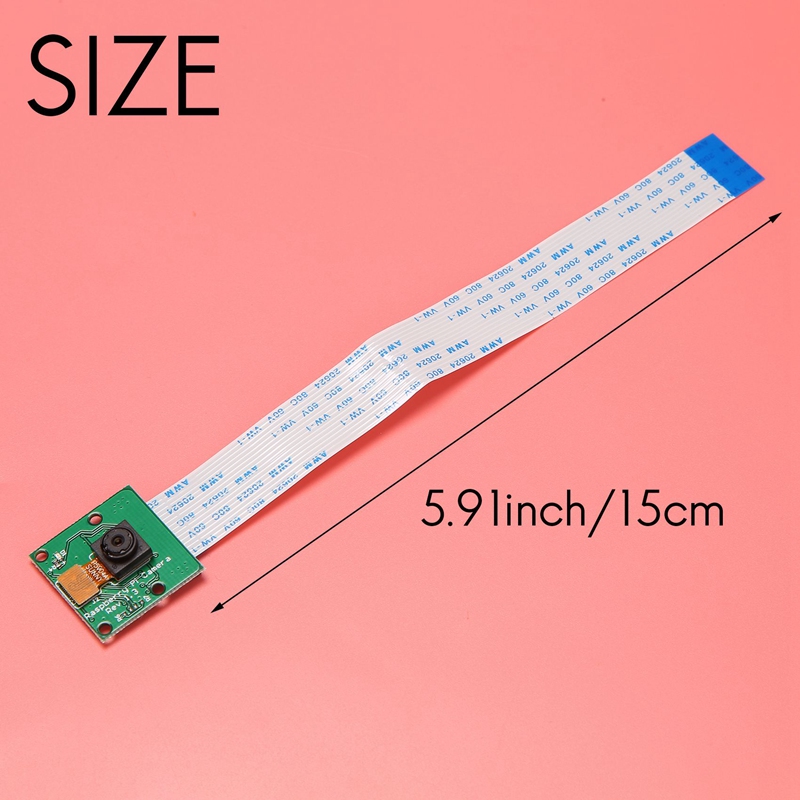

1 x 15cm cable
