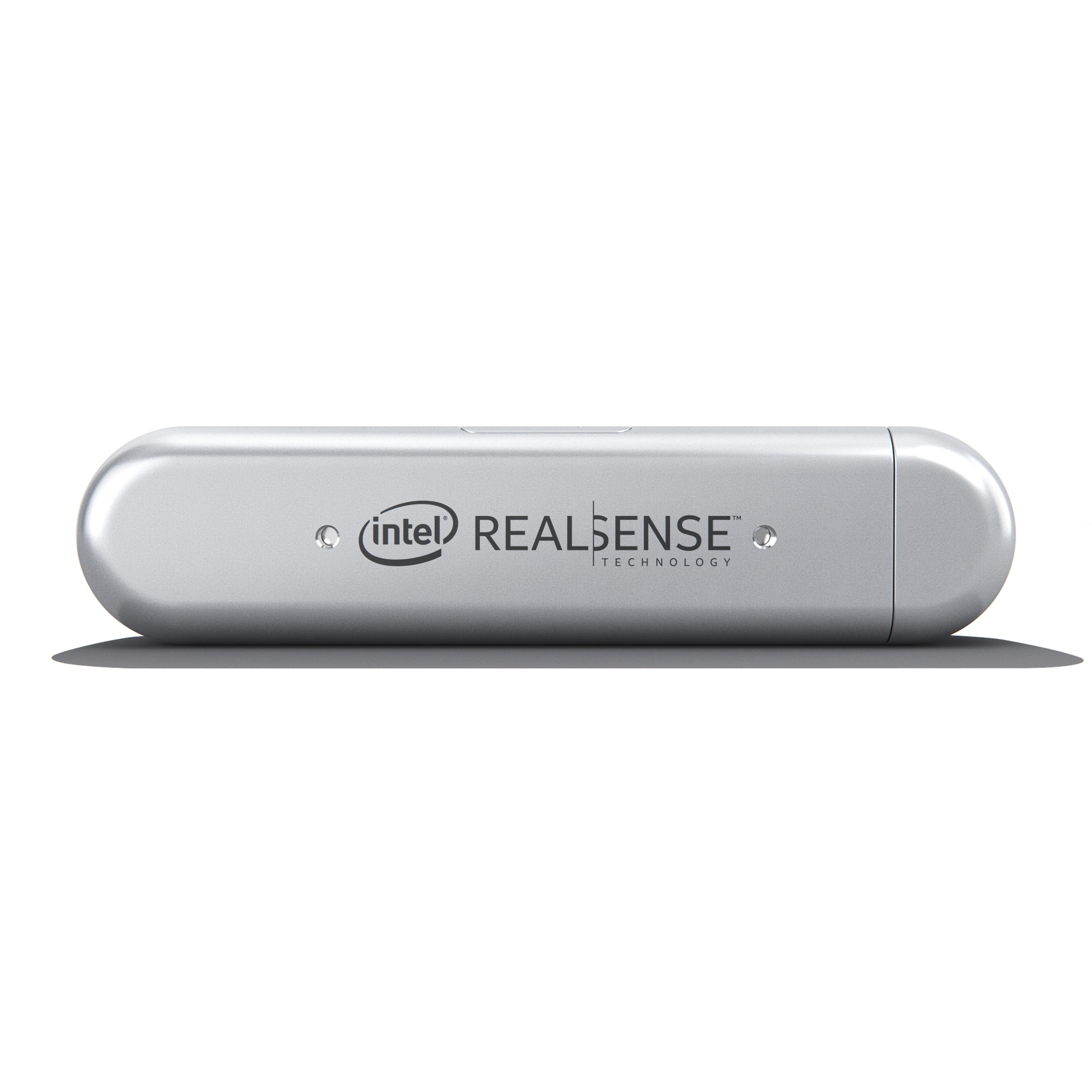

Camera chiều sâu Intel® RealSense™ Depth Camera D415 Intel D415 (0406)

Tên thiết bị: Intel® RealSense™ Depth Camera D415

Model: Intel® RealSense™ Depth Camera D415

Thương hiệu:Intel

Tình trạng: hàng mới, chính hãng 100%

The Intel® RealSense™ Depth Camera D400 Series uses stereo vision to calculate depth. The D415 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype development.

The depth camera includes:

• A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output.
• New advanced stereo depth algorithm for accurate depth perception and long range.
• A set of image sensors that enable capturing of disparity between images up to 1280 x 720 resolution.
• Support for the cross-platform, open-source Intel® RealSense™ SDK 2.0.
• Dedicated color image signal processor for image adjustments and scaling color data.
• Active infrared projector to illuminate objects to enhance the depth data.

Intel® RealSense™ Depth Camera D415 is designed to best fit your prototype. With the rolling image shutter and narrow field of view (69.4° x 42.5° x 77°), Intel® RealSense™ Depth Camera D415 offers high depth resolution when object size is small and more precise measurements are required.

For more information regarding Intel® RealSense™ Depth Camerasand Intel® RealSense™ technology, go to intelrealsense.com.

The latest release of the Intel® RealSense™ SDK 2.0 is available on our GitHub page at https://github.com/IntelRealSense/librealsense/.

Tech specs

Use Environment	Indoor/Outdoor
Depth Technology	Active IR stereo
Main Intel® RealSense™ component	- Intel® RealSense™ Vision Processor D4
Depth Field of View (FOV)	65°±2° x 40°±1° x 72°±2°
Depth Stream Output Resolution	Up to 1280 x 720
Depth Stream Output Frame Rate	Up to 90 fps
Minimum Depth Distance (Min-Z)	0.3 m
Sensor Shutter Type	Rolling Shutter
Maximum Range	Approx. 10 meters; Varies depending on calibration, scene, and lighting condition
RGB Sensor Resolution and Frame Rate	1920 x 1080 at 30 fps
RGB Sensor FOV	69.4° x 42.5° x 77° (+/- 3°)
Camera Dimension	99 mm x 20 mm x 23 mm
Connectors	USB-C* 3.1 Gen 1
Mounting Mechanism	- One 1/4-20 UNC thread mounting point
