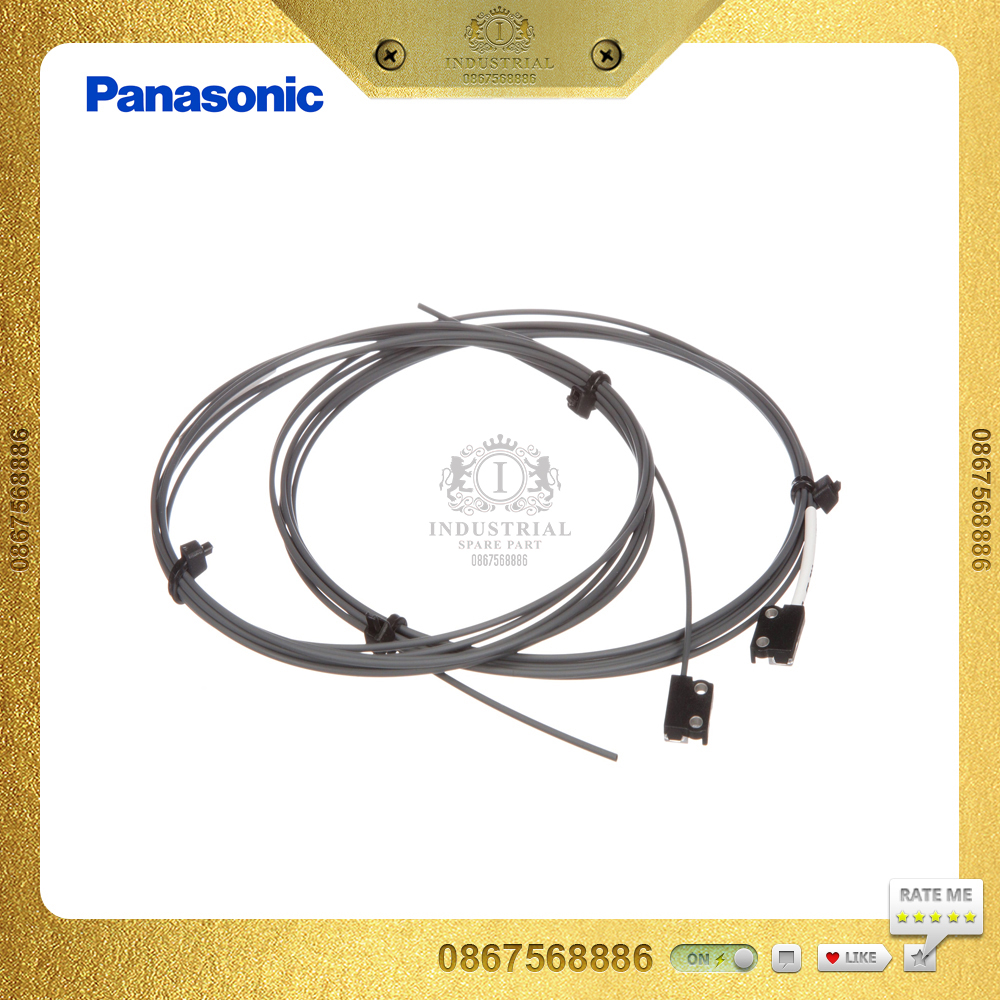

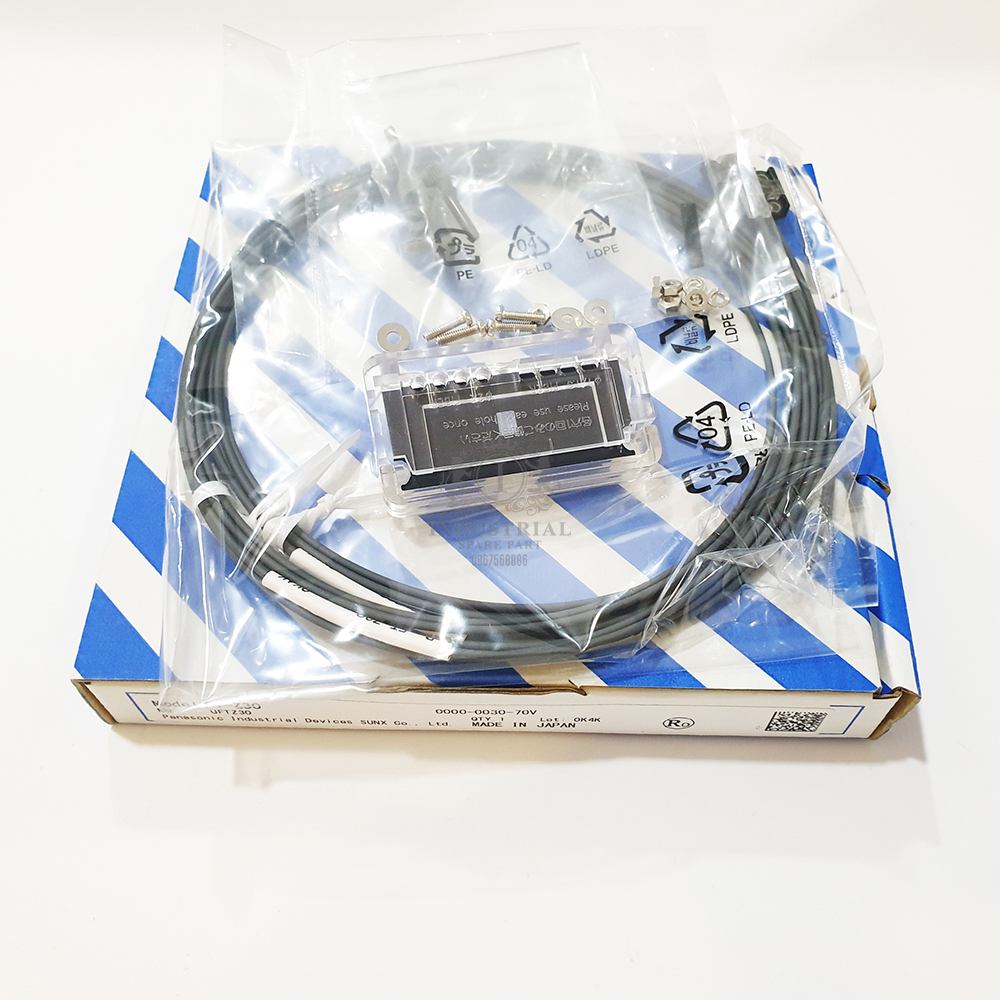

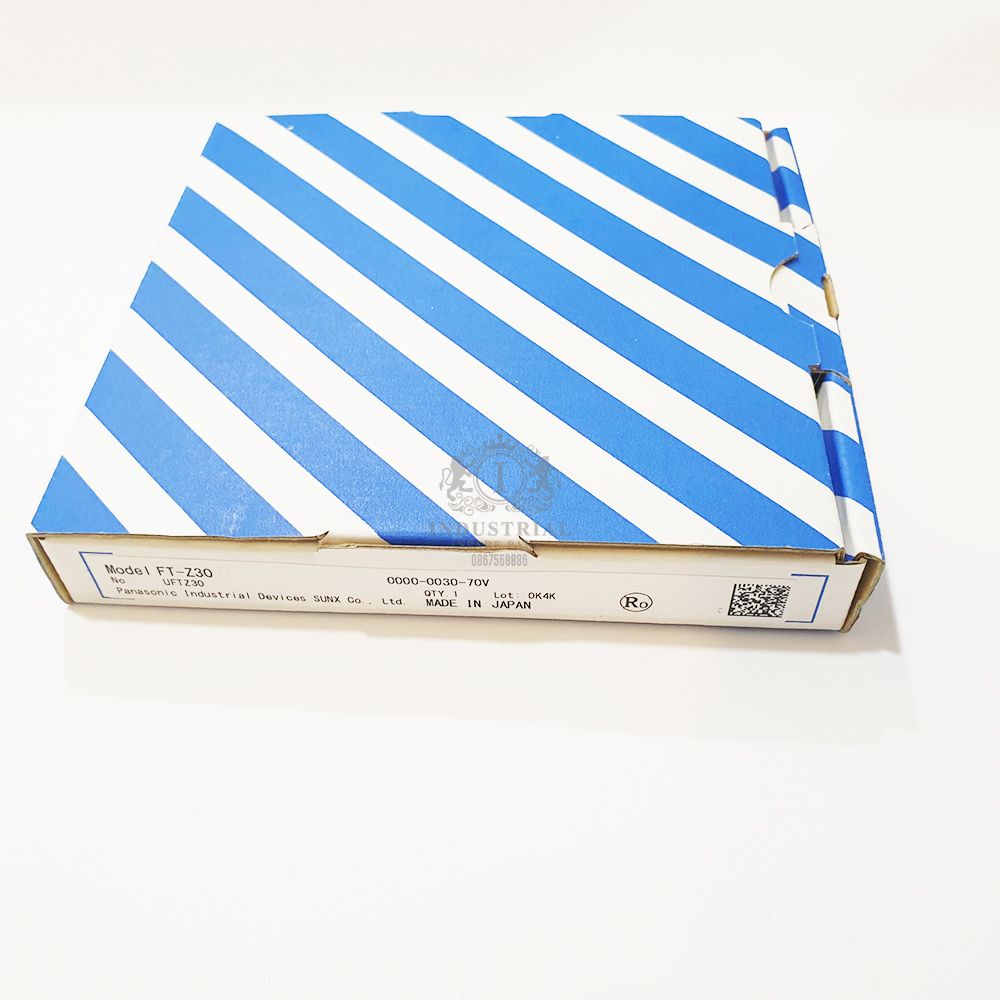

Cảm biến Panasonic FT-Z30

Spec Detail

Product Number	FT-Z30
Part Number	FT-Z30
Sensing mode	Thru-beam type
Fiber type	Flat type
Fiber head length	W8.5 x H12 x D3 mm
With sleeve	No
Beam direction	Front sensing
Beam axis dia./ Spot diameter	dia. 2 mm
Fiber cable length	2 m
Allowable bending radius	R2 mm
Free-cut	Available
Semi-custom	Fiber length change
Mounting lens	Not available
Mounting protective tube	Not available
Application	General-purpose
Environmental resistance : Protection	IP40
Environmental resistance : Ambient temperature MAX	60 degrees
Environmental resistance : Ambient temperature MIN	-40 degrees
Sensing range（STD）	2,100 mm 82.677 in (FX-500 series)
Sensing range（HYPR）	3,600 mm 141.732 in (FX-500 series)
Sensing range（U-LG）	3,600 mm 141.732 in (FX-500 series)
Sensing range（LONG）	3,600 mm 141.732 in (FX-500 series)
Sensing range（FAST）	1,200 mm 47.244 in (FX-500 series)
Sensing range（H-SP）	410 mm 16.142 in (FX-500 series)
