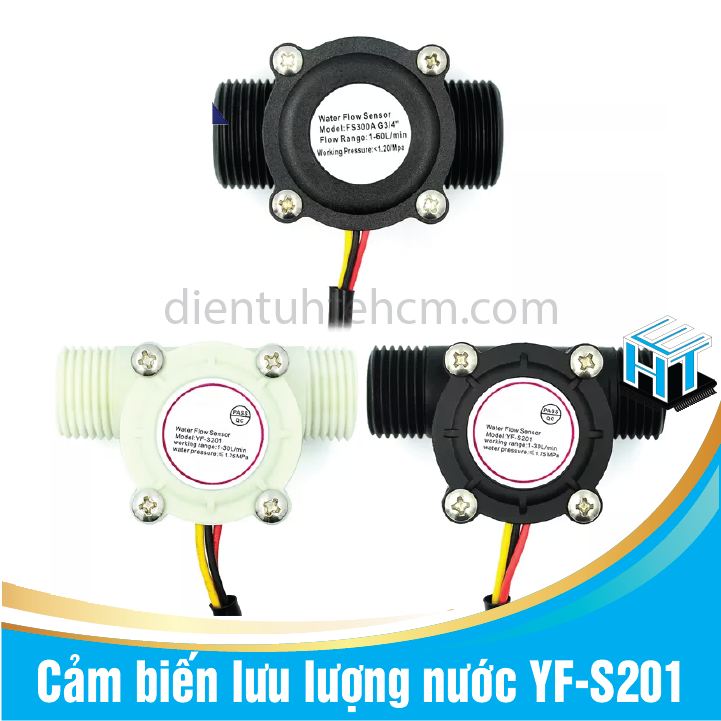

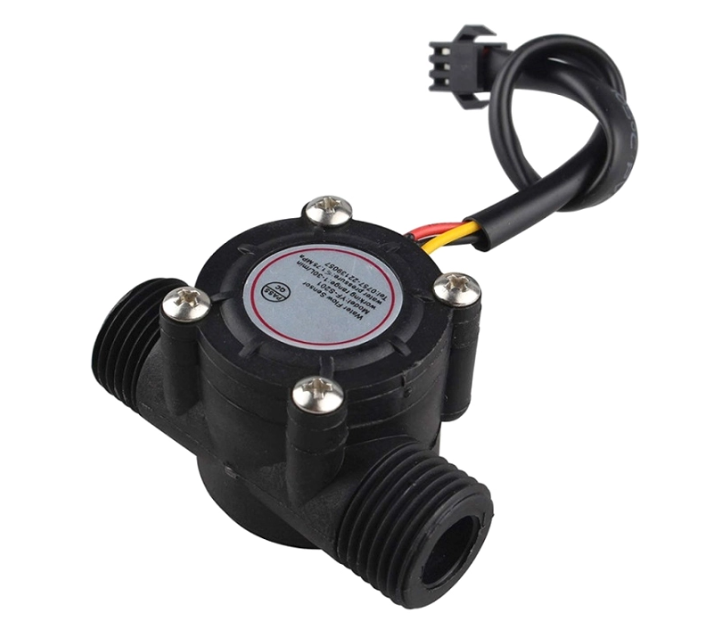

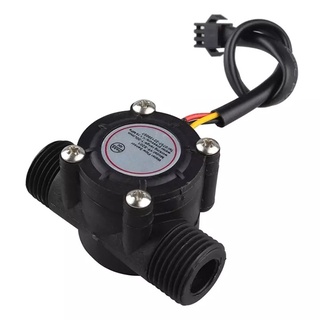

Chức năng 3 dây ngõ ra :
- Màu đỏ: nguồn : 5 - 24V
- Dây đen: GND (mass).
- Dây vàng: tín hiệu.
Công thức lưu lượng :
- Q = F / 7.5
- F : tần số ( Hz)
- Q: lưu lượng : (L/min)
- 7.5 : hằng số

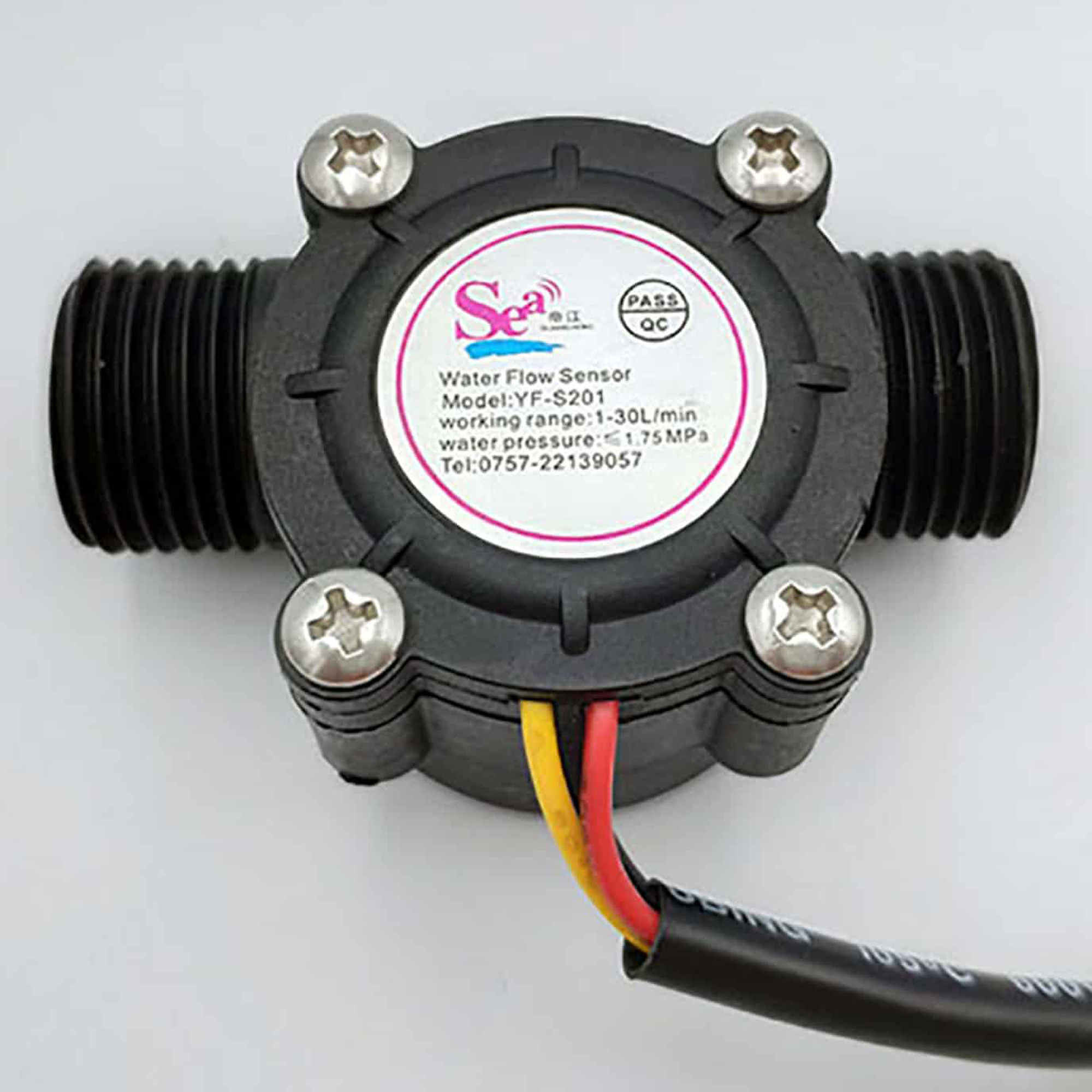

Thông số kỹ thuật :
- Nguồn :5 - 24V
- Dòng tiêu thụ : < 10mA.
- Chịu áp lực đến : 1.75Mpa
- Lưu lượng đo : 1 - 30 (L/min)
- Nhiệt độ hoạt động : < 120 độ C
- Độ ẩm : 35% - 90% RH
- Kích thước : 61 x 36 x 34mm
Lưu ý quan trọng : Không được để nghiêng quá 5 độ, lắp thẳng đứng và nhiệt độ nước chảy qua
———————CODE THAM KHẢO———————
/* Dây đỏ kết nối nguồn 5V arduino Dây đen nối GND arduino Dây vàng (tín hiệu) kết nối chân số 2 arduino Mở Serial Monitor chọn No line ending, baud 9600 Thổi cho cánh quạt trong cảm biến xoay để kiểm tra */byte statusLed = 13;byte sensorInterrupt = 0; // 0 = digital pin 2byte sensorPin = 2; //--------------------------------------------------chân tín hiệufloat calibrationFactor = 4.5;volatile byte pulseCount; float flowRate;unsigned int flowMilliLitres;unsigned long totalMilliLitres;unsigned long oldTime;void setup(){ // Initialize a serial connection for reporting values to the host Serial.begin(9600); // Set up the status LED line as an output pinMode(statusLed, OUTPUT); digitalWrite(statusLed, HIGH); // We have an active-low LED attached pinMode(sensorPin, INPUT); digitalWrite(sensorPin, HIGH); pulseCount = 0; flowRate = 0.0; flowMilliLitres = 0; totalMilliLitres = 0; oldTime = 0; // The Hall-effect sensor is connected to pin 2 which uses interrupt 0. // Configured to trigger on a FALLING state change (transition from HIGH // state to LOW state) attachInterrupt(sensorInterrupt, pulseCounter, FALLING);}void loop(){ if((millis() - oldTime) > 1000) // Only process counters once per second {detachInterrupt(sensorInterrupt); flowRate = ((1000.0 / (millis() - oldTime)) * pulseCount) / calibrationFactor; oldTime = millis(); flowMilliLitres = (flowRate / 60) * 1000; totalMilliLitres += flowMilliLitres; unsigned int frac; // Print the flow rate for this second in litres / minute Serial.print("Flow rate: "); Serial.print(int(flowRate)); // Print the integer part of the variable Serial.print("L/min"); Serial.print("t"); // Print tab space // Print the cumulative total of litres flowed since starting Serial.print("Output Liquid Quantity: ");Serial.print(totalMilliLitres); Serial.println("mL");Serial.print("t"); // Print tab space Serial.print(totalMilliLitres/1000); Serial.print("L"); // Reset the pulse counter so we can start incrementing again pulseCount = 0; // Enable the interrupt again now that we've finished sending output attachInterrupt(sensorInterrupt, pulseCounter, FALLING); }}/*Insterrupt Service Routine */void pulseCounter(){ // Increment the pulse counter pulseCount++;}
