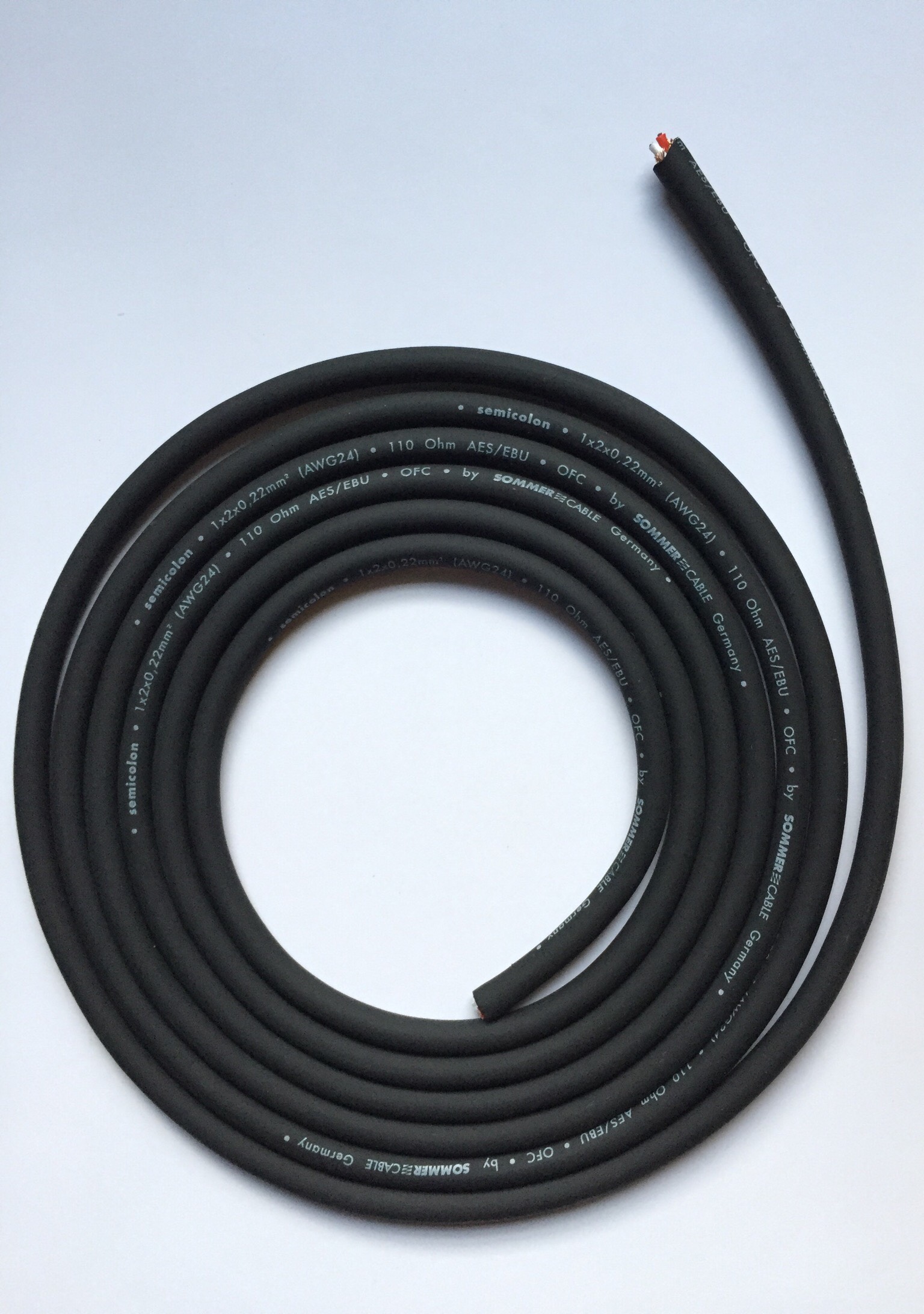

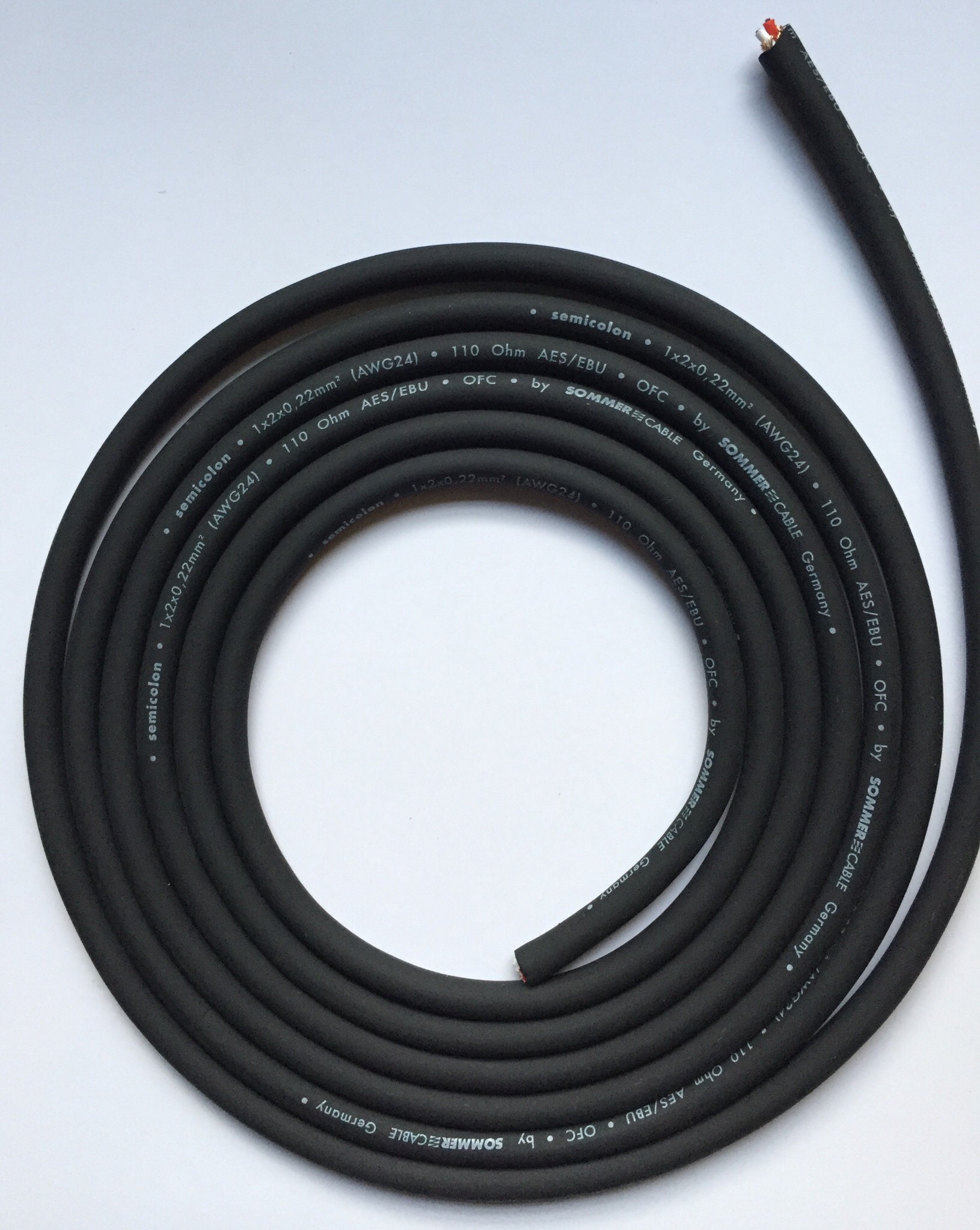

- Cable audio, microphone cable

- Thương hiệu Sommer

- Model cable: SC-Semicolon 2 AES/EBU

- Made in Germany

- DMX SC-Semicolon 2 AES/EBU; 2 x 0,22 mm²; PVC Ø 5,00 mm; black

Details

The moon has risen...

and if only the little golden stars are twinkling in the sky? Light failure! Power failure! The total failure is every technician's nightmare. The cause for this are external interference fields, which in turn are caused by badly shielded cables. So this is no place to make savings on material and shielding. Hence this cable with its soft jacket and the 100 % shielding. And all this with only 5,00 mm of outer diameter. This cable is the perfect AES/EBU line for studio engineering. It's ideal for patching or for internal wirings. Where no extreme environmental influences occur, it can also be used for permanent long-distance laying. The surge impedance of 110 Ω guarantees a loss-free transmission of digital signals. Likewise the SC-Semicolon 2 AES/EBU is fully shielded by the use of a tight Cu spiral screen and the underlying AL/PT foil or AL fleece.

Tender

SC-Semicolon 2 AES/EBU

DMX

Advantages:

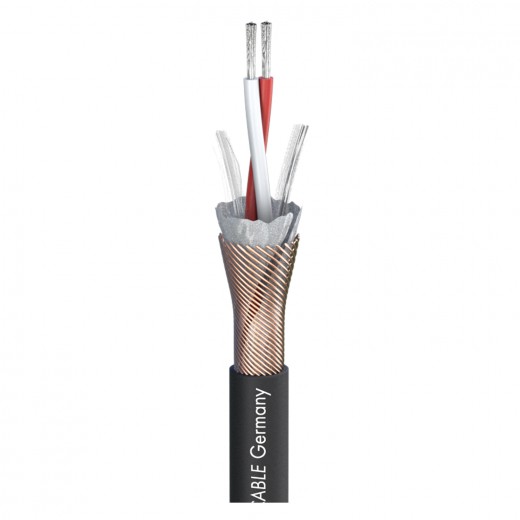

- Perfect shielding by a dense helical copper mesh screen + AL/PT foil or AL fleece

- Compact and hence space-saving

Application:

- Professional studio and microphone technology

- Connection of effects and control units which require a return signal

- Industrial technology and medical engineering

- Professional MIDI-technology, transfer cable

- High-end connection of hifi components

- Control of lighting and scanner systems and displays

Technical Data:

- Article number: 520-0101

- Name: SC-Semicolon 2 AES/EBU

- EAN: 4049371226783

- Properties: Digital 110 Ω AES / EBU

- Properties: Analog

- Properties: OFC oxygen free copper

- Application area: Installation

- Application area: Studio / Broadcast

- Application: DMX

- Colour: black

- Signal transmission: symmetrical

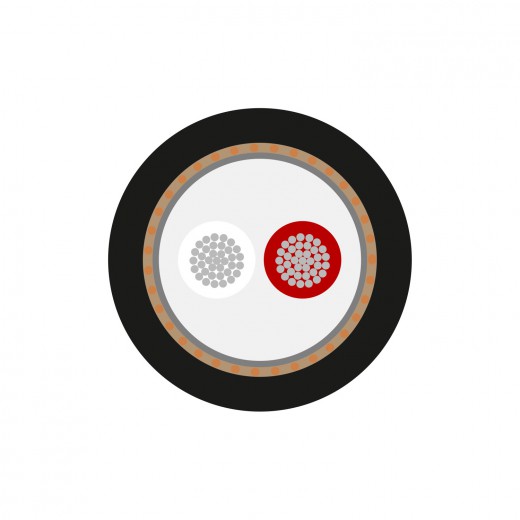

- Construction: (2LI2Y0,22mm²)(ST)DY

- Jacket material: PVC

- Jacket Ø: 5,00 mm

- Jacket Ø: 0.1969 "

- Number of Channels (AES/EBU, DMX): 1

- Inner conductor (AES/EBU, DMX): 2

- Inner conductor (AES/EBU, DMX): 0,22 mm²

- Inner conductor (AES/EBU, DMX): 0.0003 sqin

- Inner conductor Ø (AES/EBU, DMX): 0,53 mm

- Inner conductor Ø (AES/EBU, DMX): 0.0209 "

- AWG (AES/EBU, DMX): 24

- Shielding: Copper spiral sleeve + AL-fleece

- Shielding factor: 100 %

- Copper strands (AES/EBU, DMX): 28

- Copper strand Ø (AES/EBU, DMX): 0,10 mm

- Copper strand Ø (AES/EBU, DMX): 0.003

- Conductor insulation material: Foam / Skin-PE

- Weight per 1 m: 33 g

- Weight at 1000 ft.: 22.2062 lbs

- Fire load per m: 0,13 kWh

- Style variant: round

- Packing: 500 m spool

- Packing: 100 m spool

- Temperature min.: -25 °C

- Temperature max.: 70 °C

- Width: 5 mm

- Width: 0.1969 "

- Height: 5 mm

- Height: 0.1969 "

- Capac. cond./cond. per 1 m (AES/EBU, DMX): 45 pF

- Capacity wire/wire at 1 ft. (AES/EBU, DMX): 13.716 pF

- Capac. cond./shield. per 1 m (AES/EBU, DMX): 95 pF

- Capacity wire/electic screen at 1 ft. (AES/EBU, DMX): 28.956 pF

- Impedance: 110 Ω

- Insulation resist. per 1 km: 1 GΩ

- Insulation resist. per 1000 feet: 0.3048 GΩ

- Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ

- Insulation resist. per 1000 feet (AES/EBU, DMX): 0.3048 GΩ

- Conductor resistance per 1 km: 80 Ω

- Conductor resistance per 1000 ft.: 24.384 Ω

- BPVo-Euroclass: Fca
