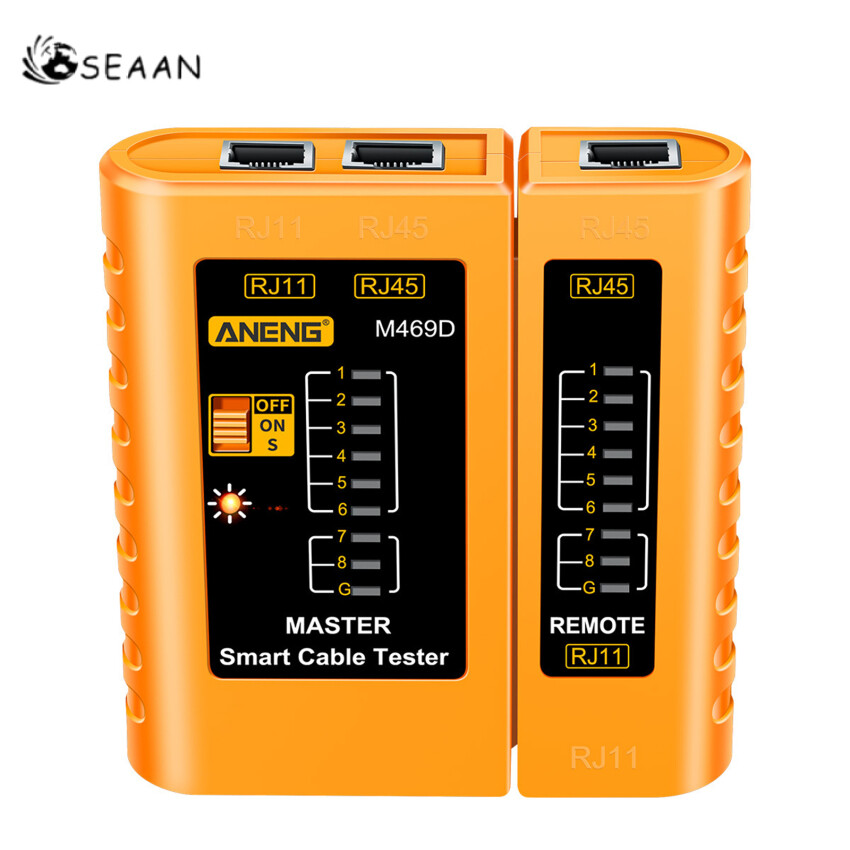

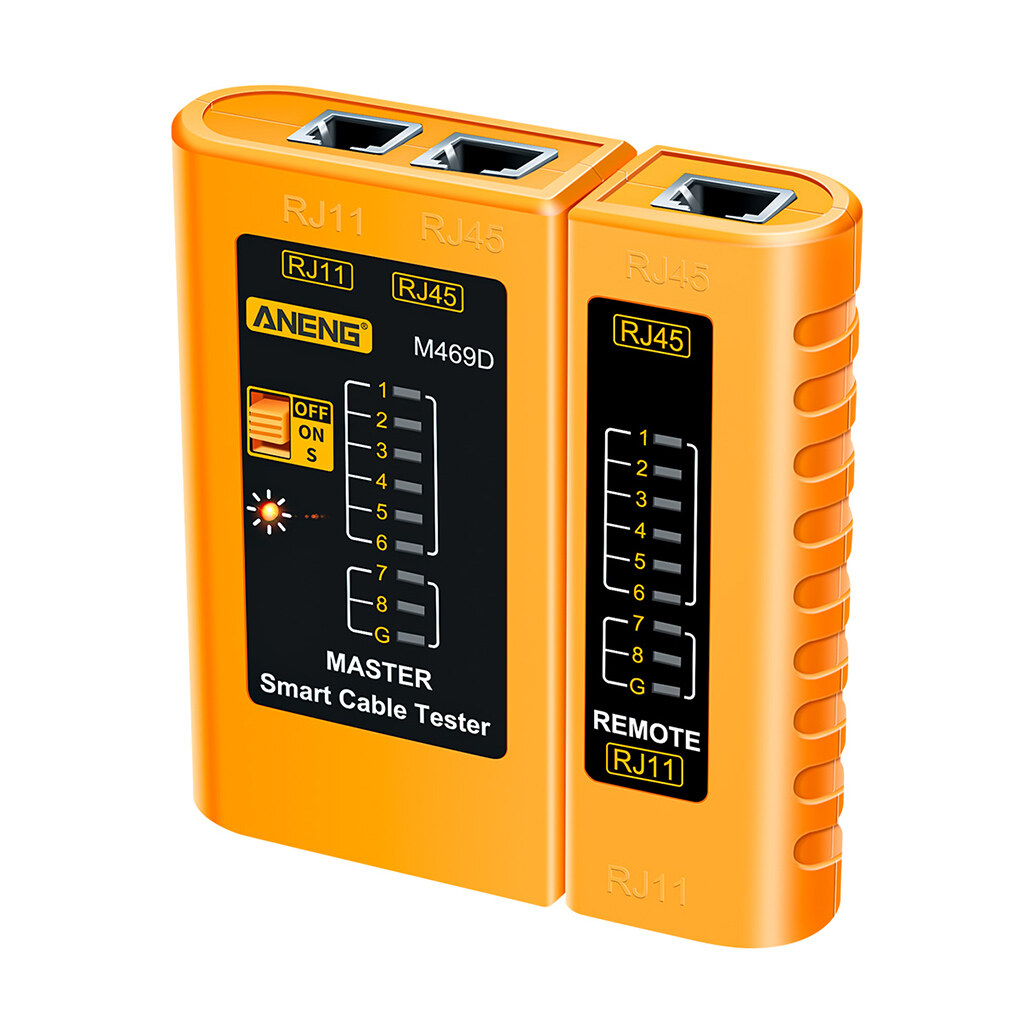

Cable Lan Tester Network Cable Tester RJ45 RJ11 LAN Cable Tester Networking Tool Network Repair

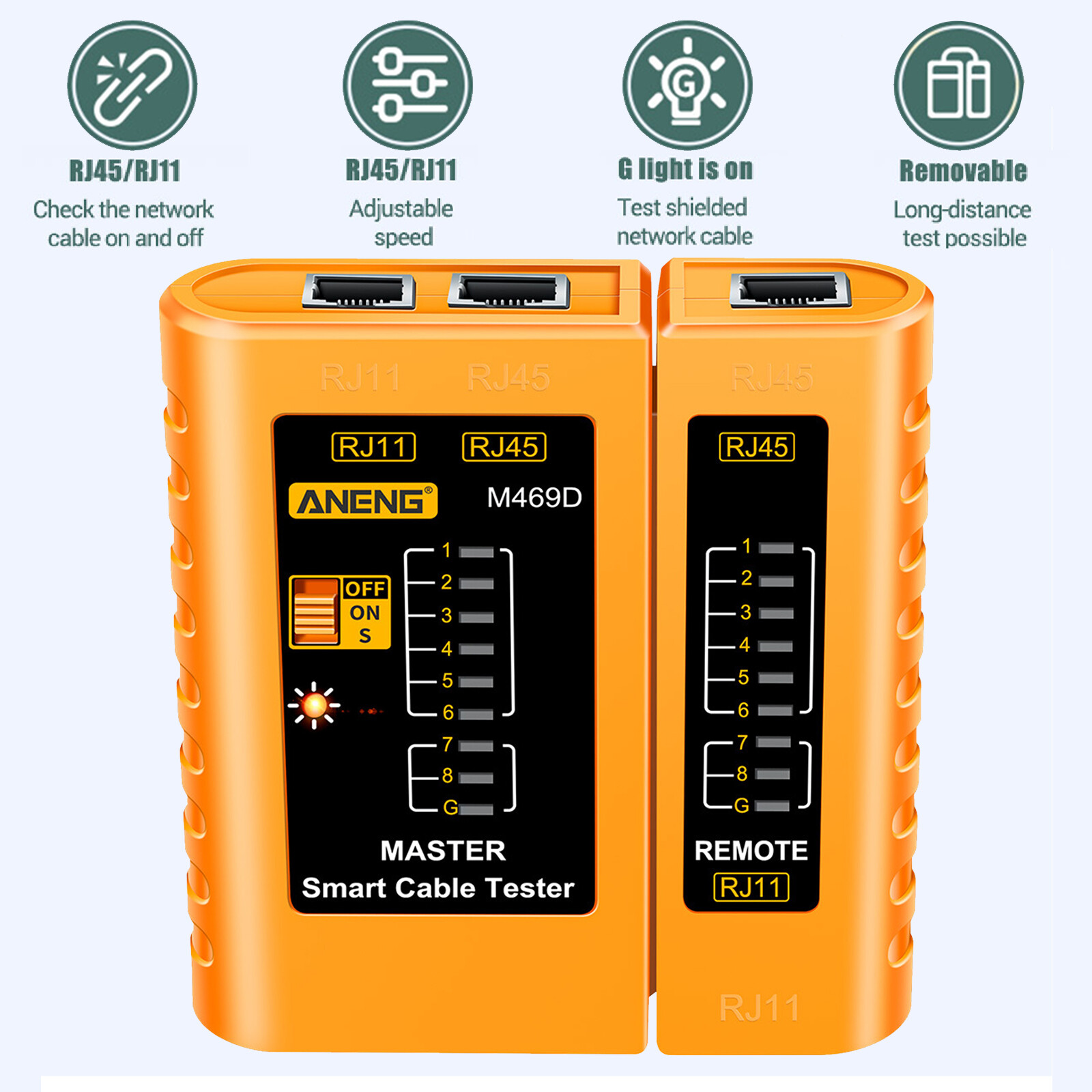

Feature:

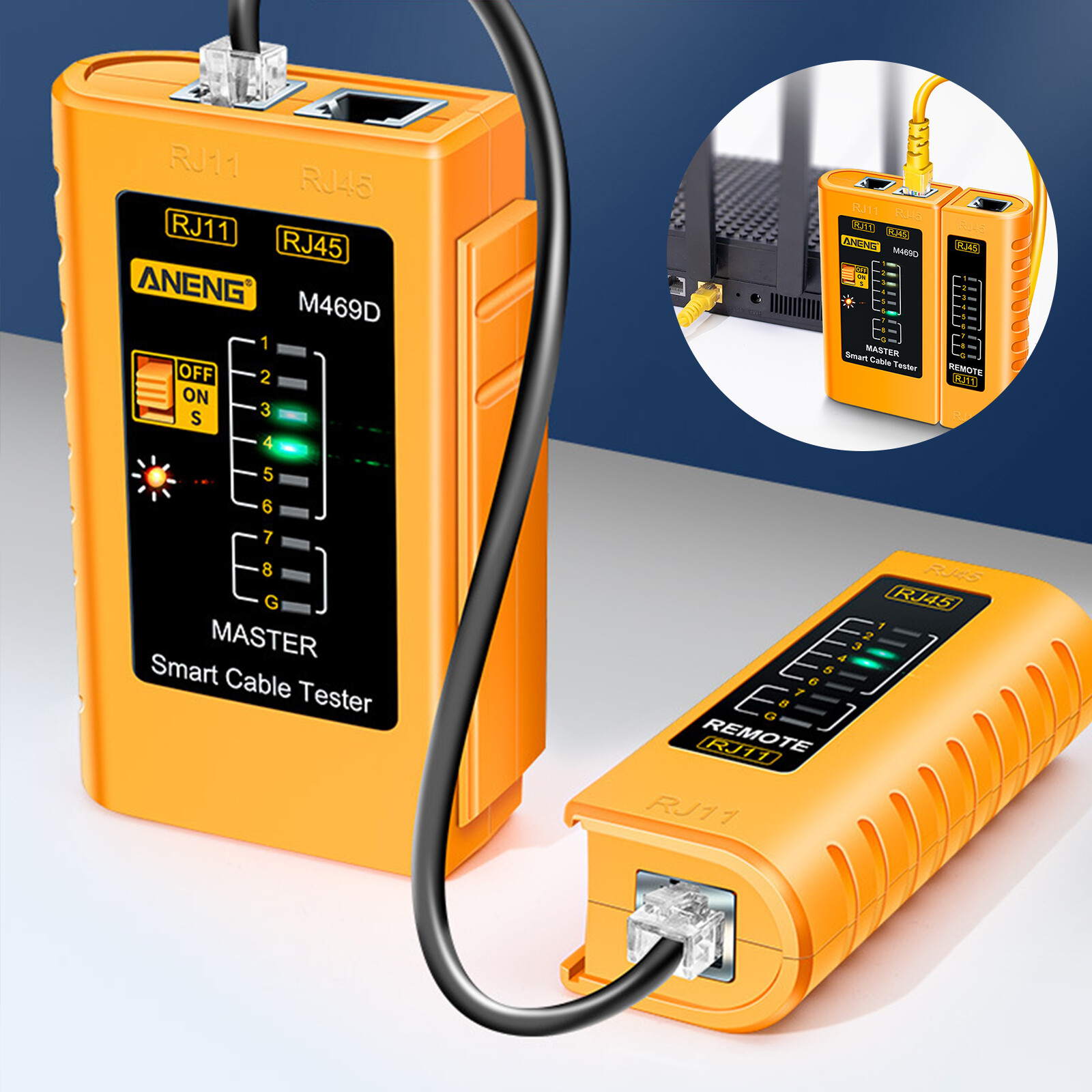

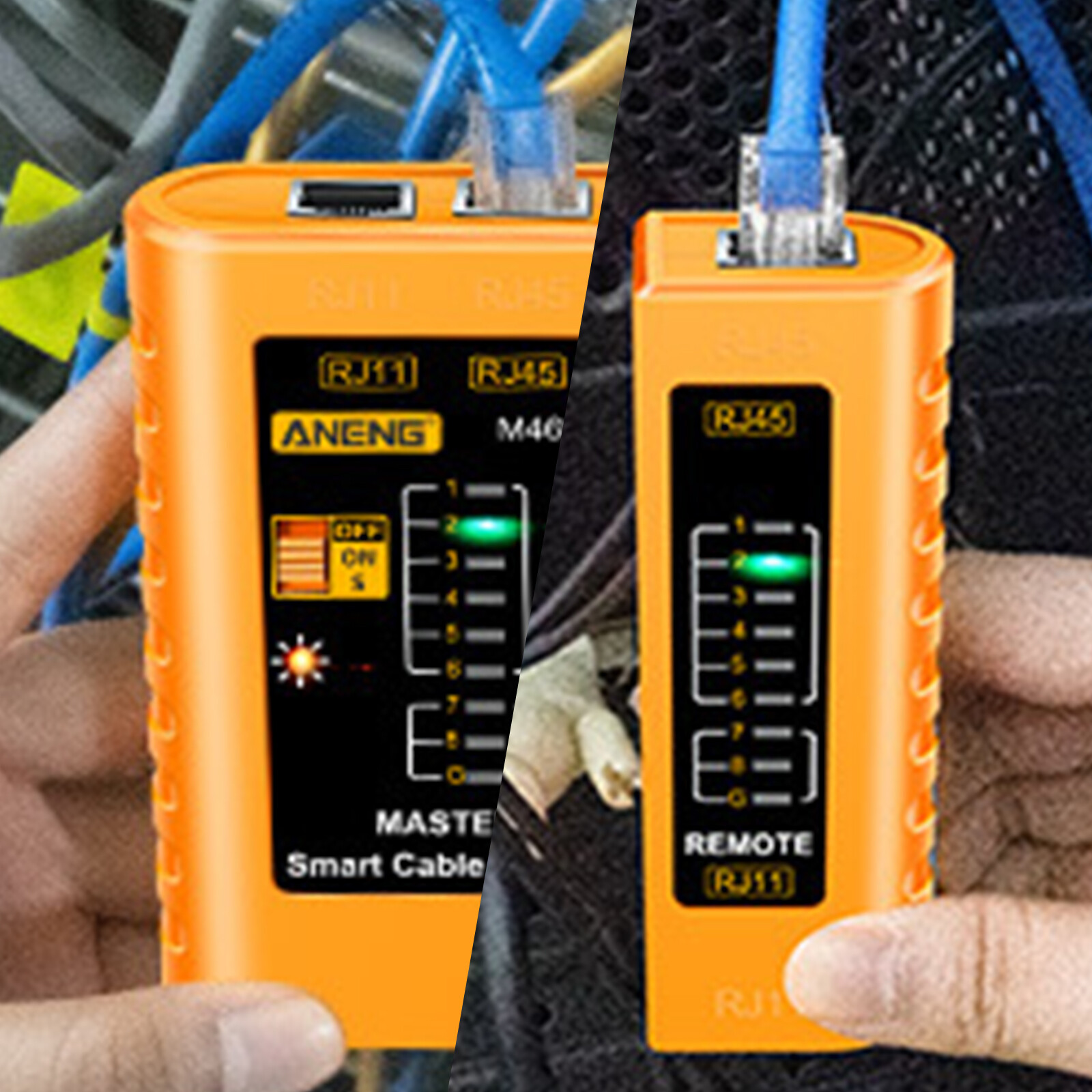

1.Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G.
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G RJ45
1-2-3-4-5-6 RJ11
2.If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tester and remote tester will not turn on.
3.If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
4.If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on:
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-4-3-2-5-6-7-8-G
5.If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.
6.If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.
7.If test cables of the same axes, BNC turns on when the cable works.

Specification：
Color: Yellow
Material: ABS plastic

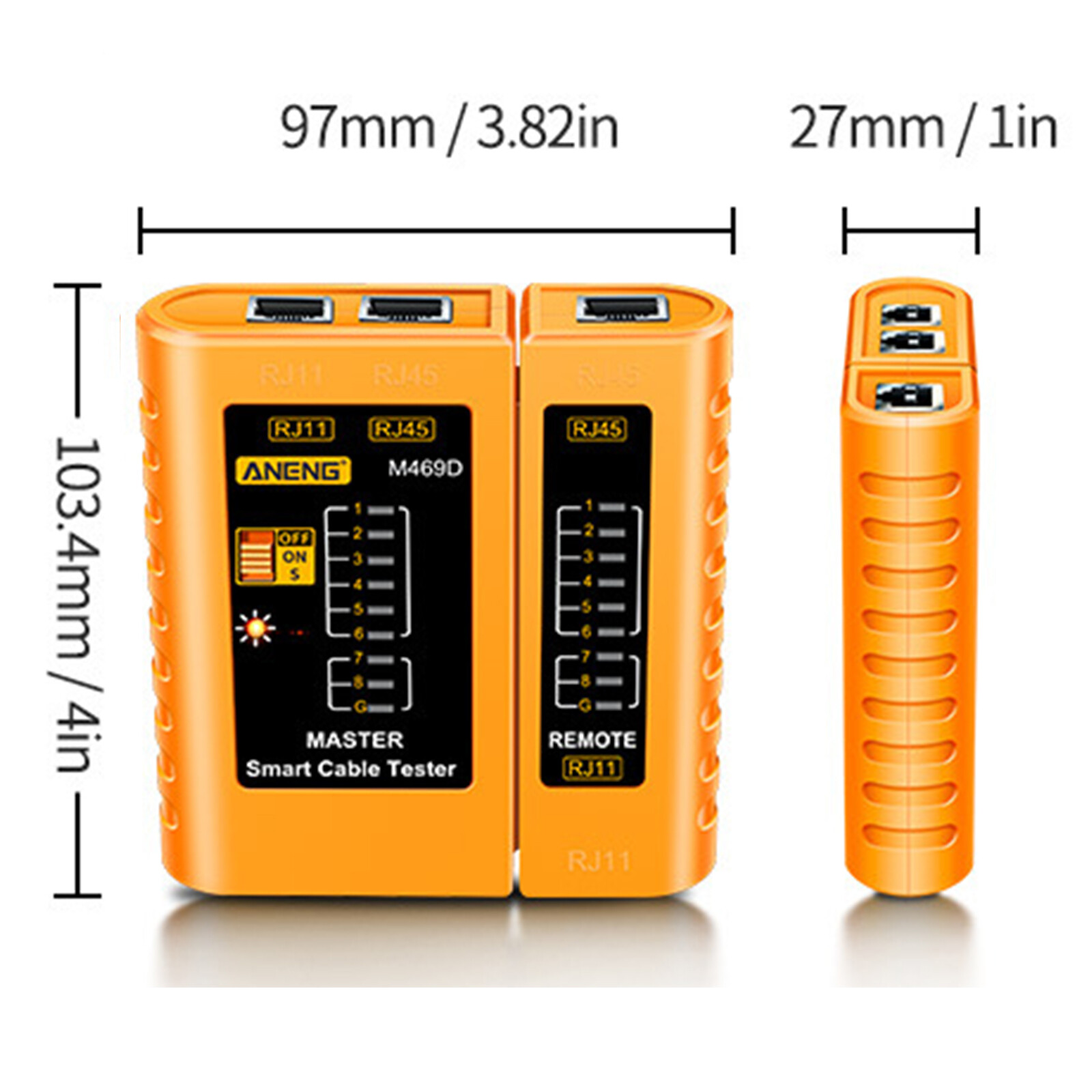

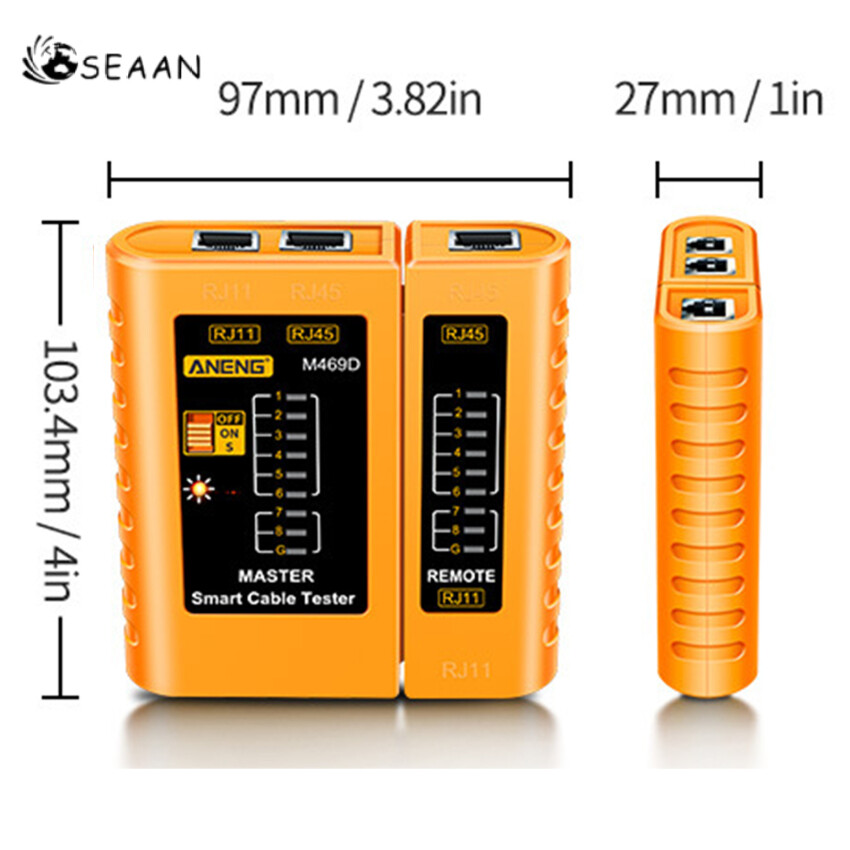

Size: 103x97x27mm/4.06x3.82x1.06in
Power supply: 9V 6F22 battery (not included)

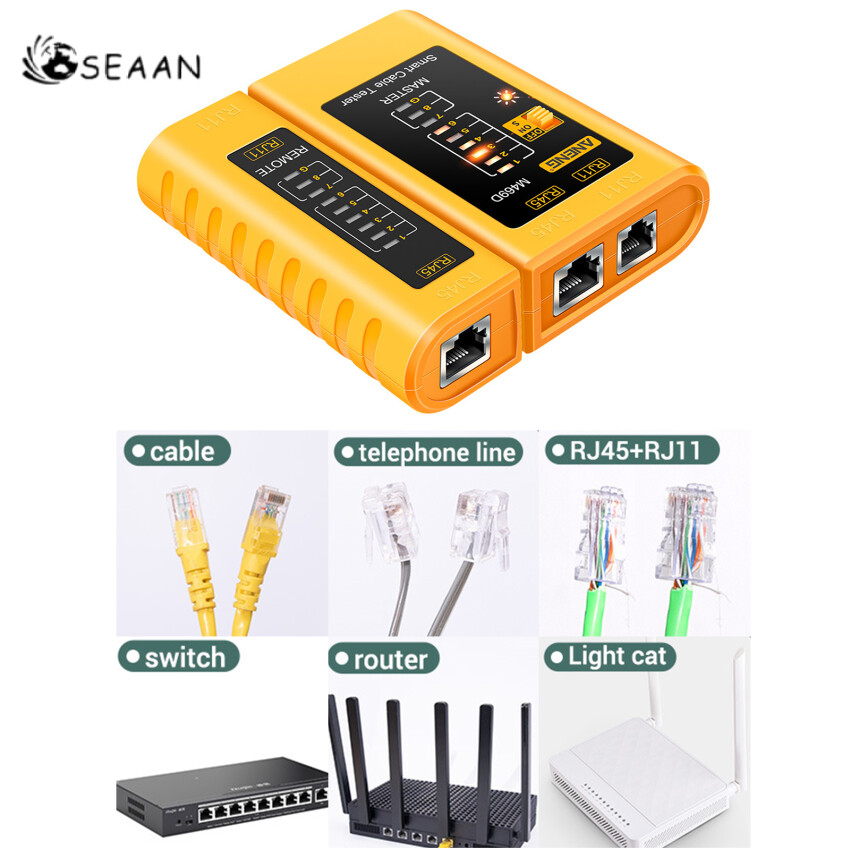

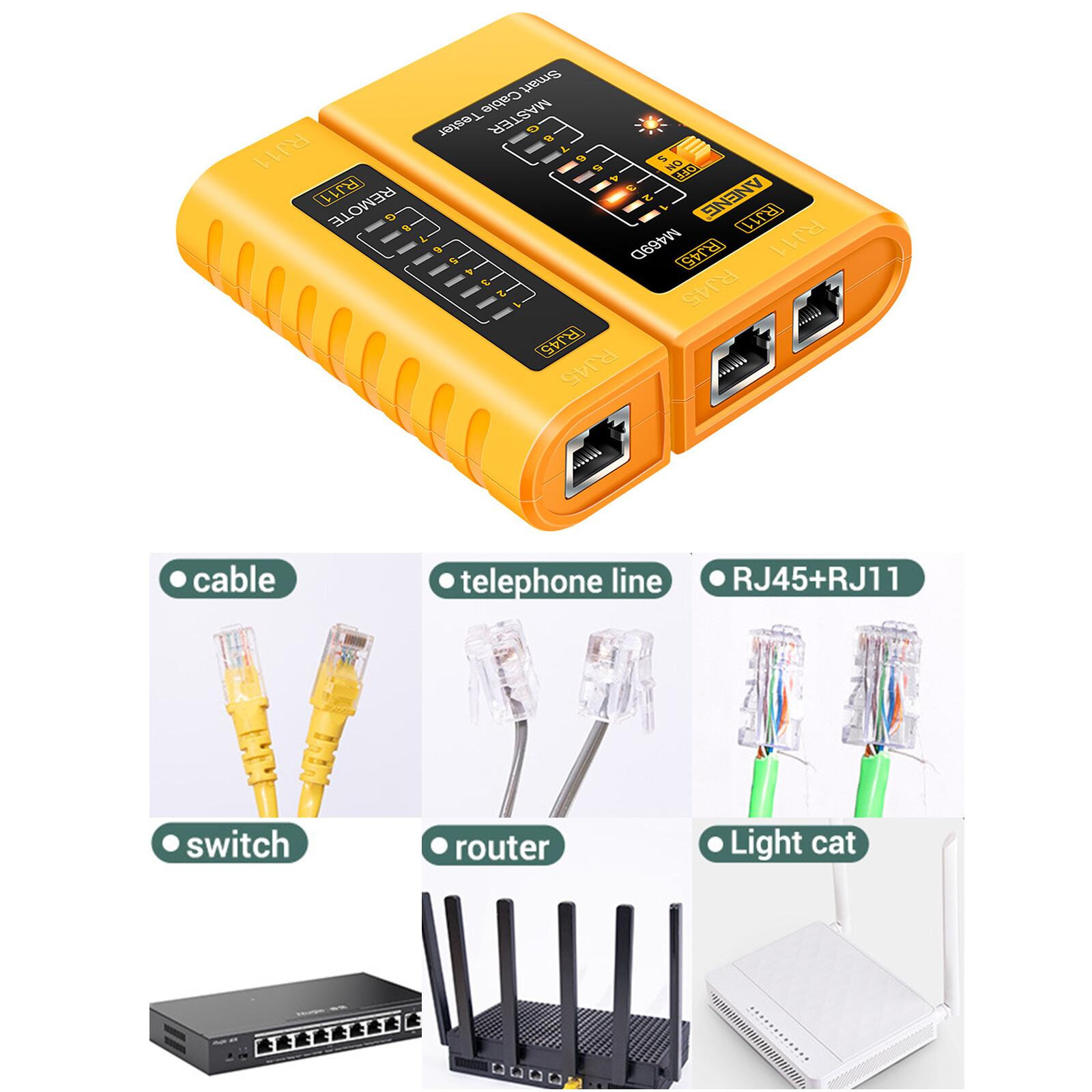

Interface end: RJ45+RJ11

Packing list：
1 X Line Measuring Instrument

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
