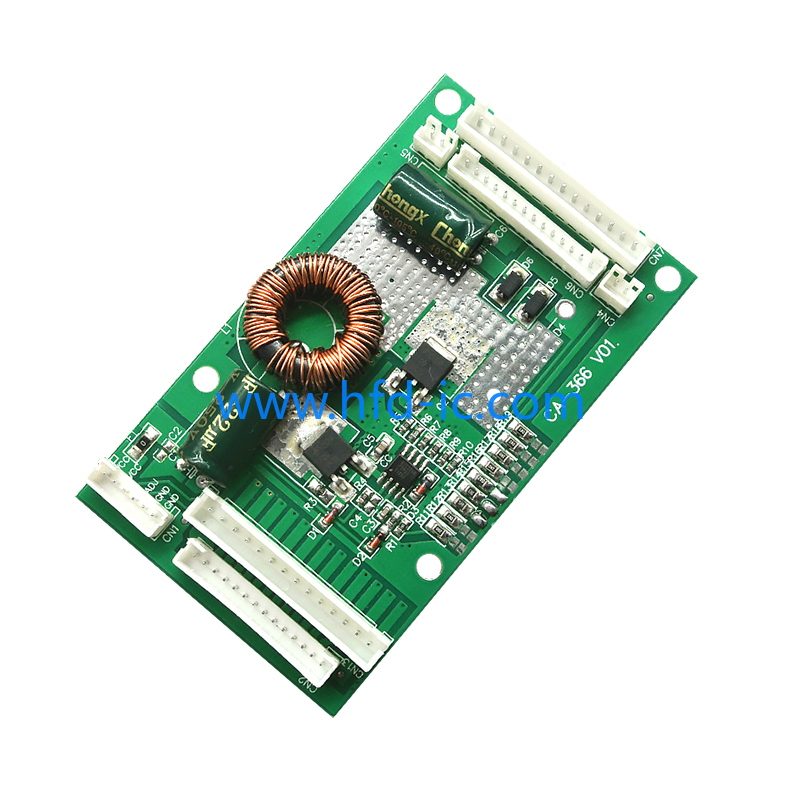

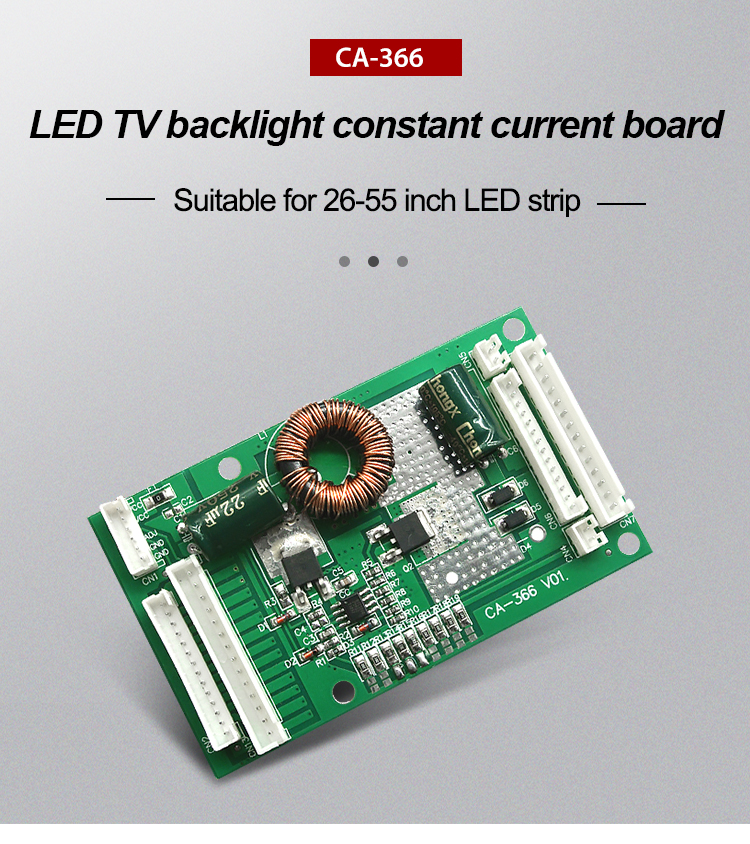

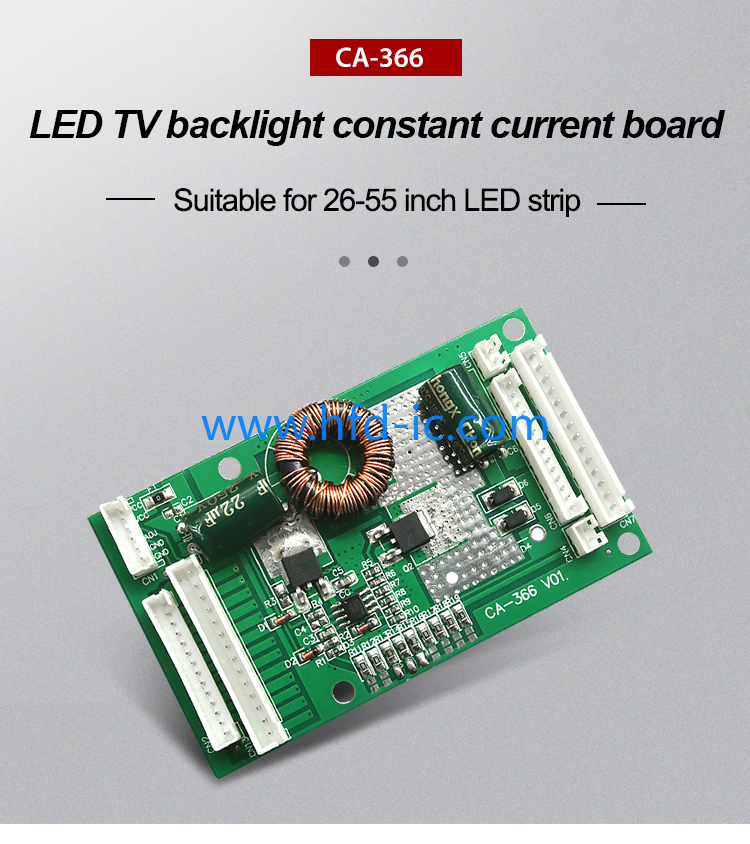

CA-366 universal 26" to 55" inch driver board constant current board led driver board

Products Description

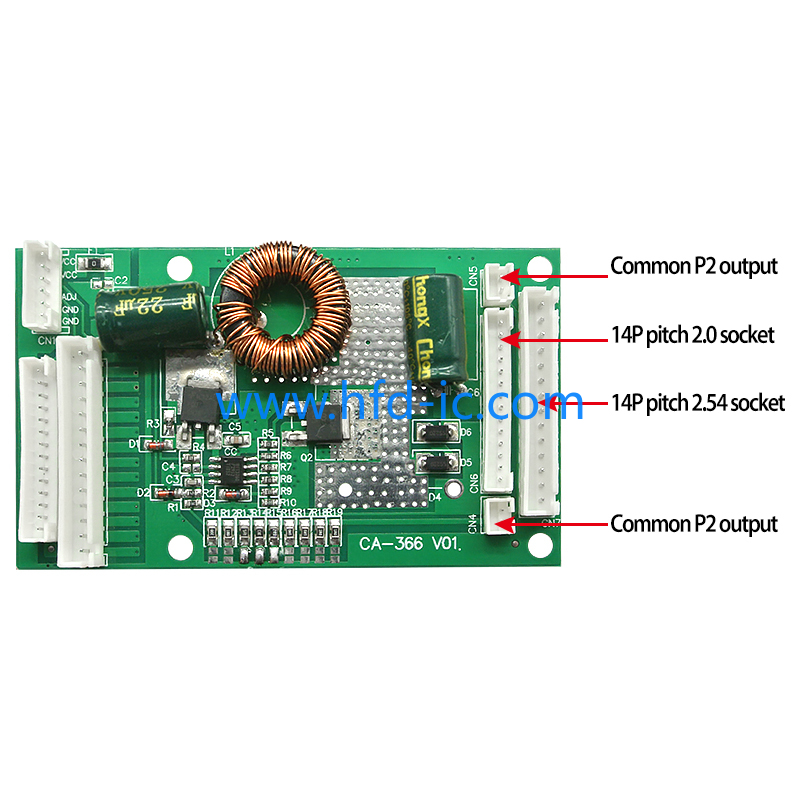

CA-366

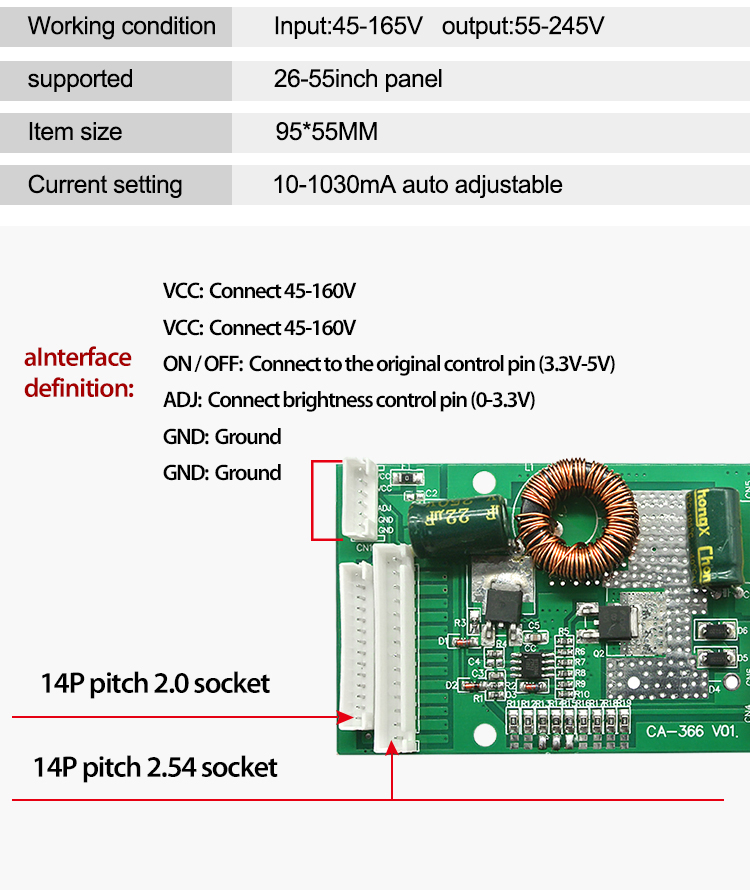

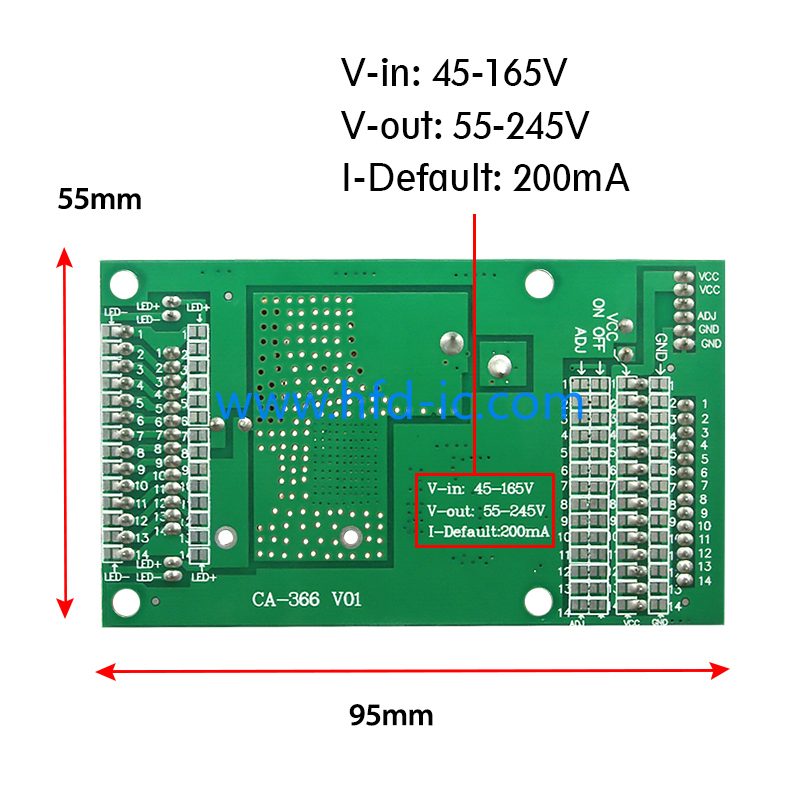

Technical Parameters:

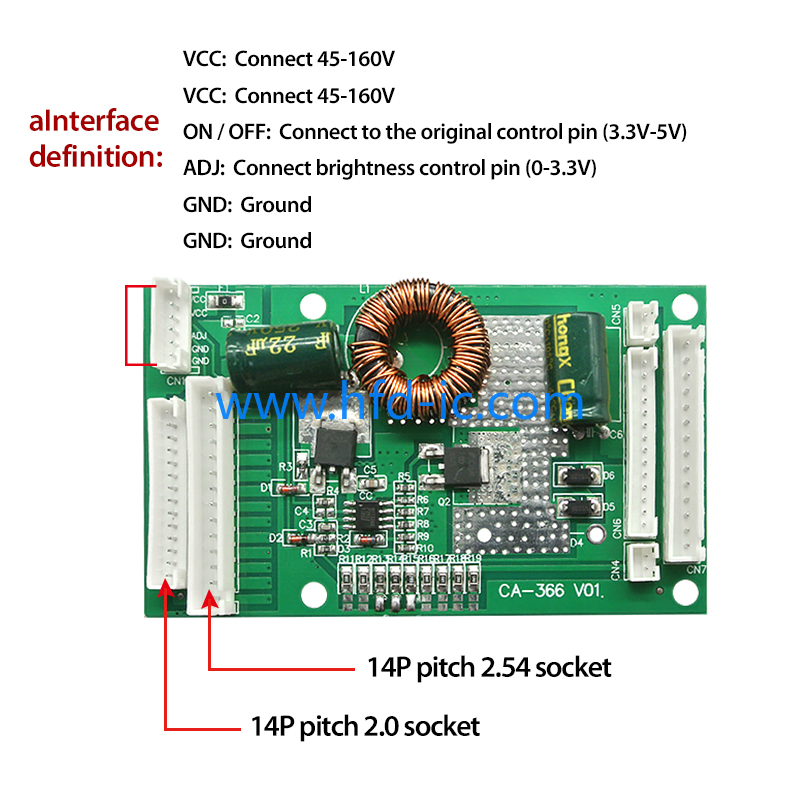

Input: 45-160v
Output voltage: 60-245v
The current is 10-1030mA Auto Adjustable
The current can be self-adjusted, the board presets parameters, and can be adjusted as needed.To ensure the reliability of the
product,
please ensure that the board works within the technical parameters.



Features:
1, constant current output, the default current is 200MA, this value is constant output,
will not change greatly with time or power supply voltage fluctuations.
That is: with 19V power supply, the output voltage of 55V is 200MA, the use of 38V power supply,
the output current is the same 200MA.
2, the voltage automatically adapt: the design of the output range of 55-170V, as long as
the access to the light bar is within this range are automatically adapted, without human intervention.

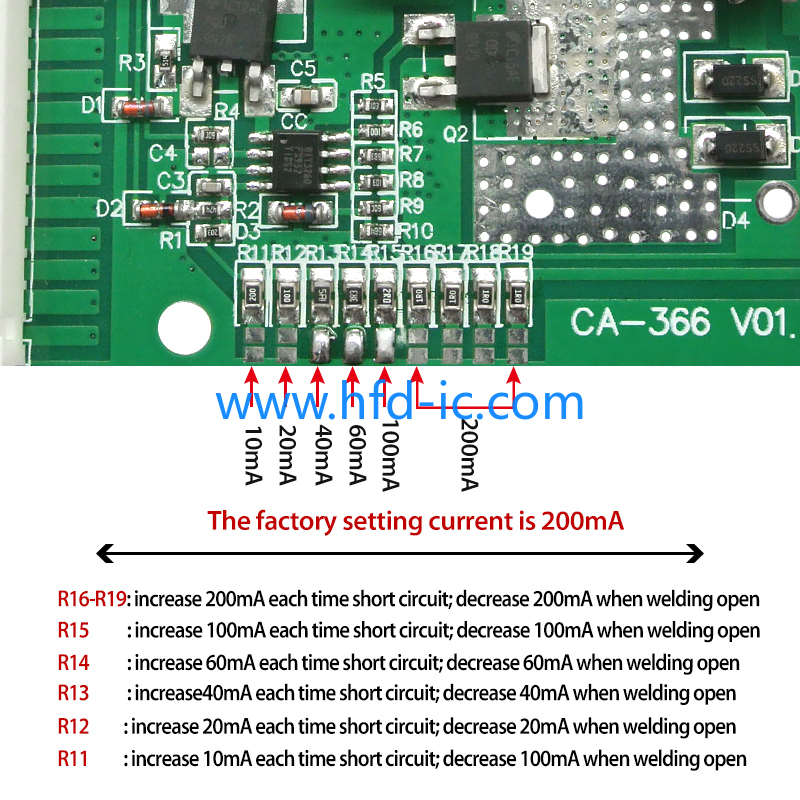

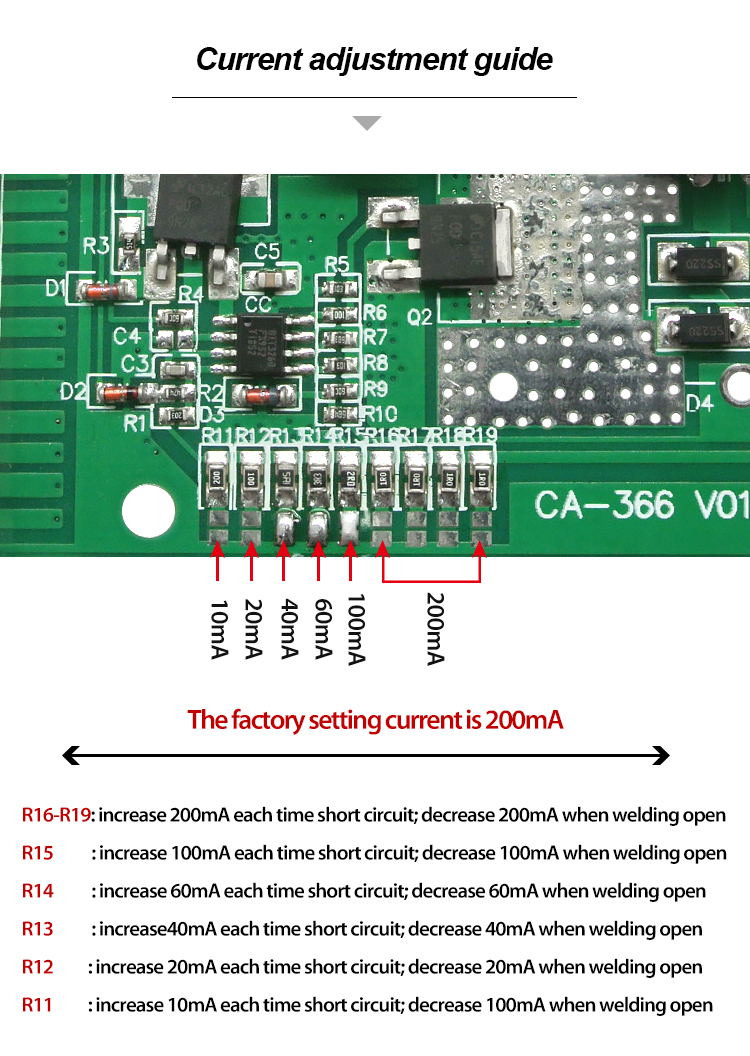

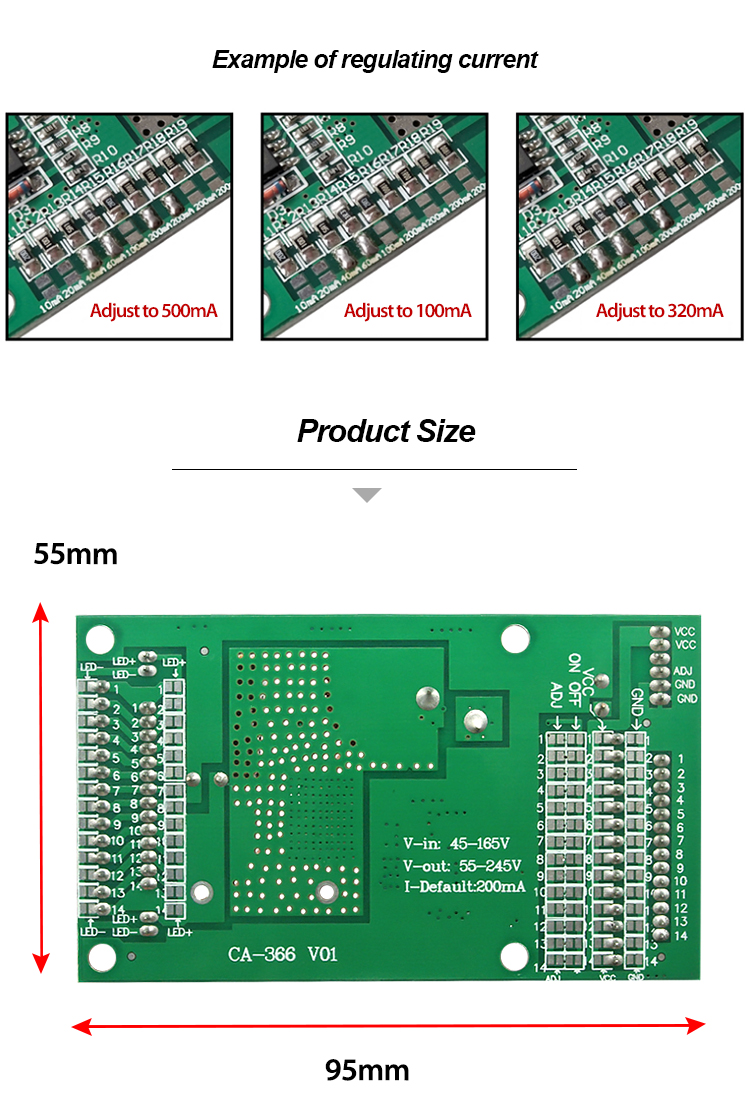

3 free and quick current setting, the board is preset with the relevant current settings of
the solder joints and marked with a good value. The user can quickly change the output current according to actual needs.
