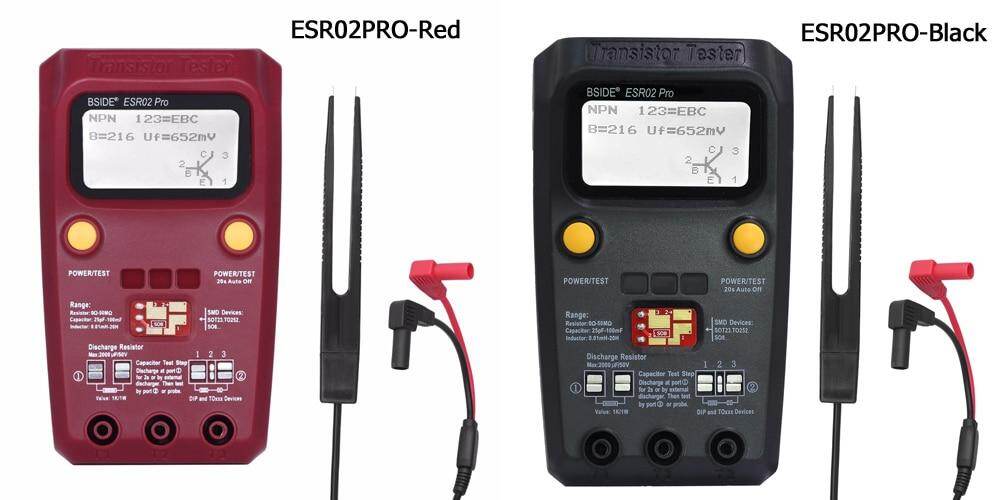

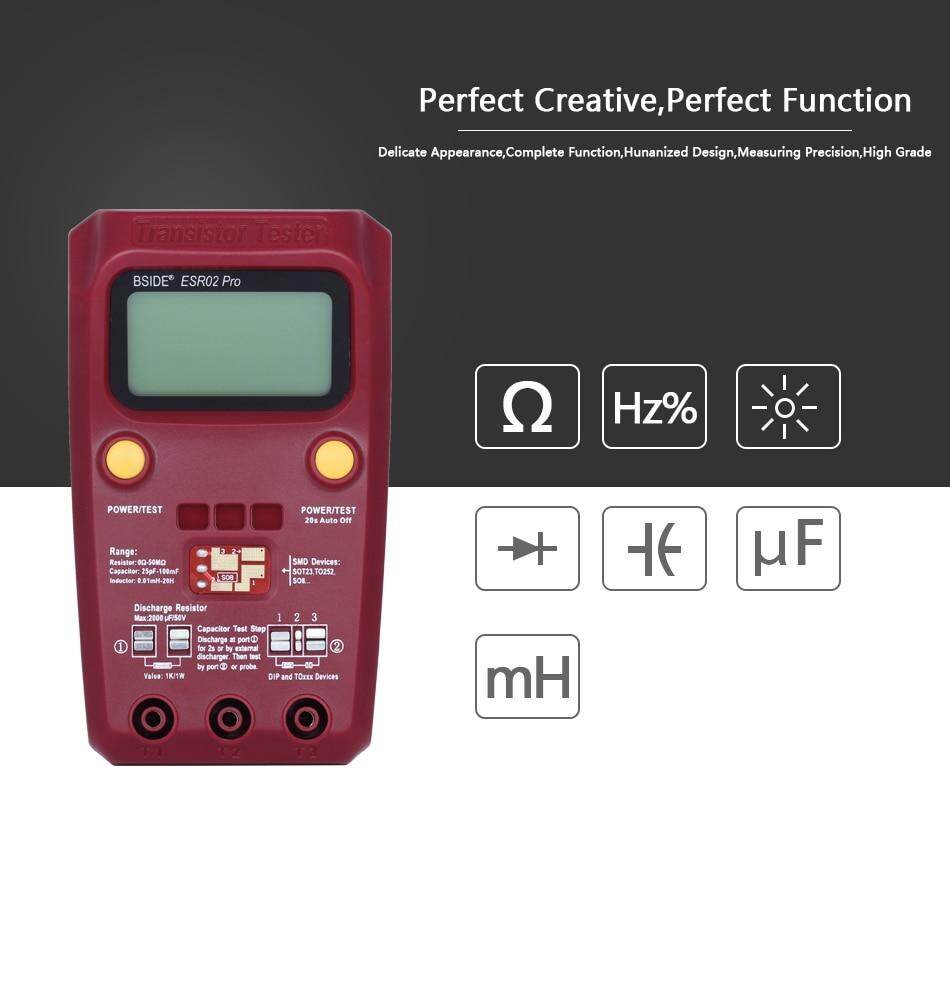

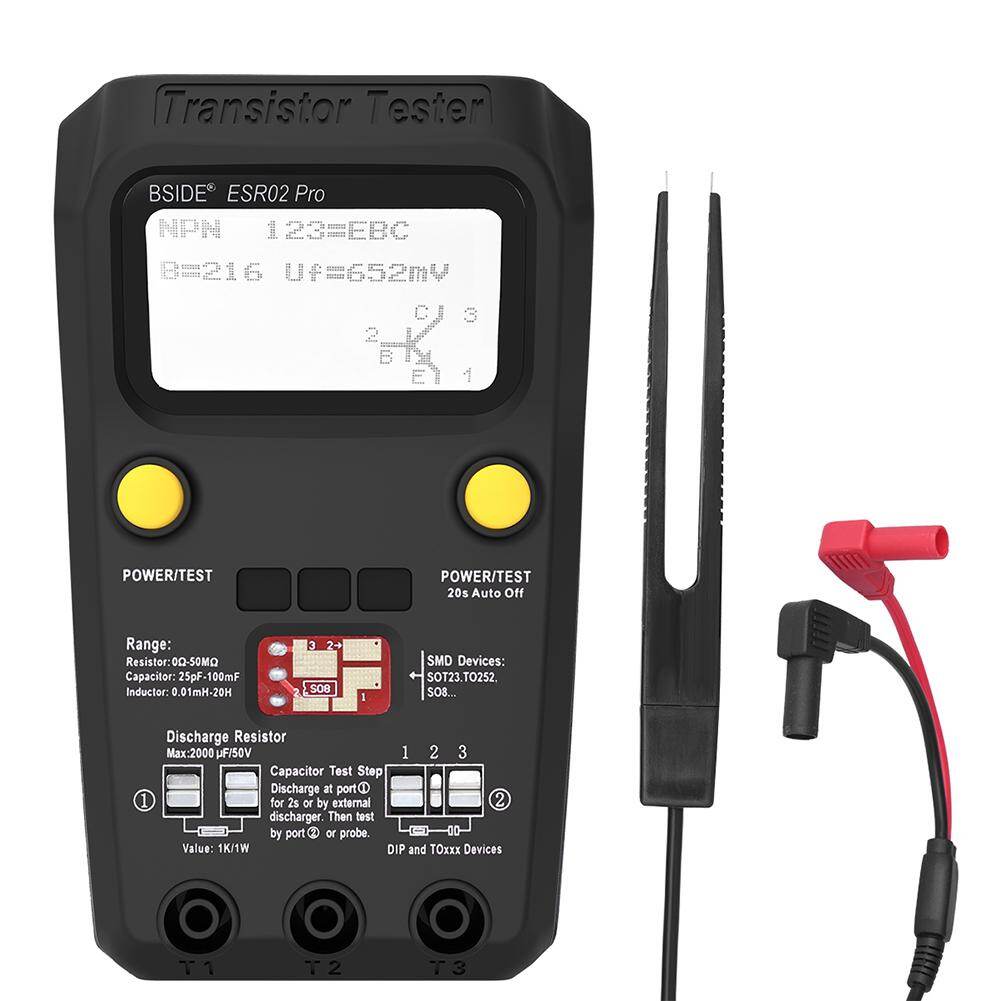

BSIDE ESR02 pro Multi-purpose Transistor Tester Diode Triode Capacitance Resistor Meter MOS/PNP/NPN SMD Tester

BSIDE ESR02 pro Multi-purpose Transistor Tester Diode Triode Capacitance Resistor Meter MOS/PNP/NPN SMD Tester

Description:

Product categories: Digital Transistor Tester

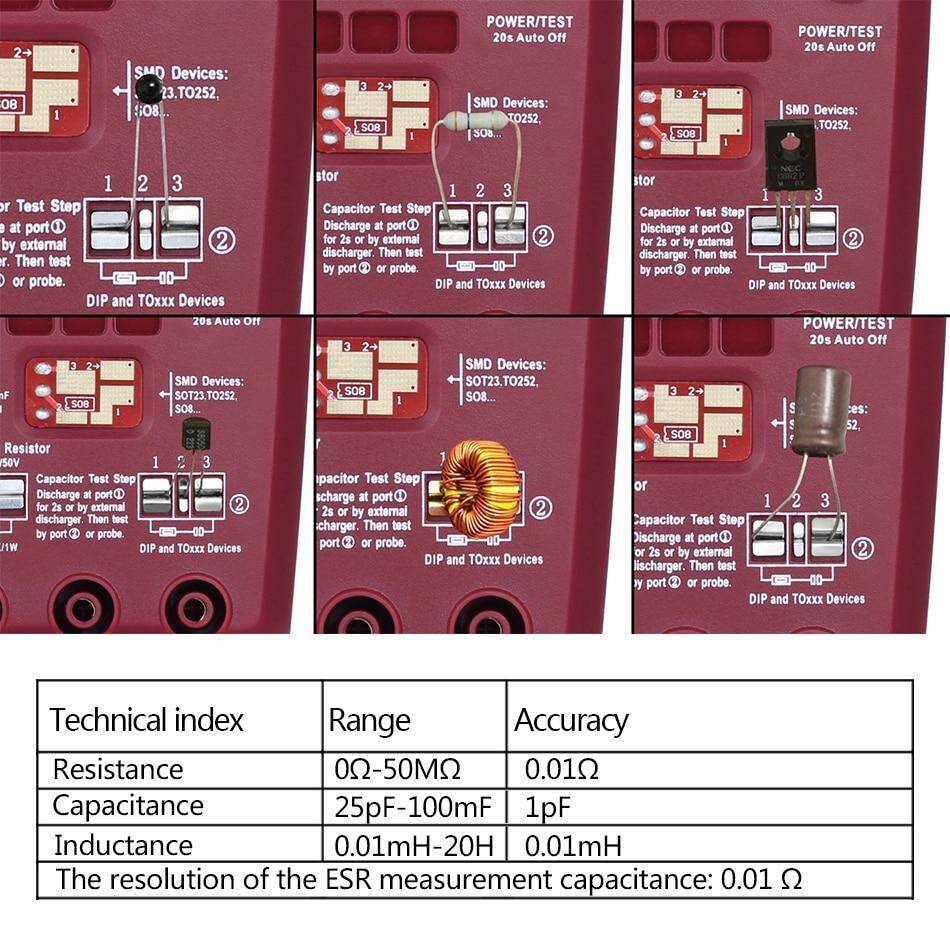

Parameters:

Resistance: 0-50M. Resolution: 0.01.

Capacitance: 25pf-100mf. Resolution: 1pf.

Inductance: 0.01mH-20H. Resolution: 0.01mH.

Measuring capacitance ESR resolution: 0.01_

Things to note:

Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.

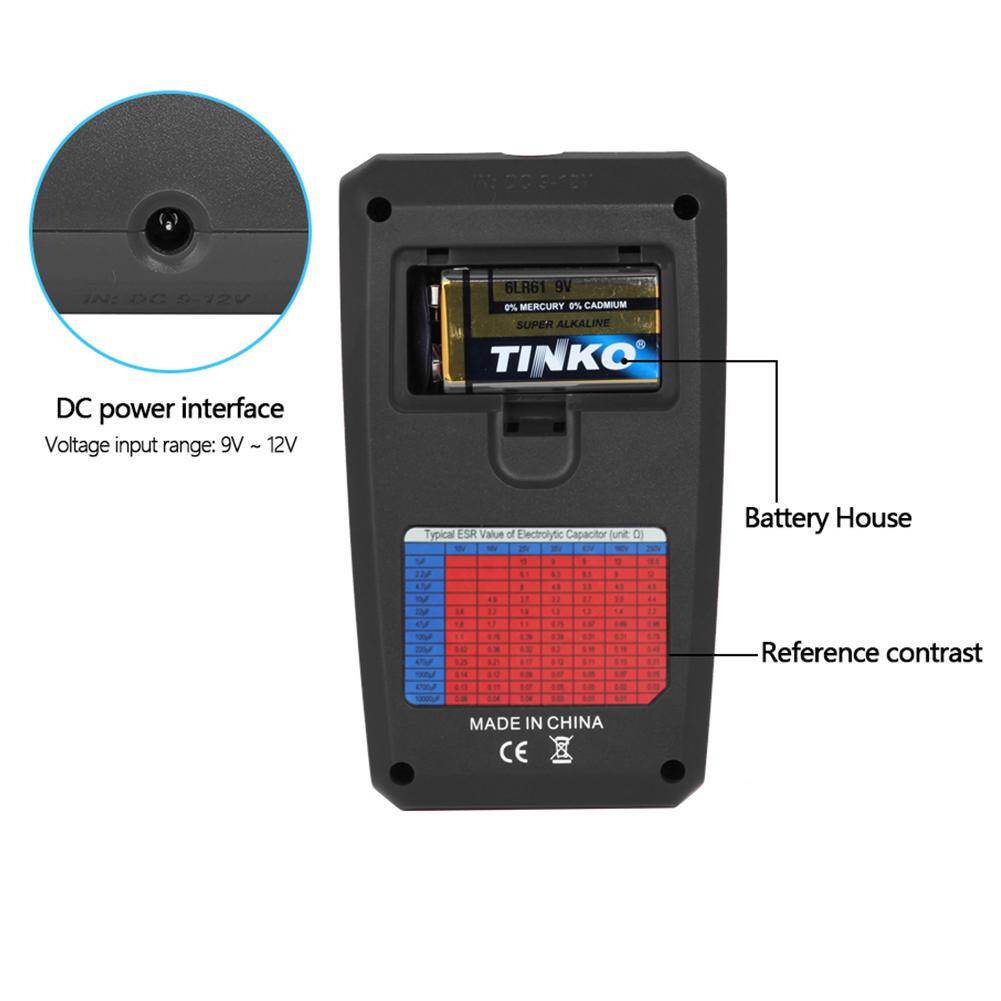

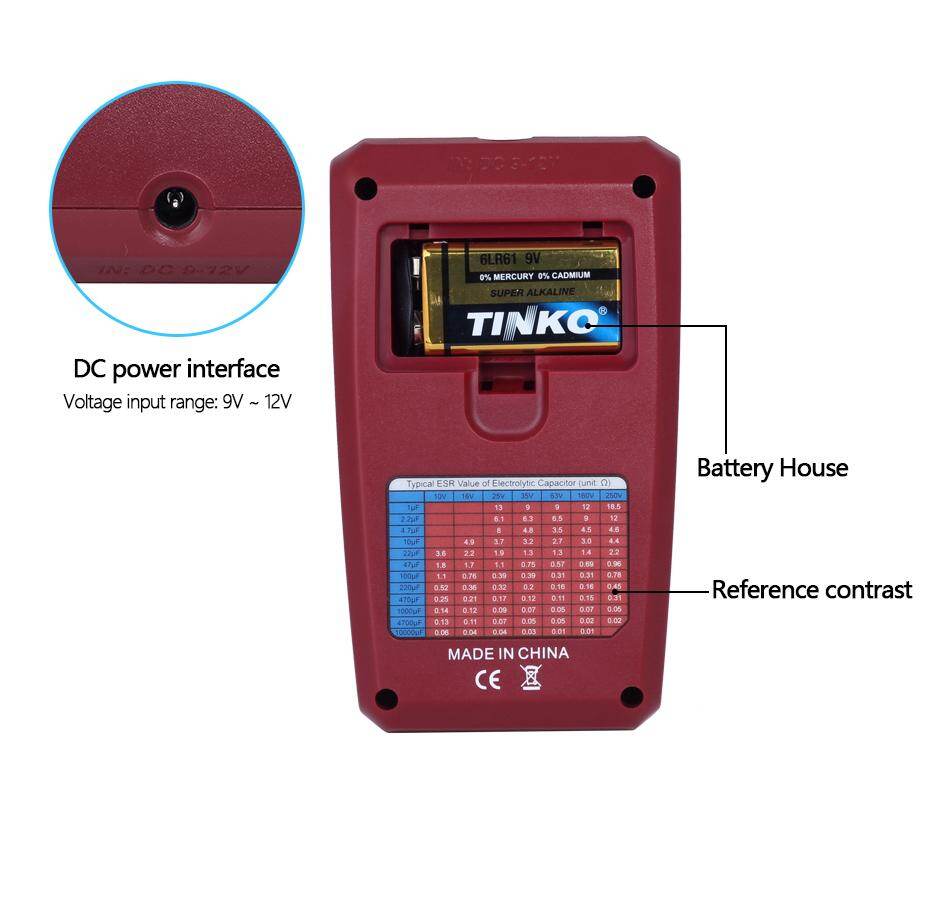

If using DC supply, please select DC 9V-12V adapter (including 9V and 12V).

Can be powered by a 9V 6LR61 battery (not included), when the battery power is under 6V, please replace a new one.

How to use instructions:

Push "POWER/TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement.

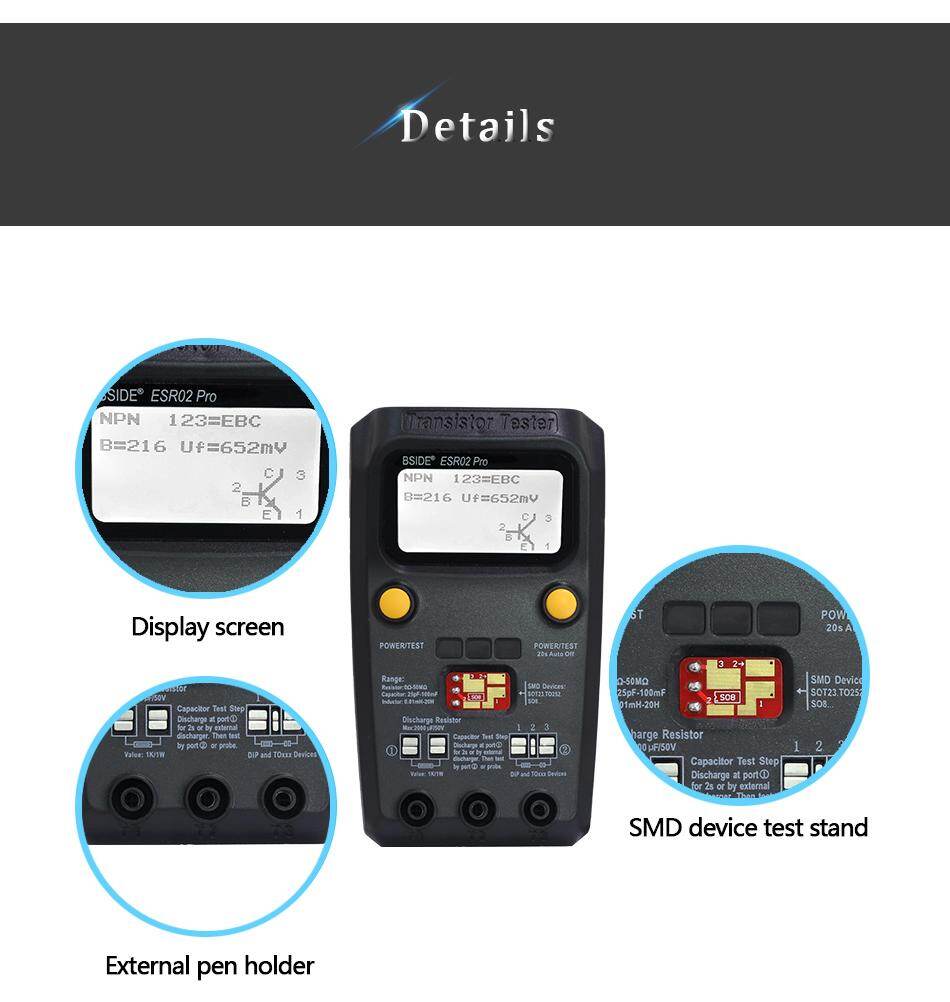

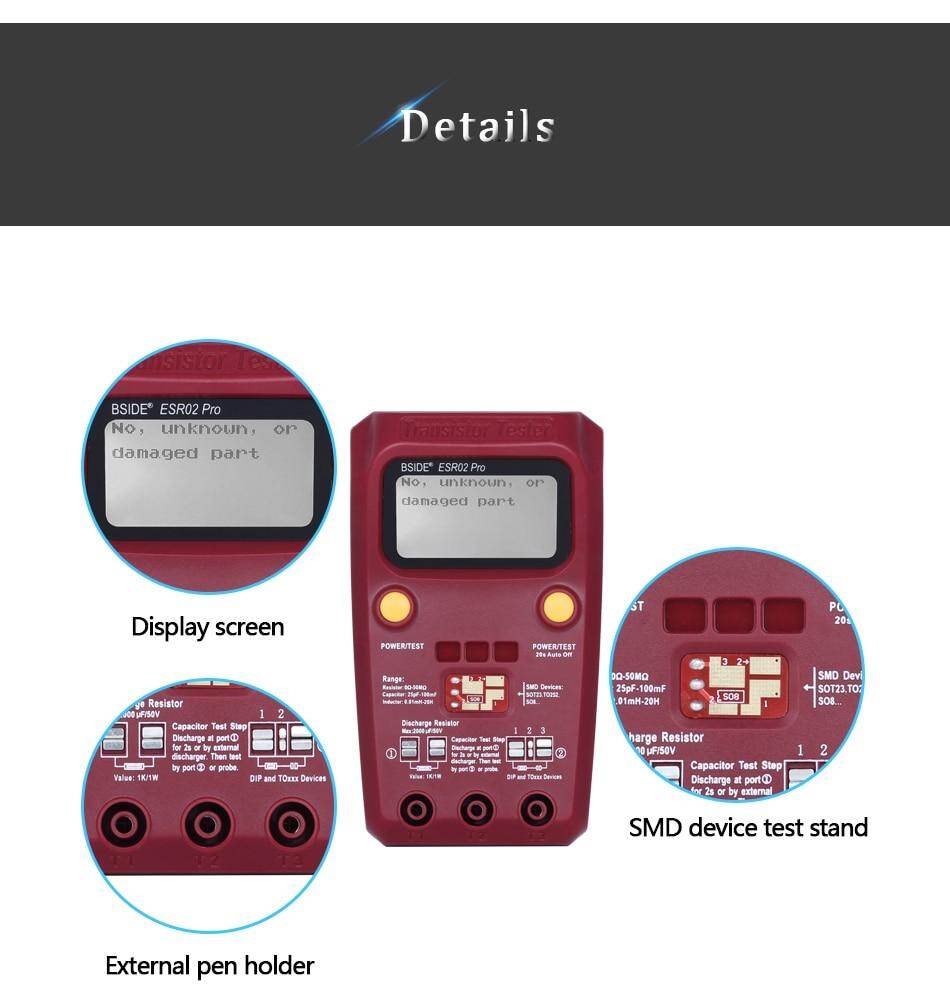

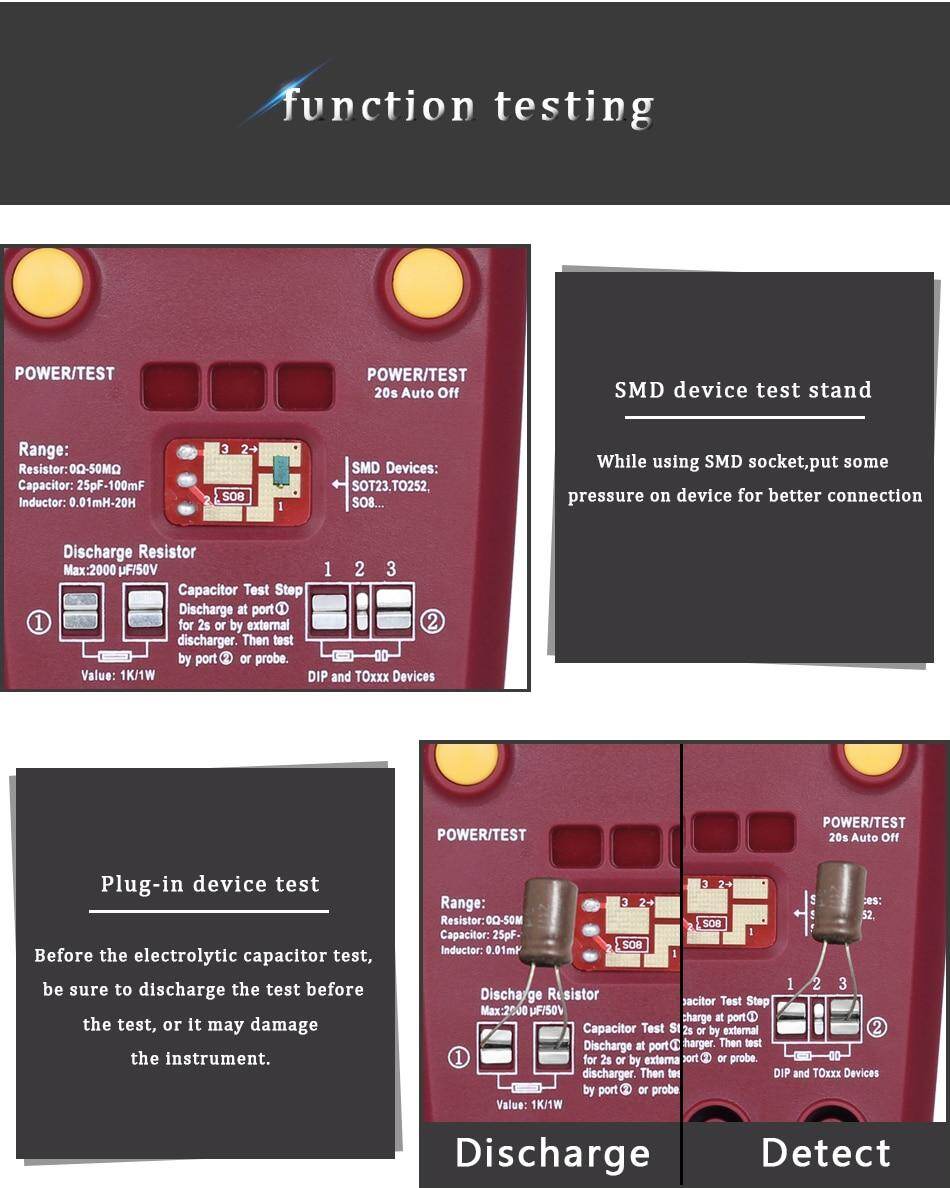

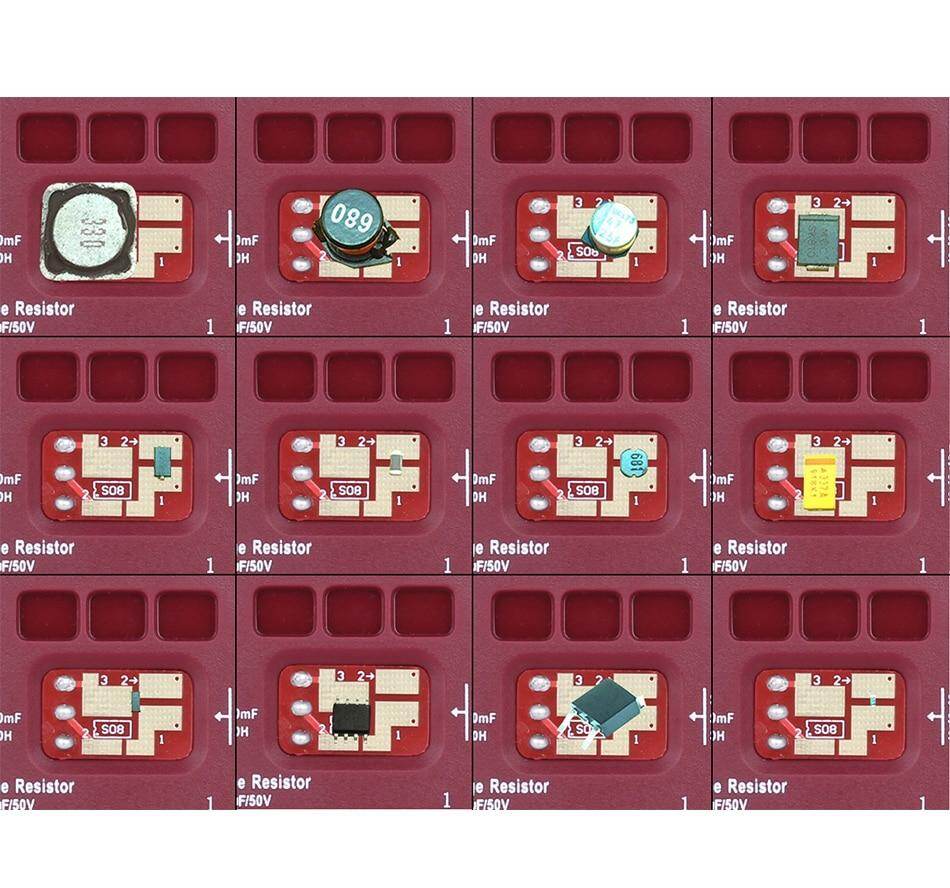

Provide three kinds of sockets, each socket pin 1, pin 2 and pin 3 are connected.

There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical values for standard grade electrolytic capacitor at room temperature.

Calibration:

Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish.

Packing:

1 x ESR02 PRO Digital Transistor Tester

1 x English User Manual

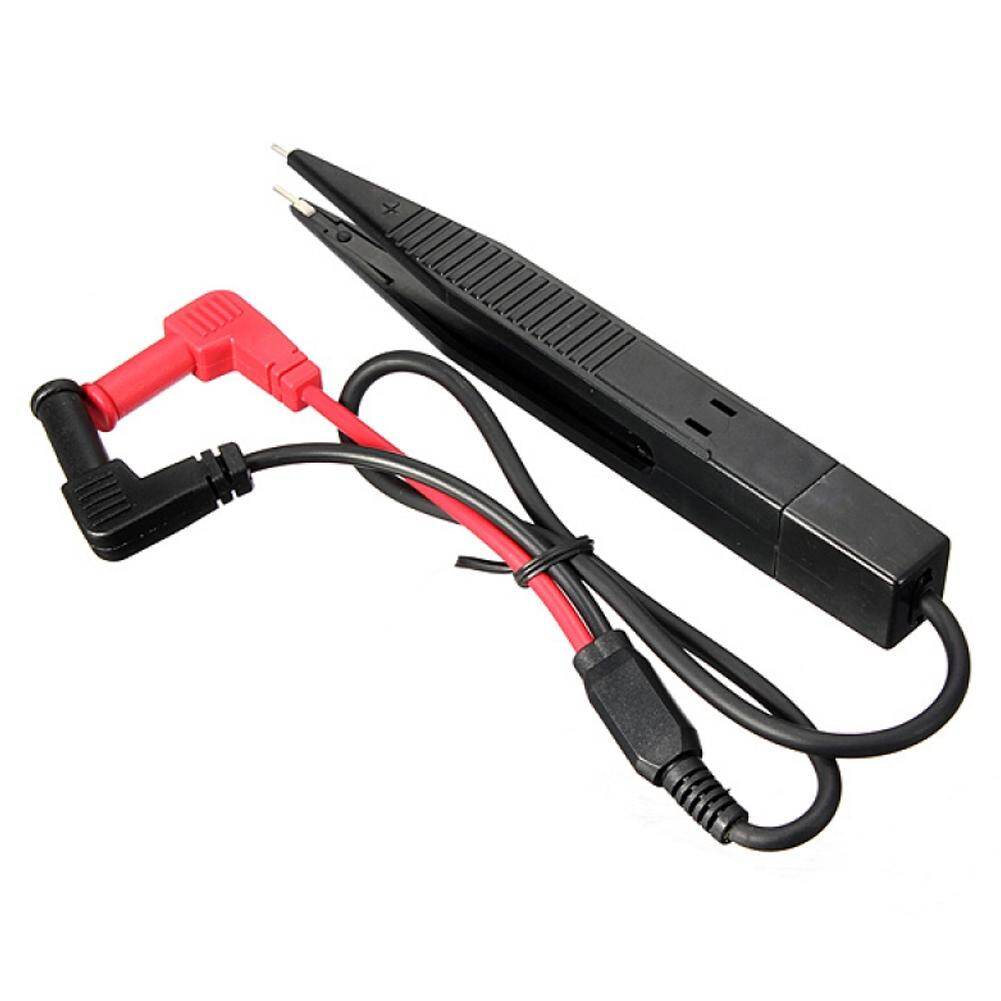

1*Test clip

1*packing box
