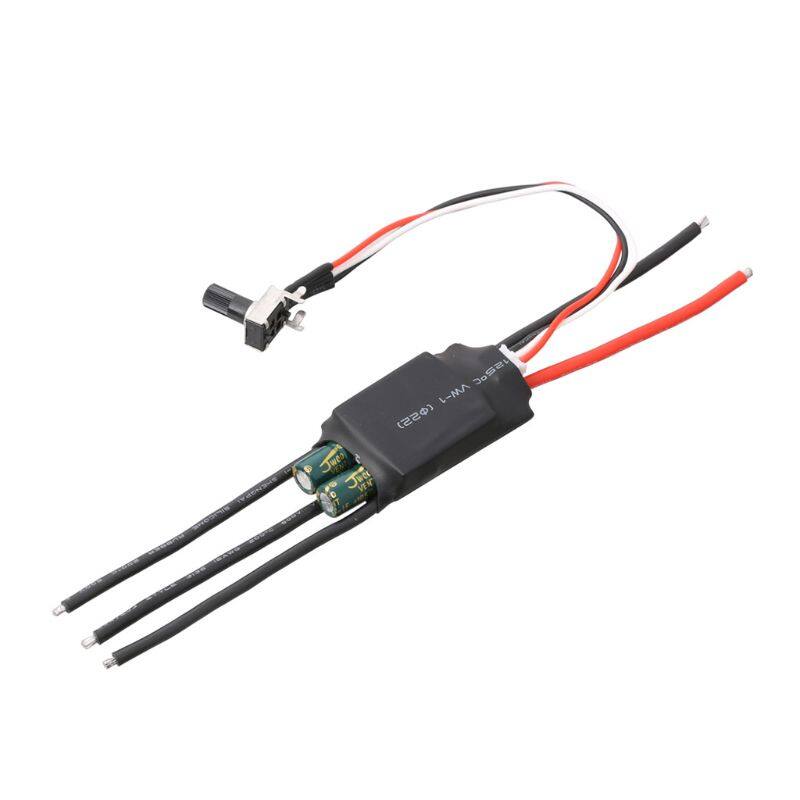

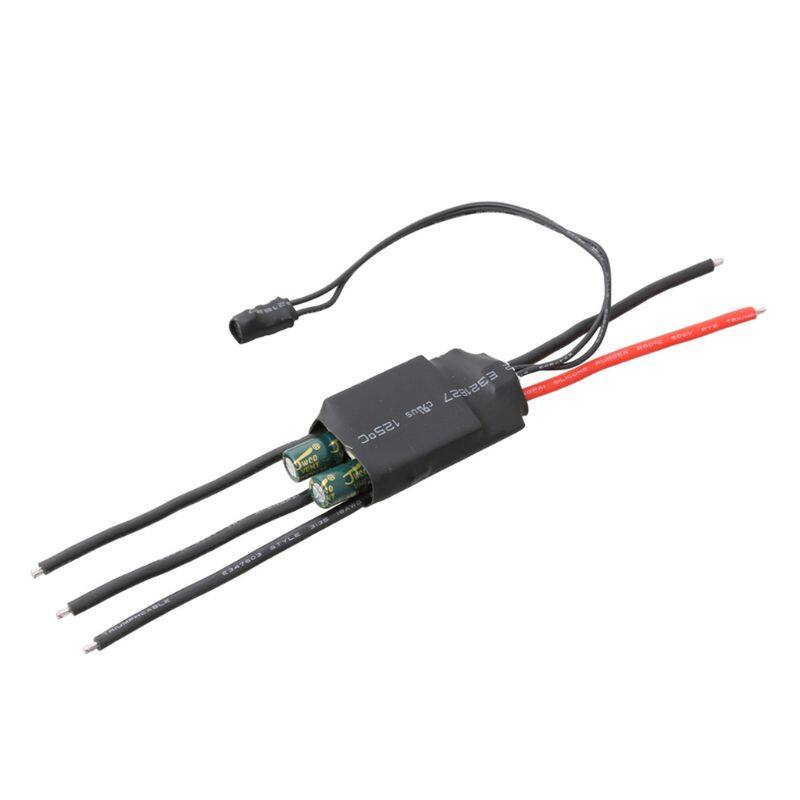

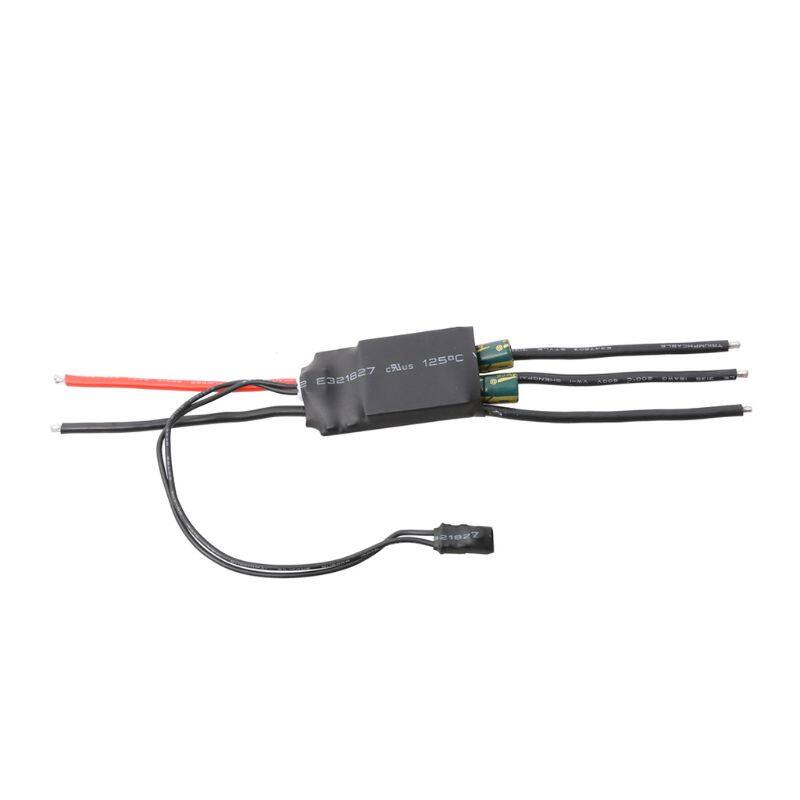

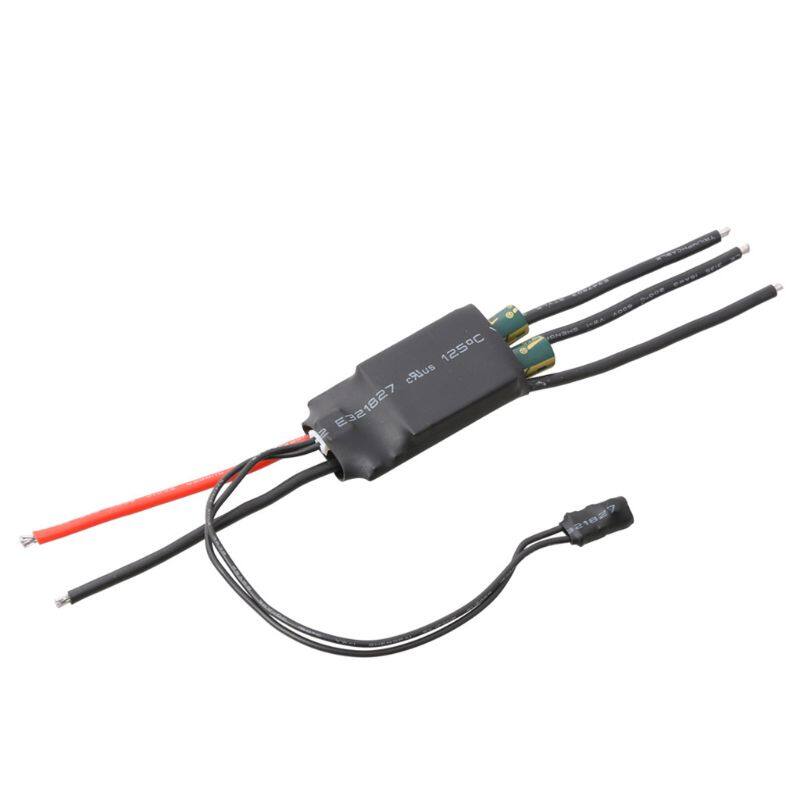

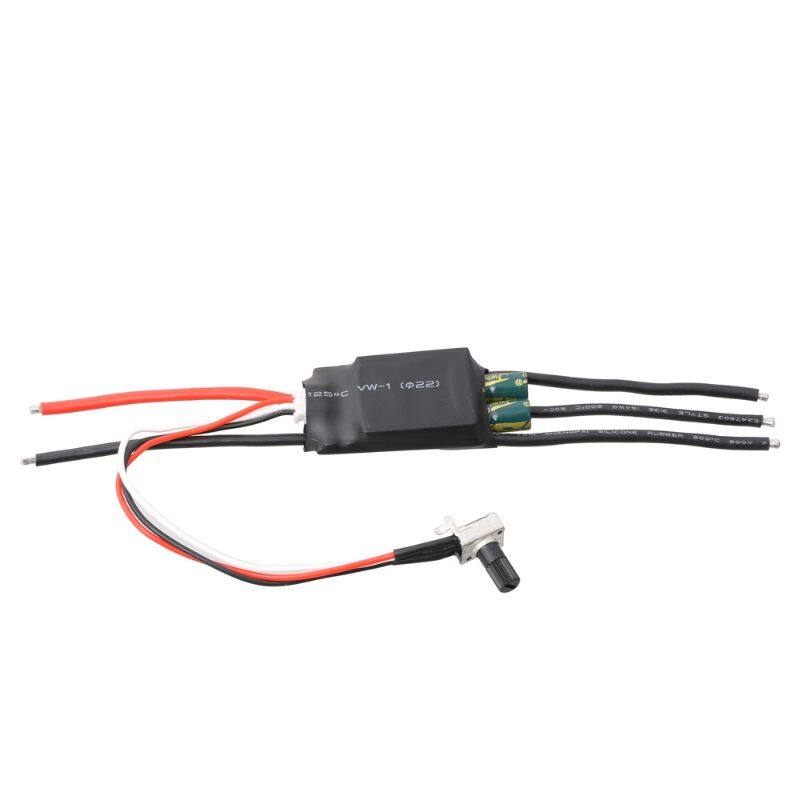

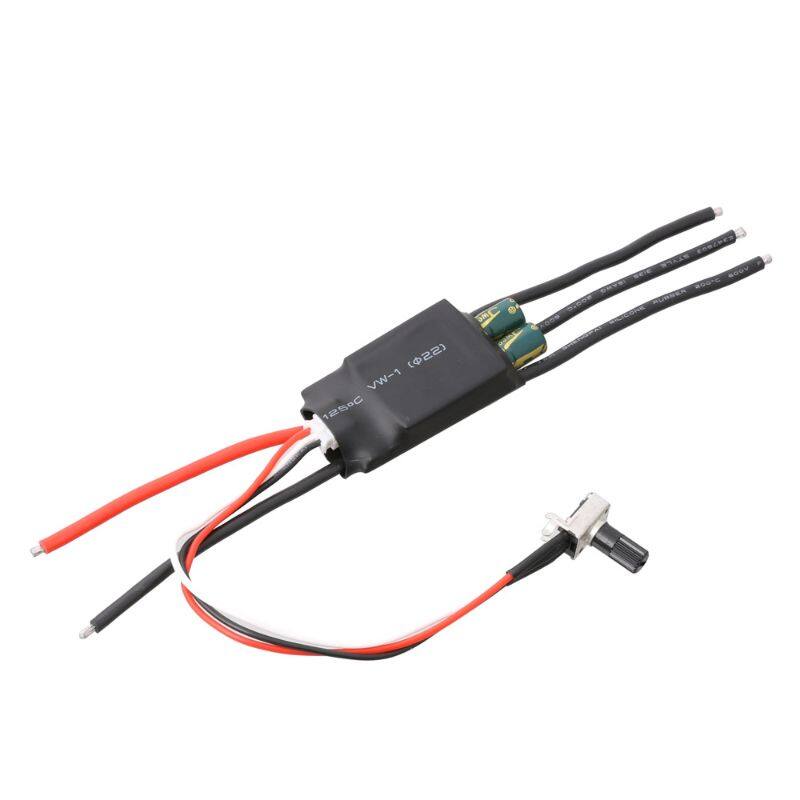

Brushless Motor Controller Button three-phase DC Regulator Brushless Hallless Drive

100% brand new and high quality
Feature:
With micro single-chip system, this speed control can achieve simple system programming, which can suit better high-speed high-power brushless motors. It has several
functions:
1. Safety Startup: To avoid any injury, the motor will not start up immediately if the potentiometer of speed controller is not at the lowest gear, which is necessary for high-speed high-power motor to protect user's safety.
2. Temperature Protection: The speed control has aluminum heat sink. When temperature reaches 110 celsius degree, temperature detect system will send a protection signal and system will auto decrease 60% power output to protect speed control and motor. It will back to normal power after temperature is decreased. To protect the actuator module, please dissipate heat during long-time using.
3. The signal loss prevention: Auto shut down when there is no signal detected from PWM signal generator(potentiometer ).
4. Power Identification System: The speed control has power identification system, which is designed for high-speed high-power motors such as in model plane. It is not suitable for low-power brushless motors.
5. Programming Functions: With single-chip control system, some functions could be altered:
a, Startup: Flexible slow startup/direct startup
b, Braking: Reverse load quick braking/free braking
c, Adjustable Timing: Small/medium/large
d, Low Voltage Protection: Low/medium/high
e, Battery Types: Lithium /nickel chrome/NIMH/plumbic acid
6. Back to Factory Settings: Wrong operation can be cleared
7. Other Function(please ignore if only used for motor drive ) : The external PWM signal generator can sendsignal to control speed or to turn steering gear, therefore it can test steering gears less than 55g.

Specification:

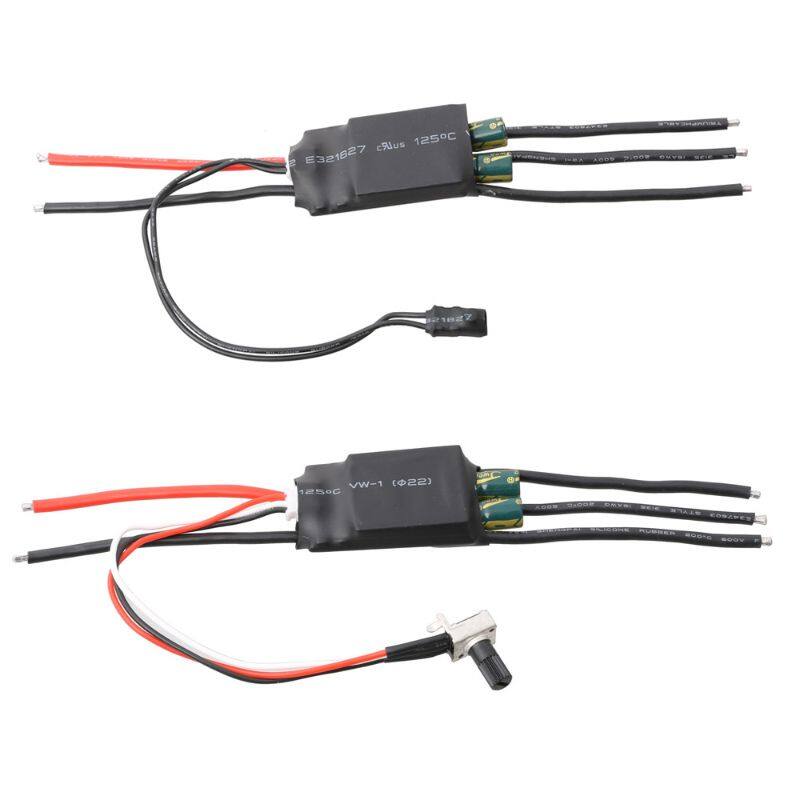

Type: 01#,02# (optional)
Voltage: DC 6.5-24V
Drive current: rated 12A
Temperature protection: 110°C
Speed range: 8%~98%
For motor poles: 2-18 pole
Start: flexible start/immediate start
Brake: reverse load /no brake
Speed signal: 8KHz/16KHz fixed frequency PWM
Quantity: 1 Pc

Package includes:
1 x Brushless Motor Controller
