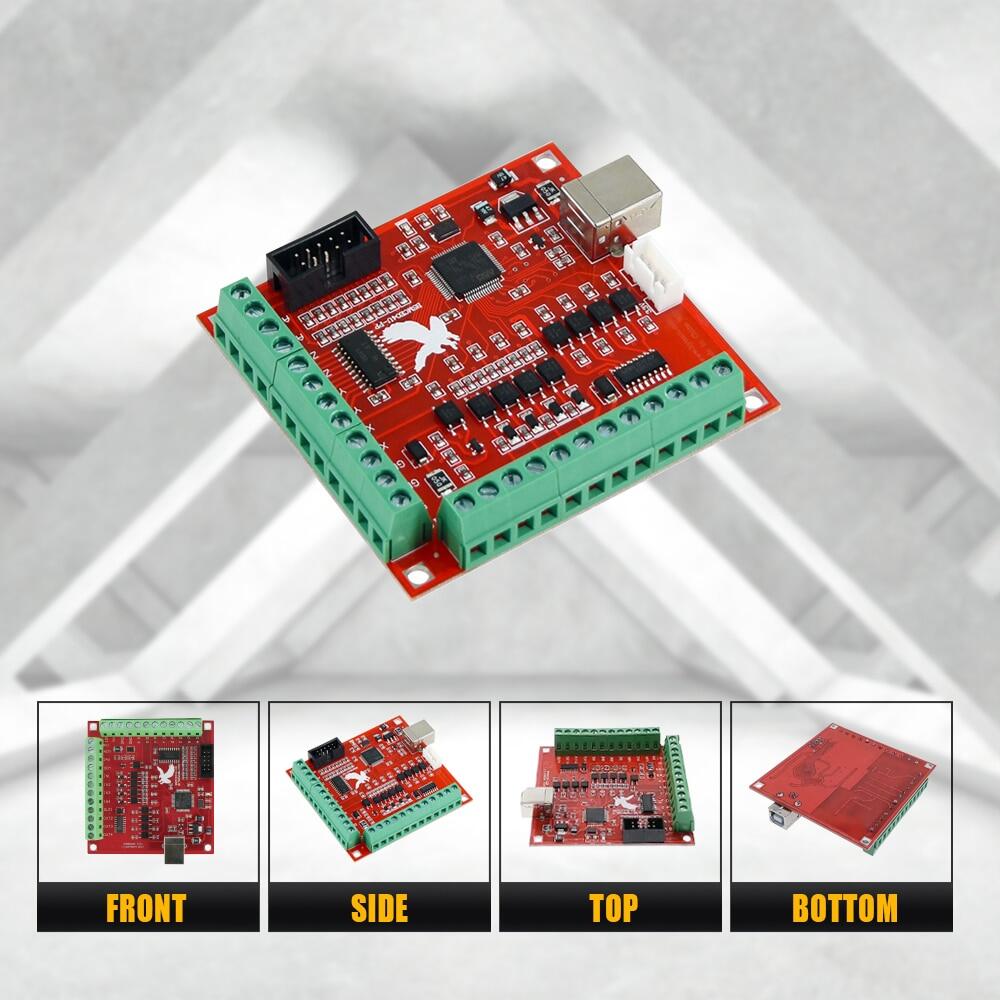

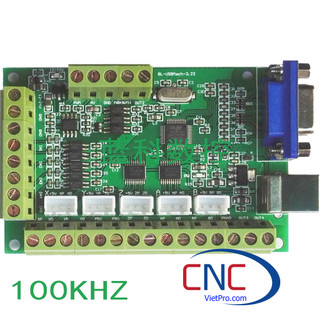

Breakout Board CNC USB MACH3 4AXIS Controller Card Support Stepper And Servo Motor 100Khz With USB Cable Software On The CD Electrical Circuitry - Parts

• Color:Burdy
• Power Supply:DC
• Model Number:4 AXIS MACH3
• Motor Type:DC Motor
• Origin:Mainland
• Certification:CE
• product name:4 AXIS Mach3 Controller Card
• frequency:200khz
• system:mach3
• 4 AXIS Mach3 Controller Card:Red

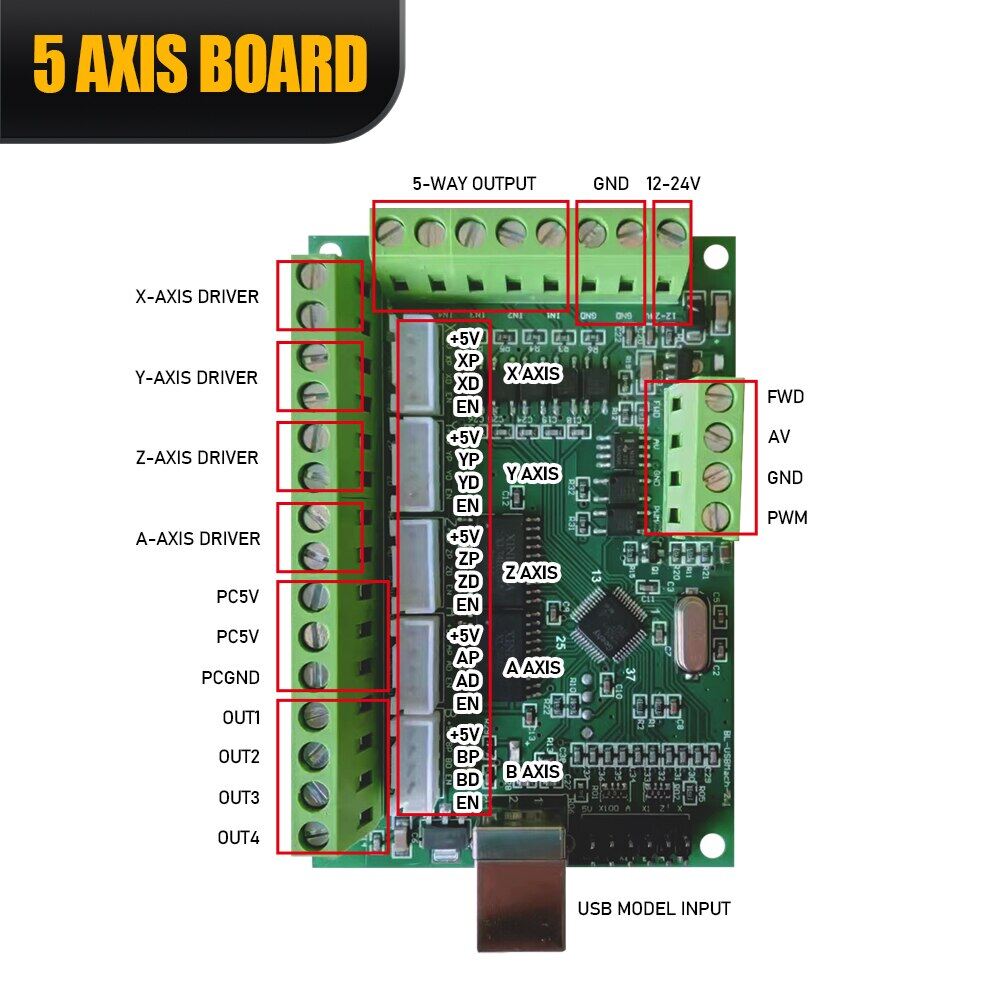

• 5 AXIS Mach3 Controller Card:green

dear friend

if you didn't receive the CD please load software and plugins From the link below

Mach3 Software  ：https://drive.google.com/file/d/1yoa7EdBHP0LmFZDceVldNOOF81X0rGR6/view?usp=drive_link

Software plugins： https://drive.google.com/file/d/1LKaYwL6L5c0NTqYJEwmiFuc5mnzHAttP/view?usp=drive_link

Description:

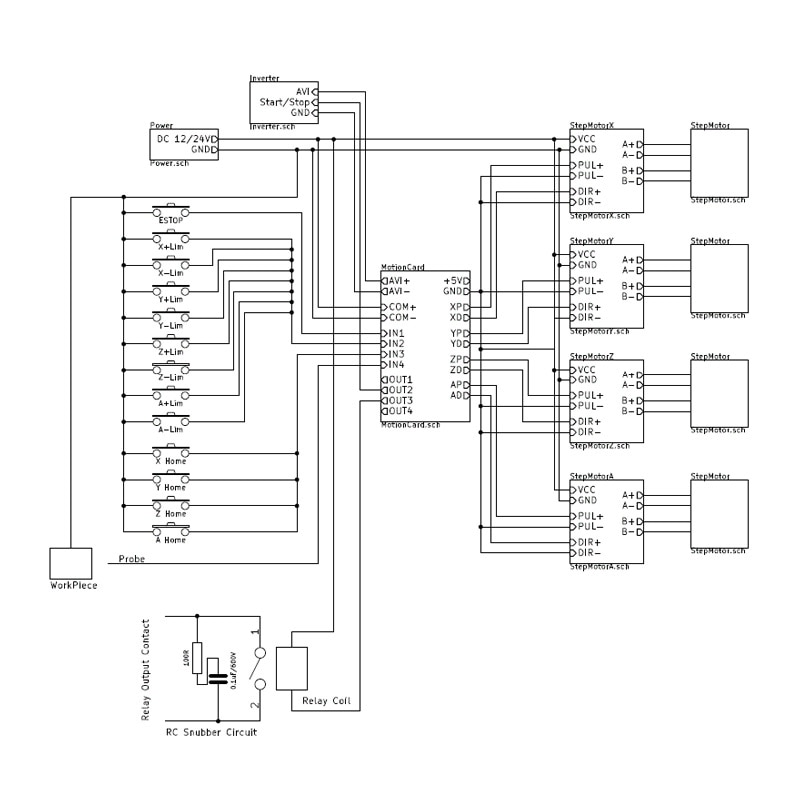

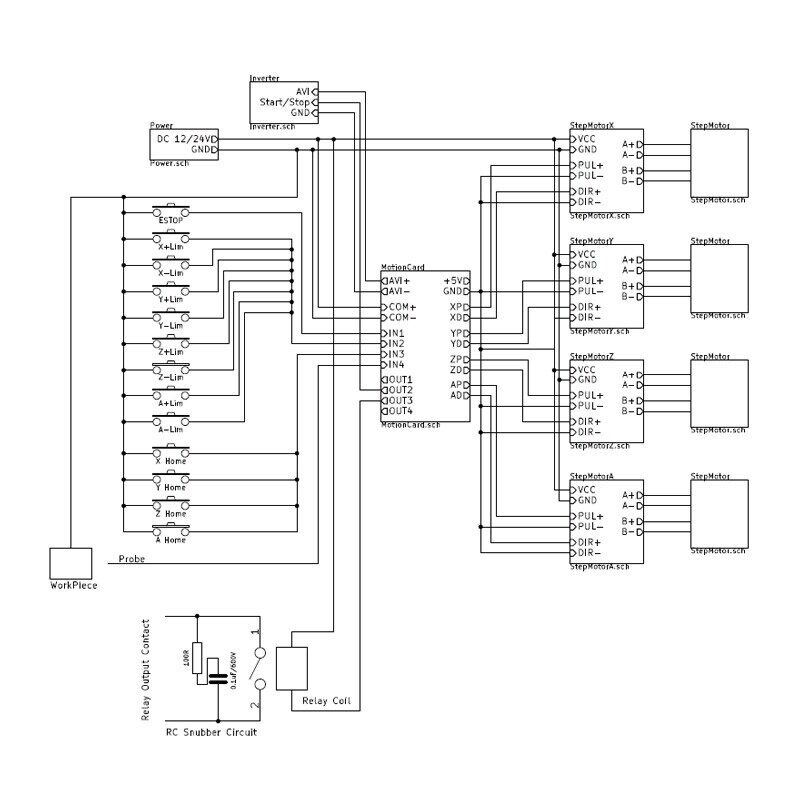

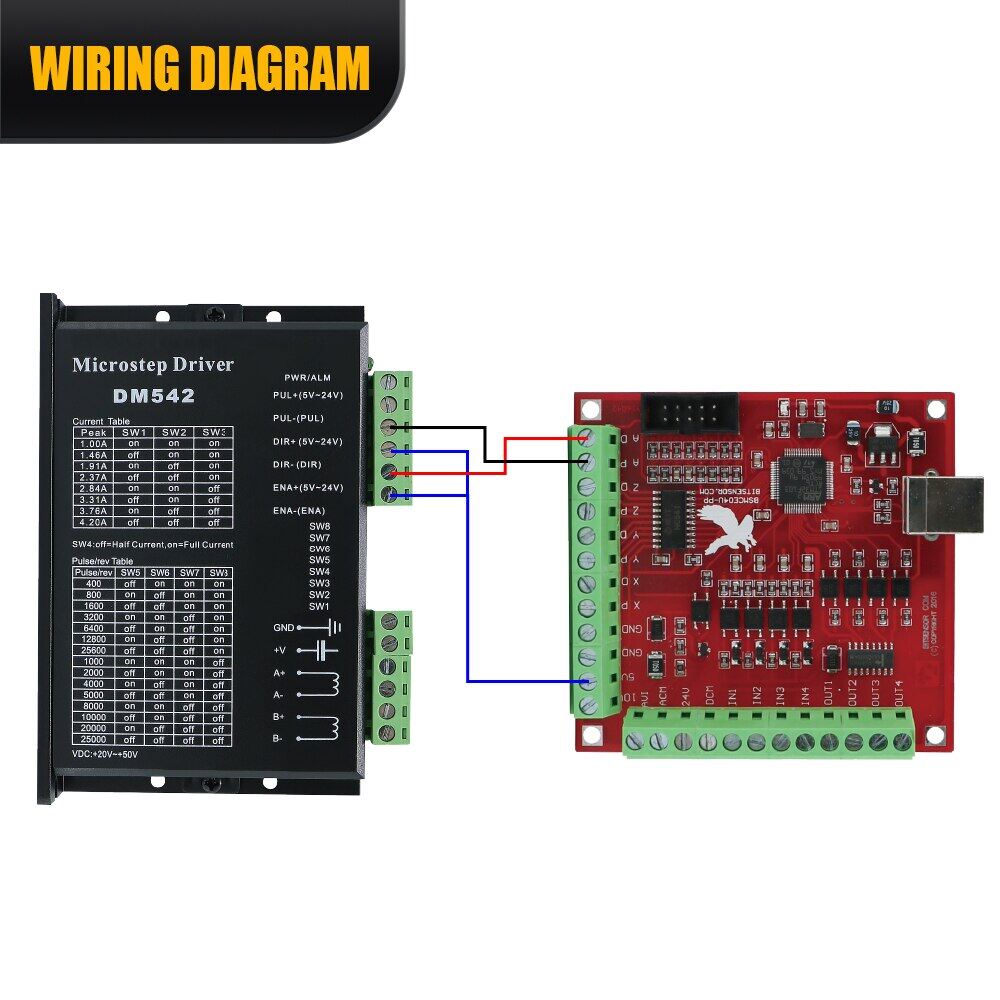

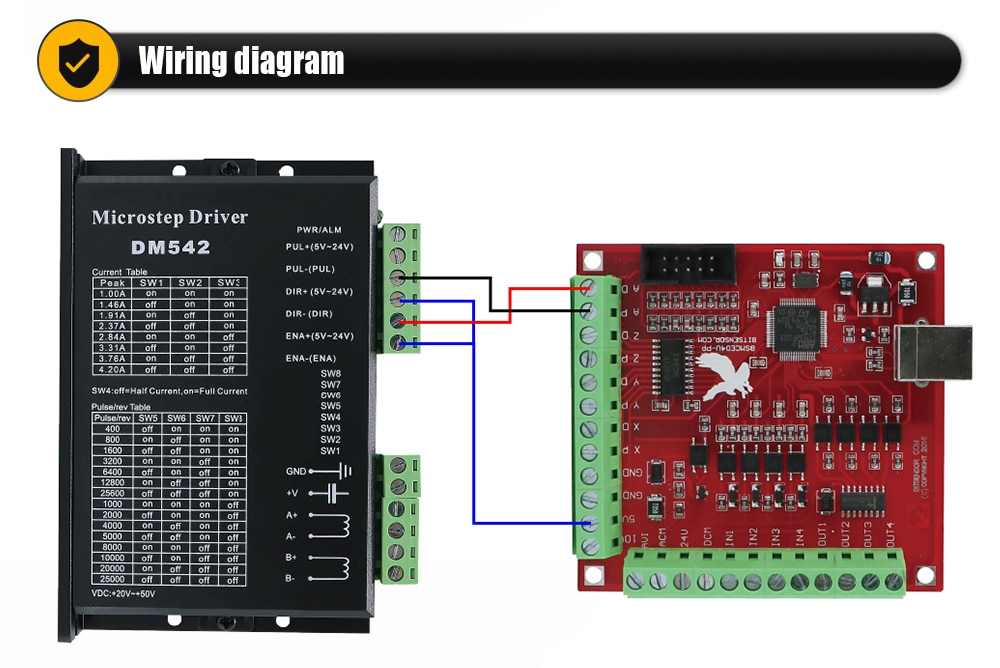

1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;

2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;

3. Support automatic probe tool

4. Support Emergency input

5. Support for limit switch

6. Support for connecting electronic handwheel

7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable

8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.

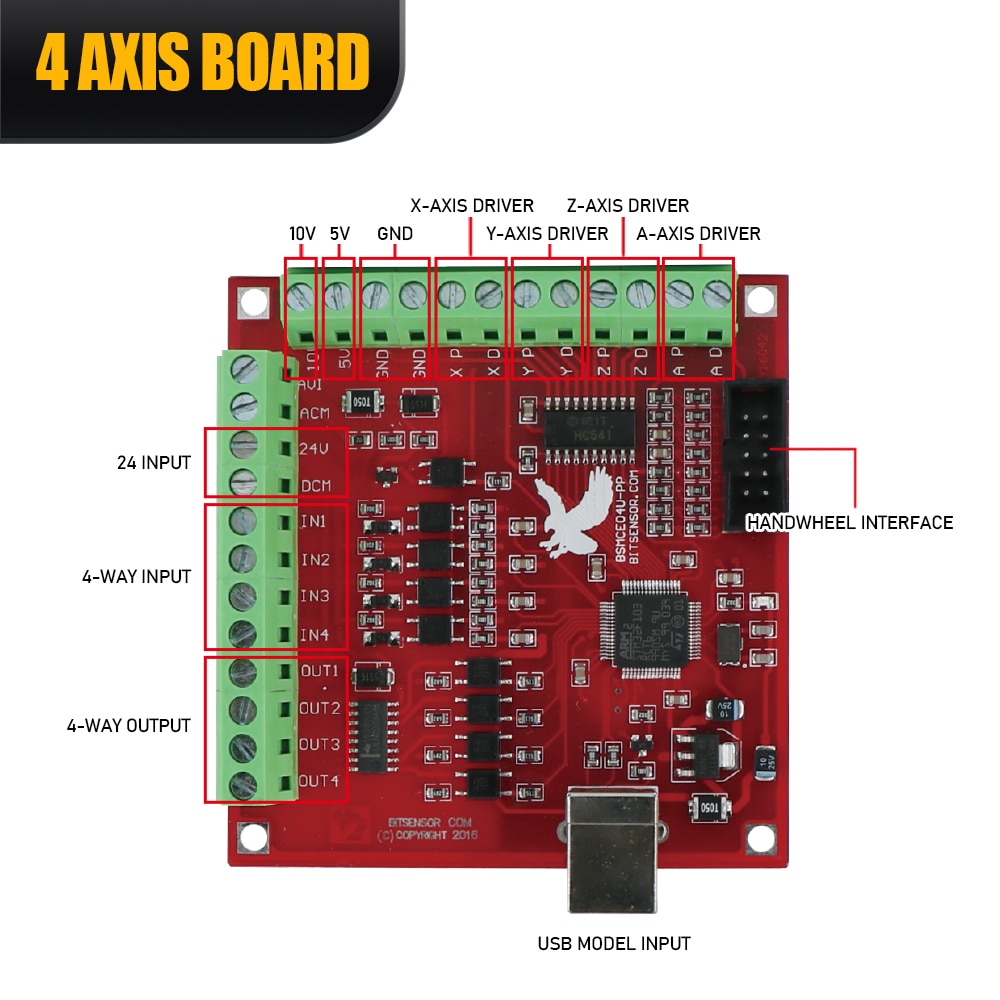

9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device

10. 4 general-purpose isolated relay drive output inter, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device

11. 1 status LED, indicate connection status on the board

Size: 8x7.7cm/3.15x3.03inch

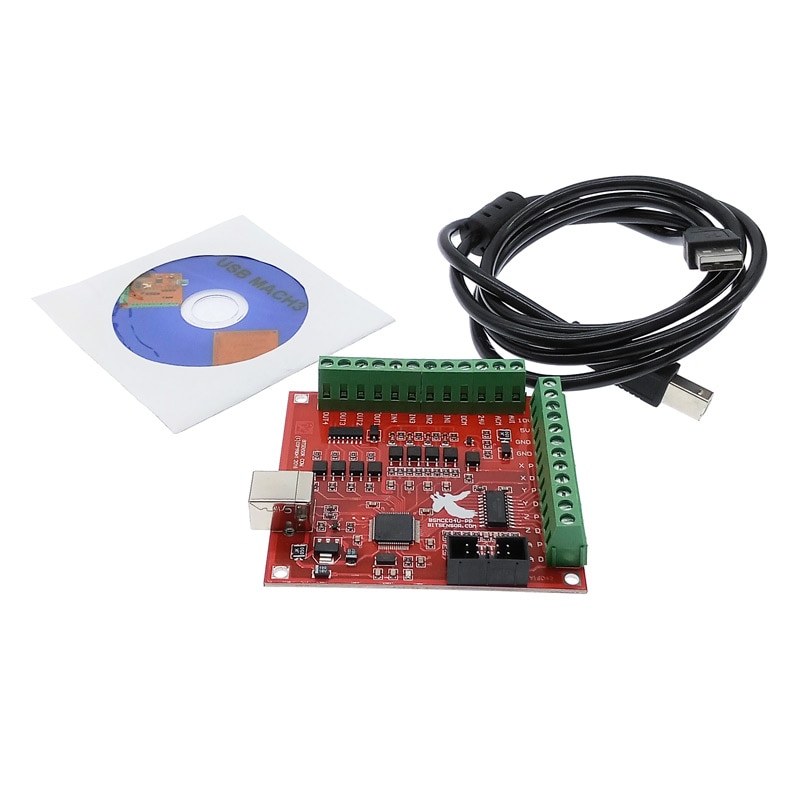

package include

1 x CNC Card

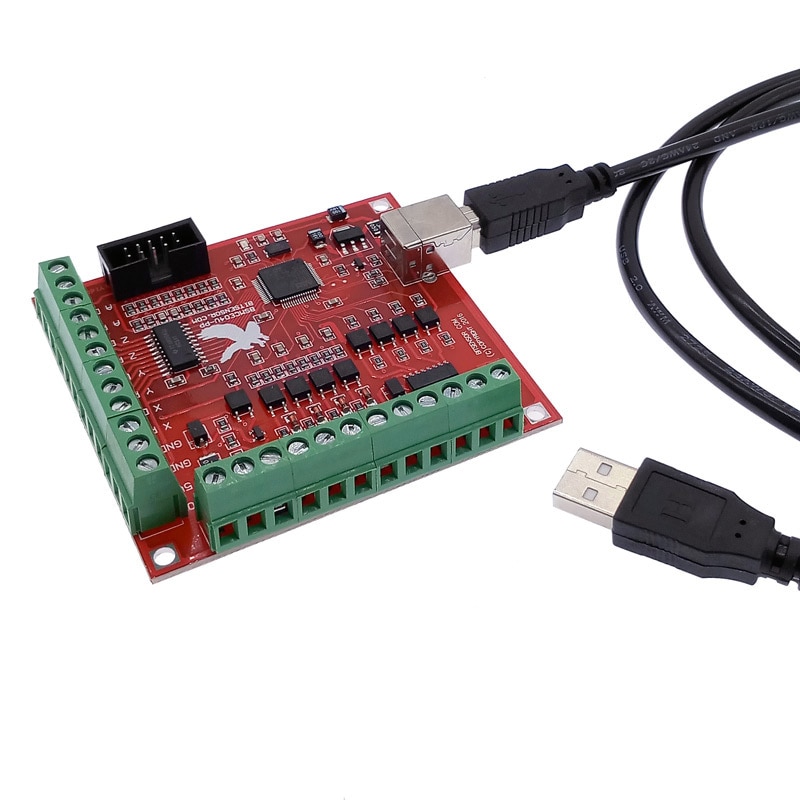

1 x USB cable

1 x CD include software
