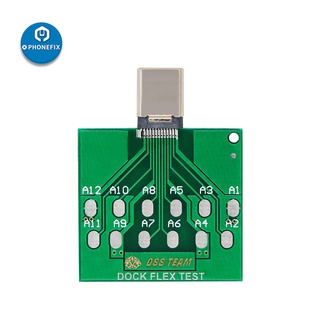

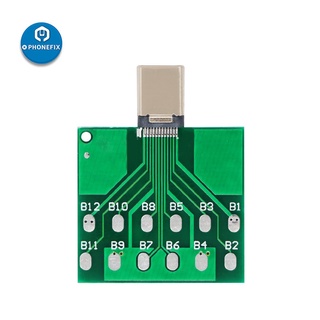

Bo mạch thử cổng Micro USB loại C cho U2

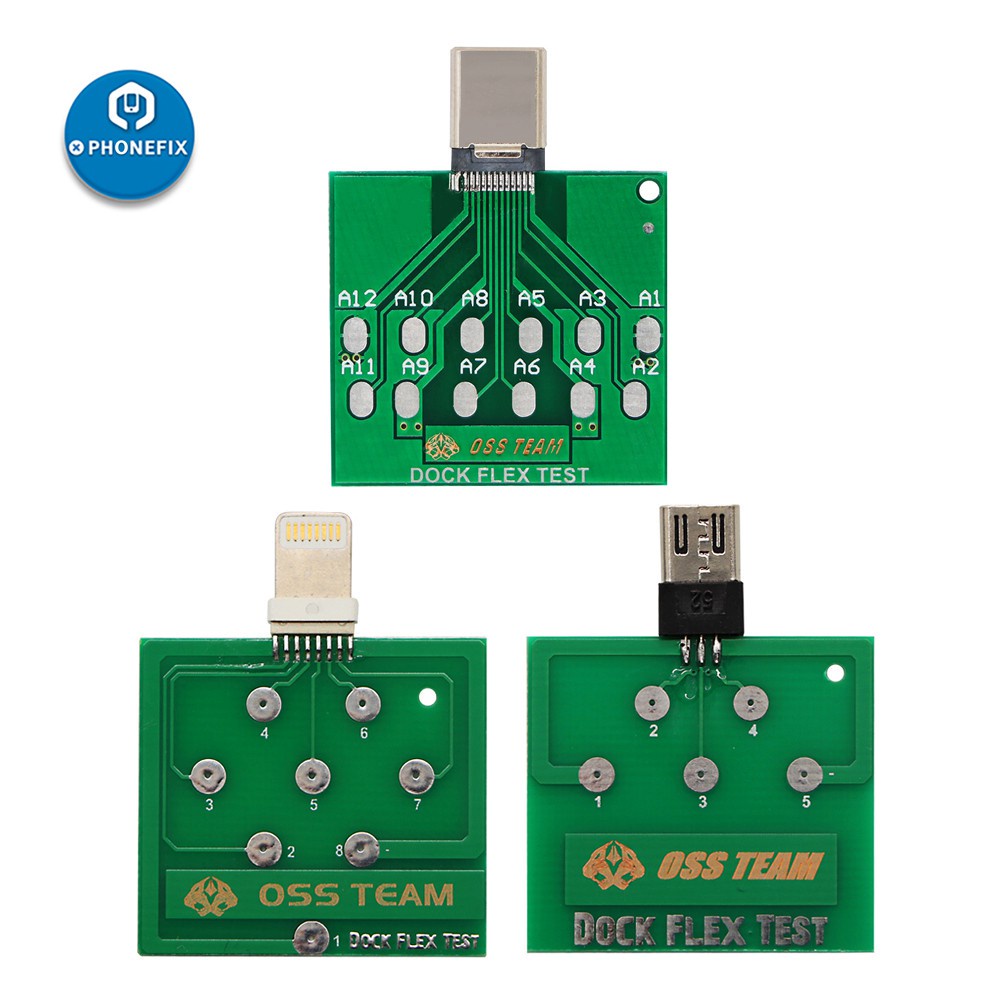

Iphone Android phone Micro Dock Flex test board, U2 IC test/battery test/USB charging port test for iPhone and Android phones, Micro Dock Flex test board/battery bad or bad/USD charging port diagnostic tool for U2 IC, Micro Dock Flex test board and battery test for iphone Android Phone U2 It is used to test the performance of U2 IC, battery and charging port.Charging ports provide the best solution, without dismantling mobile parts, and you can plug the test board directly into the tail plug, designed for iPhone and Android models. Applications: 1. U2 IC test - battery testing - charging port test Insert the test panel face downward into the tail plug of the mobile phone Pin definition: 1 - identification/control 2 channel 1 negative 3 channel 1 positive 4 power supply/battery 5 - identification/control 0 6-Channel 0 negative 7 - channel 0 positive 8 - grounding Test u2/battery: diode file, replace red and black multimeter probe to measure value Test charging port: diode file, replacement of red and black multimeter probe to measure value Note: because of the number of needle-type probe dislocations, please use a working mobile phone to measure and record them, if necessary, so that they can be easily compared with the fault cell phone and easier to judge the error.
