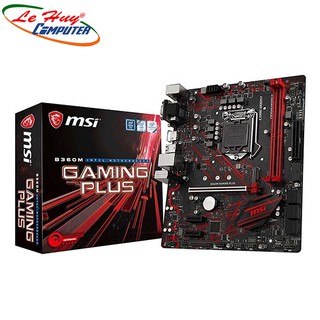

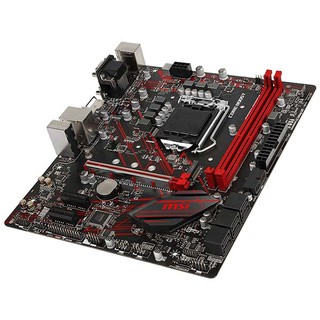

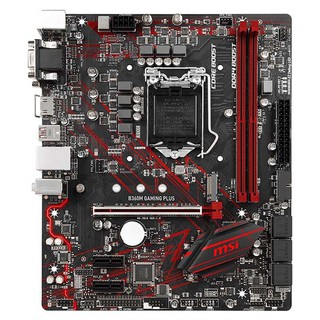

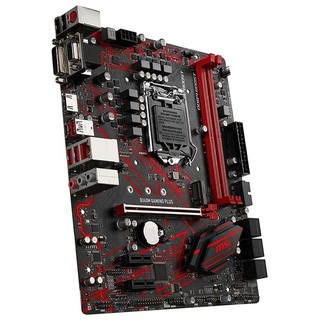

Bo Mạch Chủ-Mainboard MSI B360M Gaming plus

Bo Mạch Chủ - Mainboard MSI B360M Gaming plus Chipset: Intel B360 Socket LGA1151 v2 Bộ nhớ: Tối đa 32GB Lưu trữ: M.2 x1, SATA3 x6 Cổng USB: Tối đa 1 USB Type-C, 5 USB 3.1, 6 USB 2.0 Âm thanh: 7.1 Kích thước: M-ATX Tên gọi MSI B360M GAMING PLUS CPU hỗ trợ Intel® Socket 1151 for 8th Generation Core™ Processors Chipset / Socket Intel® B360 Bộ nhớ (RAM) - Dual Channel DDR4 Memory Technology - 2 x DDR4 memory slots, support up to 64GB - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 Công nghệ đa GPU • Không hỗ trợ Khe cắm mở rộng • 1 x PCI Express 3.0 x16 Slots • 2 x PCI Express 3.0 x1 Slots LAN / Wireless • Intel I219-V Gigabit LAN controller Âm thanh • Realtek® ALC887 Codec Cổng kết nối (Internal) • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 6 x SATA 6Gb/s connectors • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) • 1 x 4-pin CPU fan connector • 2 x 4-pin system fan connectors • 1 x Front panel audio connector • 1 x RGB LED connector • 1 x Parallel port connector • 1 x Serial port connector • 2 x Front panel connectors • 1 x TPM module connector • 1 x Chassis Intrusion connector • 1 x Clear CMOS jumper Cổng kết nối (Back Panel) • PS/2 Combo Port • VGA • LAN Port • HD Audio Connectors • USB 2.0 Port • DVI-D • HDMI • USB 3.1 Gen1 Type A + C • USB 3.1 Gen1 Công nghệ độc quyền • DDR4 Boost • Turbo M.2 • PCI-E Steel Armor • Heavy plated heatsinks • Audio Boost Phụ kiện đi kèm - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Hệ điều hành khuyến nghị • Windows® 10 64-bit Chuẩn kích cỡ • mATX Form Factor
