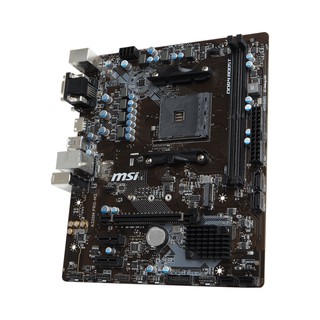

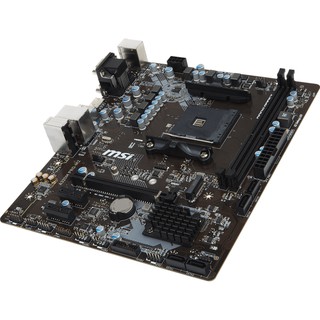

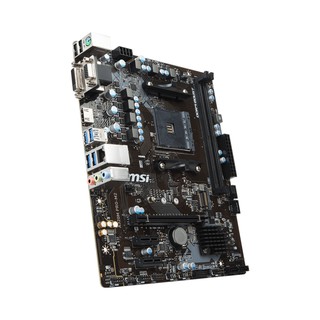

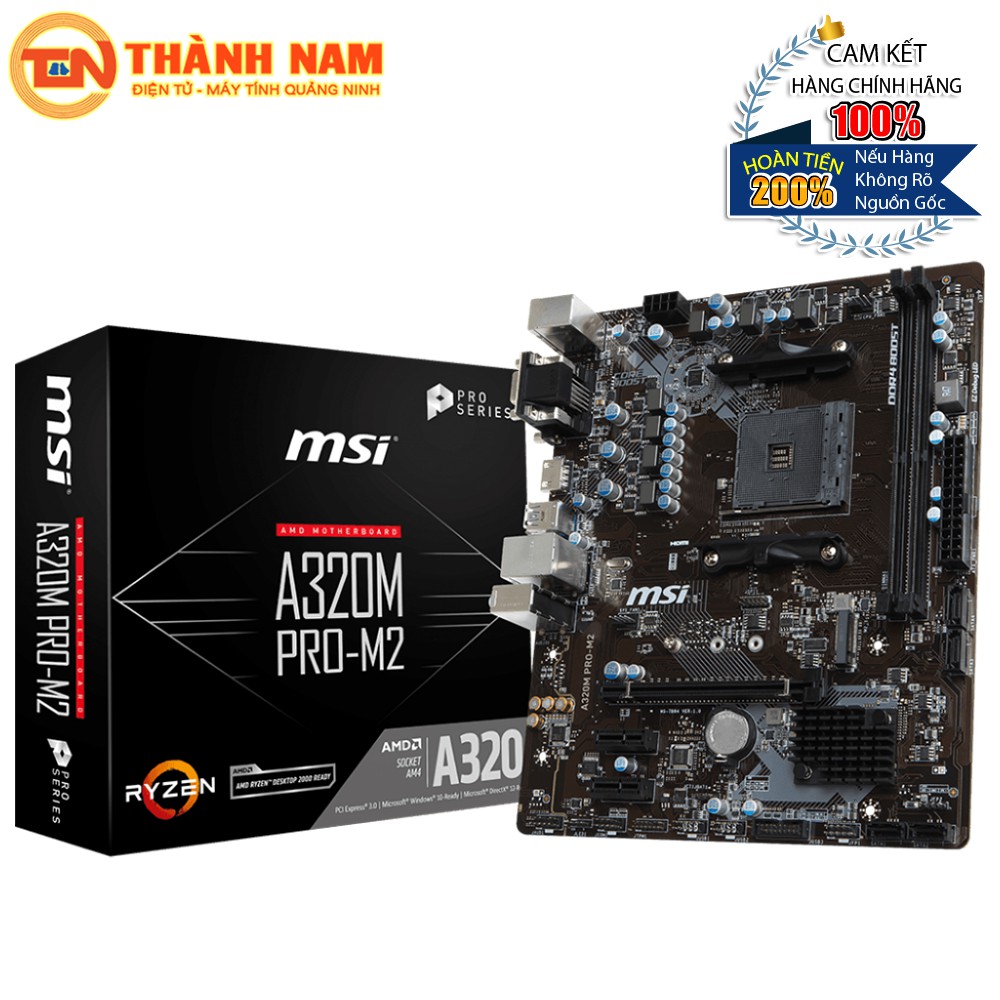

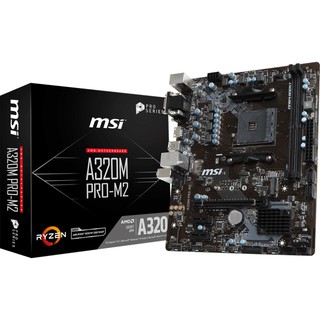

Bo mạch chủ - Mainboard MSI A320M PRO-M2

PROCESSOR Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4 See supported processors CHIPSET AMD® A320 chipset MEMORY 2 x DDR4 memory slots, support up to 32GB Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/3200(OC)+ MHz1 Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory A-series / Athlon™ X4 processors support up to 2400 MHz only. See supported memory SLOTS 1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors 2 x PCIe 2.0 x1 slots ONBOARD GRAPHICS 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz1 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors Processors maximum shared memory of 2048 MB STORAGE AMD® A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1 x M.2 port (Key M) Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2(AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices USB AMD® A320 Chipset 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) AMD® Processors 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel AUDIO Realtek® ALC887 Codec 7.1-Channel High Definition Audio LAN 1 x Realtek® 8111H Gigabit LAN controller INTERNAL CONNECTORS 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper BACK PANEL PORTS PS/2 Port VGA Port HDMI USB 3.1 Gen1 Port LAN Port HD Audio Connectors USB 2.0 DVI-D Port USB 3.1 Gen1 Port MSI A320M PRO-M2 back panel ports DIMENSIONS 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm) M-ATX Form Factor MOUNTING 4 mounting holes OPERATING SYSTEM Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
