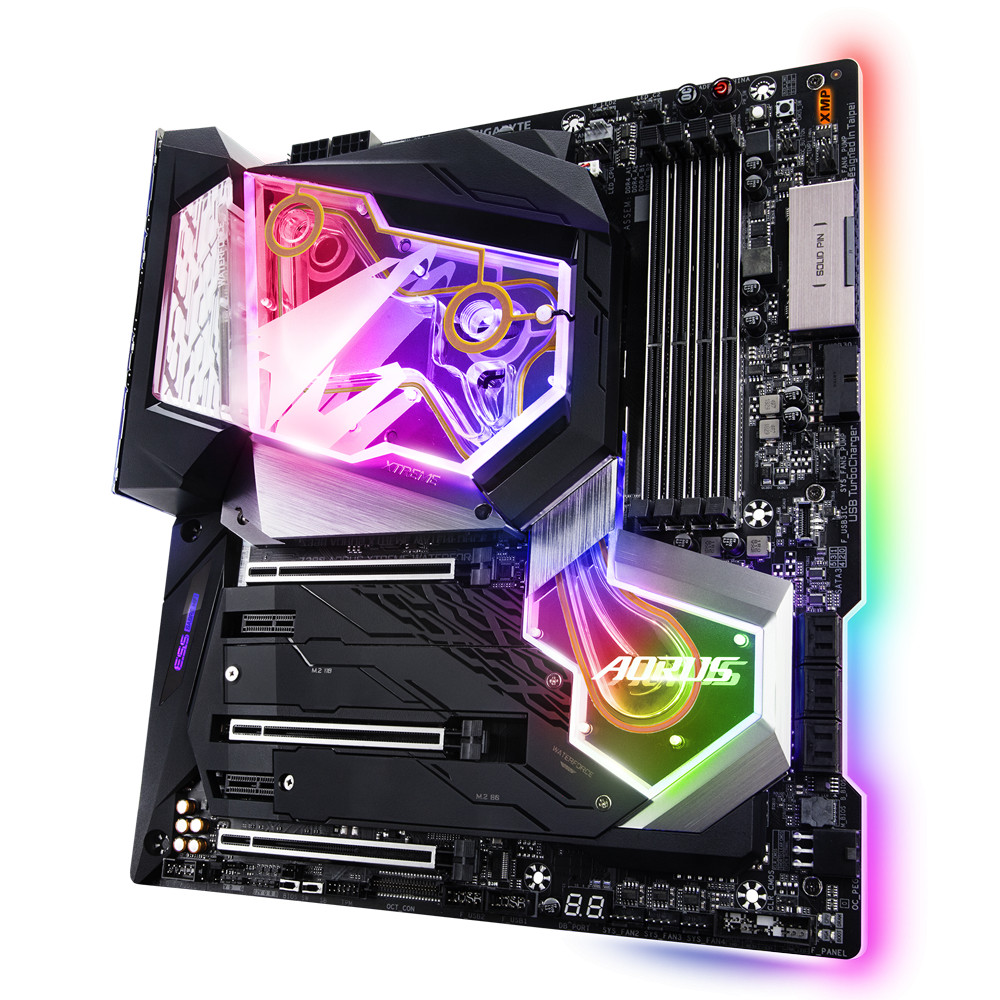

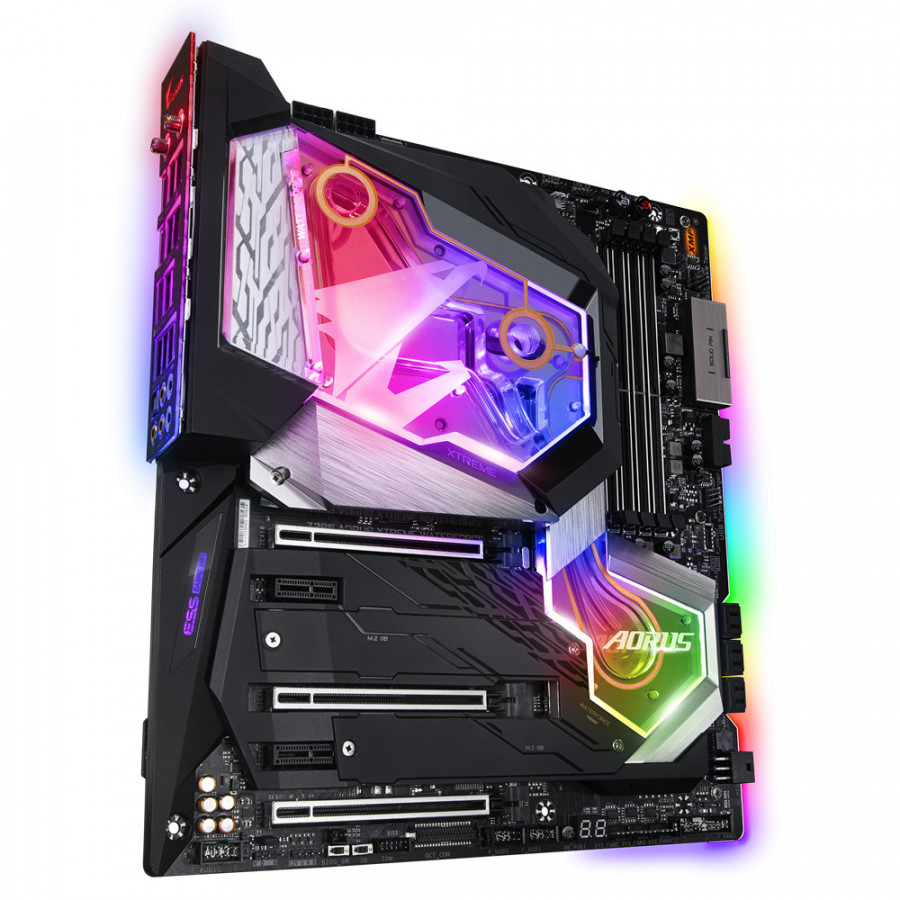

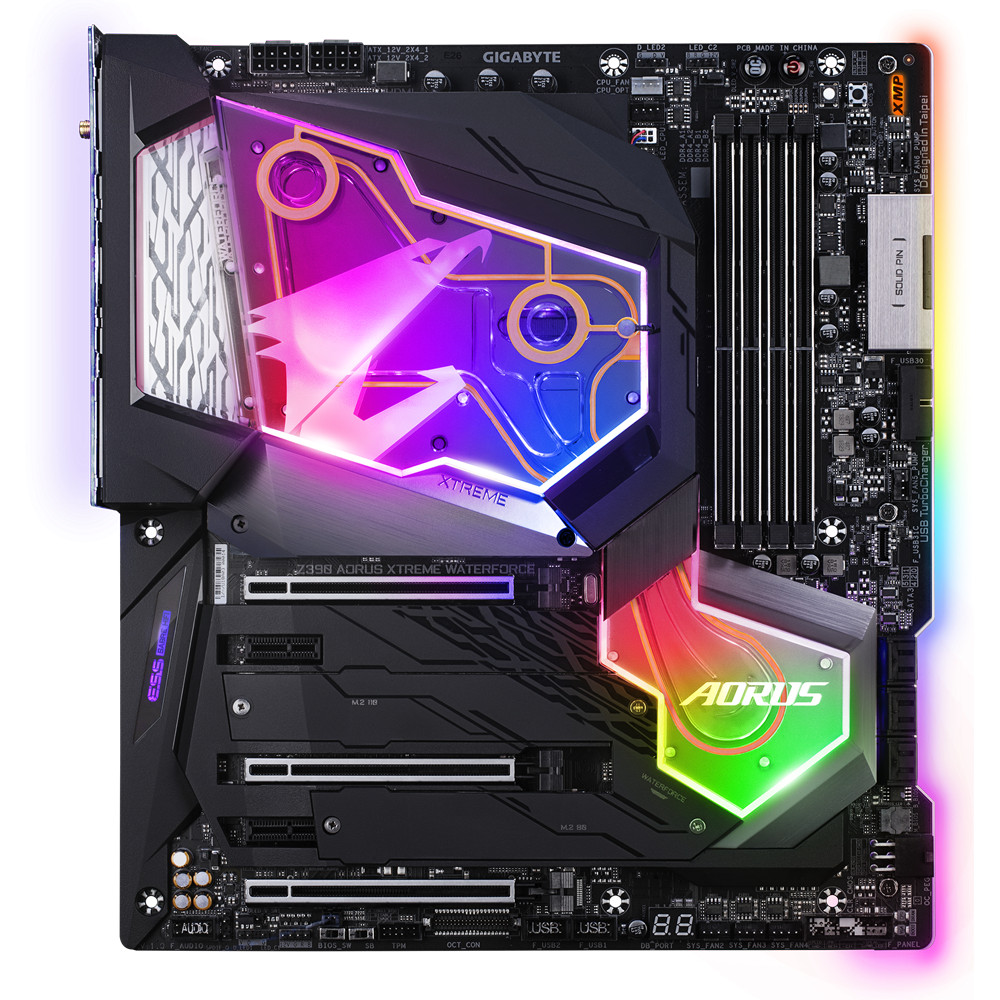

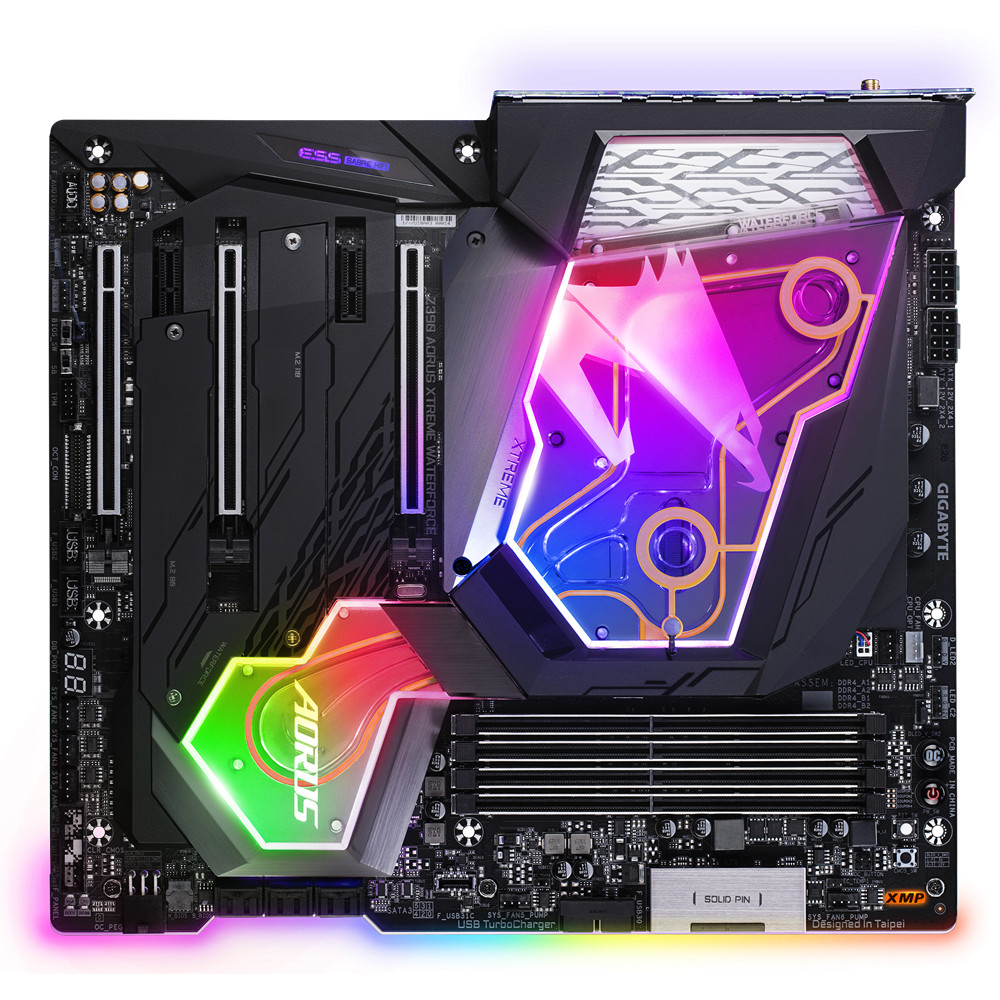

Bo mạch chủ - Mainboard Gigabyte Z390 Aorus Xtreme Waterforce

Tản nước công nghê đỉnh cao AIO Monoblock cho CPU và vùng PCH
Cực kì an toàn với mạch tự động phát hiện và ngắt nếu có sự cố rò rỉ
LED RGB Fusion 2.0 tuyệt đẹp trên nền nước điều chỉnh đa vùng
Hỗ trợ các bộ vi xử lý Intel Core thế hệ thứ 9
Hỗ trợ RAM DDR4 Dual Channel Non-ECC Unbuffered
Điều khiển điện năng mới nhất với 16 pha IR và PowlRstage
Mặt sau phủ 1 lớp NanoCarbon siêu bền chịu lực tốt
Smart Fan 5, tản nhiệt hiệu quả và tiết kiệm điện năng
Sẵn sàng sử dụng Intel Optane
Tích hợp USB 3.1 thế hệ 2 Type-C và Intel Thunderbolt 3
Cổng USB TurboCharger cho thiết bị di động tích hợp sạc nhanh
WIFI Intel CNVi 802.11ac 2×2 Wave 2 cùng antenna Aorus
DAC High-End ESS SABRE 9018K2M cao cấp cho chất lượng phòng thu sẵn sàng kéo headphone khủng







• CPU
  1. Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer to "CPU Support List" for more information.)
• Chipset
  1. Intel Z390 Express Chipset
• Bộ nhớ
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
     ** Please note that the support for system total memory size depends on the CPU installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor+Intel Thunderbolt 3 Controller:

  1. 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60 Hz
     * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
     * Support for DisplayPort 1.2 version.

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.2.

  Maximum shared memory of 1 GB
  Actual support may vary by CPU
• Âm thanh
  1. Realtek ALC1220-VB codec
  2. ESS ES9018K2M DAC and TI OPA1622 operational amplifiers
     * The front panel line out jack supports DSD audio.
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
• LAN
  1. 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
  2. 1 x Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)
• Wireless Communication module
  1. Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.
     (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
  4. 2 x PCI Express x1 slots
     (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
  5. 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
• Giao diện lưu trữ
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-10 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.

  Intel Optane Memory Ready
• Công nghệ đa card đồ họa
  1. Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
  2. Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
• USB
  Chipset+Intel Thunderbolt 3 Controller:

  1. 2 x USB Type-C ports on the back panel, with USB 3.1 Gen 2 support

  Chipset:

  1. 1 x USB Type-C port with USB 3.1 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+2 USB 2.0 Hubs:

  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x OC PEG power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 1 x water cooling kit CPU LED header (LED_CPU)
  7. 1 x water cooling kit Chipset LED header (LED_PCH)
  8. 4 x system fan headers
  9. 2 x system fan/water cooling pump headers
  10. 2 x addressable LED strip headers
  11. 2 x addressable LED strip power select jumpers
  12. 2 x RGB LED strip headers
  13. 6 x SATA 6Gb/s connectors
  14. 3 x M.2 Socket 3 connectors
  15. 1 x front panel header
  16. 1 x front panel audio header
  17. 1 x USB Type-C port, with USB 3.1 Gen 2 support
  18. 1 x USB 3.1 Gen 1 header
  19. 2 x USB 2.0/1.1 headers
  20. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  21. 1 x GC-OC Touch add-in card connector
  22. 1 x Clear CMOS jumper
  23. 2 x temperature sensor headers
  24. 1 x power button
  25. 1 x reset button
  26. 1 x Clear CMOS button
  27. 1 x OC button
  28. 2 x BIOS switches

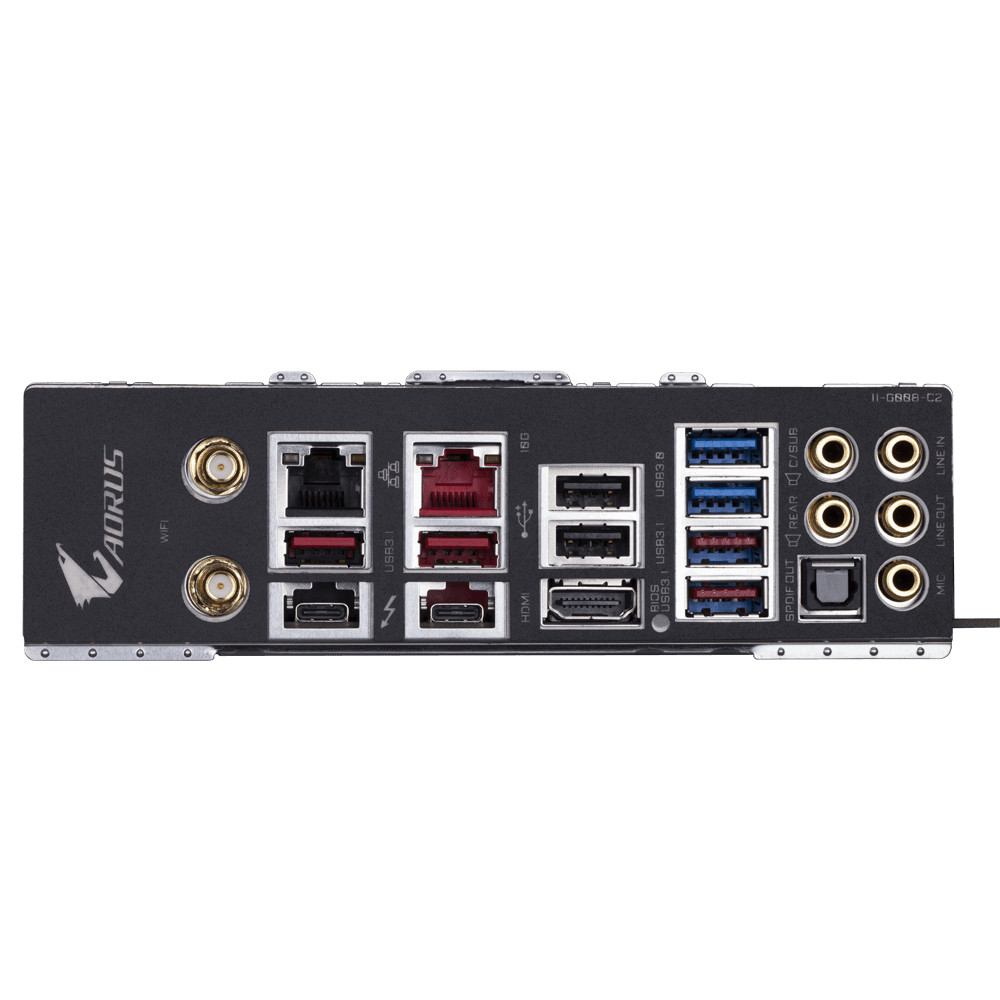

• Kết nối bảng phía sau
  1. 2 x SMA antenna connectors (2T2R)
  2. 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.1 Gen 2 support)
  3. 4 x USB 3.1 Gen 2 Type-A ports (red)
  4. 2 x USB 3.1 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x HDMI port
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• Điều khiển I/O
  1. iTE I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS
  4. Support for Q-Flash Plus
     * The USB flash drive used must be a USB 2.0 flash drive.
  5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     Smart Survey
     System Information Viewer
     USB Blocker
     USB TurboCharger
     Smart Fan (for AORUS RGB FAN COMMANDER )
  2. Support for Q-Flash
  3. Support for Xpress Install
• Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
• Hệ điều hành
  1. Support for Windows 10 64-bit
• Hệ số khuôn
  1. E-ATX Form Factor; 30.5cm x 27.1cm
• Ghi chú
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
