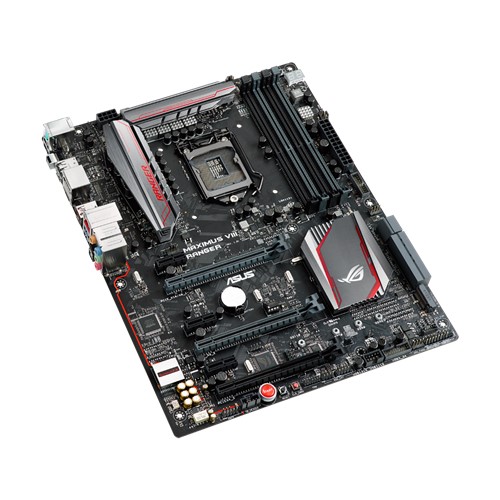

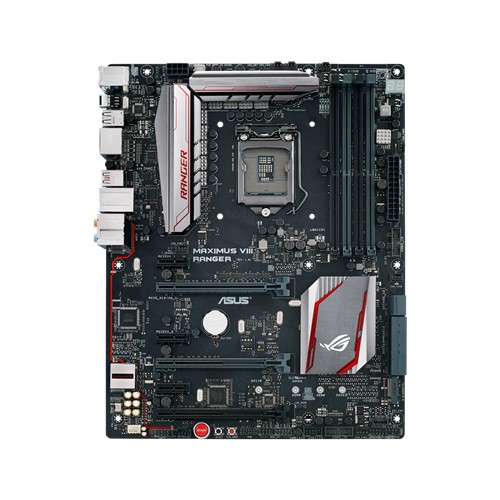

Bo mạch chủ - Mainboard Asus MAXIMUS VIII RANGER

CPU : Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Chipset : Intel Z170
Memory : 4 x DIMM, Max. 64GB, DDR4
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD 3-Way CrossFireX Technology

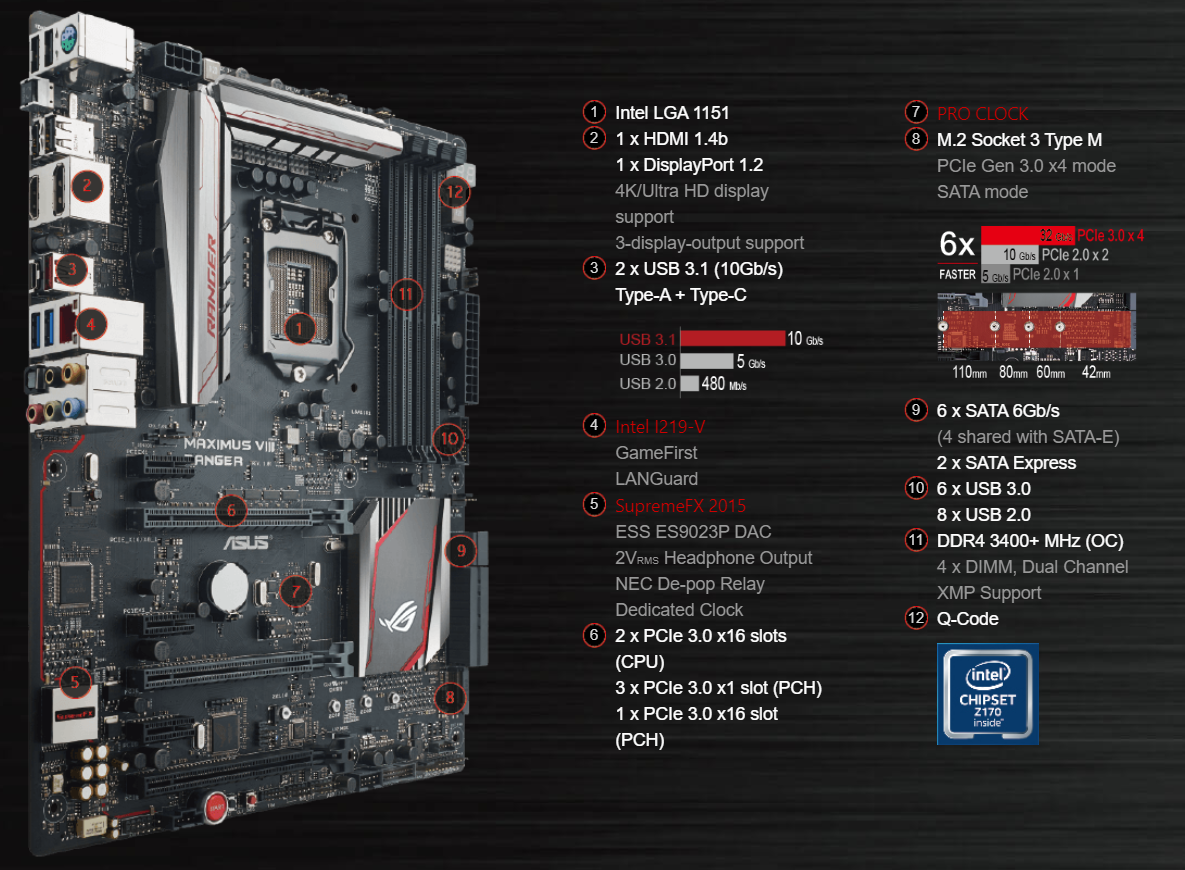

Bo mạch chủ ASUS MAXIMUS VIII RANGER ATX Z170

• CPU
  Intel Socket 1151 for 7^th/6^th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0
  * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to  for CPU support list
• Chipset
  Intel Z170
• Memory

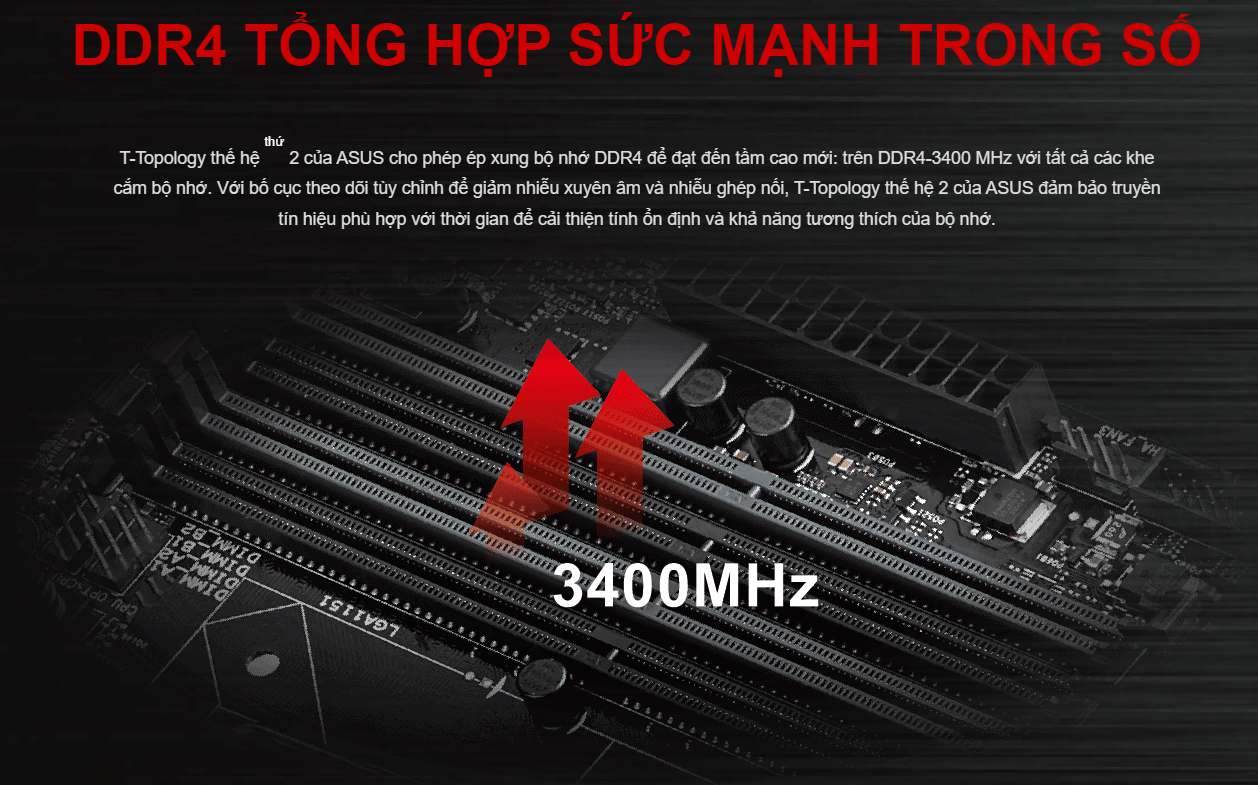

  4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to  for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor- Intel HD Graphics support
  Multi-VGA output support : HDMI/DisplayPort 1.2 ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 512 MB (for iGPU exclusively)
  Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Multi-GPU Support
  Supports NVIDIA Quad-GPU SLI Technology
  Supports AMD 3-Way CrossFireX Technology
• Expansion Slots
  2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  3 x PCIe 3.0/2.0 x1 (x1 mode, black)
• Storage
  Intel Z170 chipset :
  1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*¹
  6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA Express
  2 x SATA Express port, gray
  Support Raid 0, 1, 5, 10
  Intel Rapid Storage Technology supports*²
  Supports Intel Smart Response Technology*²
• LAN
  Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
  Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
  Anti-surge LANGuard

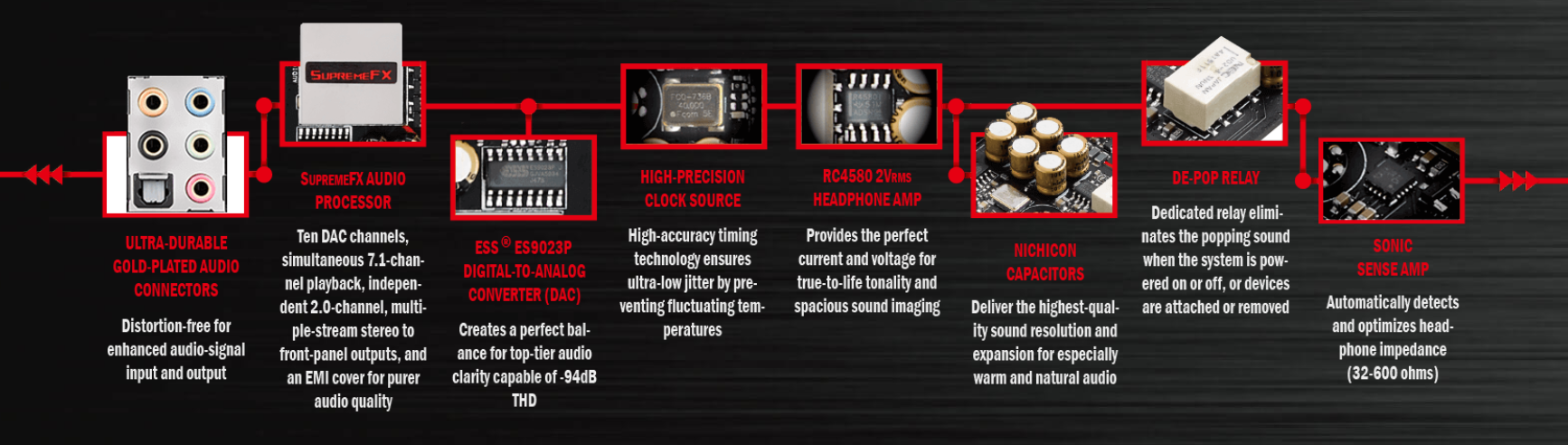

• Audio

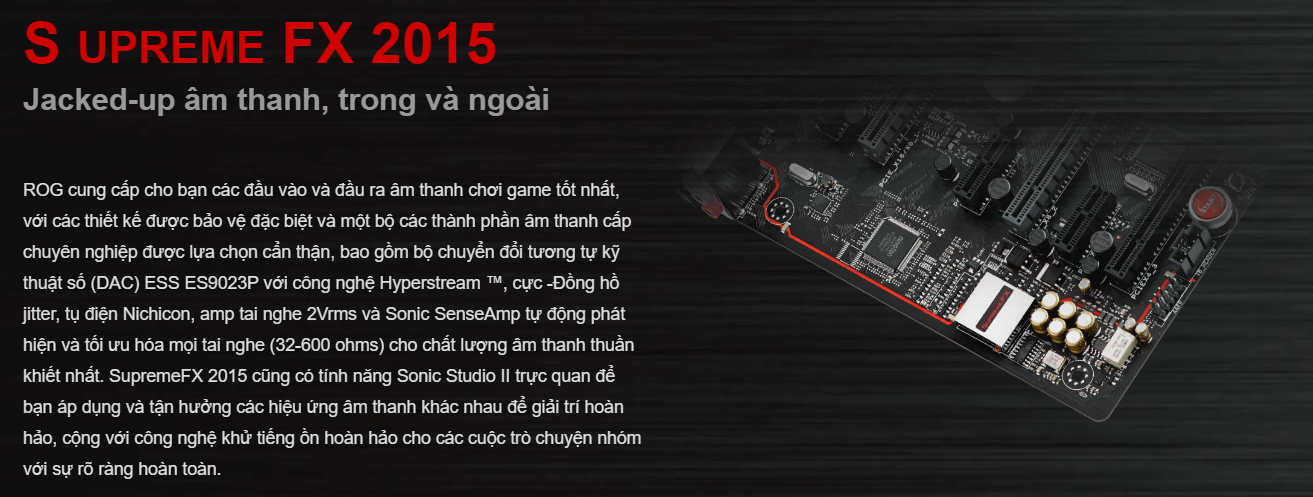

  ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - SupremeFX Shielding Technology
  - ESS ES9023P
  - TI RC4580 2VRMS audio OP AMP(s)
  Audio Feature :
  - Gold-plated jacks
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - Sonic SenseAmp

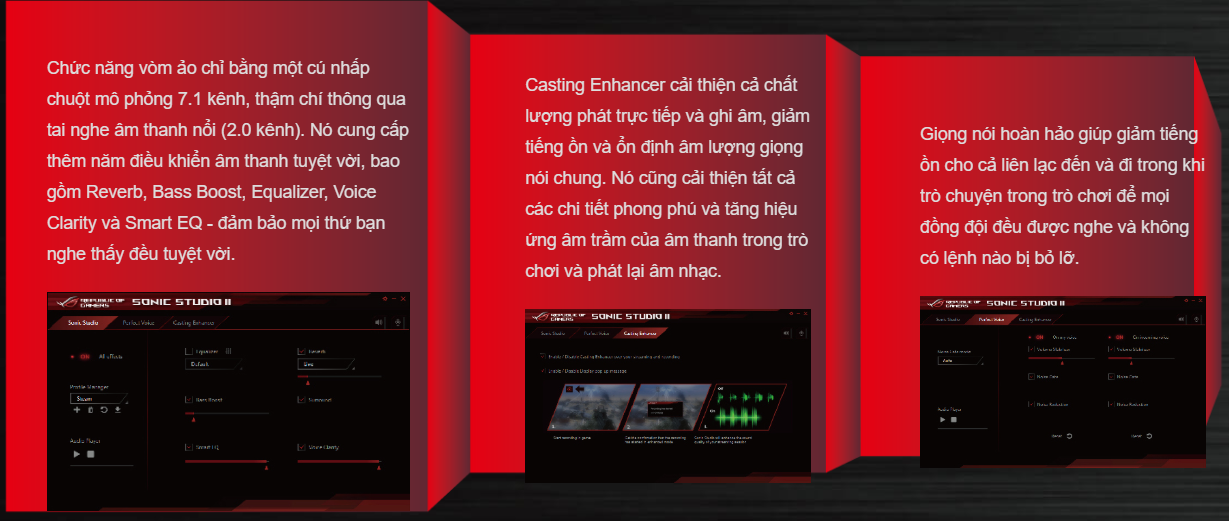

  - Sonic Studio II
  - Sonic Radar II
• USB Ports
  Intel Z170 chipset :
  6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
  Intel Z170 chipset : *³
  8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
  ASMedia USB 3.1 Gen 2 controller :
  1 x USB 3.1 port(s) (1 at back panel, black, USB Type-C^TM)
  ASMedia USB 3.1 Gen 2 controller :
  1 x USB 3.1 port(s) (1 at back panel, red, Type-A)
• ROG Exclusive Features
  ROG RAMCache
  Overwolf
  Start Button
  Reset Button
  LN2 Mode
  Mem TweakIt
  KeyBot II
  - One-click Overclocking
  - X.M.P.
  - DirectKey
  - ClrCMOS
  - Power On
  UEFI BIOS features :
  - O.C. Profile
  - GPU.DIMM Post
  - Tweakers' Paradise
  - ROG SSD Secure Erase
  - Graphic Card Information Preview
  ROG RAMDisk
  Extreme Tweaker
• Special Features

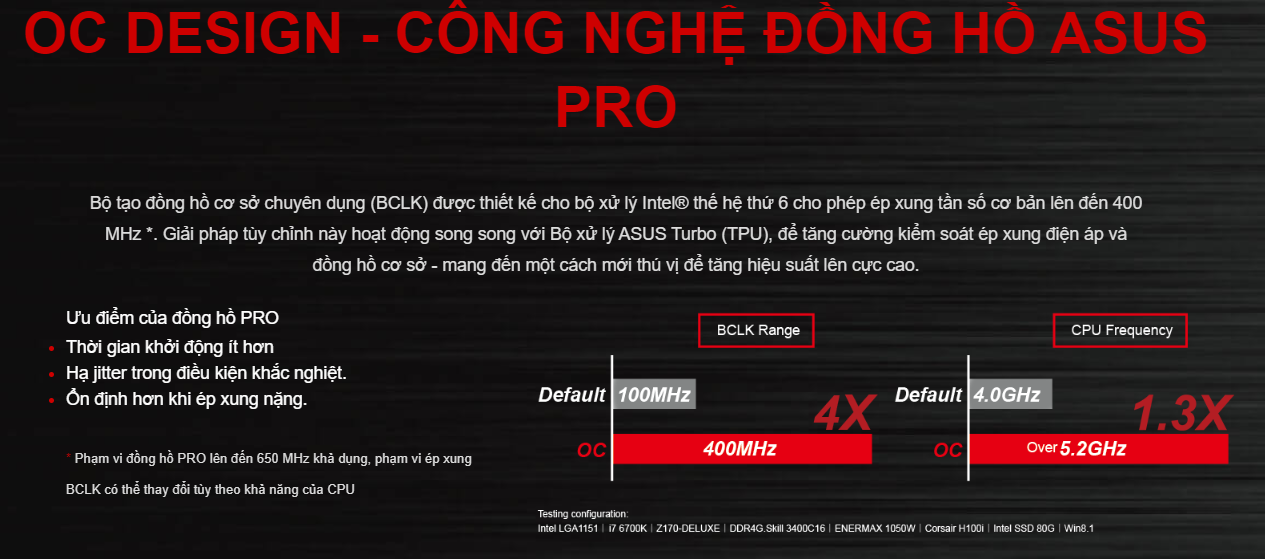

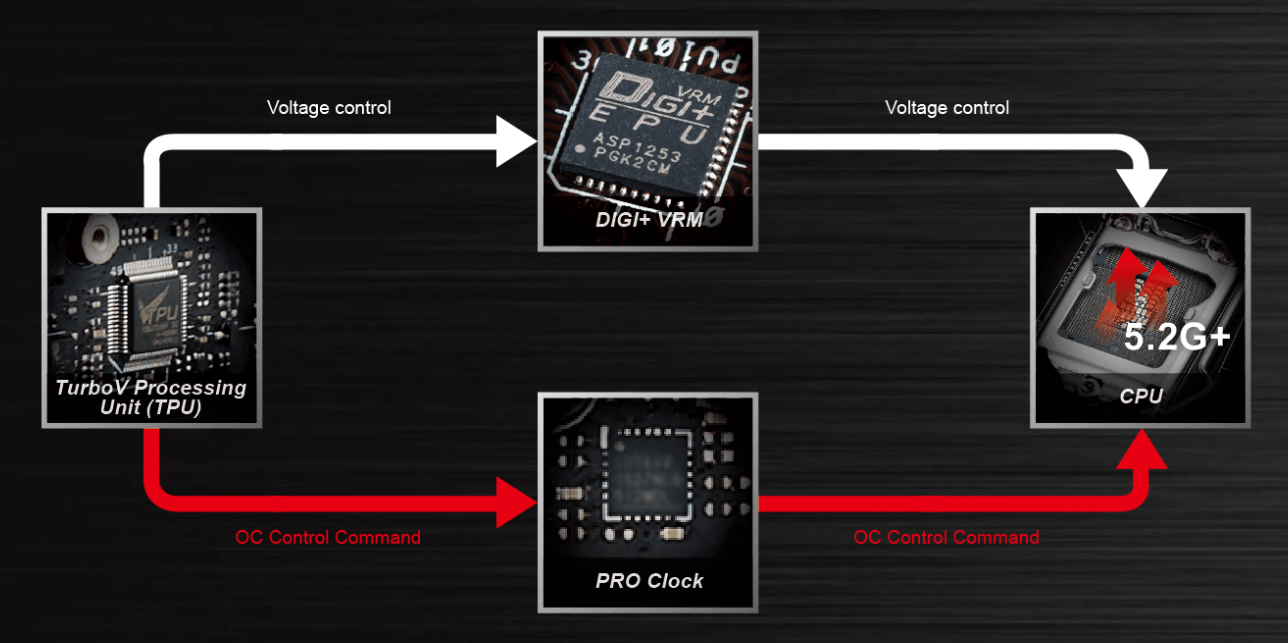

  OC Design - ASUS PRO Clock Technology
  - Full BCLK range for extreme overclocking performance

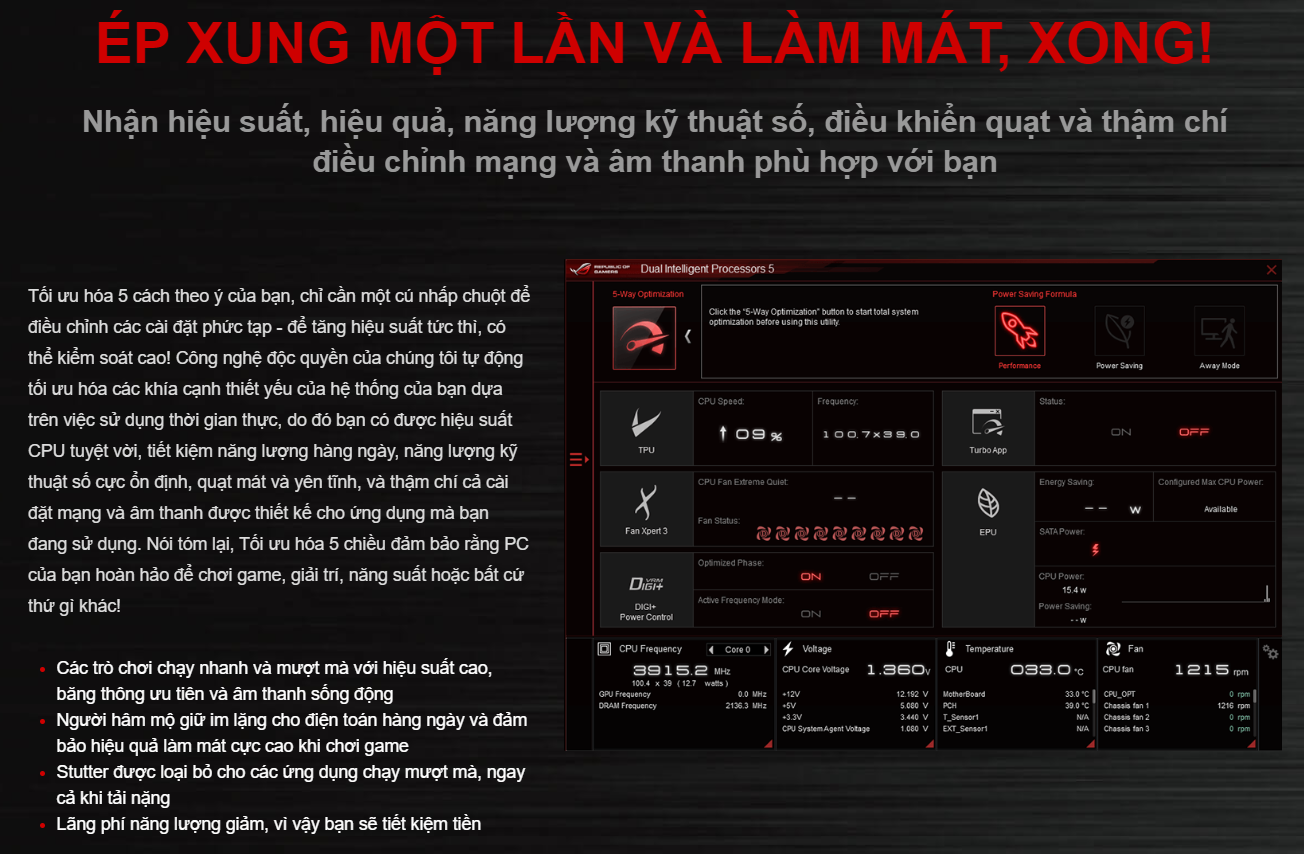

  5-Way Optimization by Dual Intelligent Processors 5
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
  ASUS Exclusive Features :
  - MemOK!
  - AI Suite 3
  - Ai Charger+
  - USB 3.1 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  Remote Entertainment
  - Media Streamer
  - HyStream
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS USB BIOS Flashback
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
• Operating System Support
  Windows 10
  Windows 8.1
  Windows 7

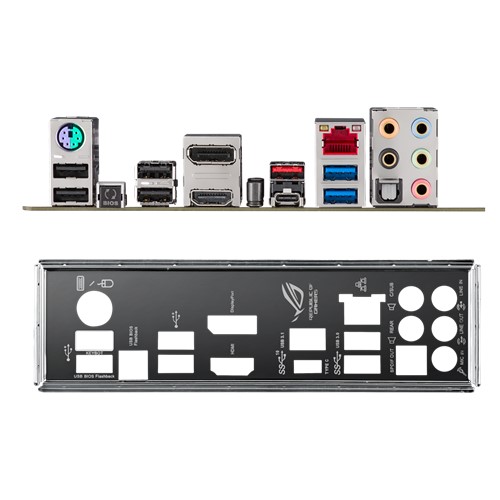

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 2 (black)USB Type-C^TM,
  1 x USB 3.1 Gen 2 (red)Type-A
  2 x USB 3.1 Gen 1 (blue)
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x USB BIOS Flashback Button(s)
• Internal I/O Ports
  1 x AAFP connector
  2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
  2 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s) (Q-Connector)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x MemOK! button(s)
  1 x Thermal sensor connector(s)
  1 x Power-on button(s)
  1 x Reset button(s)
  1 x Clear CMOS button(s)
  1 x Water Pump header (4-pin)
  1 x LN2 Mode jumper(s)
  1 x ROG extension (ROG_EXT) header(s)
  1 x 14-1 pin TPM connector

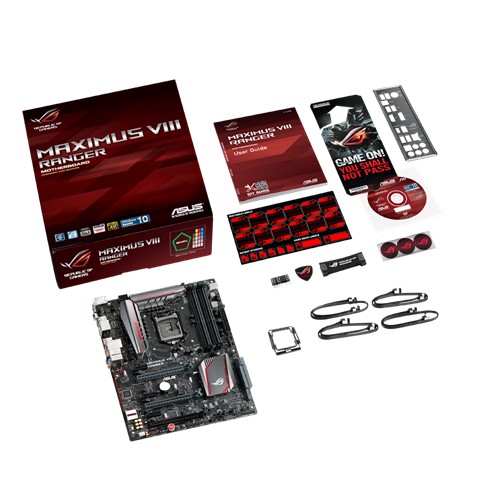

• Accessories
  User's manual
  ASUS Q-Shield
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x CPU installation tool
  1 x Supporting DVD
  1 x SLI bridge(s)
  1 x Q-connector(s) (1 in 1)
  1 x 12 in 1 ROG Cable Label(s)
  ROG Fan Label
  1 x ROG Door Hanger(s)
• BIOS
  1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
• Manageability
  WfM2.0, DMI3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ROG GameFirst technology
  ROG RAMDisk
  ROG RAMCache
  ROG CPU-Z
  ROG Mem TweakIt
  Overwolf
  Keybot II
  Kaspersky Anti-Virus
  DAEMON Tools Pro Standard
  ASUS WebStorage
  ASUS Utilities
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1 When the M.2 Socket 3 is operating in SATA mode, SATA ports 1 will be disabled.
  *2 This function will work depending on the CPU installed.
  *3 2 x USB 2.0 port at mid-board comes from the ROG extension (ROG_EXT) port.
