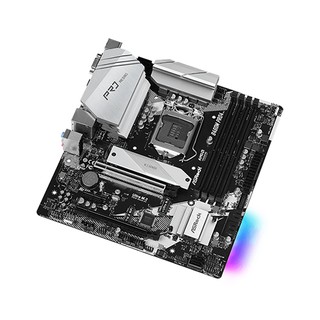

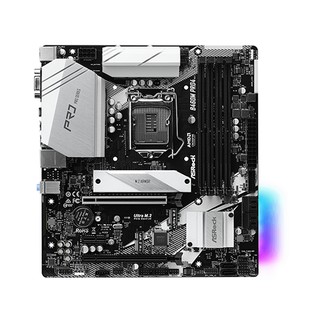

Bo mạch chủ - Mainboard Asrock B460M Pro4

Sản phẩm Bo mạch chủ Tên Hãng Asrock Model B460M Pro4 CPU hỗ trợ Intel Chipset B460 RAM hỗ trợ 4 x DDR4 DIMM Slots ( tối đa 128GB ) Khe cắm mở rộng 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) 1 x PCI Express 3.0 x1 Slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module Ổ cứng hỗ trợ 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Cổng kết nối (Internal) 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Cổng kết nối (Back Panel) 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone LAN / Wireless Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel® I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Kích cỡ Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
