Bo mạch chủ Mainboard Asrock B365M-ITX/ac

Sản phẩm

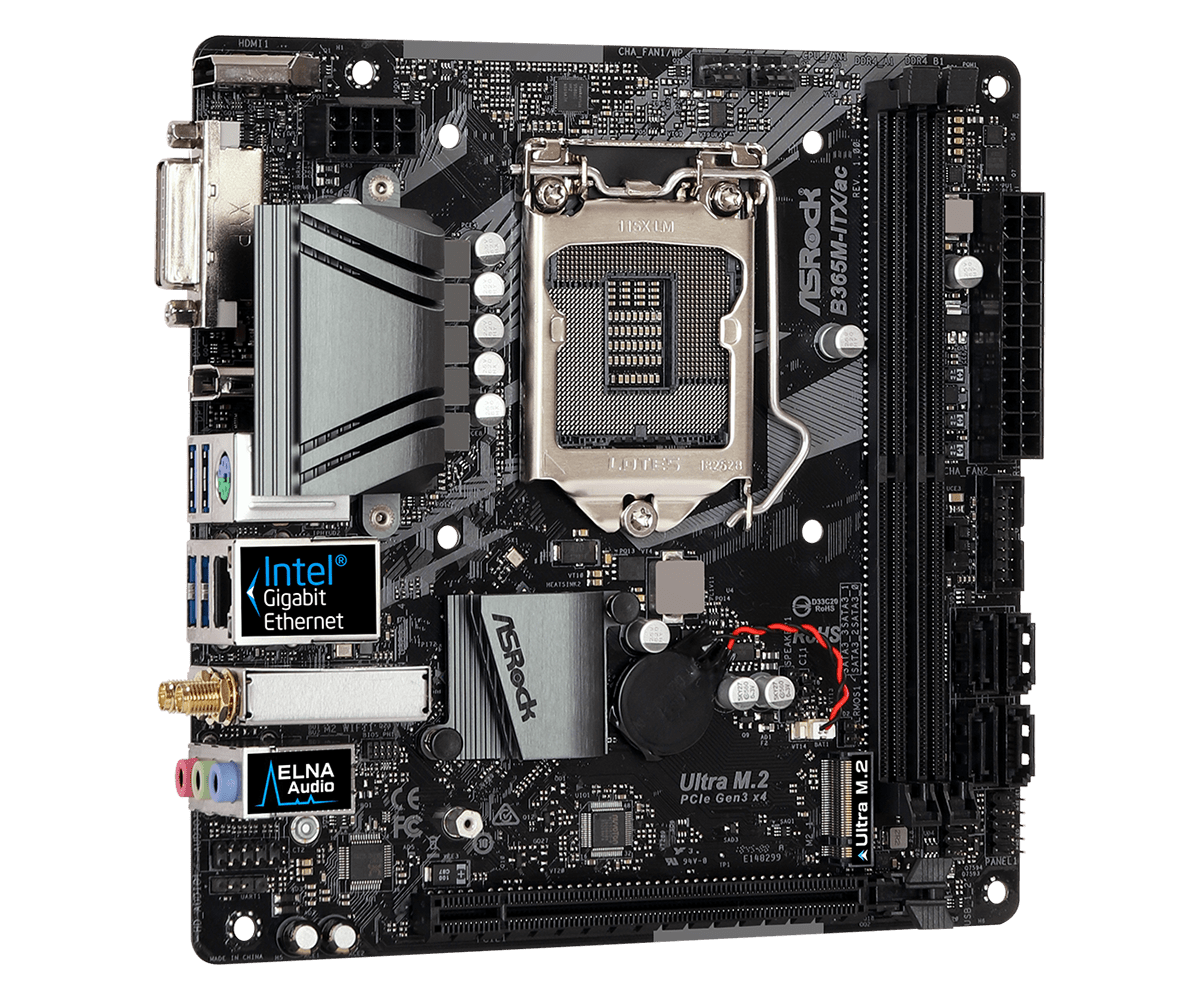

Bo mạch chủ Mainboard Asrock B365M-ITX/ac

Tên HãngASROCK

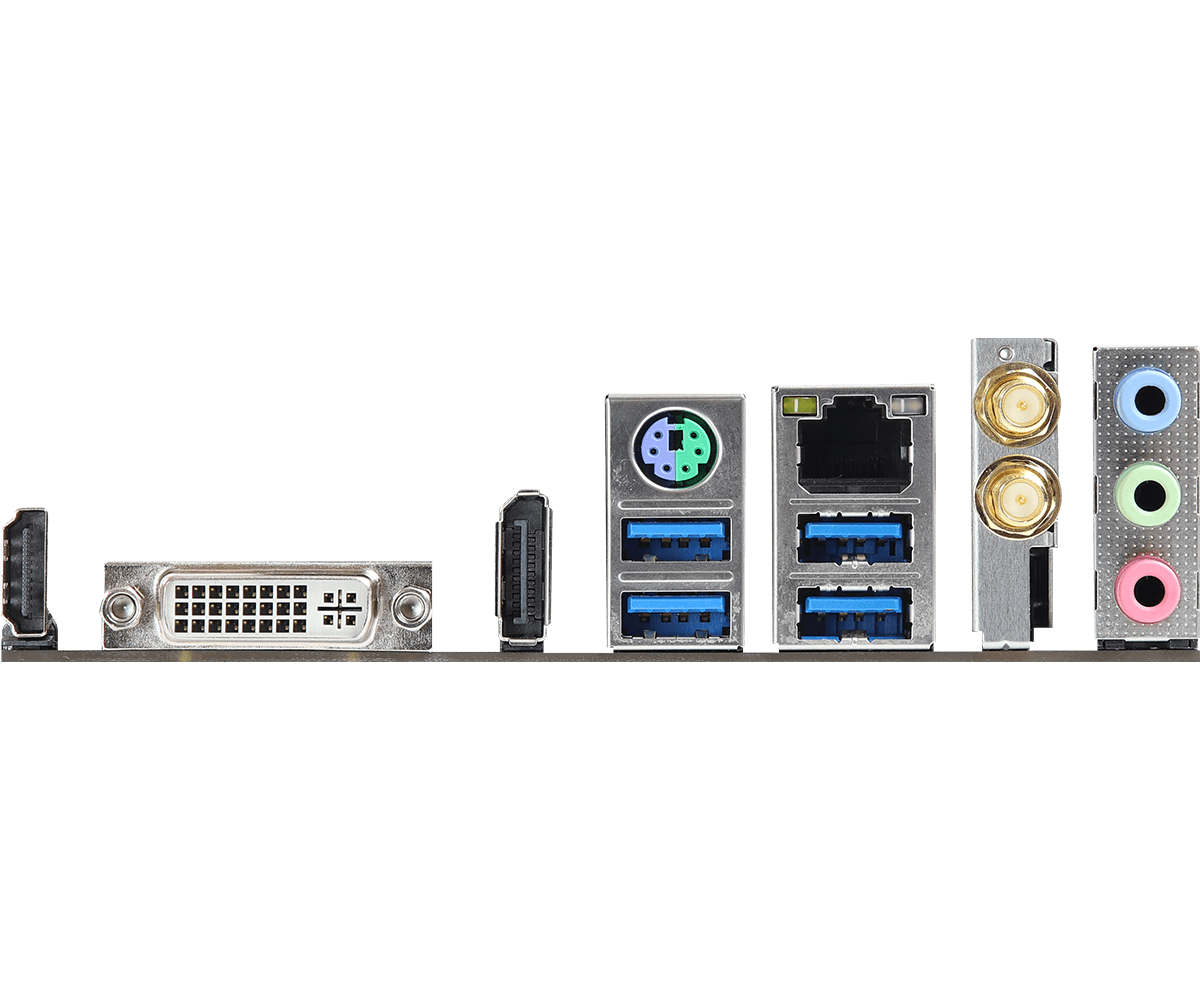

ModelB365M-ITX/acCPU hỗ trợIntelChipsetB365RAM hỗ trợ2 x DDR4 memory slots, DDR4 2666 / 2400 / 2133 non-ECCKhe cắm mở rộng1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)Ổ cứng hỗ trợ4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*Cổng kết nối (Internal)- 1 x Chassis Intrusion Header- 1 x CPU Fan Connector (4-pin)*- 1 x Chassis Fan Connector (4-pin)**- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)Cổng kết nối (Back Panel)- 2 x Antenna Ports- 1 x PS/2 Mouse/Keyboard Port- 1 x DVI-I Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / MicrophoneLAN Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I219V- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXEWIFI- Intel® 802.11ac WiFi Module- Supports IEEE 802.11a/b/g/n/ac- Supports Dual-Band (2.4/5 GHz)- Supports high speed wireless connections up to 433Mbps- Supports Bluetooth 4.2 / 3.0 + High speed class IIKích cỡMini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
