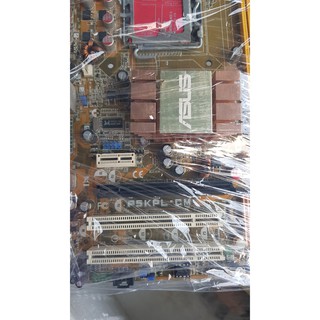

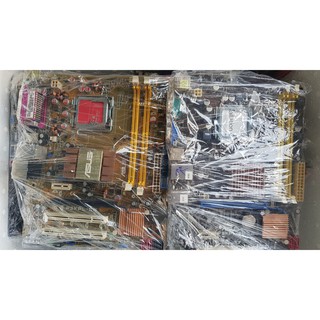

Bo mạch chủ: Main Asus G31 Socket 775

Hãng sản xuất: ASUS Intel Socket 775 Form Factor MicroATX (uATX) Chipset Intel G31 Loại CPU hỗ trợ: Intel Pentium 4 • Intel Pentium D • Intel Celeron • Intel Celeron Dual-Core • Intel Core 2 Duo • Intel Core 2 Extreme • Intel Core 2 Quad Front Side Bus (FSB) • 533Mhz • 800MHz (1600 MT/s) • 1066Mhz • 1333Mhz • 1600Mhz Số khe cắm ram: 2 Bộ nhớ tối đa: (Gb) 4 Loại Ram sử dụng): DDR2 Memory Bus • 667Mhz • 800Mhz • 1066Mhz Internal I/O Connectors (Các kết nối bên trong) • USB 2.0 connectors • Floppy disk drive connector • SATA connectors • 24-pin ATX Power connector • 4-pin ATX 12v Power connector • System panel connector • IDE • CD / AUX audio in Back Panel I/O Ports (Cổng kết nối phía sau) • LAN (RJ45) port • USB 2.0/1.1 ports • PS/2 port • LPT / Parallel port • Audio I/O • VGA onboard (D-sub) • COM port Expansion Slot (Khe mở rộng) • PCI • PCI Express x1 • PCI Express x16 (x1) Other Supports (Công nghệ hỗ trợ khác) • – Other Features (Tính năng khác) Integrated Intel Graphics Media Accelerator (Intel® GMA 3100) Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz RTL8102EL 10/100M ALC662 6 -Channel High-Definition Audio CODEC
