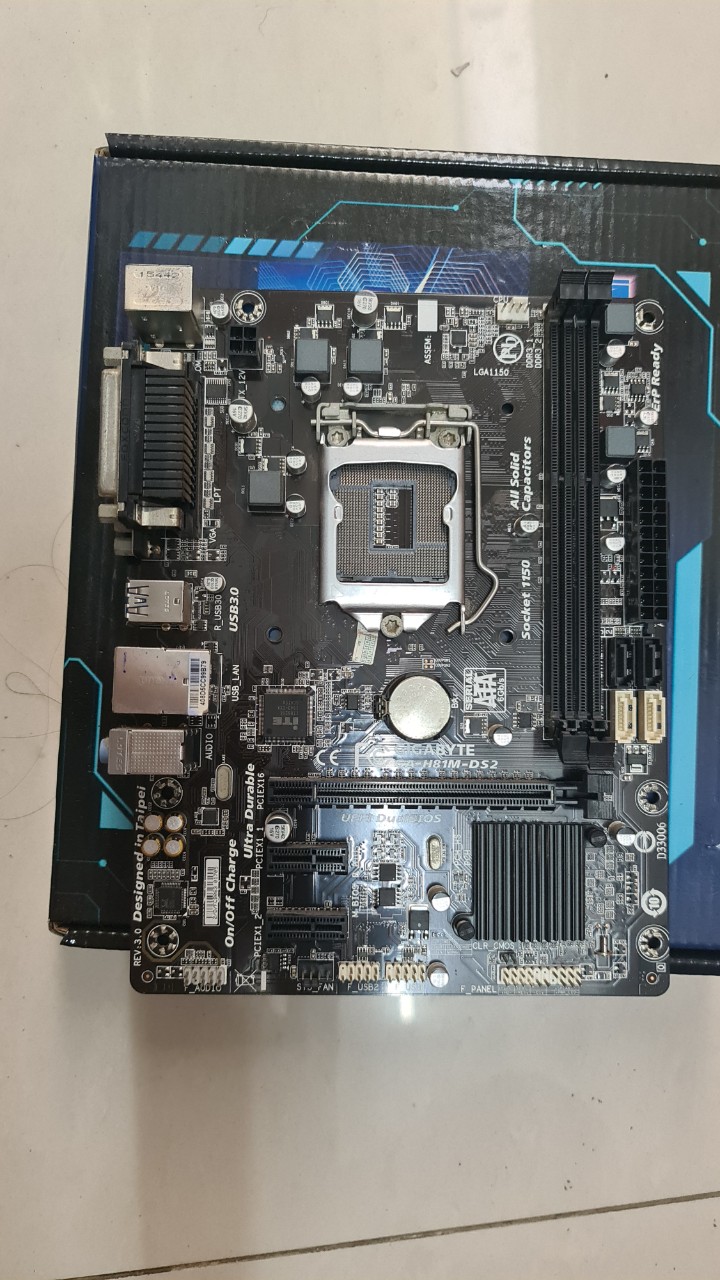

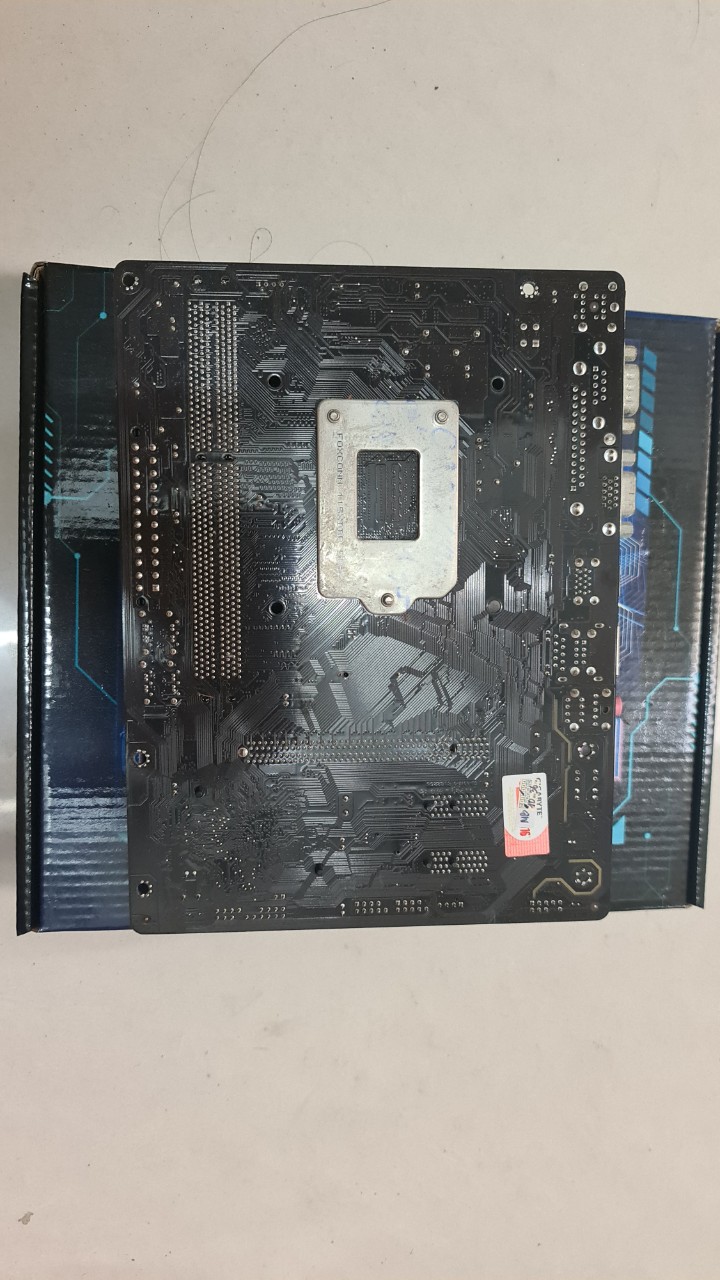

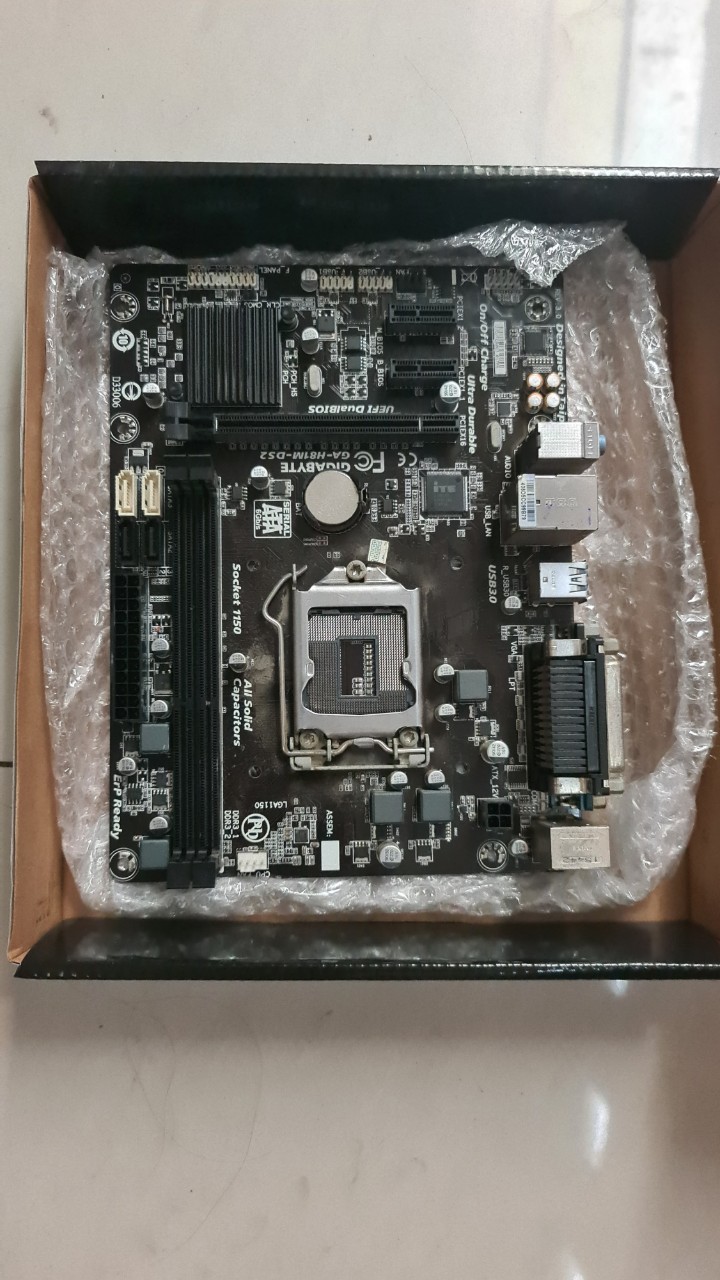

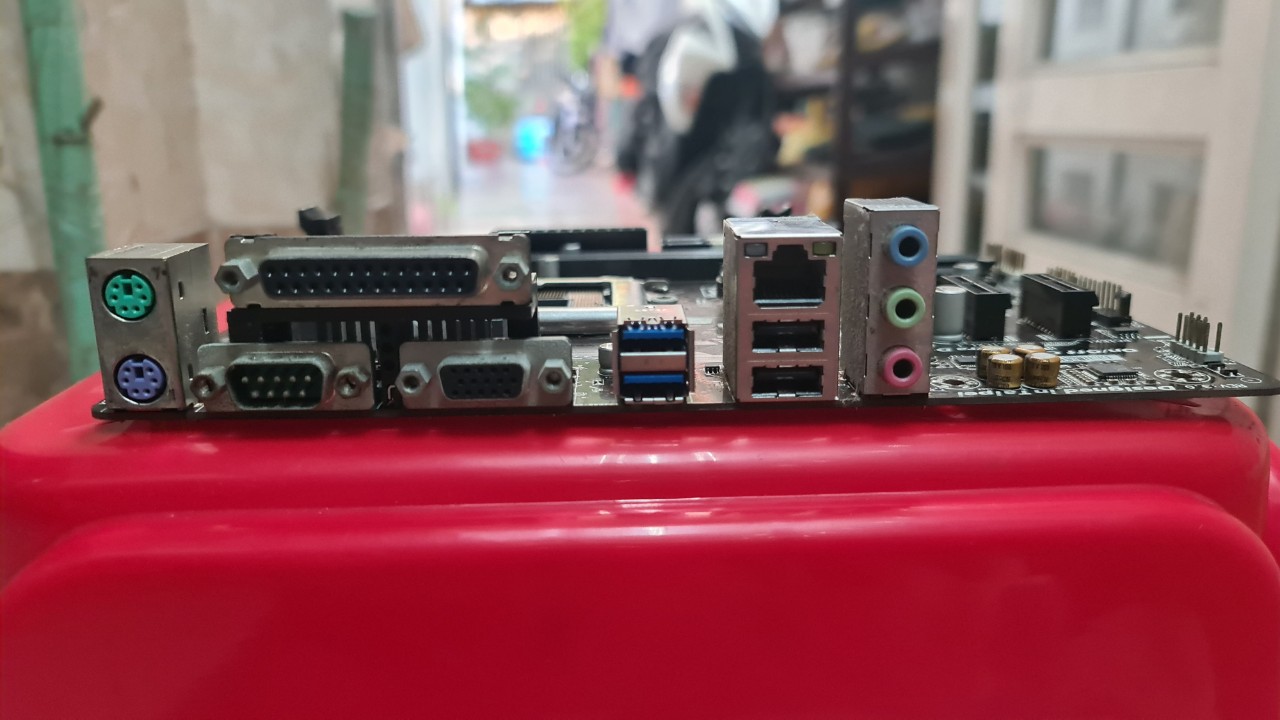

Bo mạch chủ GIGABYTE H81

Mainboard Gigabyte H81 đã qua sử dụng giá rẻ, sản phẩm thuộc phân khúc tầm trung, hỗ trợ CPU Intel Socket 1150. Dòng main này sử dụng bền, chạy ít lỗi. Không kém Ram. Sản phẩm không hỗ trợ bảo hành.

THÔNG SỐ KỶ THUẬT

• CPU
  1. Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/Intel®Core™ i3 processors/Intel®Pentium®processors/Intel®Celeron®processors in the LGA1150 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel®H81 Express Chipset
• Bộ nhớ
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợp
  Integrated Graphics Processor - Intel®HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. Maximum shared memory of 1 GB
• Âm thanh
  1. Realtek®ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek®GbE LAN chip (10/100/1000 Mbit)
• Khe cắm mở rộng
  1. 1 x PCI Express x16 slot, running at x16
