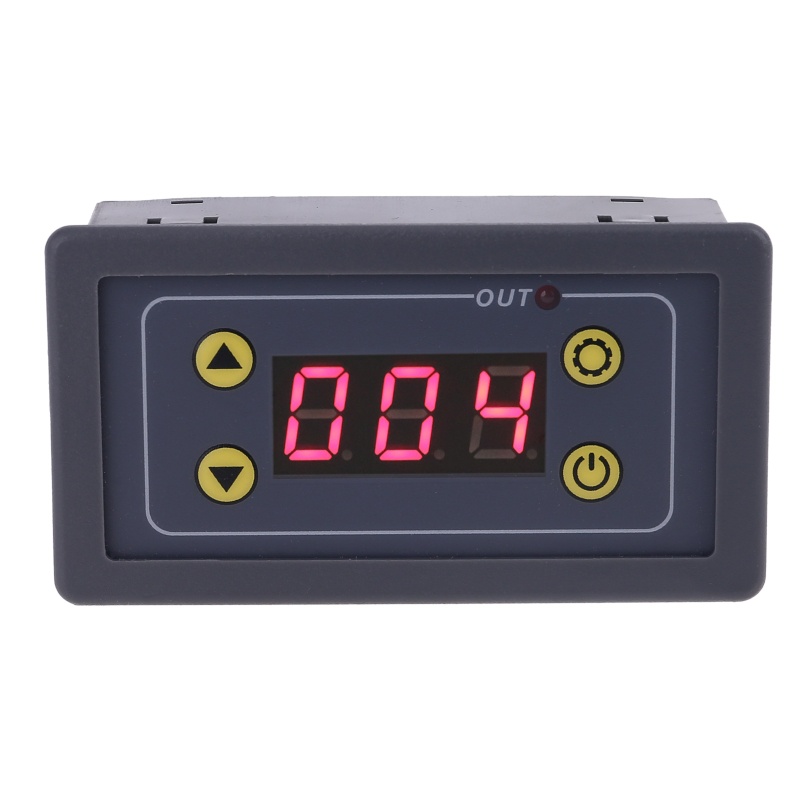

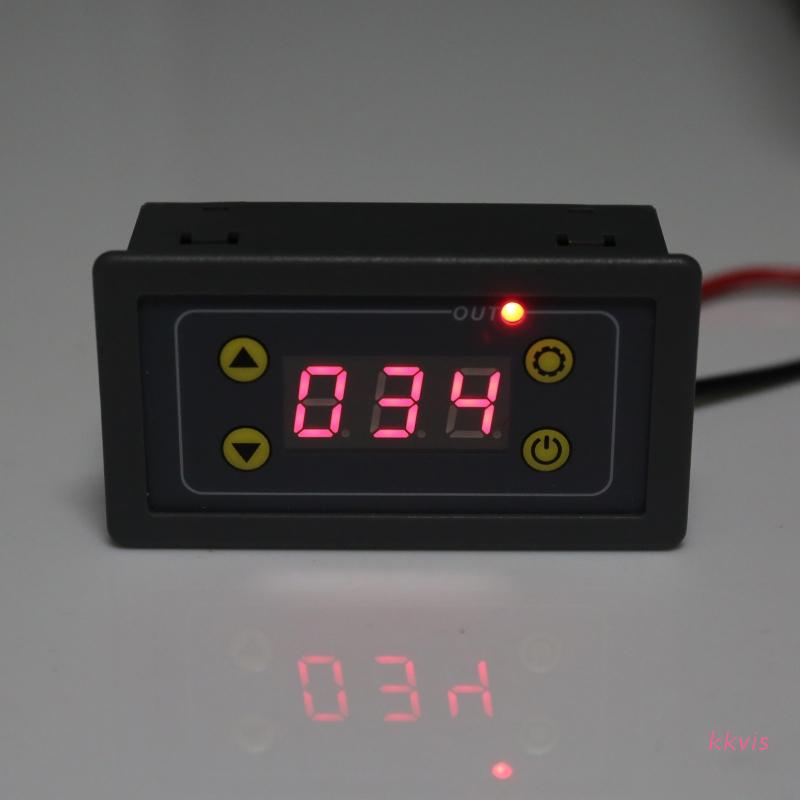

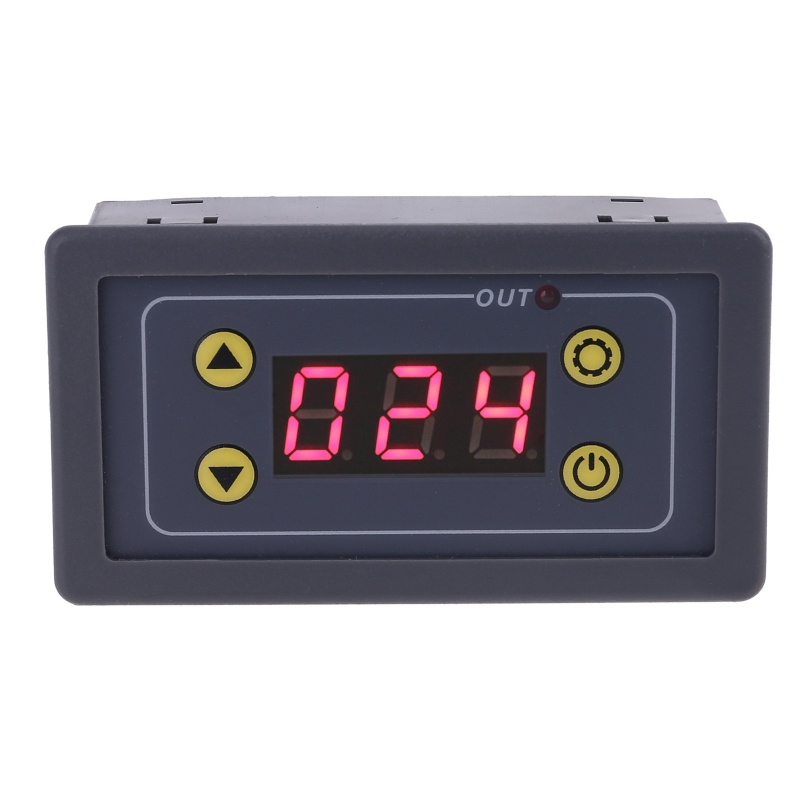

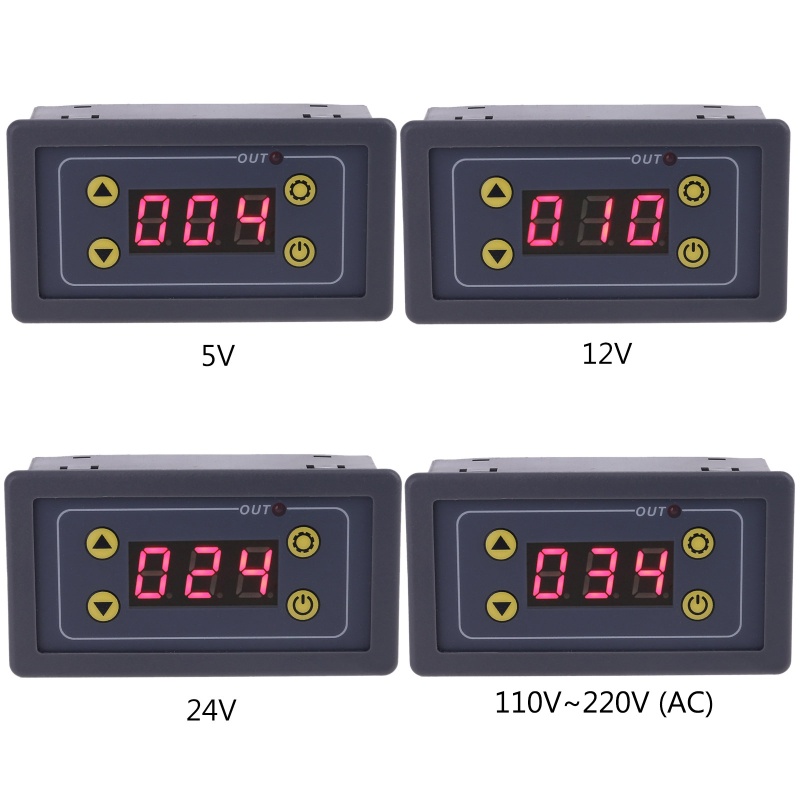

Bộ hẹn giờ tuần hoàn 12V/220V

Specifications:
Product name: Timer controller

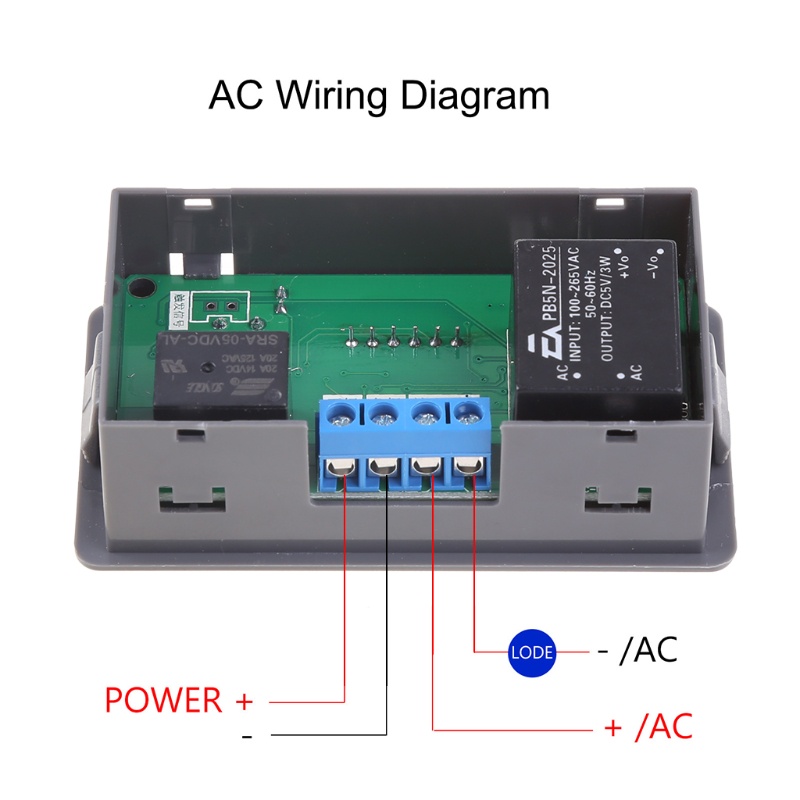

Power supply voltage: DC 12v or AC 220v
Range selection: 0.01 seconds, 0.1 seconds, 1 second, 1 minute
Time range: min 0.01 seconds max 999 minutes
Product weight: DC 40g AC 50g

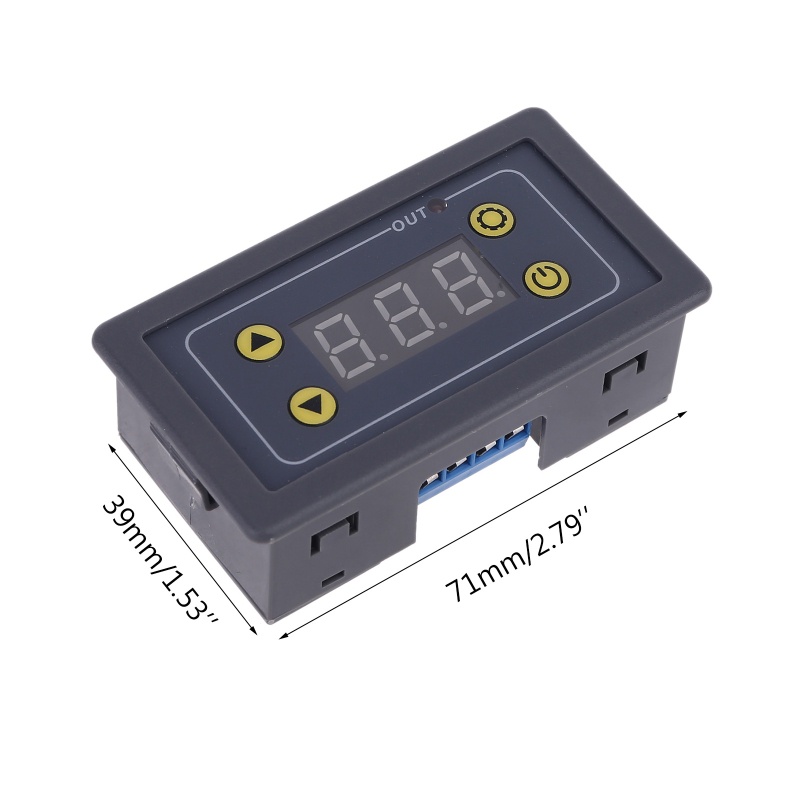

Opening size: 40MM*74MM
Current: DC up to 10A AC up to 5A
User manual:
This product has 4 buttons, plus button, minus button, setting button, stop button or start button.
There are two timers T1 and T2 for user to set.

Preventive measures
1. All relay parameters are automatically memorized in 5 seconds,
2. If you need to stop during operation, press the stop button to stop the relay and reset the data.Press the stop button again to reactivate.
3. When the relay terminates normally, press the stop button to trigger the restart.

T1 time setting:
Directly press the plus or minus button to set T1, the data will be automatically memorized 5 seconds after setting and the time will start.
T2 time setting:
Short press the setting button, the digital tube flashes, now press the up and down button to set T2, 5 seconds after the setting is done, the memory automatically starts running.

Time range: automatic range switching.The default range is seconds.Reduce the number to 0, keep pressing the button to decrease, the number sequence will automatically change to 99.9s;add the number to 999, keep pressing the button to increase, the number sequence will automatically change to 0.0.0

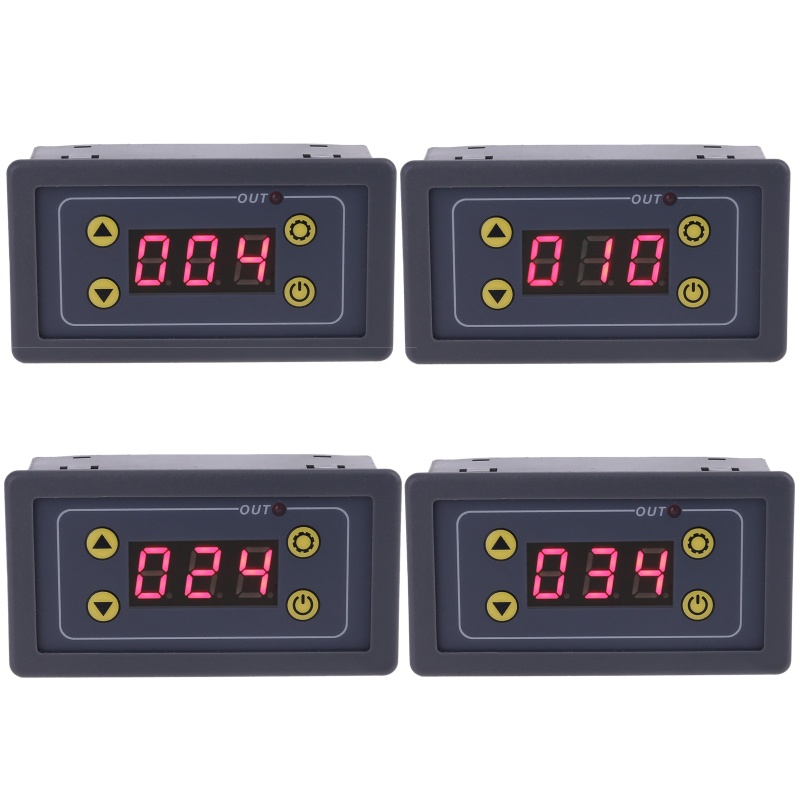

Number format is as follows
X.X X --- interval 0.01 seconds
X X.X --- 0.1 second interval
X X X --- 1 second interval
X.X.X --- 1 minute time range

For example, set T1 = 8.88, 0.01s countdown controller, T2 = 8,8.8, 1 minute countdown controller.
Working mode setting: 6 working modes for user to set.
Press and hold the setting key to enter the parameter P-0, and set the required working mode by pressing the plus or minus key on the current interface.

P-0: The relay is turned off after the delay time is T1, and ends
P-1: Relay closes after delay time T1 and ends
P-2: The relay closes after a delay time of T1, then opens after a delay time of T2, and ends
P-3: Relay opens after time delay T1, then closes after time delay T2 and ends
P-4: Relay closes after delay time T1, and then opens after delay time T2, loop
P-5: The relay opens after a delay of time T1, and then closes after a delay of time T2, and repeats

Typical application: First, leave the relay open after a delay of 4.05 seconds, then close after 10 minutes and finish

First set time, T1=4.05 T2=0.1.0 Second set P-3 working mode, it will be automatically memorized 5s after setting and start running.
