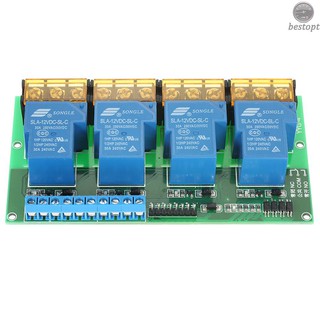

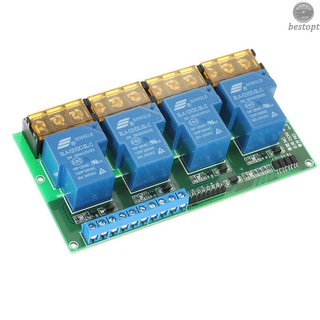

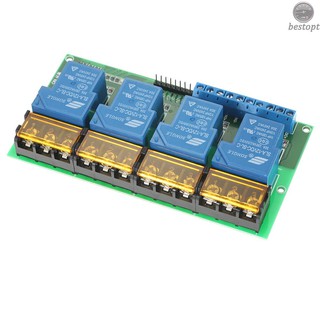

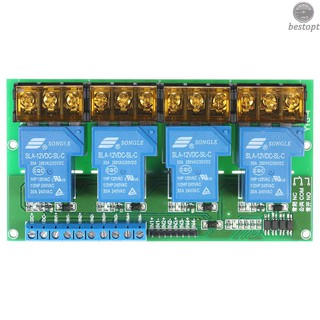

B&O 4-Channel DC 12V 30A Relay Module Control Board Optocoupler Isolation High/Low Trigger

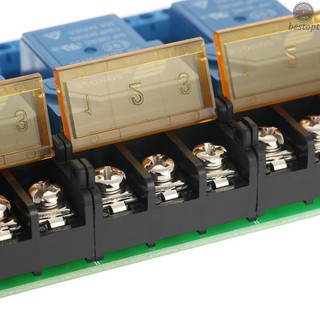

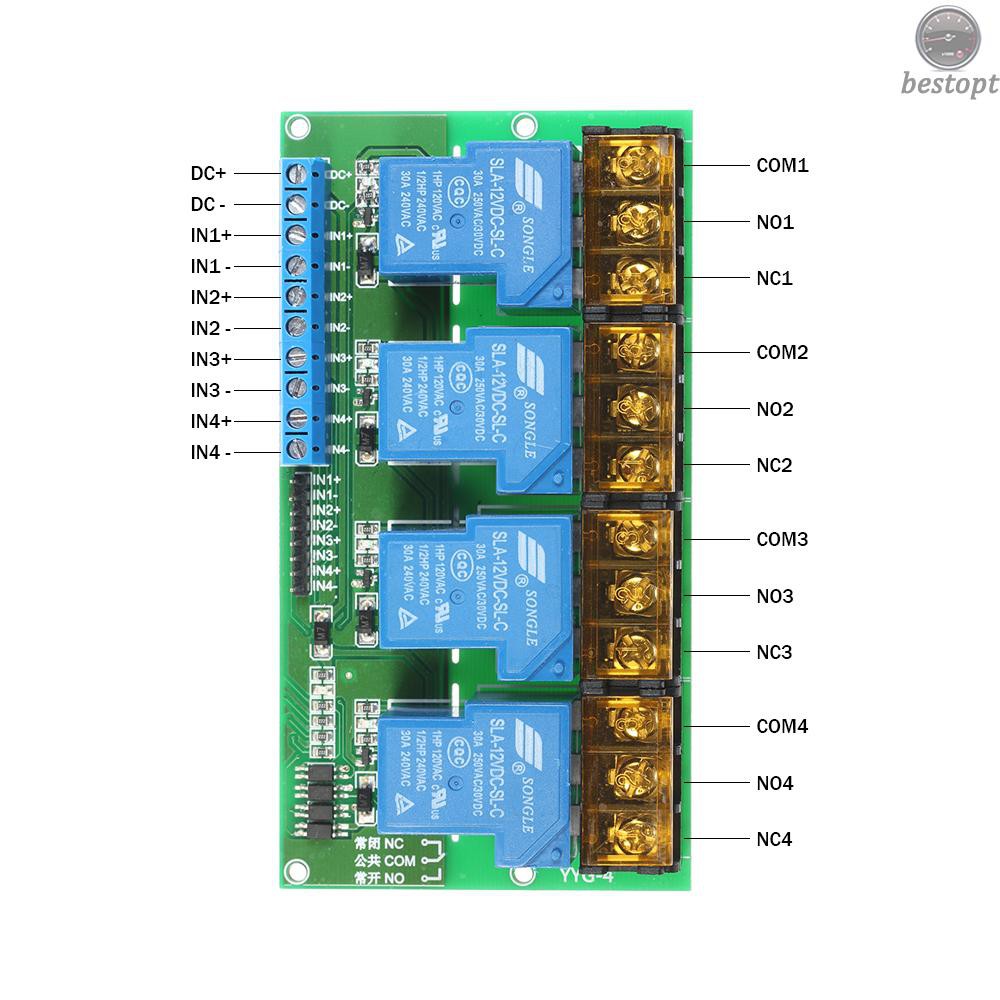

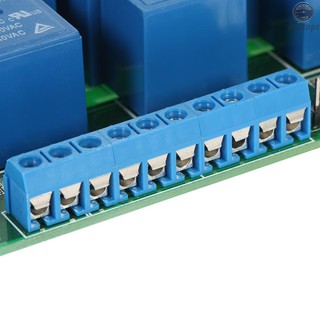

This is a relay module with high performance, which is convenient and practical for users. Features: 4-channel, DC 12V 30A relay module. Output capacity: within DC 30V 30A or AC 250V 30A. Using optocoupler isolation, strong anti-jamming capability and stable performance. The module can be set high or low trigger. To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals. All interfaces can be connected directly via terminal wiring leads, very convenient. Module Interface Description: 1. DC +: DC power supply positive; 2. DC -: DC power supply module negative; 3. IN: Signal input terminal(support High/Low Level switch freely); 4. Normally open (NO): Relay normally open; 5. Common terminal (COM): Relay common; 6. Normally closed terminal (NC): relay normally closed terminal; Specifications: Type: 4-Channel Relay Voltage: DC 12V  Output Capacity: within DC 30V 30A or AC 250V 30A Quiescent Current: 5mA  Trigger Current: 5mA   Module Size: 128 * 68 * 20mm Module Weight: 177g Package List: 1 * Relay Module
