BMS 6-13S 3.7V 25A BMS Protection Board 18650 Li-ion Lithium Battery Cell Module

Polymer, lithium iron phosphate lithium battery 6--13S same port split port universal protection board

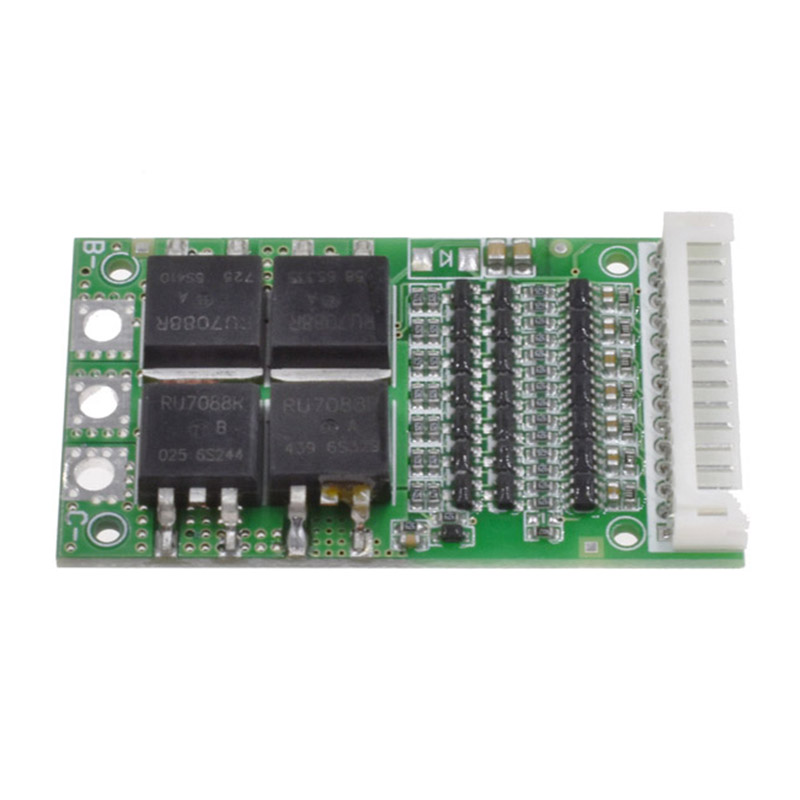

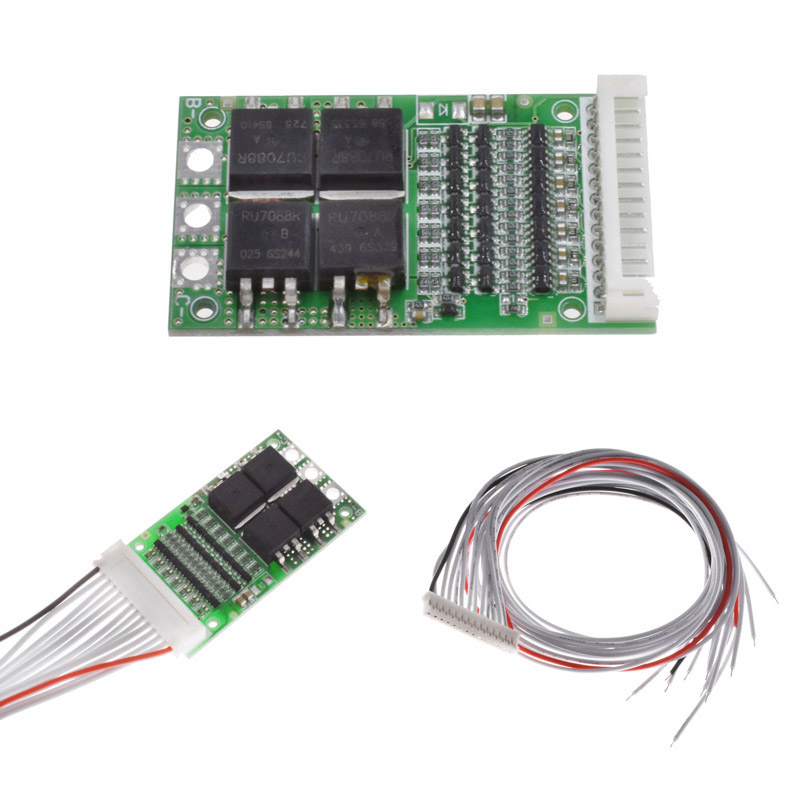

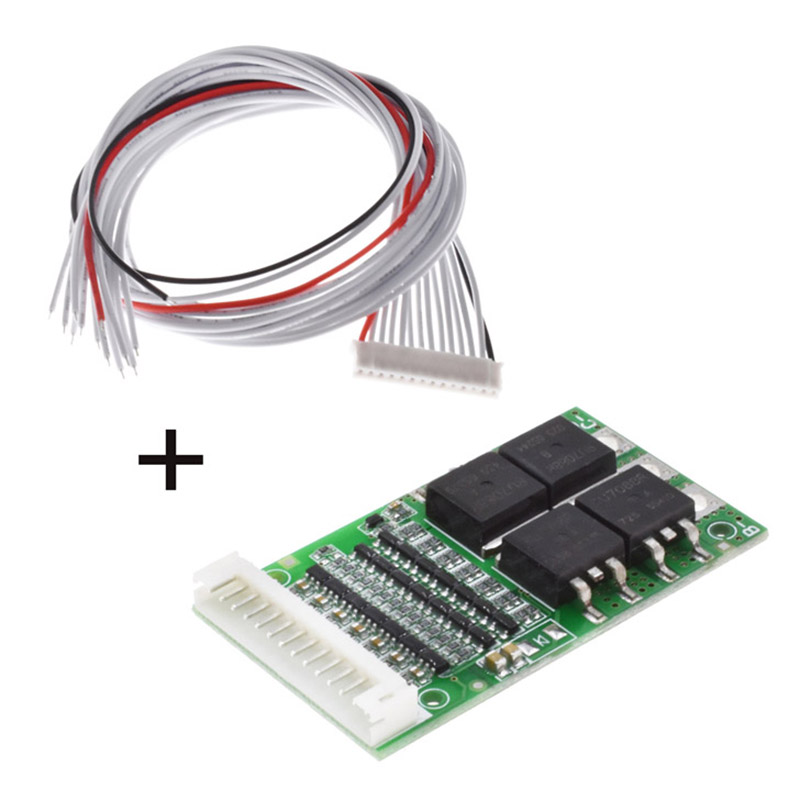

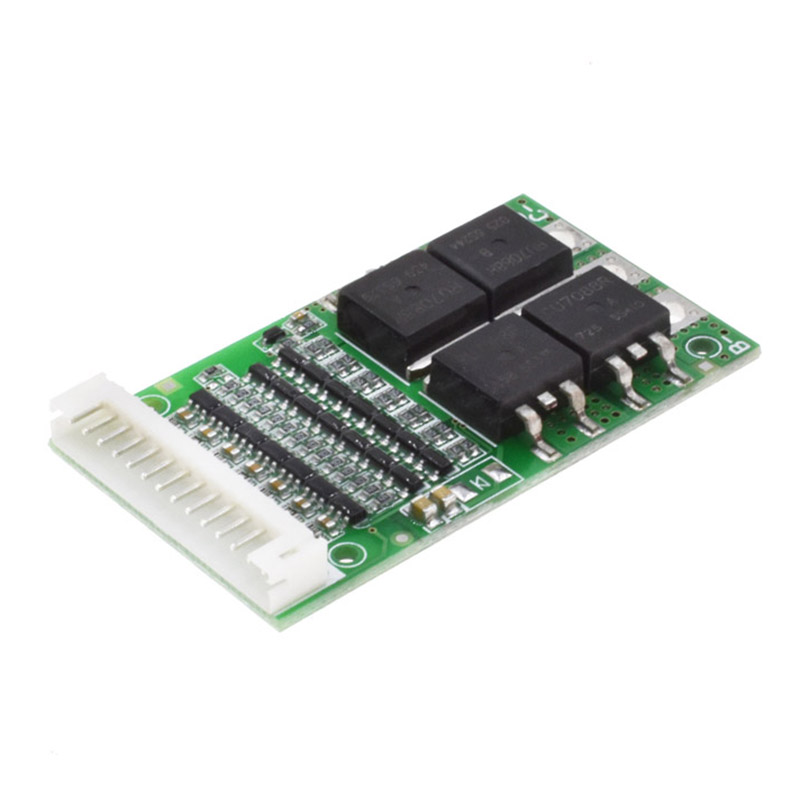

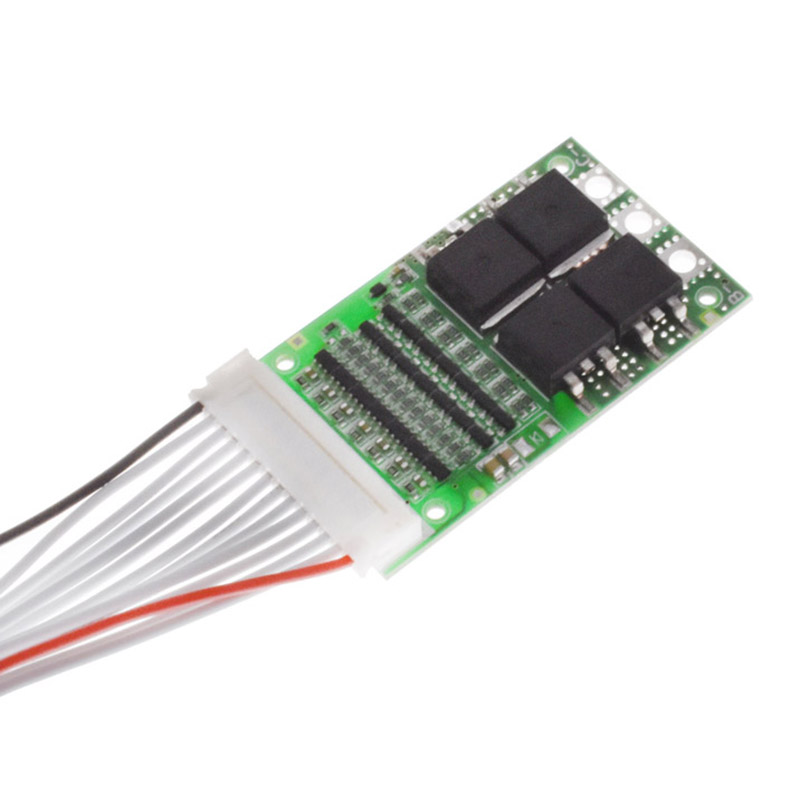

This protection board uses mature protection circuit, Taiwan original special IC, 80A high current ultra-low internal resistance MOS (single MOS internal resistance as low as 6.5 milliohms), with complete and stable charging and discharging protection functions.

Small size and large current can be used in large current occasions such as electric tools, electric vehicles, UPS, etc.

Strong compatibility: The protection board supports two connection modes: same port and split port. Support 6-13 strings of polymer and lithium iron phosphate lithium batteries (note: polymer boards cannot be used for lithium iron phosphate batteries).

Default delivery: 13S (other strings only need to change the wiring method)

This protection board is a power-type high-current lithium battery protection board, suitable for larger current equipment, such as power tools, electric vehicles, UPS and other equipment.

Strong compatibility: The protection board supports both the same port and split port. Lithium battery supporting 6S 7S 8S 9S 10S 11S 12S 13S Polymer and lithium iron Phosphate
(Note: polymer board cannot be used for lithium iron phosphate battery)

Default delivery: 13S (6S 7S 8S 9S 10S 11S 12S If you need to change the wiring method)

25A Adjustable BMS
Over charge detection voltage: MIN: 3.725V TYP: 3.75V MAX: 3.775V
Over charge recover voltage: MIN: 3.55V TYP: 3.6V MAX: 3.65V
Over discharge detection voltage : MIN: 2.05V TYP: 2.1V MAX: 2.15V
Over discharge recover voltage: MIN: 2.25V TYP: 2.3V MAX: 2.35V
Over charge detection current: MIN:110A TYP:130A MAX:150A
Over charge detection delay time: MIN: 1000mS TYP: 1300mS MAX: 1600mS
Over charge current protection delay time: MIN: 6mS TYP: 8mS MAX: 8mS
Over disrcharge current detection current : MIN:56A TYP:66A MAX:76A
Over distcharge current protection delay time: MIN: 115mS TYP: 145mS MAX: 175mS
Idle current: 25uA
Temperature protection: Yes
Over current protection : Cut load
Discharge current: 18A
Charging current: 18A

Package:

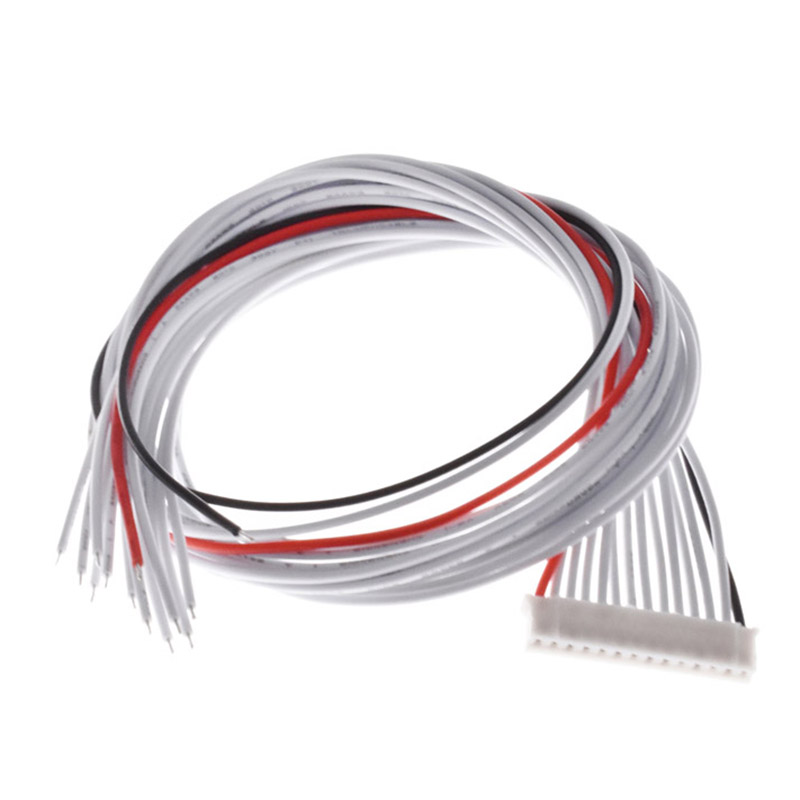

1 x 13S 18650 Lipo Li-ion Battery
