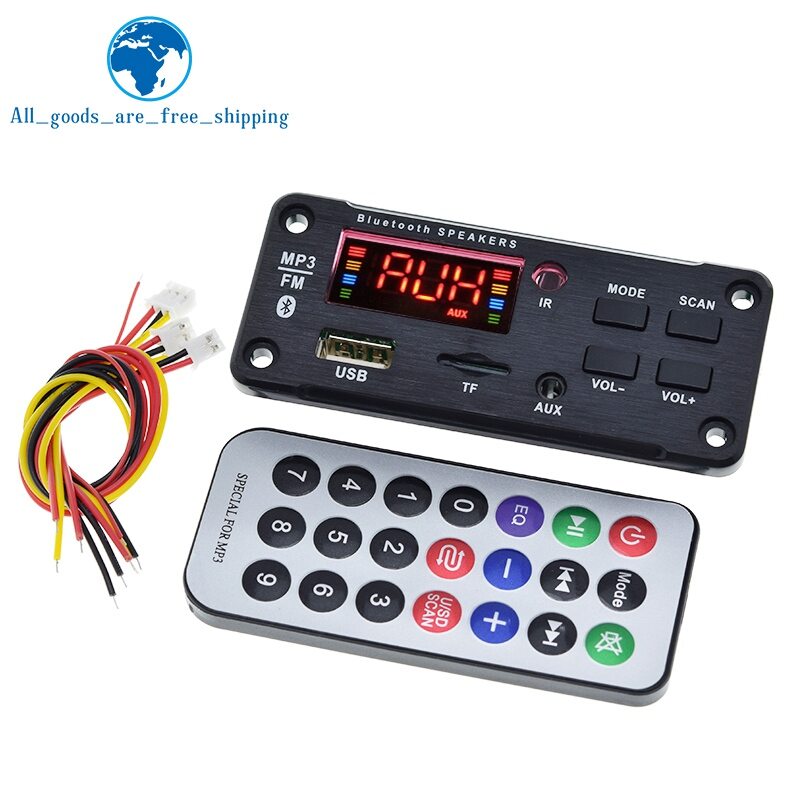

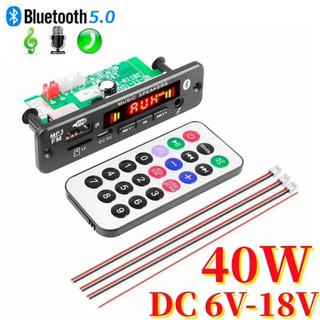

Bluetooth 5.0 MP3 Decoder MP3 Player USB Recording Module FM Radio AUX For Speaker Handsfree

2x25W Amplifier+DC 7-15V

Specification:

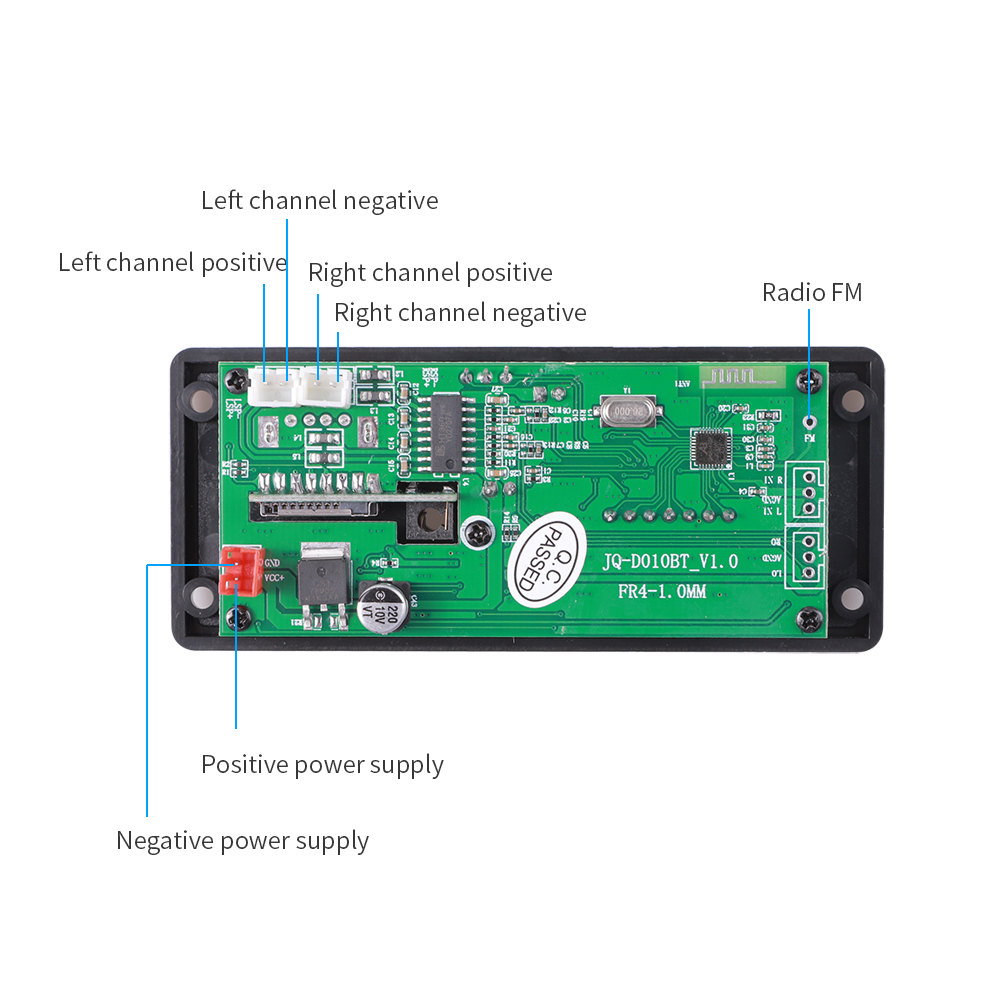

2*25W amplifier DC 7-15V
Model: JQ-D010BT (Power: 2x25W)
Bluetooth version 5.0
ICCS8673E power amplifier, power: 2x25W
Bluetooth call function
recording function
Music format: MP3/WMA/WAV/FLAC/APE lossless format
FM Radio Frequency: 87.5-107.5MHZ
Switch function folder

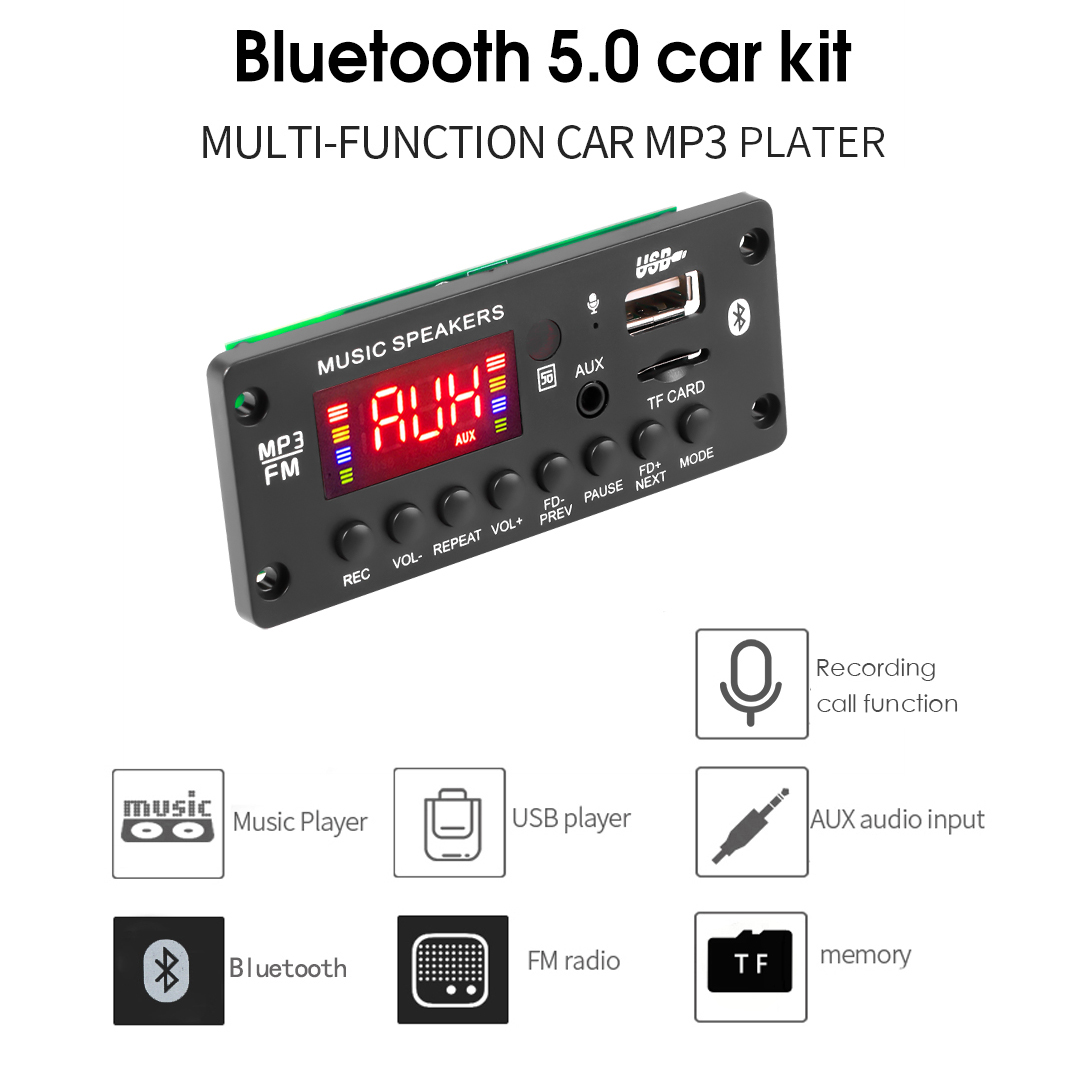

Support function introduction: Support MP3 / USB / TF / LINE / FM / BLUETOOTH / Remote control DC connection / DC 7V-15V

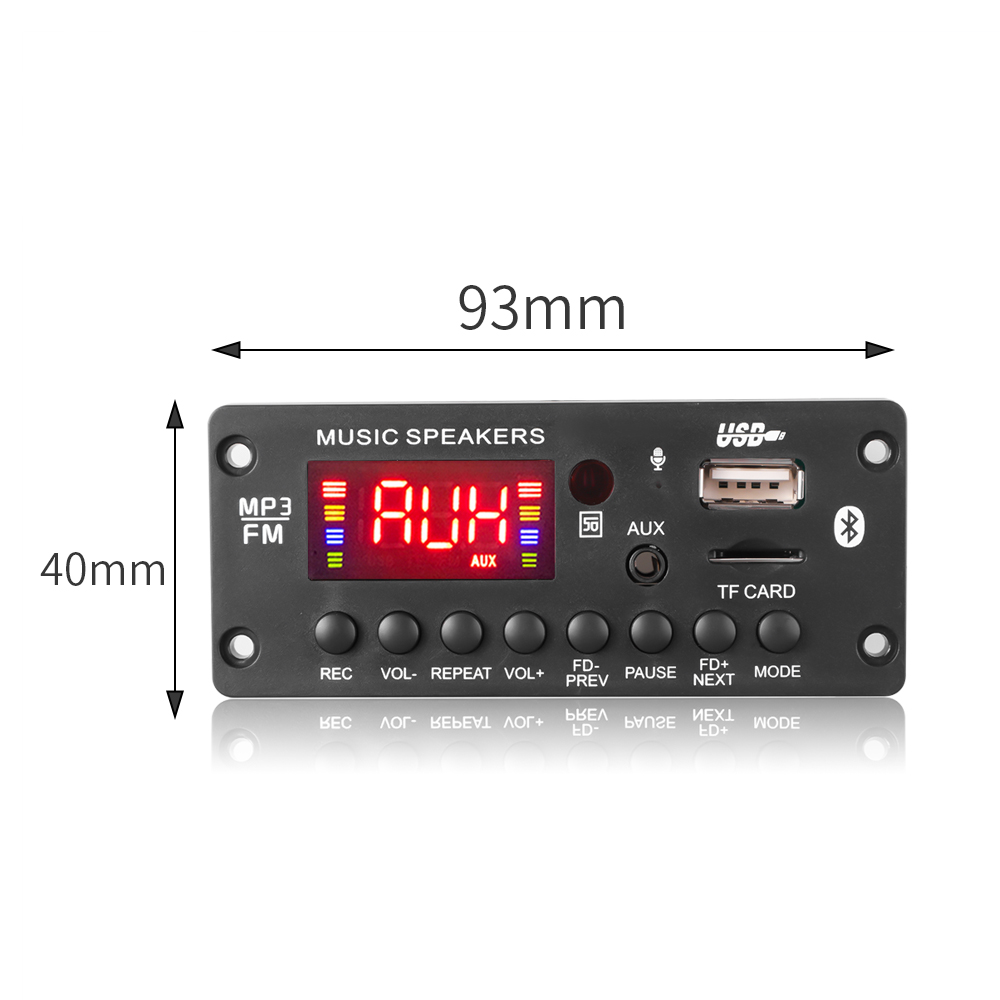

About the structure: Panel size: length 94 x width 40MM, the panel is wrapped by screw holes, the depth of the panel is 20MM

Feature:

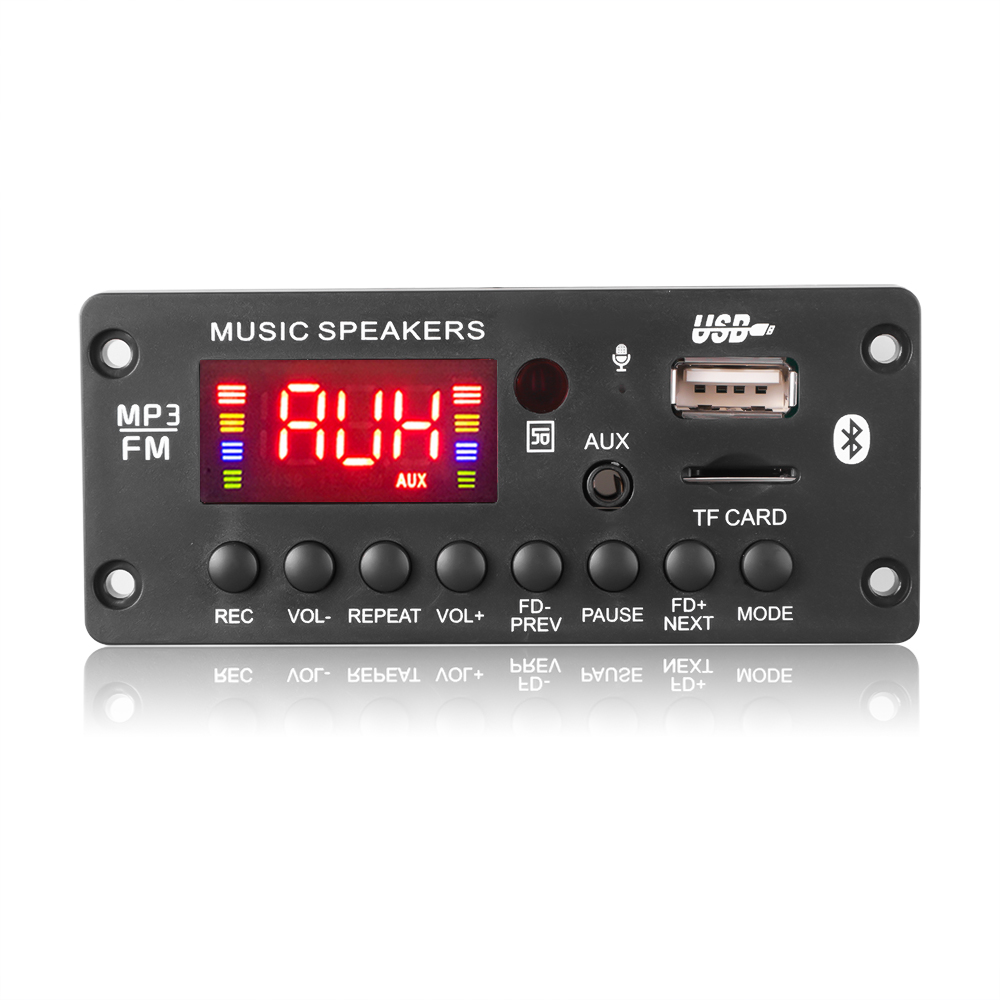

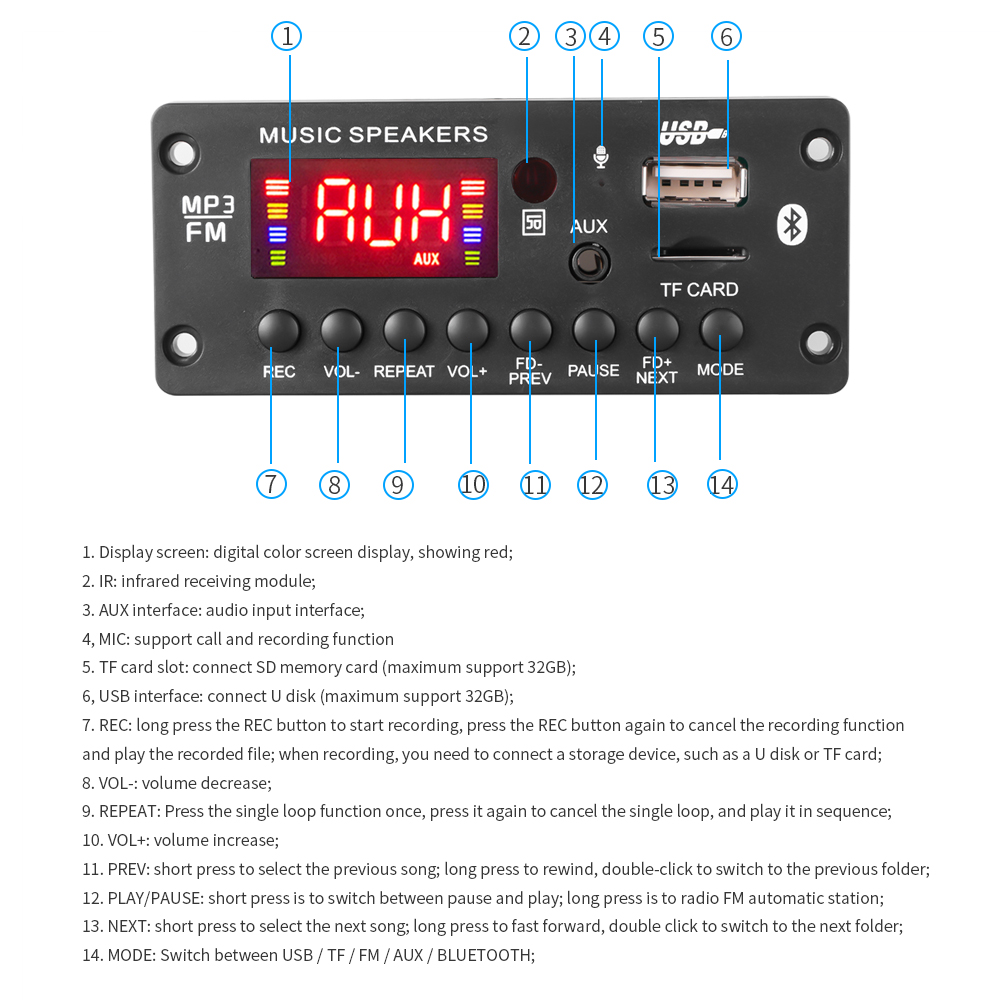

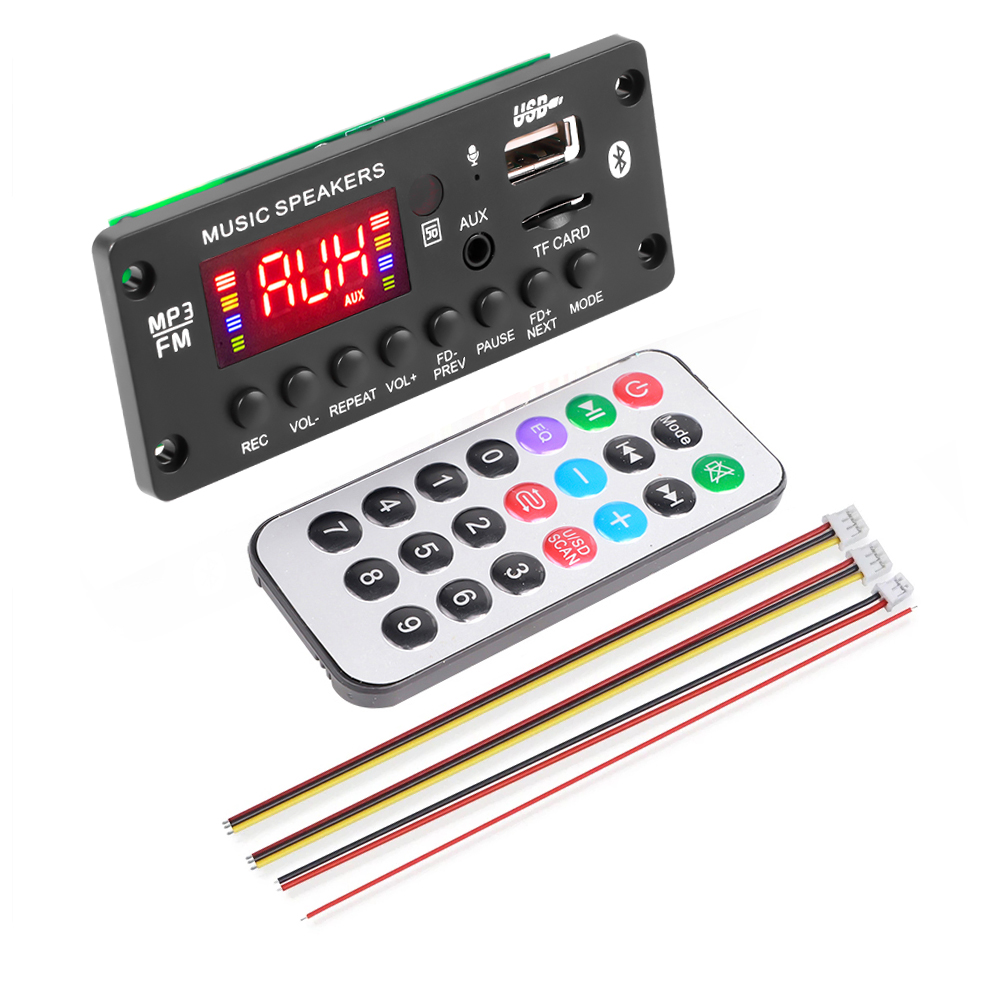

1. Button and interface function
1. Display screen: digital color screen, shows red;
2. IR: infrared receiver module;
3. Auxiliary interface: Audio input interface;
4, microphone: support calls and recording function
5. TF card slot: connect SD memory card (maximum support 32GB);
6, USB interface: connect U disk (maximum support 32GB);
7 cr: Long press the button to start recording, press the button again to cancel the recording function and play the recorded file; When recording, you have to connect a storage device, such as a U disk or TF card;
8. VOL-: volume reduction;
9. Repeat: press the single loop function once, press again to cancel the single loop, and play in sequence;
10. VOL +: volume increase;
11 PRE: press to select the previous song; Long press to rewind, double click to switch to the previous folder;
12 Play/Pause: the short press is to switch between pause and play; the Long press is to FM radio automatic station;
13 Next: press to select the next song; Long press for fast forward, double click to switch to the next folder;
14 Mode: Switch between USB / TF / FM / AUX / BLUETOOTH;

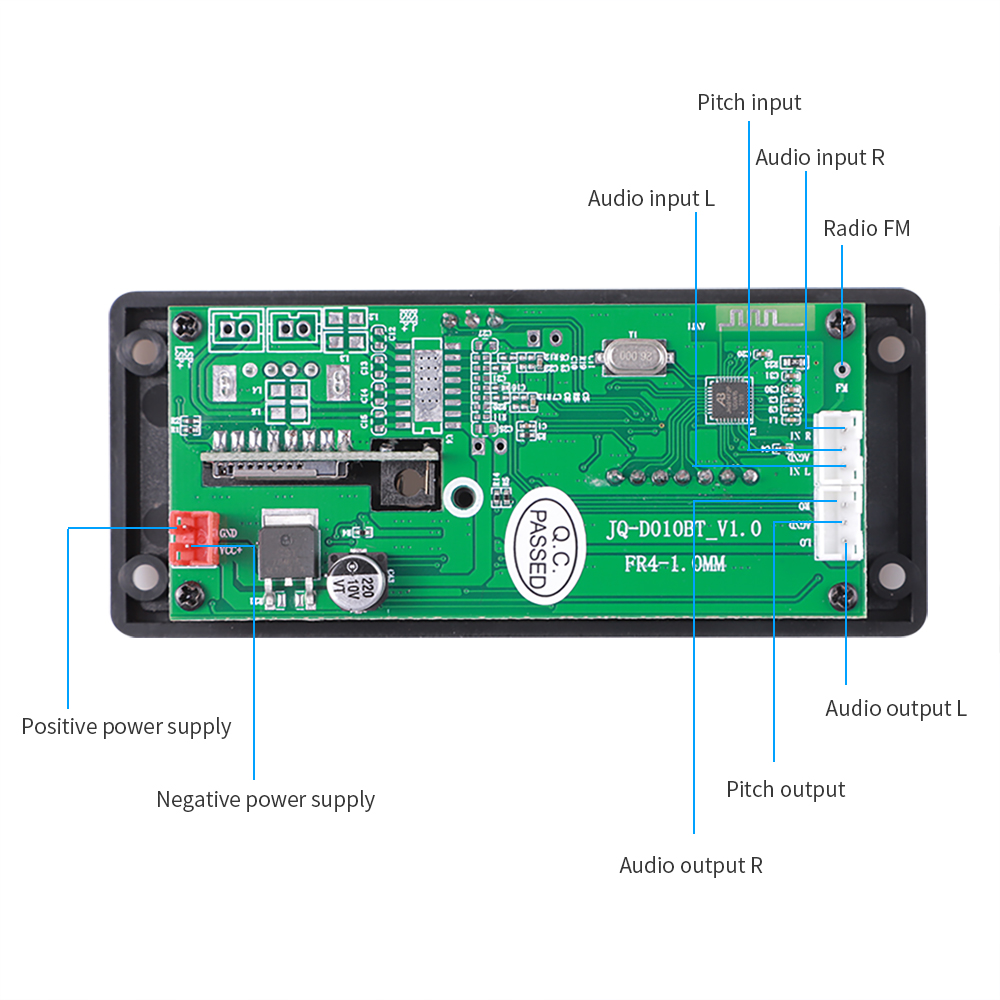

Without Amplifier+DC 12V

Specification:
Model: JQ-D010BT
Bluetooth version 5.0
Bluetooth call function
recording function
Music format: MP3/WMA/WAV/FLAC/APE lossless format
FM Radio Frequency: 87.5-107.5MHZ
Switch function folder
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V
About the structure: Panel size: length 94 x width 40MM, the panel is wrapped by screw holes, the depth of the panel is 20MM

Feature:
1. Button and interface function
1. Display screen: digital color screen, shows red;
2. IR: infrared receiver module;
3. Auxiliary interface: Audio input interface;
4, microphone: support calls and recording function
5. TF card slot: connect SD memory card (maximum support 32GB);
6. USB interface: connect U disk (maximum support 32GB);
7. cr: Long press the button to start recording, press the button again to cancel the recording function and play the recorded file; When recording, you have to connect a storage device, such as a U disk or TF card;
8. VOL-: volume reduction;
9. Repeat: press the single loop function once, press again to cancel the single loop, and play in sequence;
10. VOL +: volume increase;
11. PRE: press to select the previous song; Long press to rewind, double click to switch to the previous folder;
12. Play/Pause: the short press is to switch between pause and play; the Long press is to FM radio automatic station;
13. Next: press to select the next song; Long press for fast forward, double click to switch to the next folder;
14. Mode: Switch between USB / TF / FM / AUX / BLUETOOTH;
