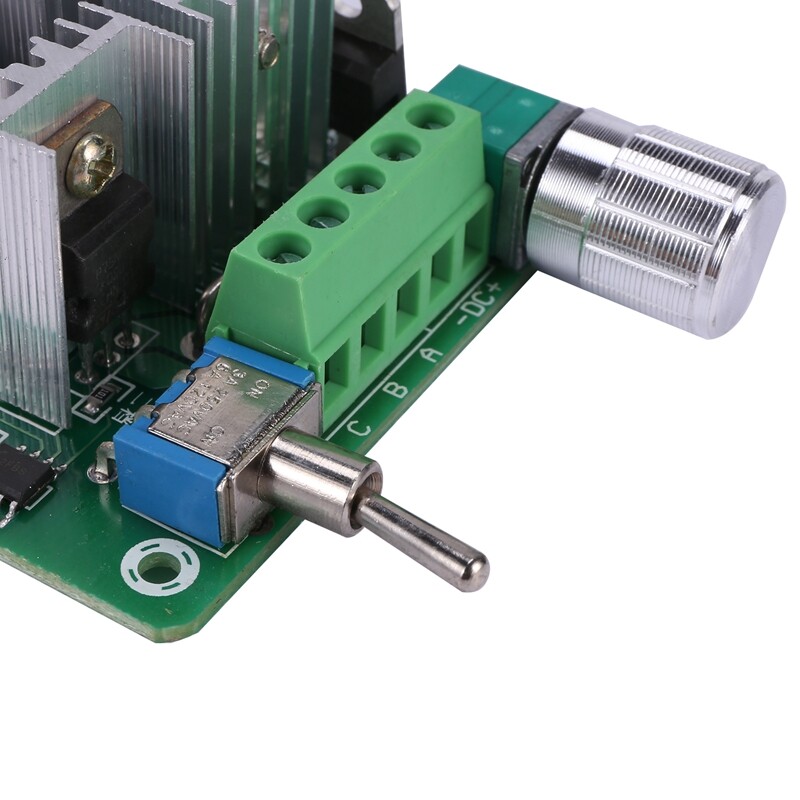

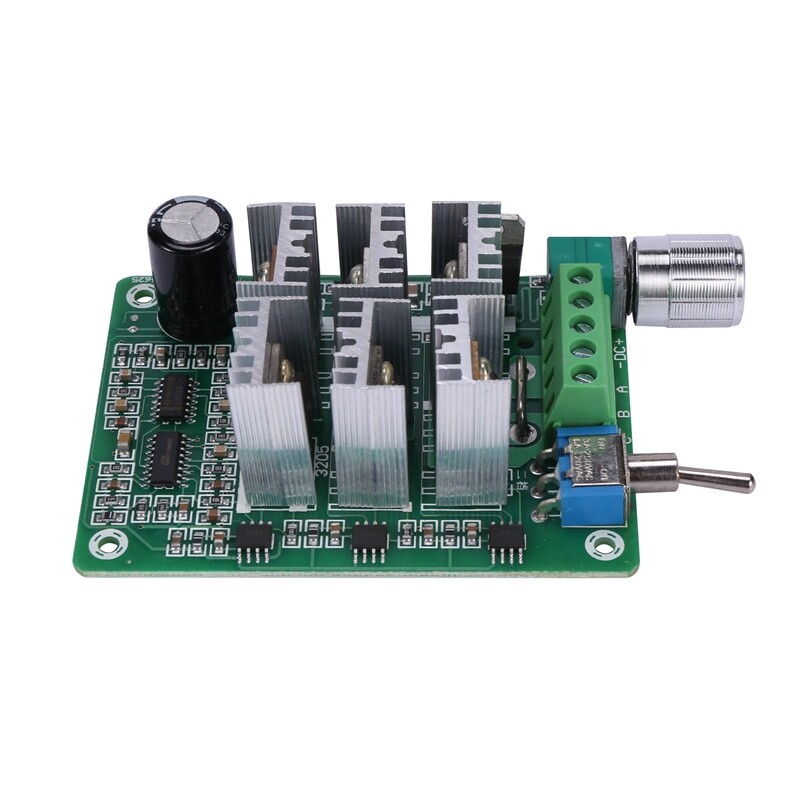

BLDC Three-Phase Sensorless Brushless Motor Speed Controller Fan Drive DC 5-36V

BLDC Three-Phase Sensorless Brushless Motor Speed Controller Fan Drive DC 5-36V

Details

Input voltage: DC5-36V (specific voltage is equal to the rated voltage of the motor)
Output current: within 15A
Forward rotation reverse: Bidirectional
Protection current: 15A
Color: silver, green
material: plastic
Input current: It is larger than the motor work.
Speed control mode: Potentiometer (270 degree linear)
Speed range: 0-100%
Supported motor: Brushless motor
Wiring type: Barrier terminal block
Knob type: 100K (with switch)
Speed regulation mode : 270 degrees of linear potentiometers (with switch)
Applicable motor: DC three-phase brushless motor
Dimensions: 6x8cm/2.36x3.15inch
Notice: 1. The input voltage must be positive or negative. Do not input 220V household electricity.
2. The input voltage should be equal to the rated voltage of the motor (within 5-24V).
Package includes:
1*Motor Speed Controller
