BIGTREETECH U2C V2.1 Adapter Board Supports CAN Bus Connection USB To CAN Bus Module, with 3 CAN Output Interface

1. Support CAN bus connection, long data transmission, strong anti-noise ability, strong real-time performance and high reliability
2. The surface of the PCB adopts the immersion gold process
3. TYPE-C port ESD protection to prevent static electricity from damaging hardware
4. Support firmware update for the master through SWD or hardware DFU

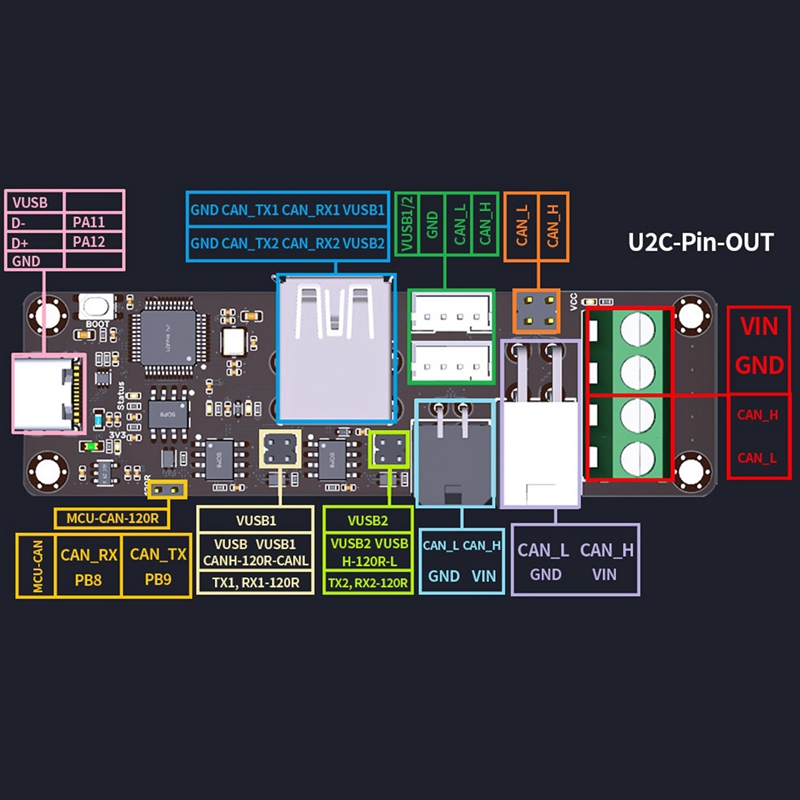

5. Rich CAN interface

Introduction of U2C:

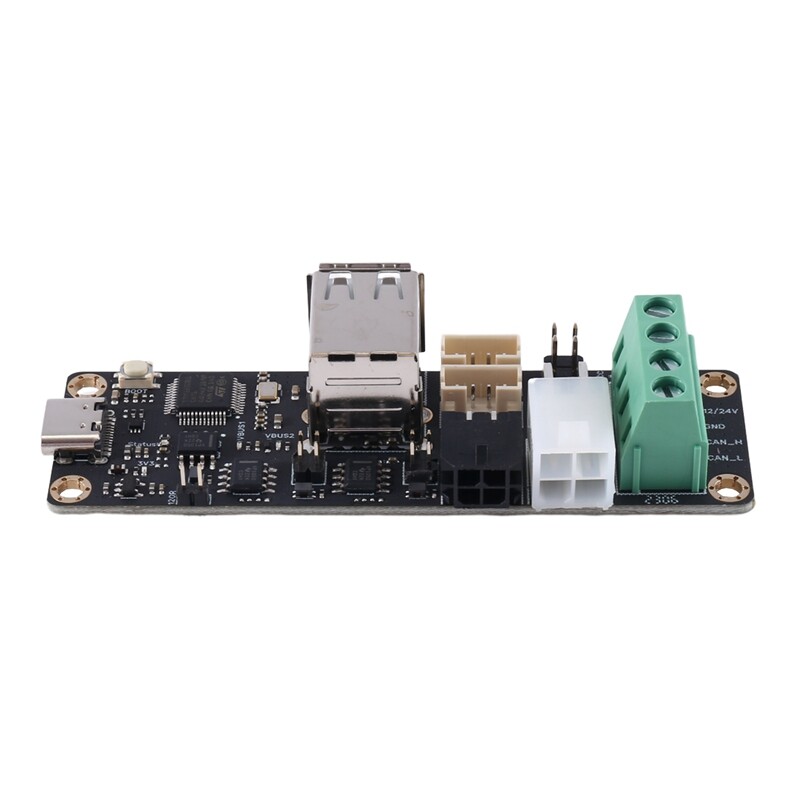

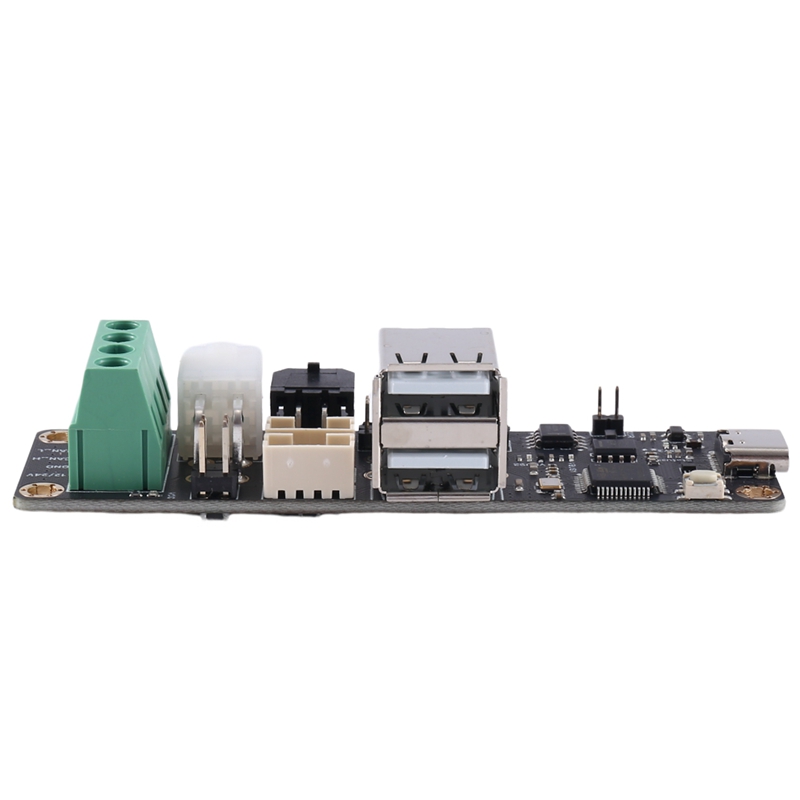

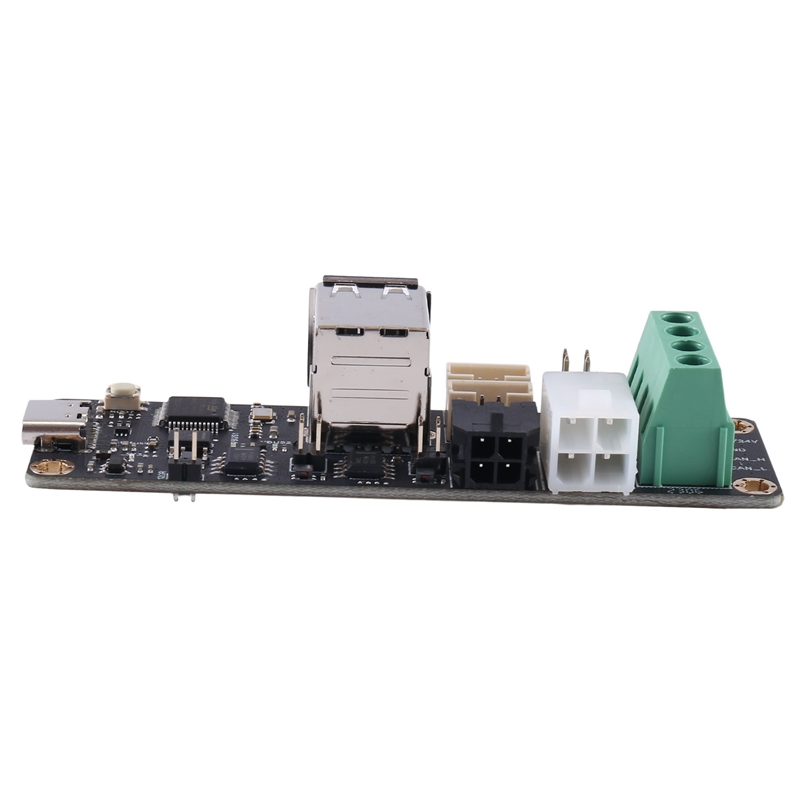

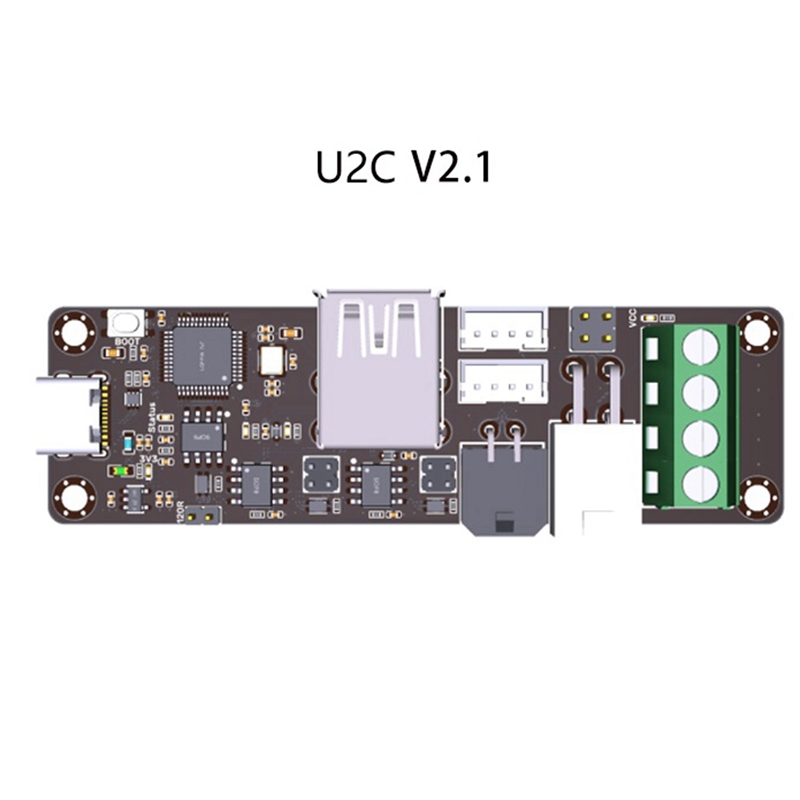

BIGTREETECH U2C is a USB to CAN bus module, which can convert the USB port of Raspberry Pi to the CAN bus, and connect 3D printing motherboard, BIGTREETECH EBB35/36/42 CAN and other products through CAN bus. There are many different forms of CAN interfaces on the board, which are helpful to connect to different boards.
CAN bus has many advantages in the field of industrial control, so our company has launched this USB to CAN module. The CAN bus has a long transmission distance, and a large number of nodes can be mounted on it, so the motherboard, EBB, and other expansion boards can be mounted on the same CAN bus at the same time.

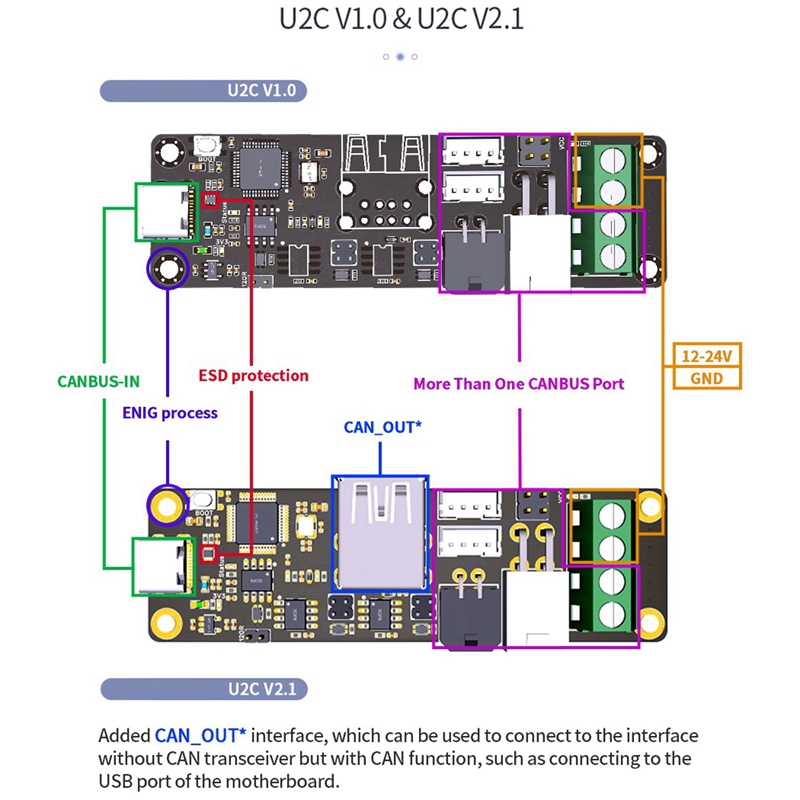

The difference between U2C V1.0 and U2C V2.1: U2C V1.0 has 1 CAN OUTPUT, U2C V2.1 has 3 CAN OUTPUT
Colour:black
Material:PCB+electronic accessories

Package Contents:
1 x USB to CAN bus module
