BETAFPV New Micro Canopy Lite 2023

BETAFPV New Micro Canopy Lite 2023

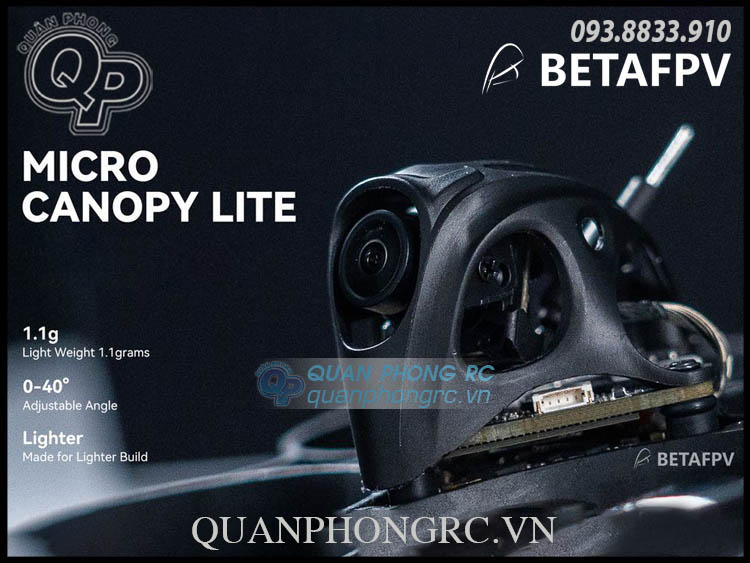

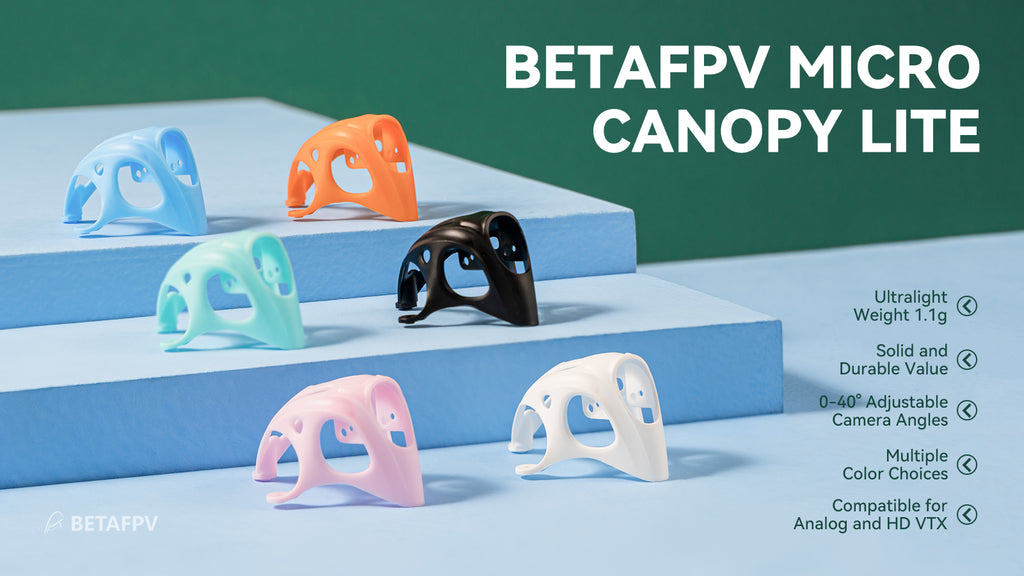

Weighting just 1.1 grams, the Micro Canopy Lite is perfect for lightweight FPV racing and 1S HD digital whoop drones. The canopy open design greatly keeps the electronics cooler, ensuring the drone's stability. It is compatible with the most popular Analog or HD VTX in the market and has adjustable camera angles from 0°-40°. To build a whoop drone with less weight, this canopy is definitely a first choice. Recommend using it with BETAFPV Meteor Series.

Bullet Point

• Adopt with injection molding technique, this canopy is more durable, and strong enough, providing good protection for the whoop drone.
• Only 1.1g! The hollow-out design reduces the weight of the canopy, and also allows more air to flow, decreasing the influence of heat on electronic parts.
• Featuring 0°-40° adjustable camera angles, this canopy comes with a holder for Avatar HD Lite camera or other nano-sized cameras.

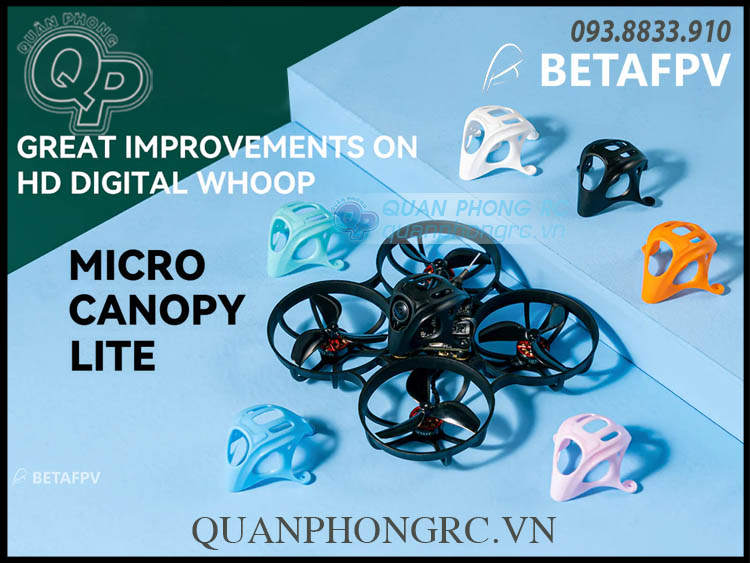

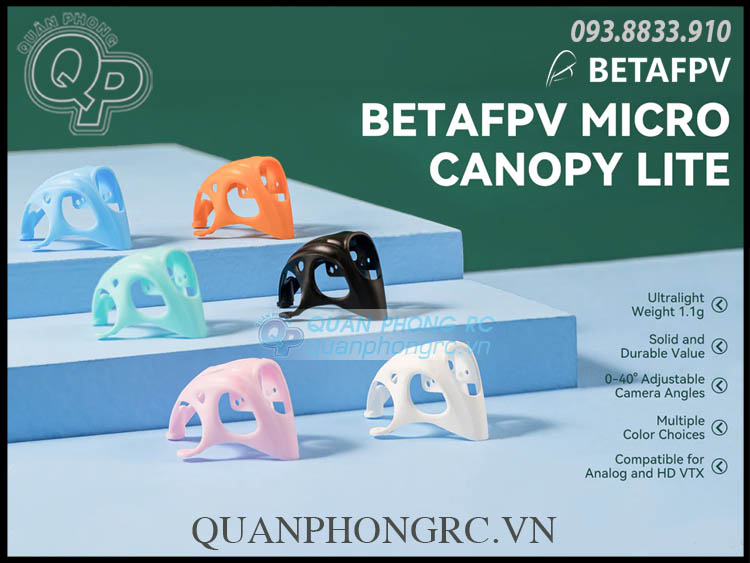

• Lightweight and six colors for options (Black/White/Blue/Cyan/Orange/Pink). Using it with Meteor Series colorful frame will be more attractive. Recommend frames for Meteor65/Meteor65 Pro/Meteor75/Meteor75 Pro/Meteor85/Beta65S.

Specification

• Item: Micro Canopy Lite
• Material: PP
• Tilt: 0°-40°
• Weight: 1.12g

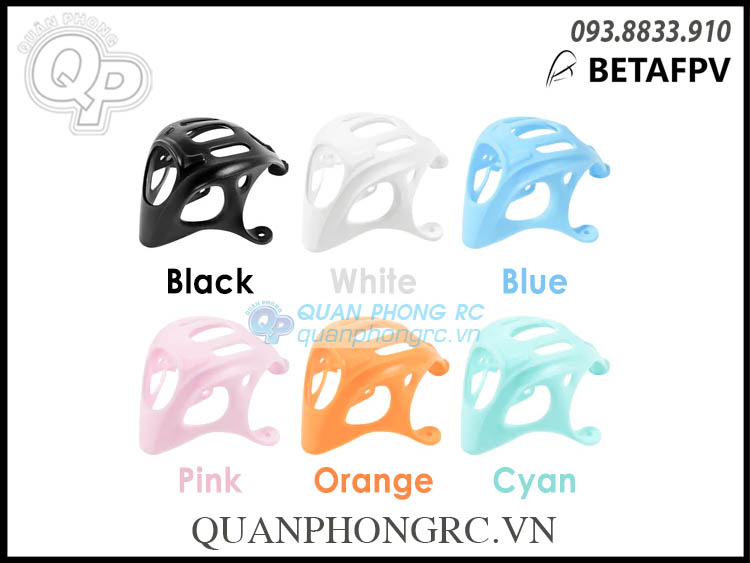

• Color: Black/White/Blue/Cyan/Orange/Pink

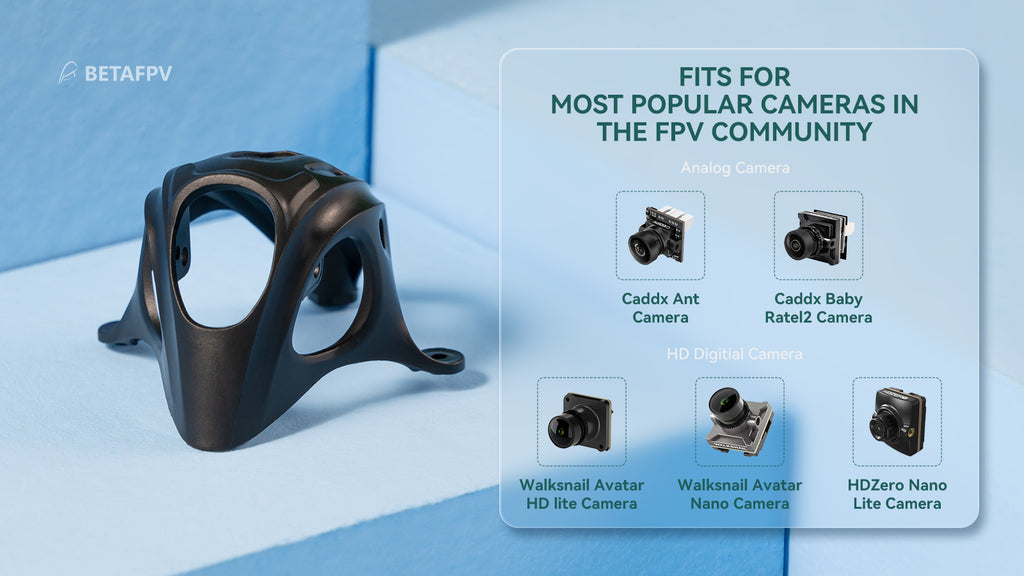

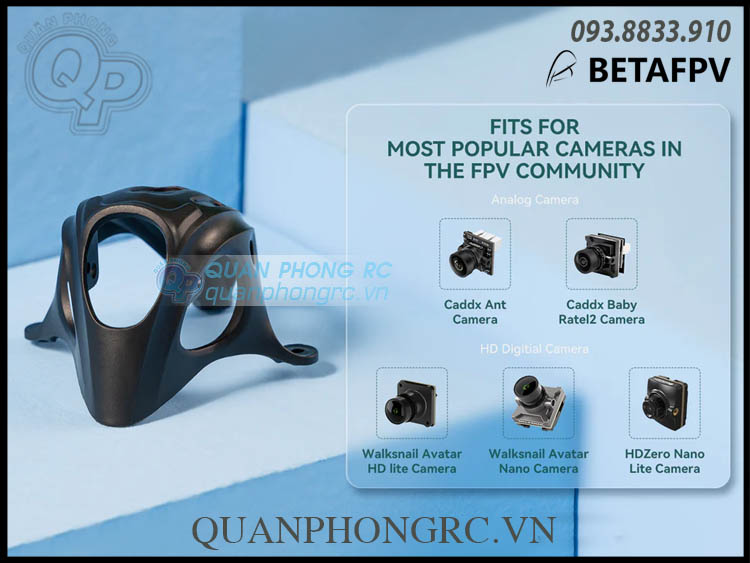

• Adapted FPV Camera: Walksnail Avatar HD Lite Camera, HDZero Nano Lite Camera, Avatar Nano Camera, Caddx ANT, Caddx Baby Ratel2
• Adapted VTX: Walksnail Avatar HD mini 1S Lite Kit, HDZero Whoop Lite Bundle
• Adapted Frame:

More Compatibility

For building or upgrading whoop drones equipped with HD digital VTX or Analog VTX, Micro Canopy Lite will be the first choice due to its compatibility. Comes with a holder for Walksnail Avatar HD Lite Camera, also perfect for other nano-sized cameras. In addition, when using the canopy with AIO FC, it will be easy to build a quad with less weight.

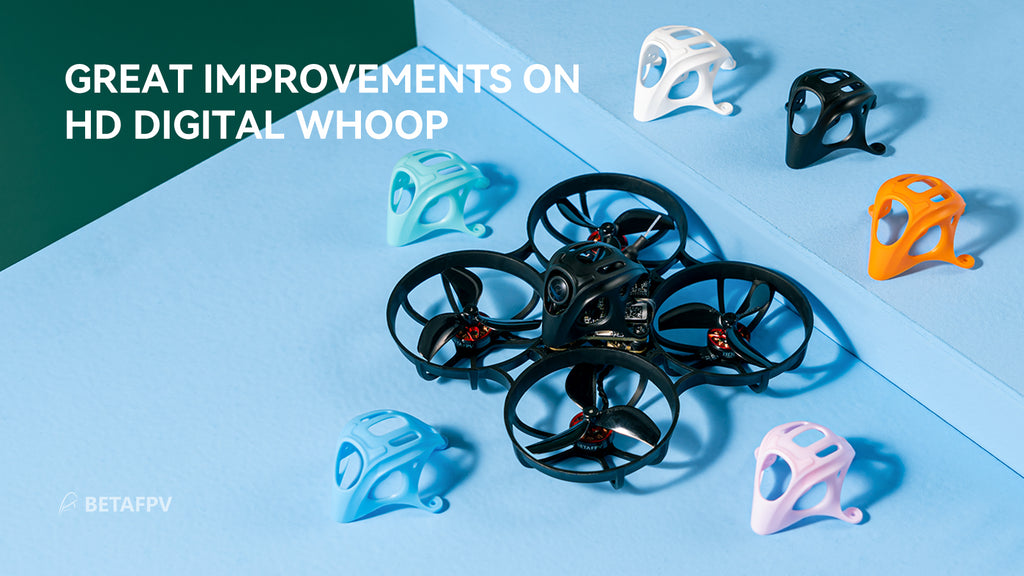

Meteor 75 Pro HD

The Meteor75 Pro brushless quadcopter (HD digital VTX) that equips Micro Canopy Lite, is coming soon. Micro Canopy Lite has an ultralight weight of 1.1g and open design that makes the cooler better, very friendly for whoop drone builds, especially when mounting an HD Digital VTX system. For pilots who plan to build HD digital quadcopters, this canopy is a good choice.

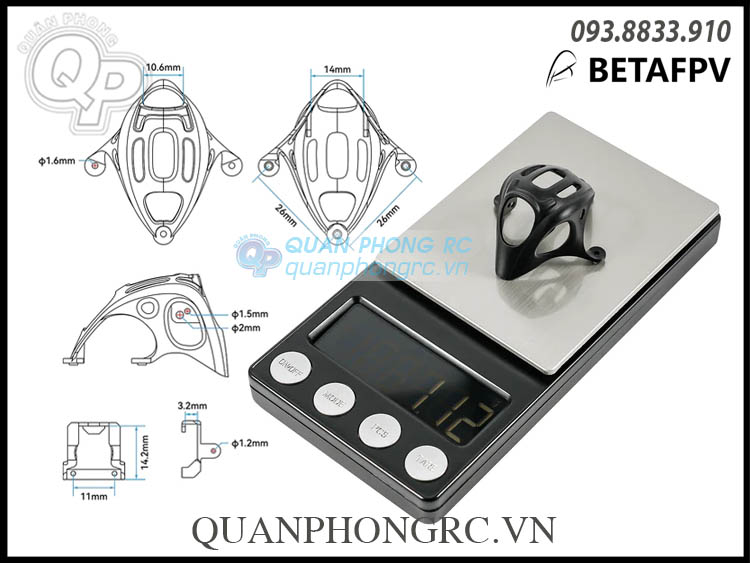

Diagram for Micro Canopy Lite

The Canopy comes with a holder for Avatar HD Lite camera. It is also suitable for nano-sized cameras. Please refer to the below picture if pilots want to use it with their VTX and camera.

Note: There should be at least 1.5mm space between HD digital VTX and FC when installing the canopy. Recommend using the M2 damper in the package to keep space.

The canopy is not compatible with 33*33mm Walksnail Avatar Mini 1S kit.

Please fix the VTX on the drone if you try to install the canopy with BETAFPV M03 VTX.

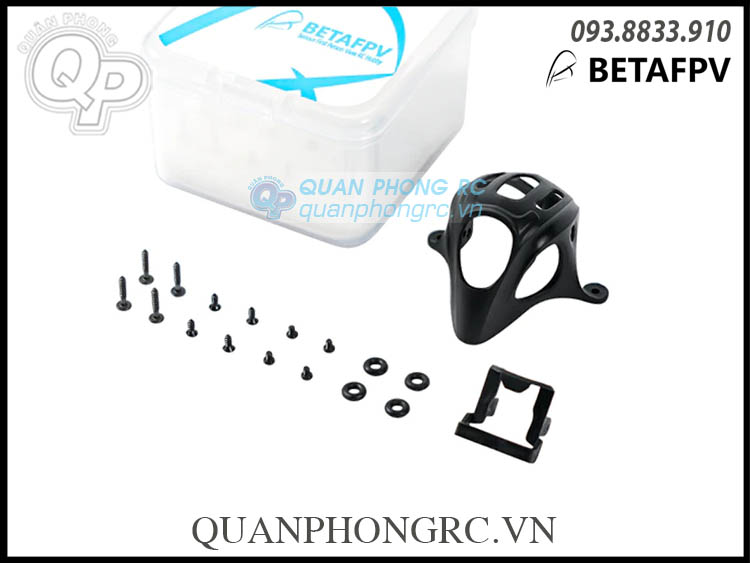

Package

• 1 * Micro Canopy Lite (Black/White/Blue/Cyan/Orange/Pink)
• 1 * Holder for Avatar HD Lite Camera
• 4 * M1.4*2 Screws
• 4 * M1.4*4 Screws
• 4 * M1.4*8 Screws
• 4 * M2 Damper
