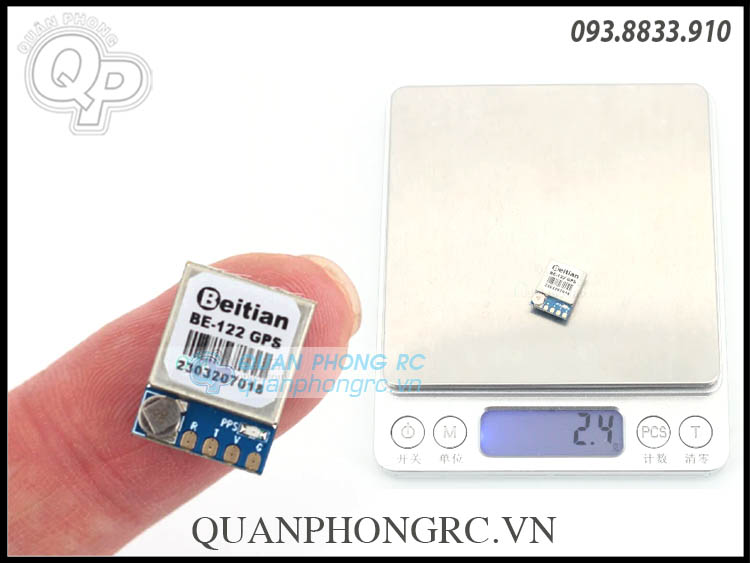

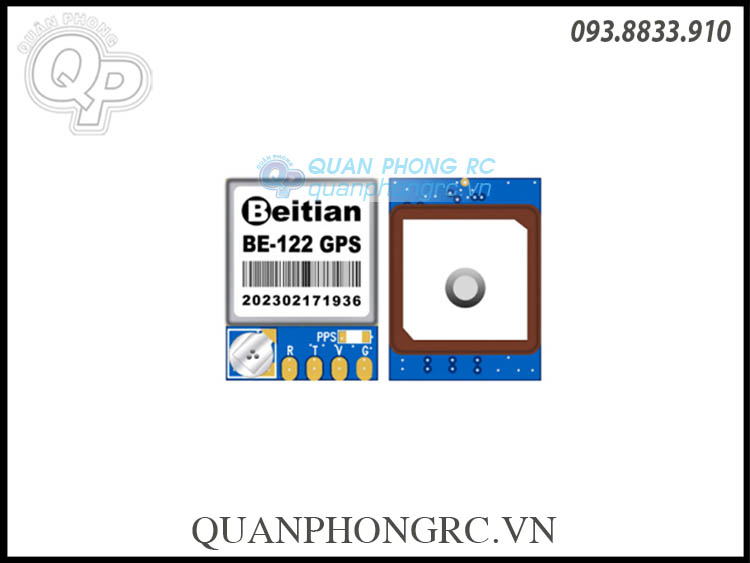

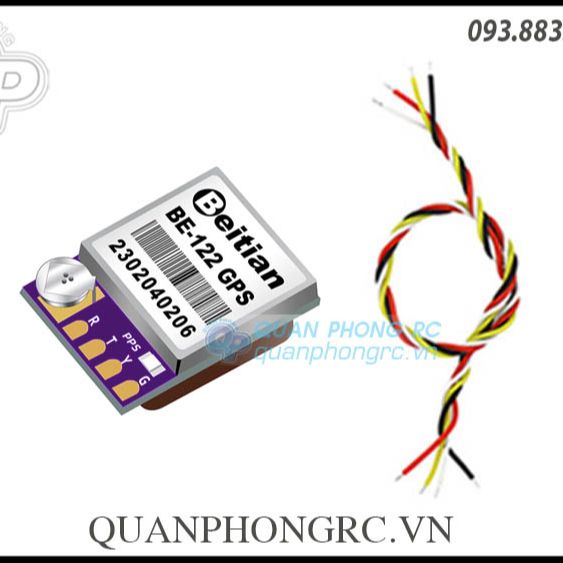

Beitian M10 BE-122 GPS Module dành cho máy bay điều khiển

Beitian M10 BE-122 GPS Module UAV PX4 PIX32 GNSS GPS Antenna Receiver Module

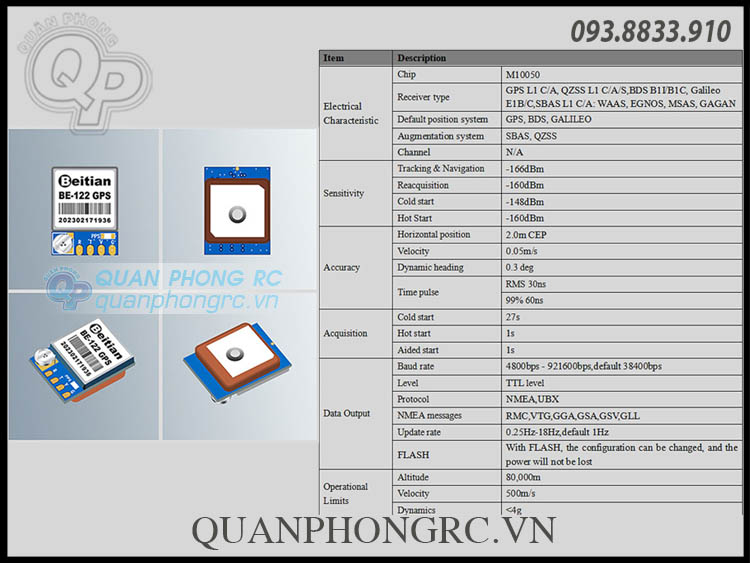

  Parameters:

1/ Chip characteristics - Chip: M10050 - Frequency: GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo E1B/C,SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN - Operation mode: GPS pBDS pGALILEO pSBAS pQZSS 2/ Sensitivity: - Track: -166dBm - Re-arrest: -160dbm - Cold start: -148dBm - Hot Start: -160dbm 3/ Precision: - Horizontal Accuracy: 1.5m CEP 2D RMS SBAS Auxiliary (For Open Sky), (252Q 1.5m CEP) - Speed accuracy: 0.05 m/s - Dynamic inclination accuracy: 0.3 degrees - 1PPS Time Accuracy: RMS 30ns/99% 60ns 4/ Start time: - Cold start: 27s - Hot Start: 1s - Assisted start: 1s 5/ Output data: - Transmission rate: 4800bps921600bps,default38400bps (252Q default115200bps) - Output level: Ttl-level - Initial protocol: NMEA,UBX - NMEA sentences: RMC,VTG,GGA,GSA,GSV,GLL - Update Frequency: 0.25Hz-18Hz, 1Hz by default (252Q  10Hz by default) - Second pulse: Configurable from 0.25Hz to 10 MHz, default period is 1s, and high level lasts 100ms 6/ Work restrictions: - High: 80,000 million - Speed:<500 m/s - Gravitational acceleration:<4g 7/ Energy consumption: - Voltage:DC 3.6V-5.5V, typical: 5.0V - Current:Normal 50mA/5.0V(252Q 15mA/5.0V) 8/ Environment: - Operating temperature:-40 ° c ~ + 85 ° c - Storage temperature:-40 ° c ~ + 105 ° c 9/ LED: Built-in LED - TX LED: blue. Data output, TX flashes - PPS LED: red. PPS does not light up when GPS is not fixed, flashes after repair
