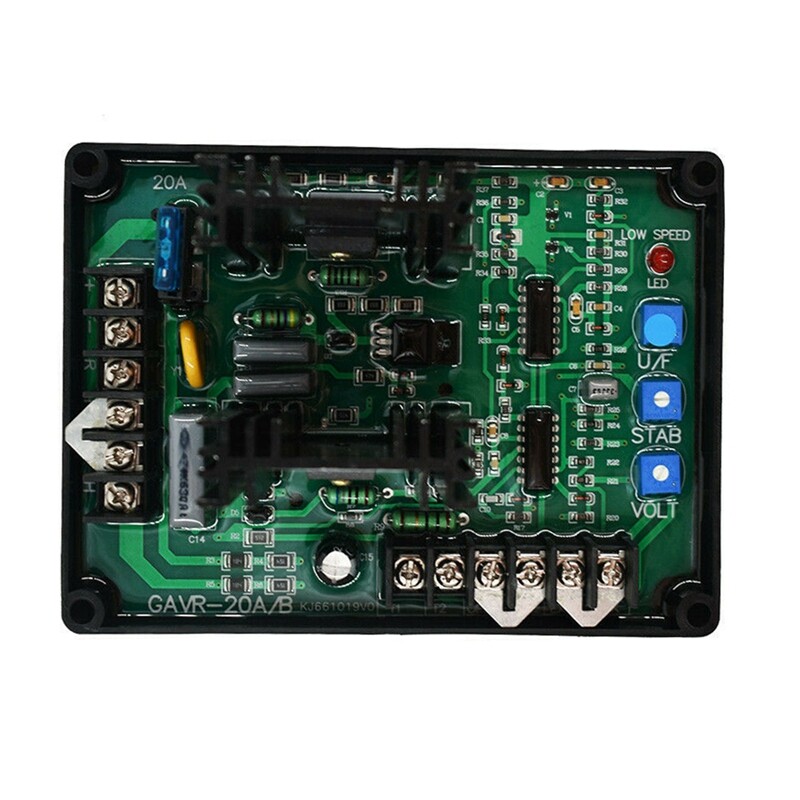

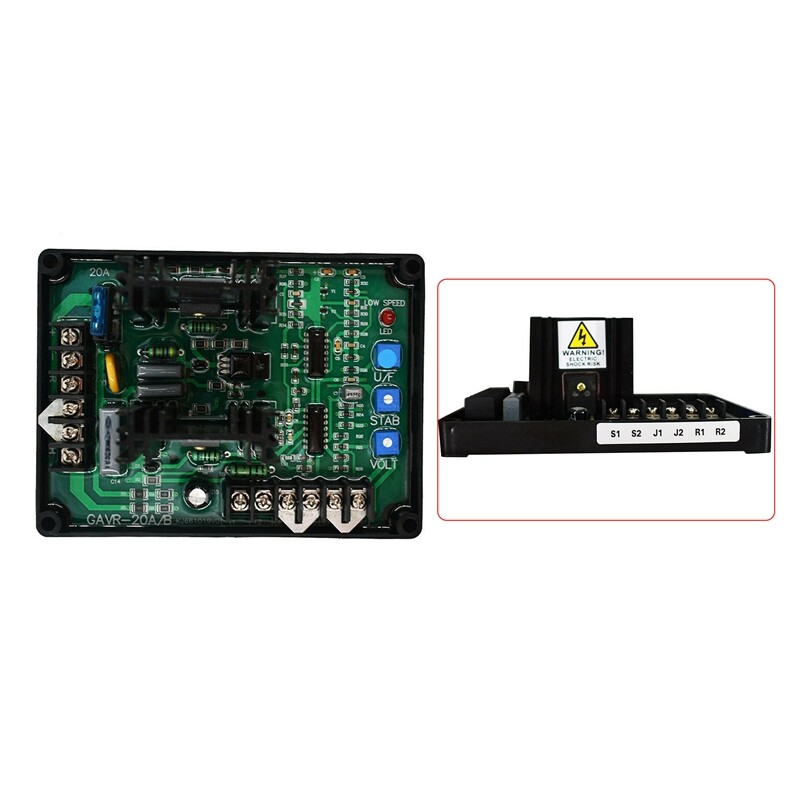

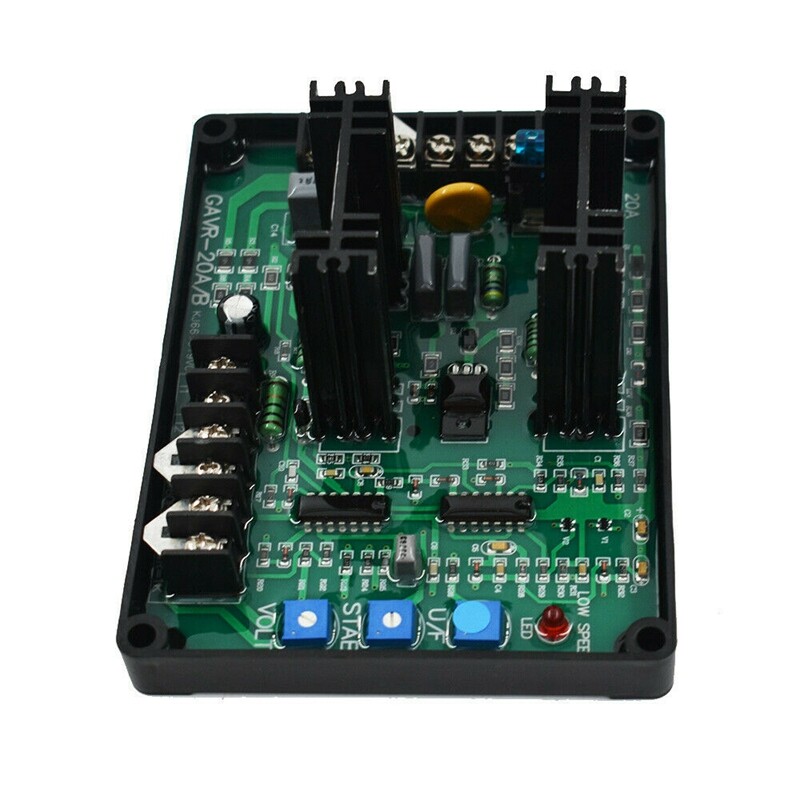

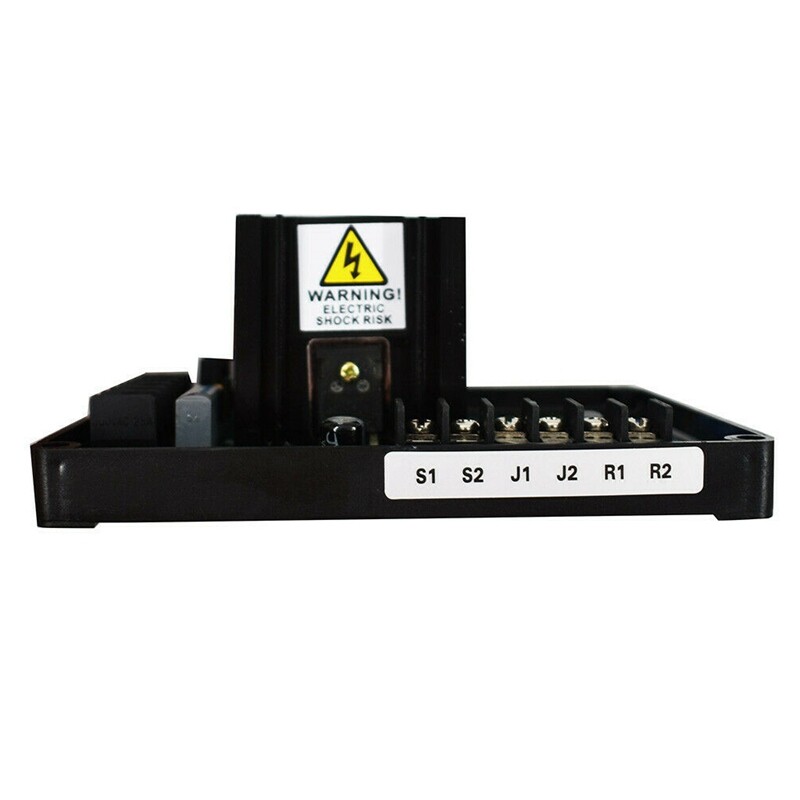

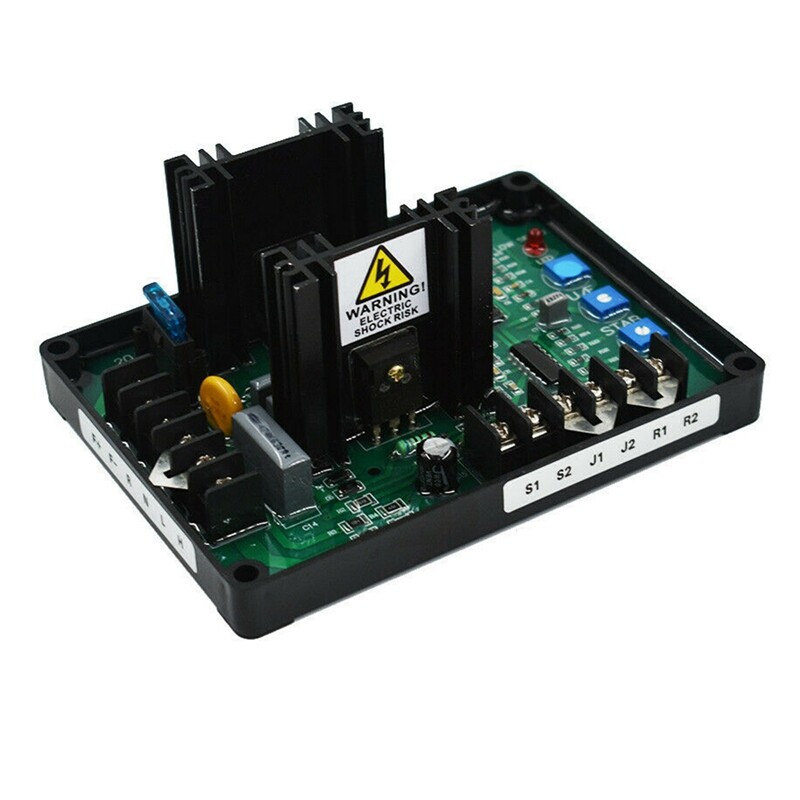

Automatic Voltage Regulator Fit for Parbeau Generator AVR GAVR-20A

1. Less than +/-0.5% Reglation
2.220/400 VAC Programmable Input
3.Rugged Compact Design
4.With Under Frequency Protection; Soft Start Voltage Ramping
5.EMI Suppression; Buit-in High Capacity 8Amp Fuse

Input Voltage: 220/400VAC, 1 phase 2 Wire
POWER INPUT
Voltage:180~240V, 1 phase 2 Wire
Output Voltage: Max 90V dc @240V ac input
Current: Continuous 15A
Intermittent 20A for 10 secs
Resistance: 10 ohms min 100 ohms Max
Regulation
+/-0.5% RMS with 4% engine governing
Voltage Build-up:Residualvolts at AVR teminal Greater than 5VAC
SOFT START RAMP TIME
3 seconds
EXTERNAL VOLTAGE ADJUSTMENT
+/-7% with 1 k ohm 1 watt trimmer
UNIT POWER DISSIPATION
8 watts maximum
Thermal. Drift:0.05% per °C chage in AVR ambient
Under Frequency:60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz
Operating Temperature:-40°C to + 65°C
Storage Temperature:-40°C to + 85°C
Relative Humidity: Less than 95%
Material:plastic
colour:Photo Color

Package Contents:
1 * GAVR-20A Automatic Voltage Regulator
1 * English manual
