Automatic Eletronic Digital Display Pressure Controller Switch Air Pump Water Oil Compressor Pressure Switch For Water Pump

• Origin:Mainland
• Condition:New
• Type: Regulator
• Application:Computer
• Package:SMD
• is_customized:Yes

Description:
1: Water shortage automatic protection ftion to prevent the water pump from burning out.
2: The number directly displays the pressure, which is correct.
3: Fool-style operation to set the start and stop pressure, which is convenient and quick.
4: Vibration resistance, strong anti-interference, fast response, stable performance, long life and no noise.
5: Multiple intelligent auxiliary ftions, delay, anti-blocking, anti-idling, automatic repair, etc.

Specification:

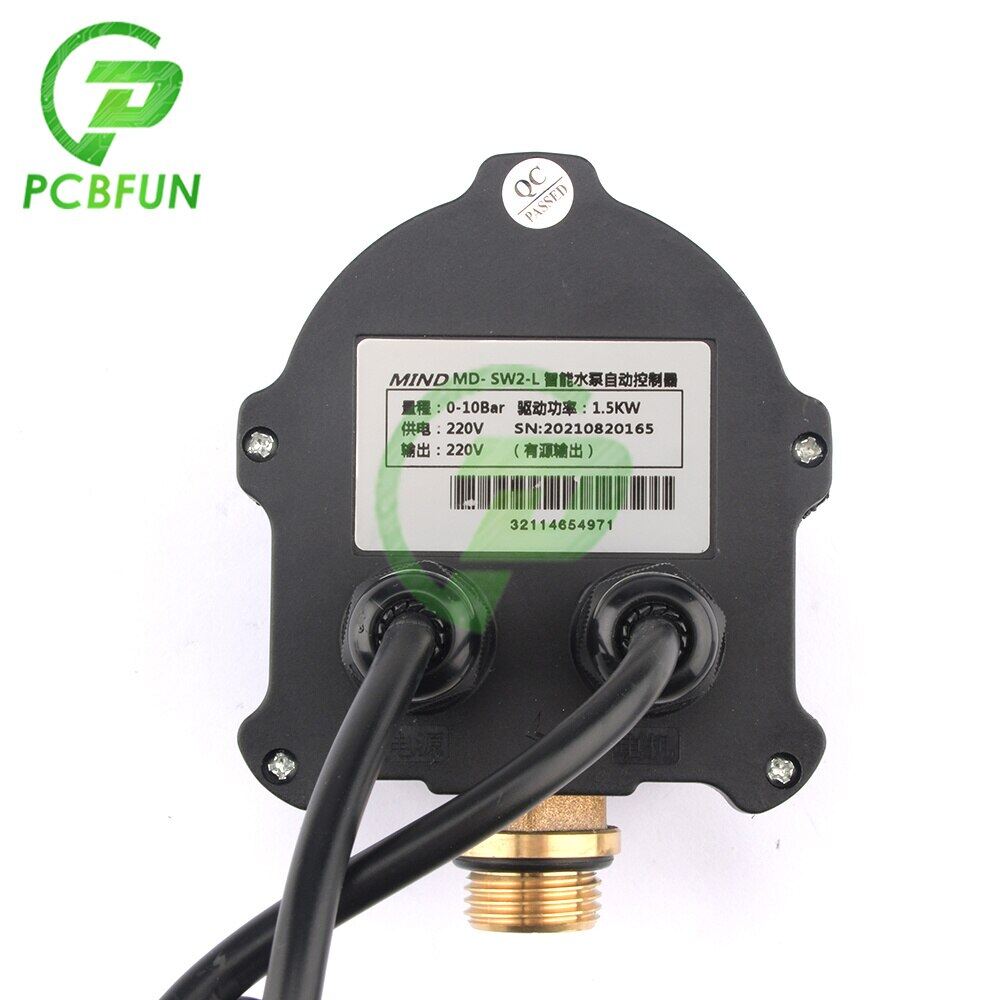

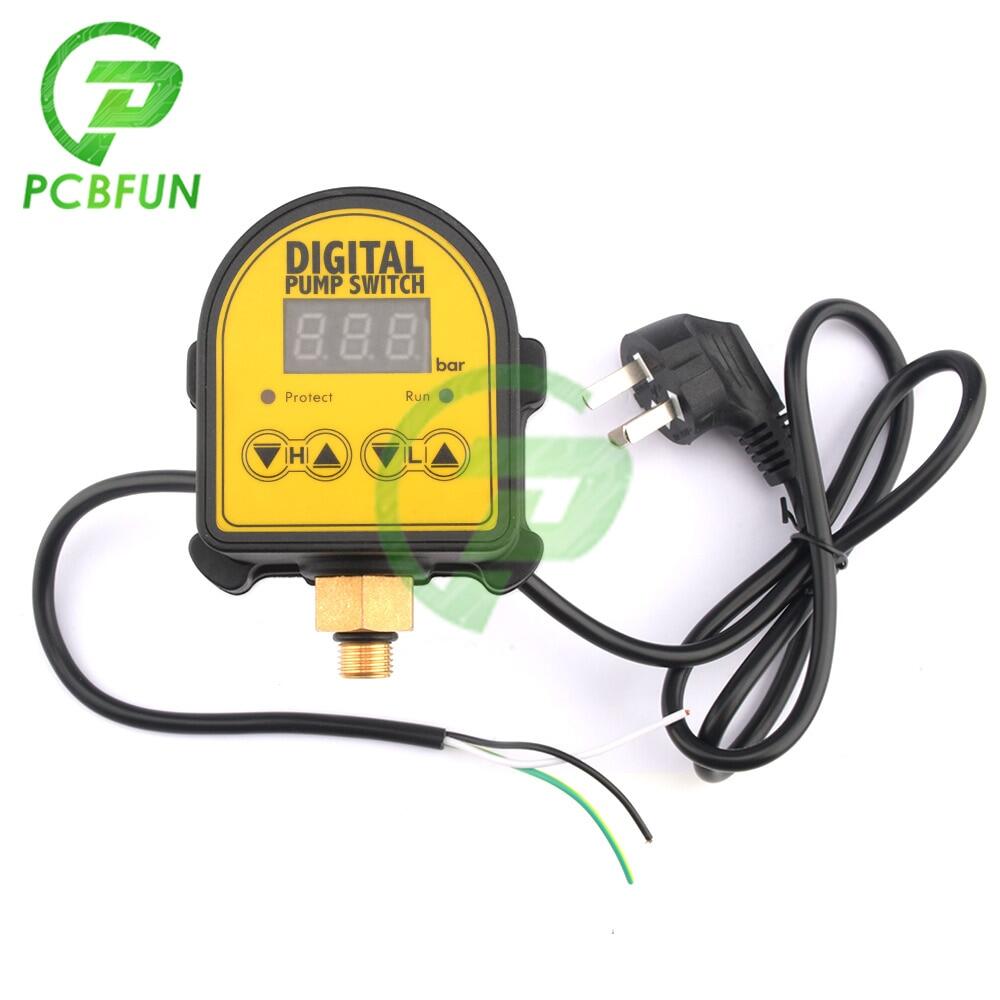

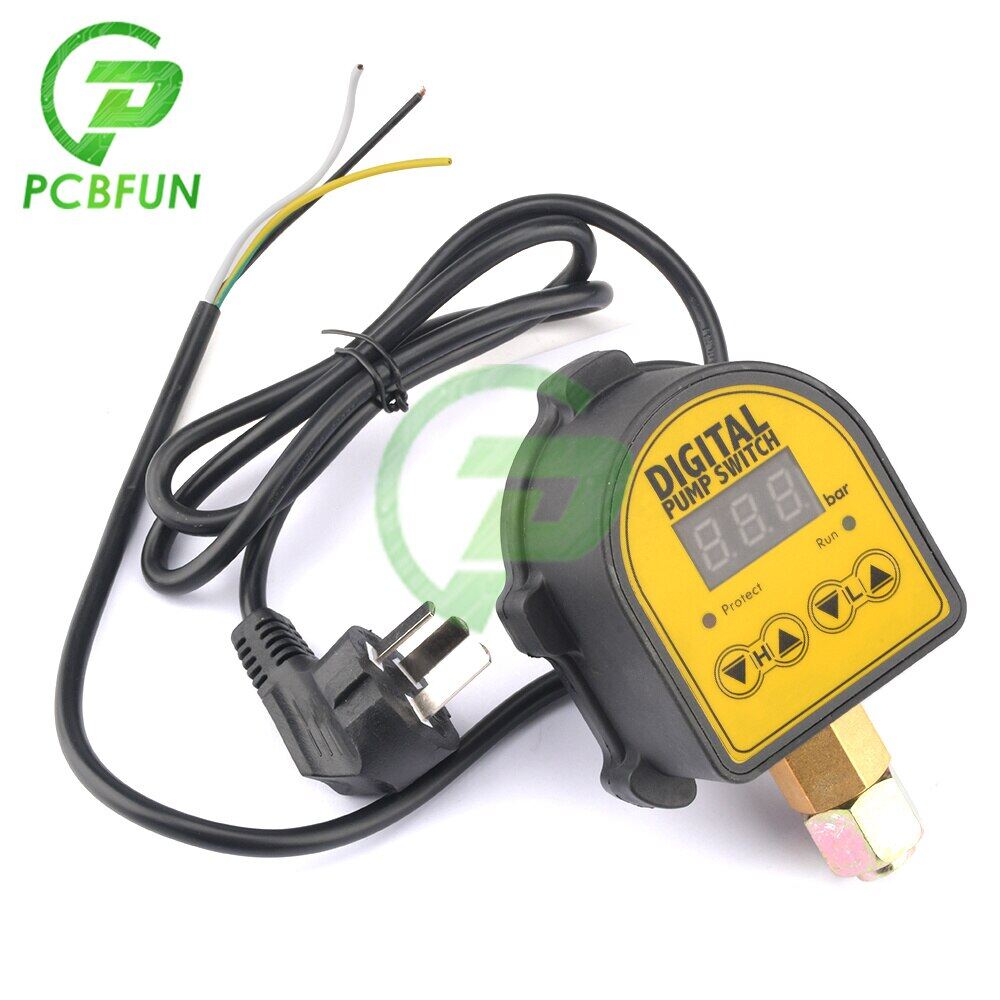

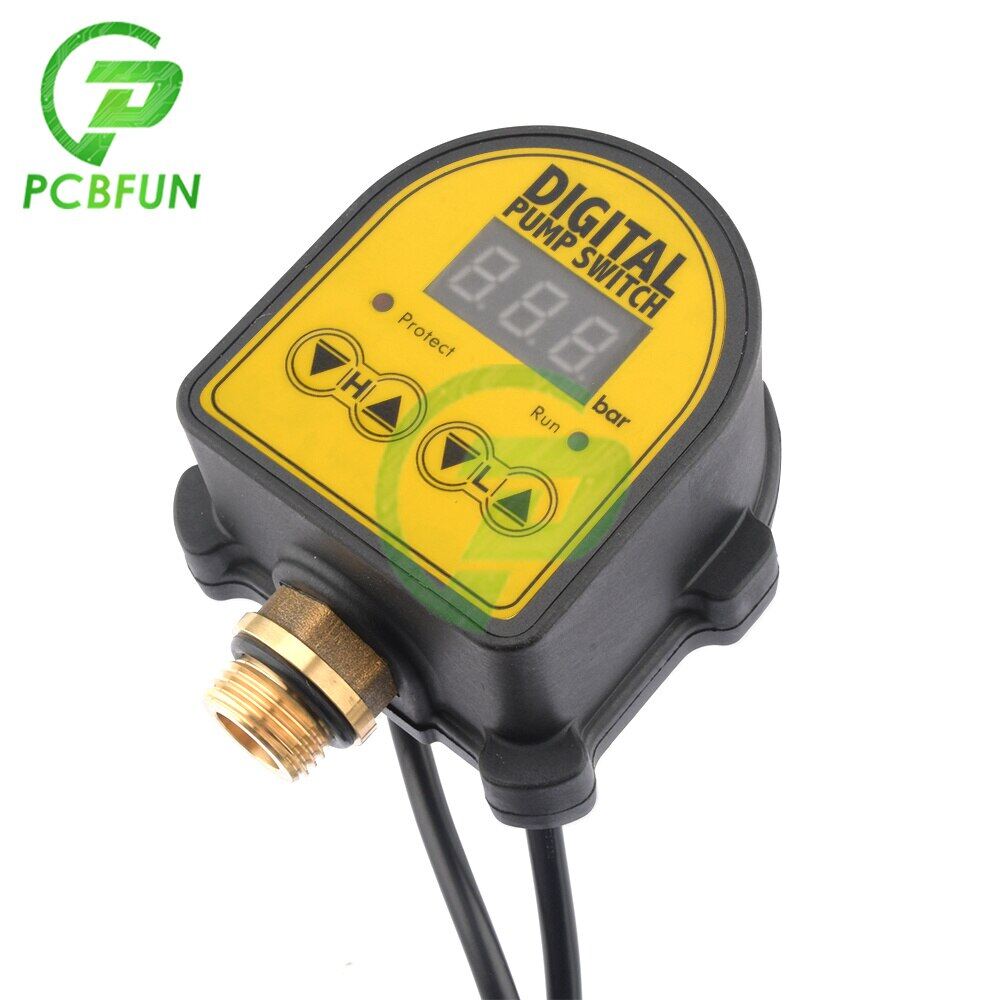

Product Name: Digital Display Intelligent Water Pump Pressure Controller

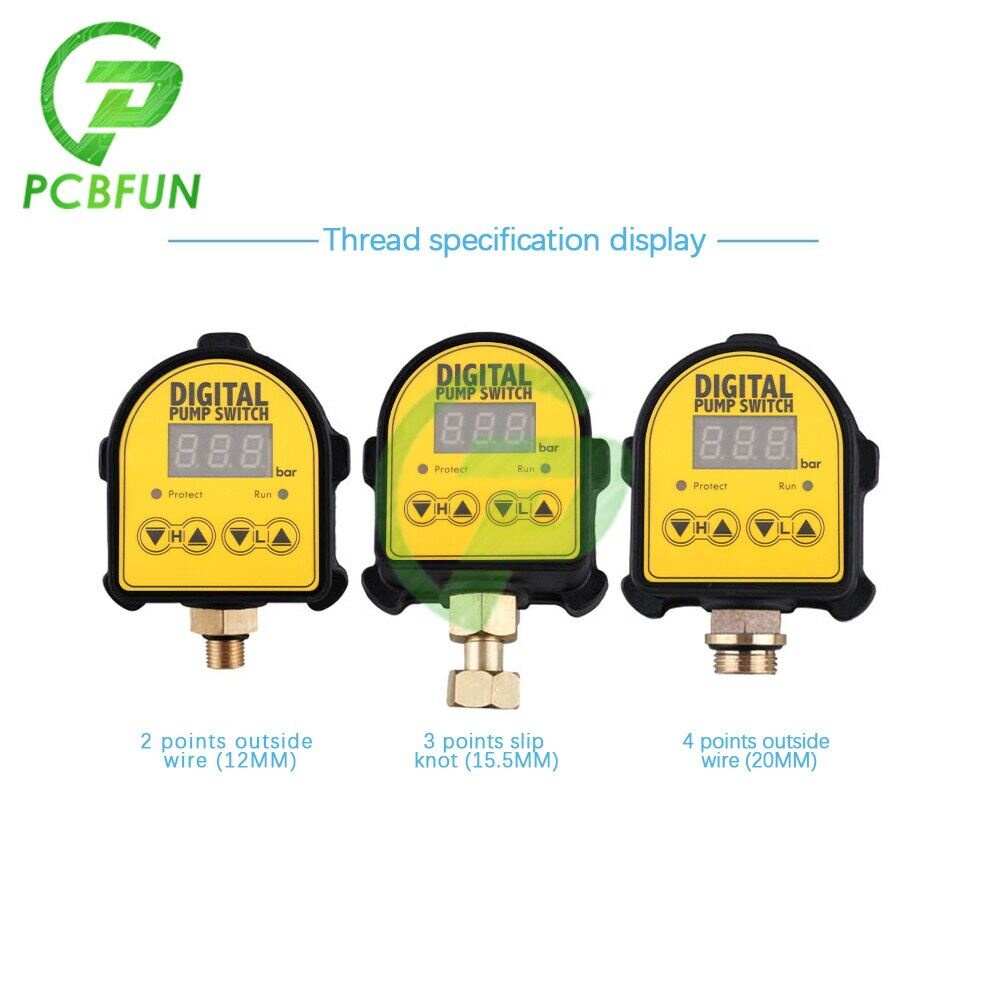

Optional specifications: 2 points outer wire 12mm/3 points slip knot 15.5mm/4 points outer wire 20mm

Range: 0-10Bar
Drive power: 1.5KW
Power supply/output: 220V
Relay capacity: 220V AC 10A
Output type: active output

Wi: 3 wires
White: positive
Black: negative
Green and yellow: ground
Plug type: international three-pin flat plug
Application: non-tower water supply pressure tank, tap water pressurization, household water intake, hot water pipeline pressurization, solar water supply, underground water intake, other control solenoid valves, air compressors, etc.

Features:
Environmental protection: pressure sensing principle, silent design
Safety: Fully waterproof structure, IP65, with water shortage protection
High efficiency: real-time digital display of pressure, stable and urate control
Energy saving: freely adjust the setting parameters, convenient and simple, and intelligent: effectively prevent the pump from starting frequently
Reliable: Long life of electronic type, up to 280,000 times, anti-vibration

Package Included:
1* Digital display intelligent water pump pressure controller

1* Manual
