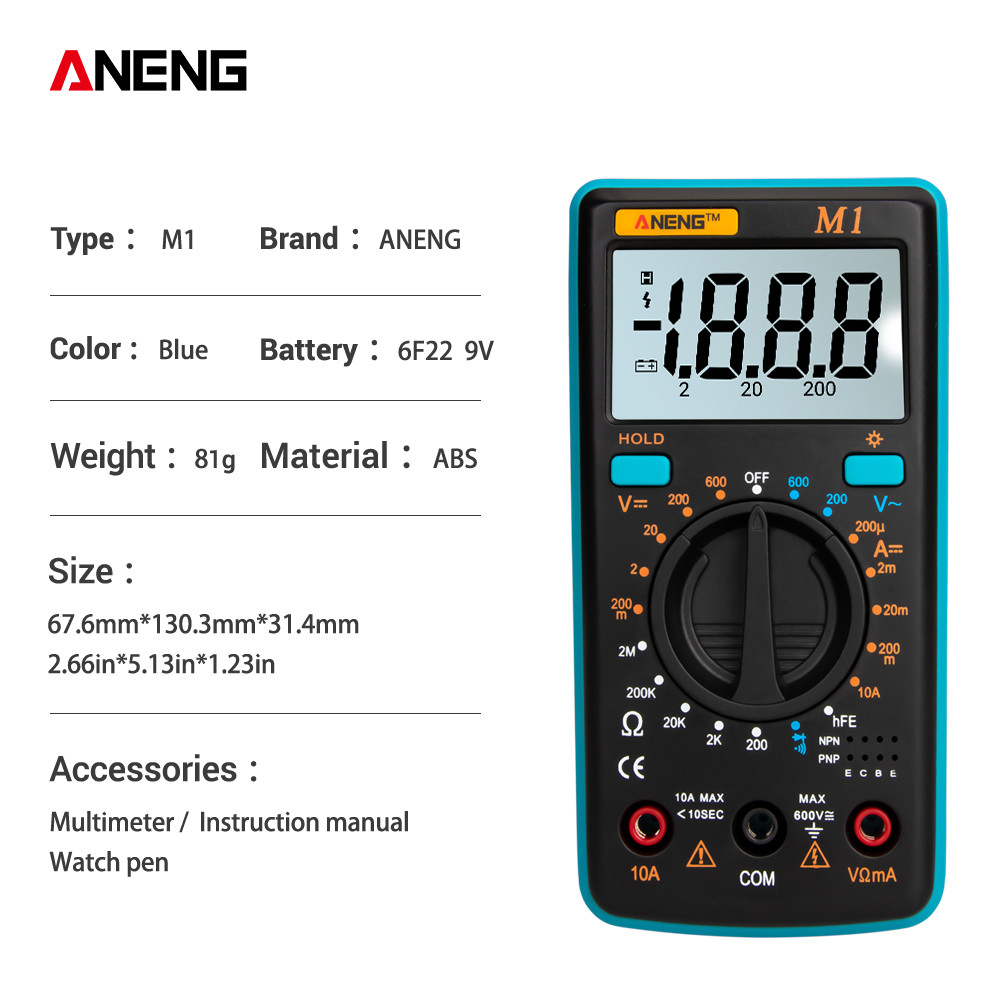

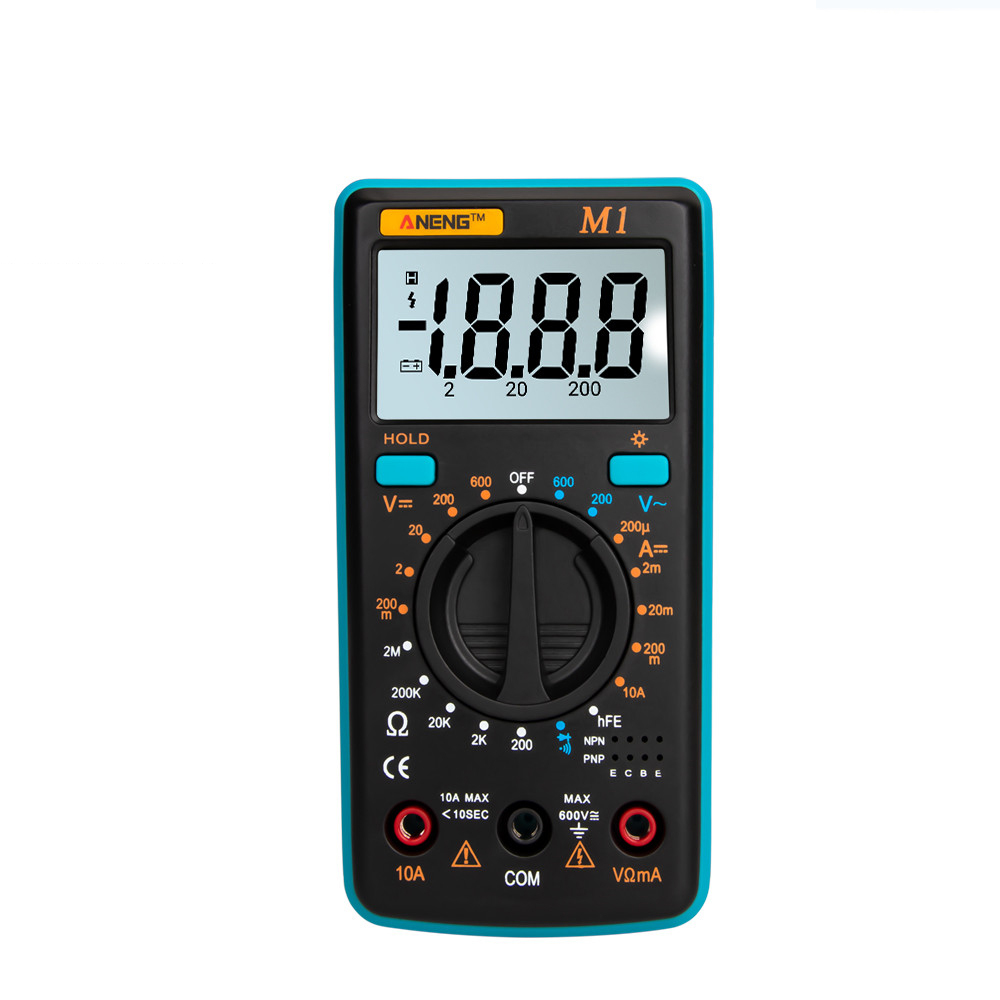

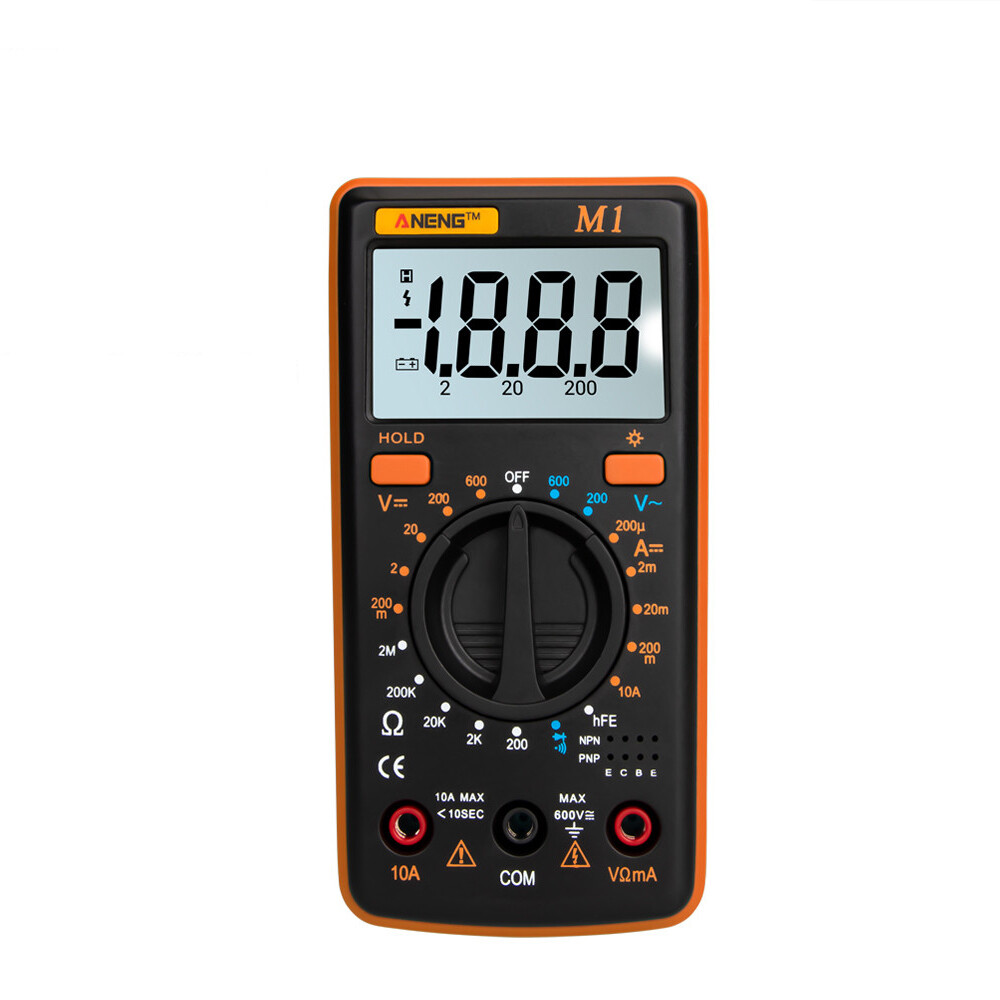

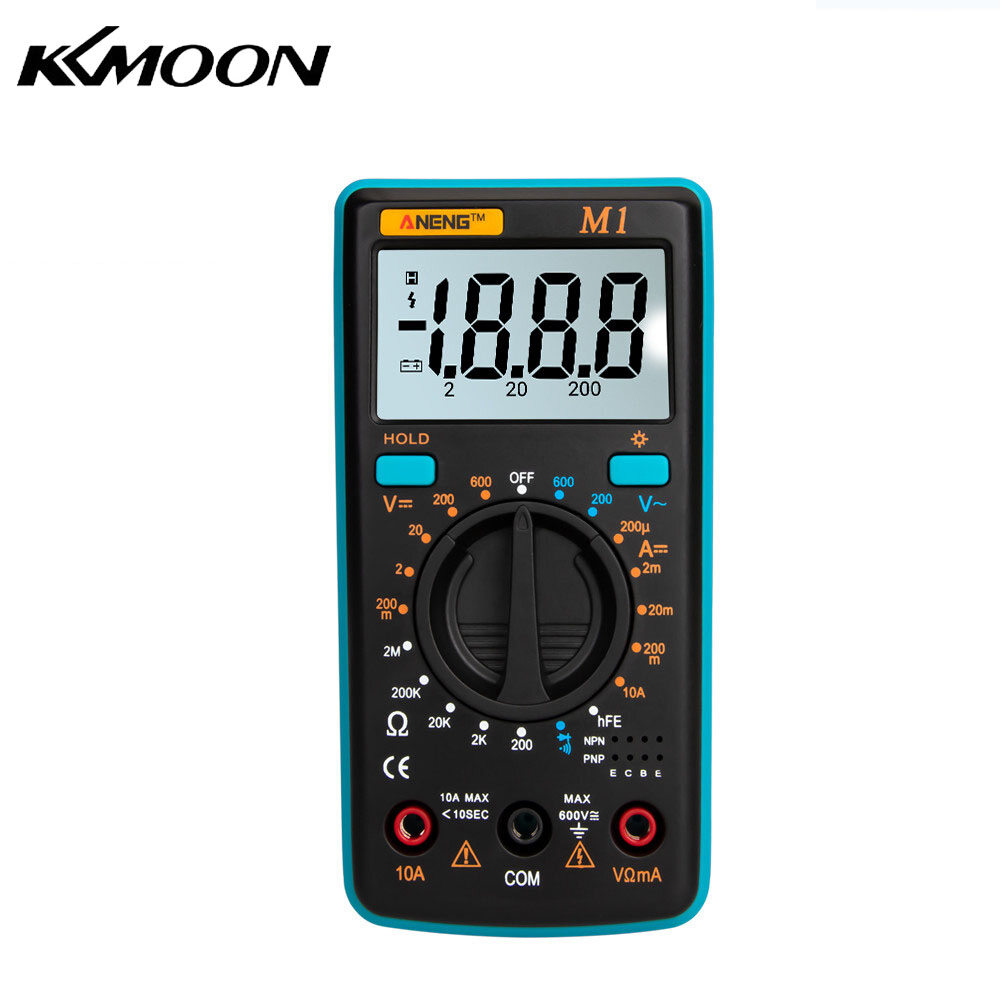

ANENG M1 Handheld Digital Multimeter LCD Backlight High Precision AC/DC Voltage Current Resistance Transistor Continuity Tester Overload Protection

The meter is a hand held 3 1/2 digital multi-meter for measuring DC and AC voltage, DC and AC current, Resistance, Diode, Transistor and Continuity Test with battery operated. For special models also can be used for testing freguency, temperature, capacitance and NCV.
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C(64°F to 82°F)with relative humidity to 80%.

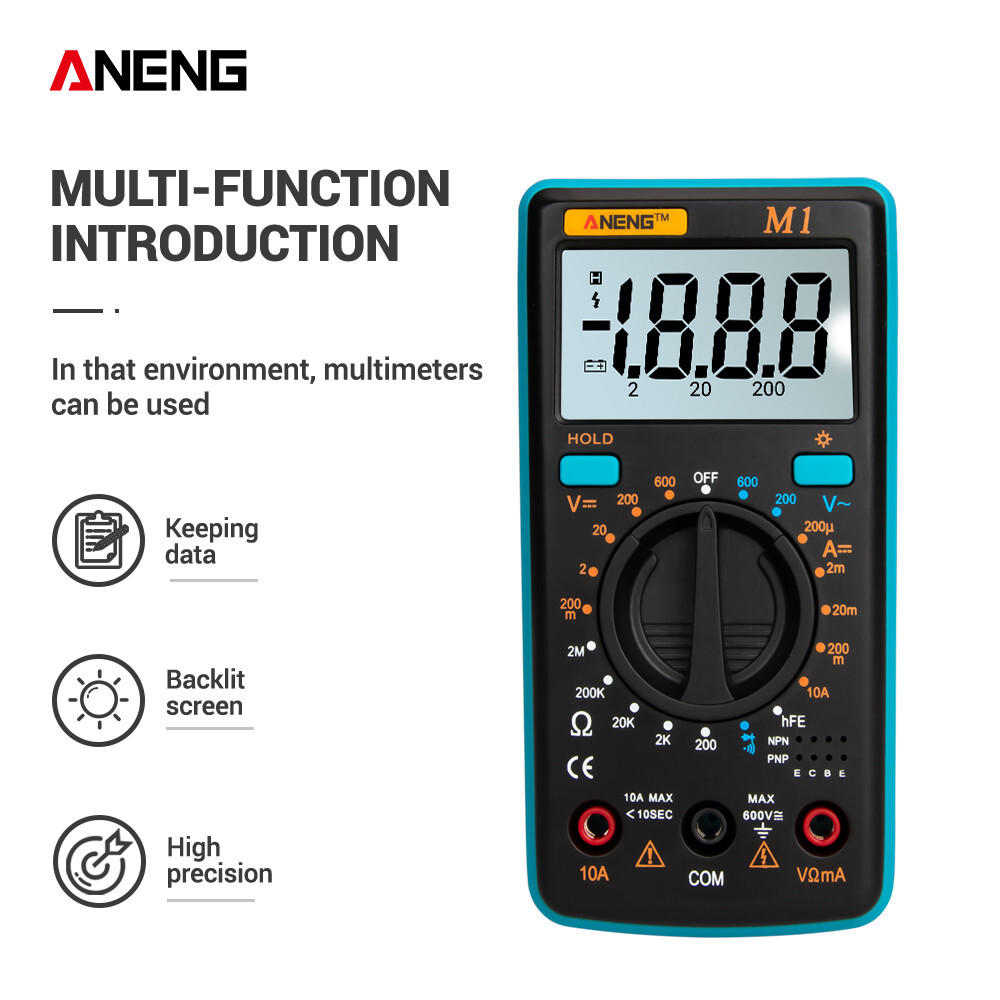

Features:

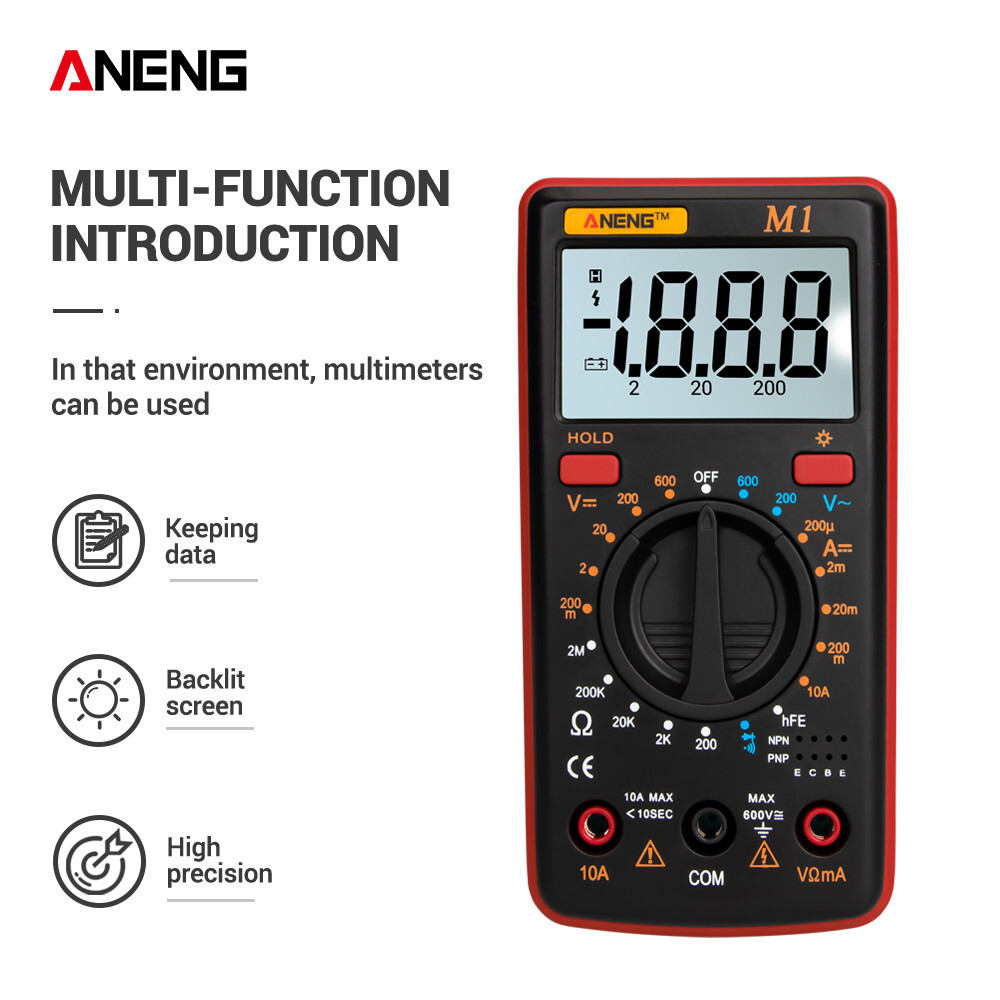

Multifunctional Multimeter - High precision with data keeping function. Portable digital multimeter with multiple functions.
Overload Protection - Use protection circuit for resistance and frequency measurement. Designed to be a practical tool,safely troubleshoot a variety of electrical tests.

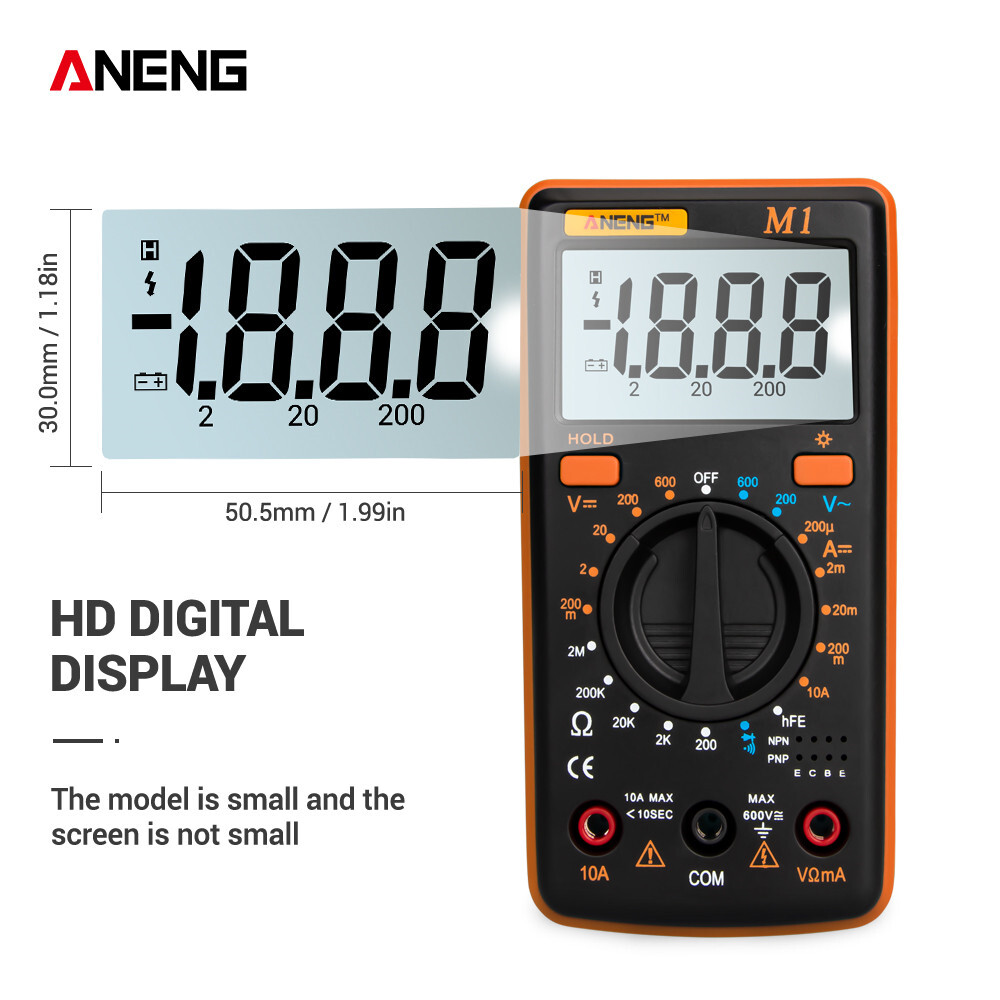

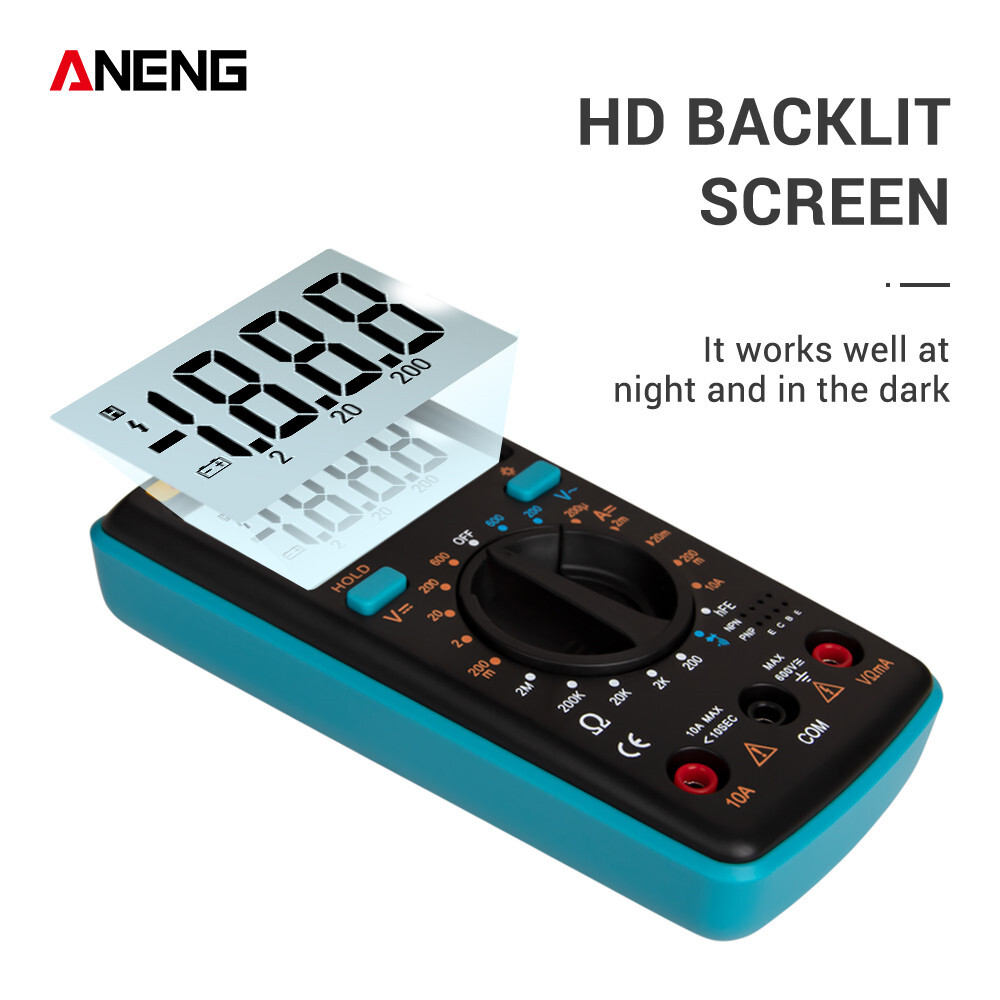

Backlight Display - Maximum display,19999 counts. Optional backlit LCD with large digits for visibility even in dimly lit areas. Data hold function keeps measurements while record.
Features Plus - For special models also can be used for testing frequency,temperature,capacitance and NCV.

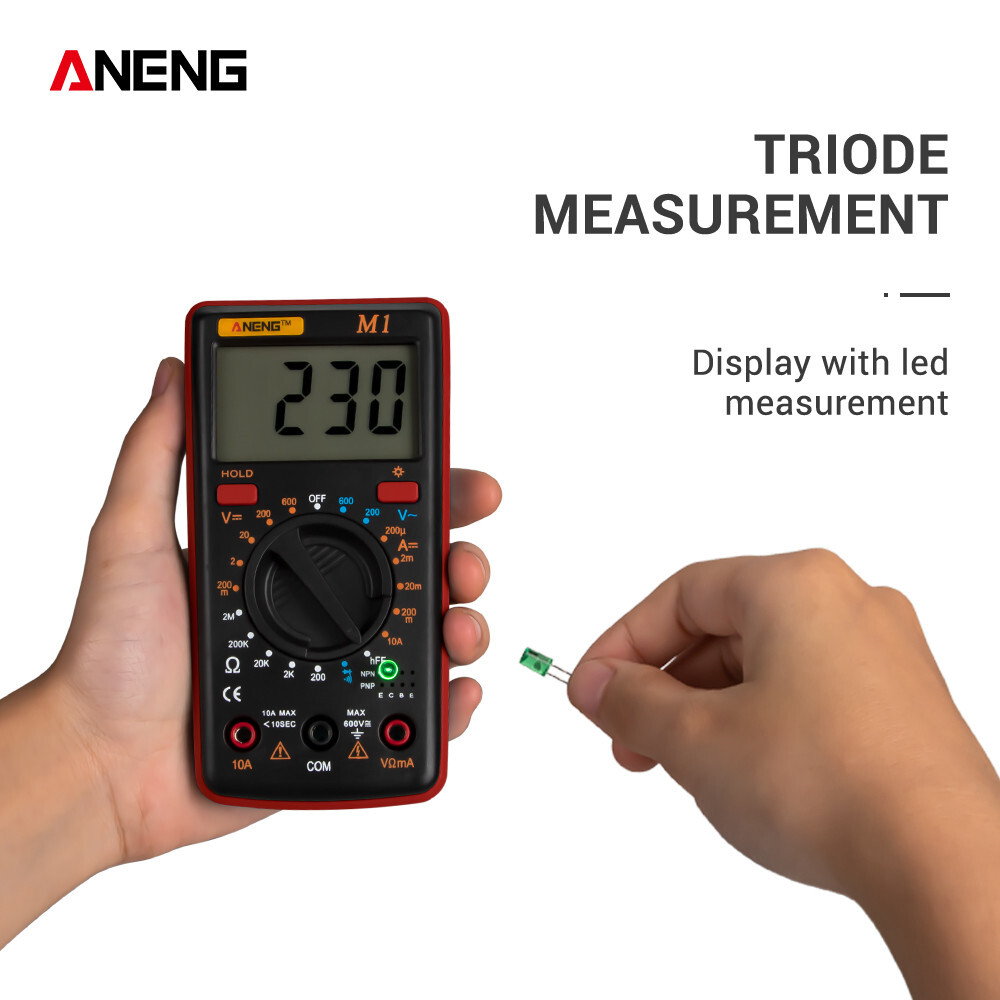

Widespread Use - Auto ranging measurement. Accurately measures such as AC/DC voltage and current,resistance,continuity,diode,capacitance,frequency/duty cycle,temperature,transistor and continuity test with battery operated.

Specifications:

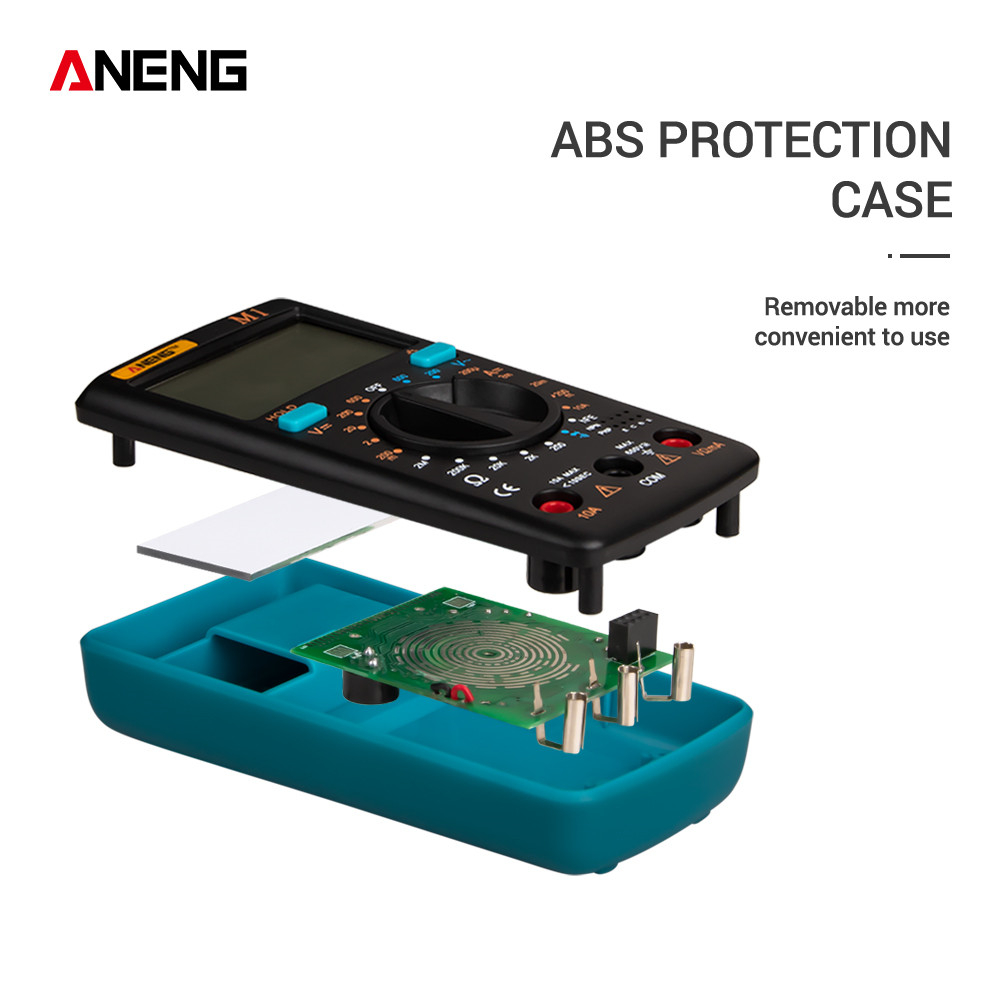

Material: ABS
Color: Red / Blue / Orange (optional)
Maximum voltage between terminals and earth ground: 600V DC or 600V AC
Fuse protection: F 250Ma/250V Self-restoring fuse
Power: 9V battery, NEDA 1604 or 6F22
Display: LCD, 1999 counts, updates 2-3 times per second
Measuring method: Dual-slope integration A/D converter
Over range Indication: Only figure “1” on the display
Poladty indication: “-”display for negative polarity
Operating Environment: 0 to 40°C
Storage temperature: -10 to 50°C
Low battery indication: appears on the display
DC VOLTAGE: Overload Protection: 250V rms for 200mV range, and 600V DC or rms AC for other ranges.

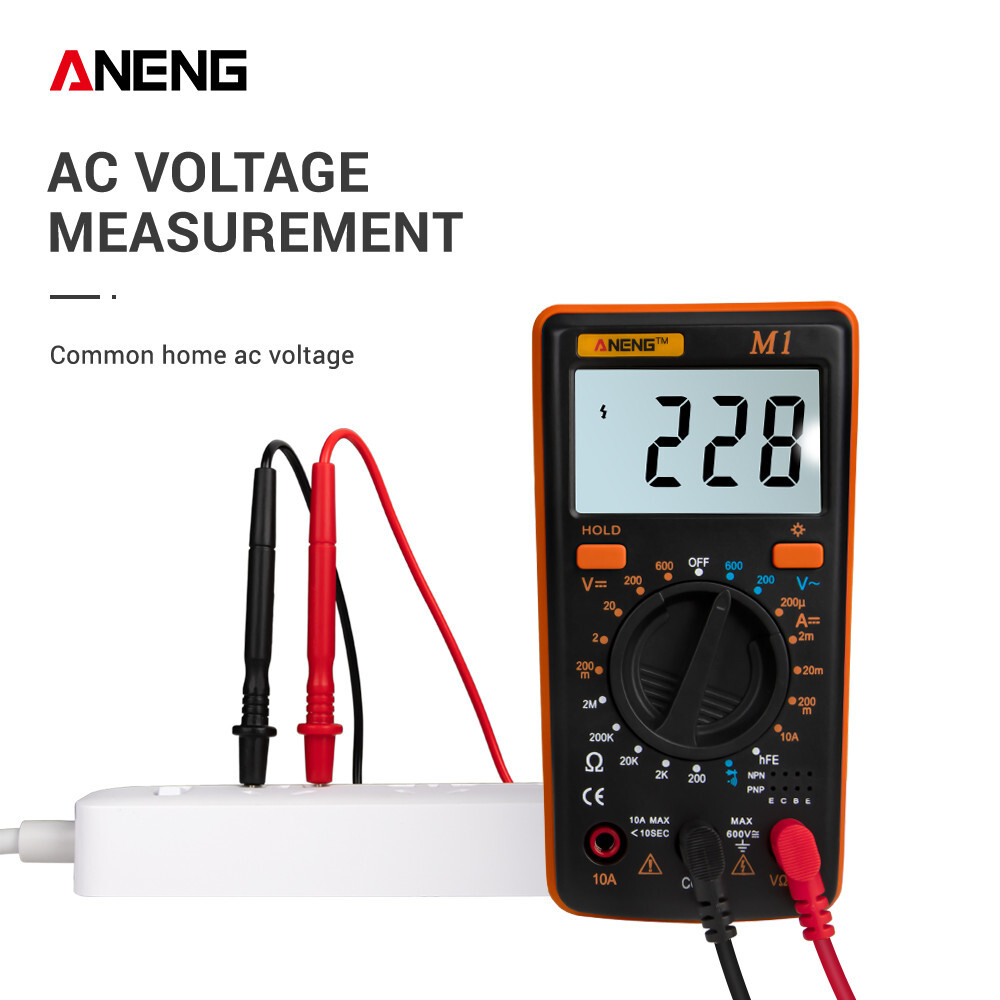

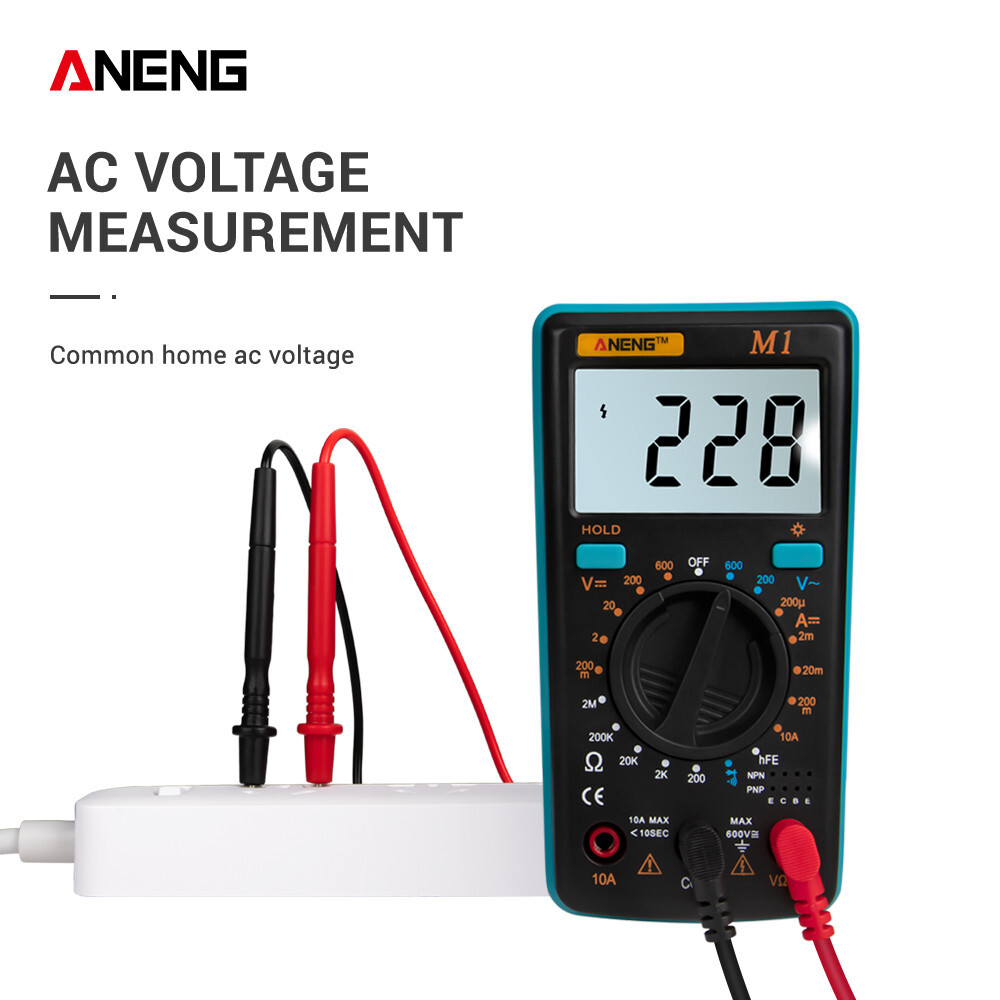

AC VOLTAGE: Overload Protection: 600V DC or AC rms
DC CURRENT:
Overload Protection: 250V DC or AC rms for all ranges.
Overload Protection: F250Ma/250V fuse. (10A range unfused)
AC CURRENT:
Overload Protection: 250V DC or AC rms for all ranges.
Overload Protection: F250Ma/250V fuse. (10A range unfused)
RESISTANCE:
Maximum Open circuit Voltage: 3.2V
Overload Protection: 250V DC or AC rms for all ranges.
CAPACTITANCE:
Overload Protection: 250V DC or AC rms for all ranges.
Overload Protection: F250Ma/250V fuse.

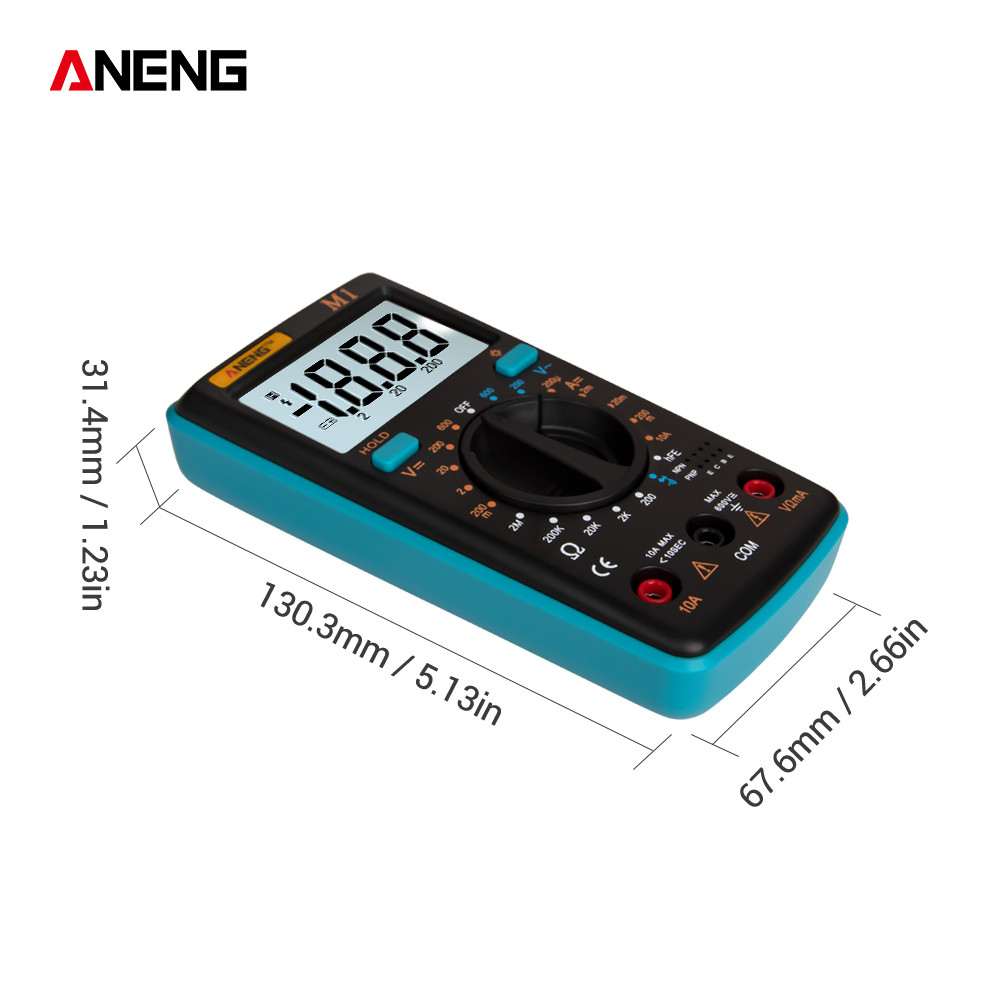

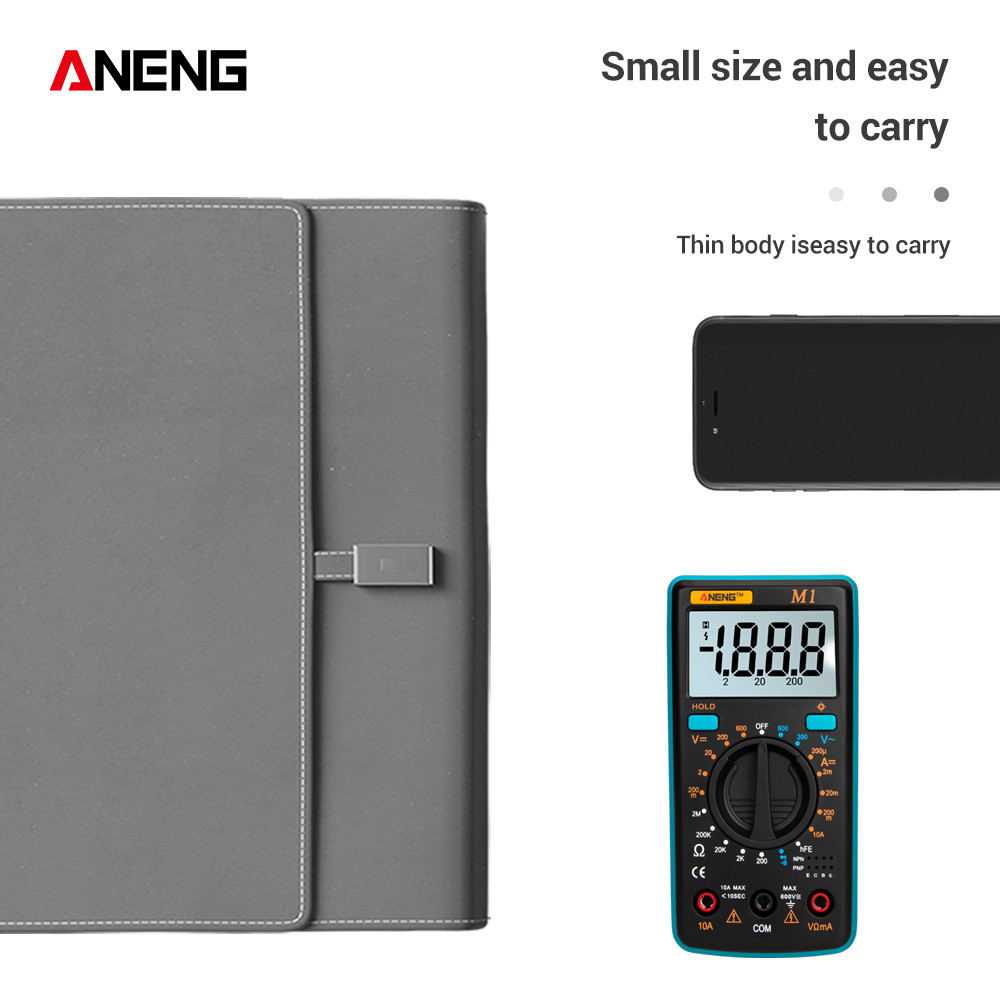

Item Size: 130.3*67.6*31.4mm / 1.26*2.48*5.12"
Item Weight: 81g / 2.86oz
Package Weight: 153g / 5.40oz
Package Size: 135*100*38mm / 5.31*3.93*1.50"
