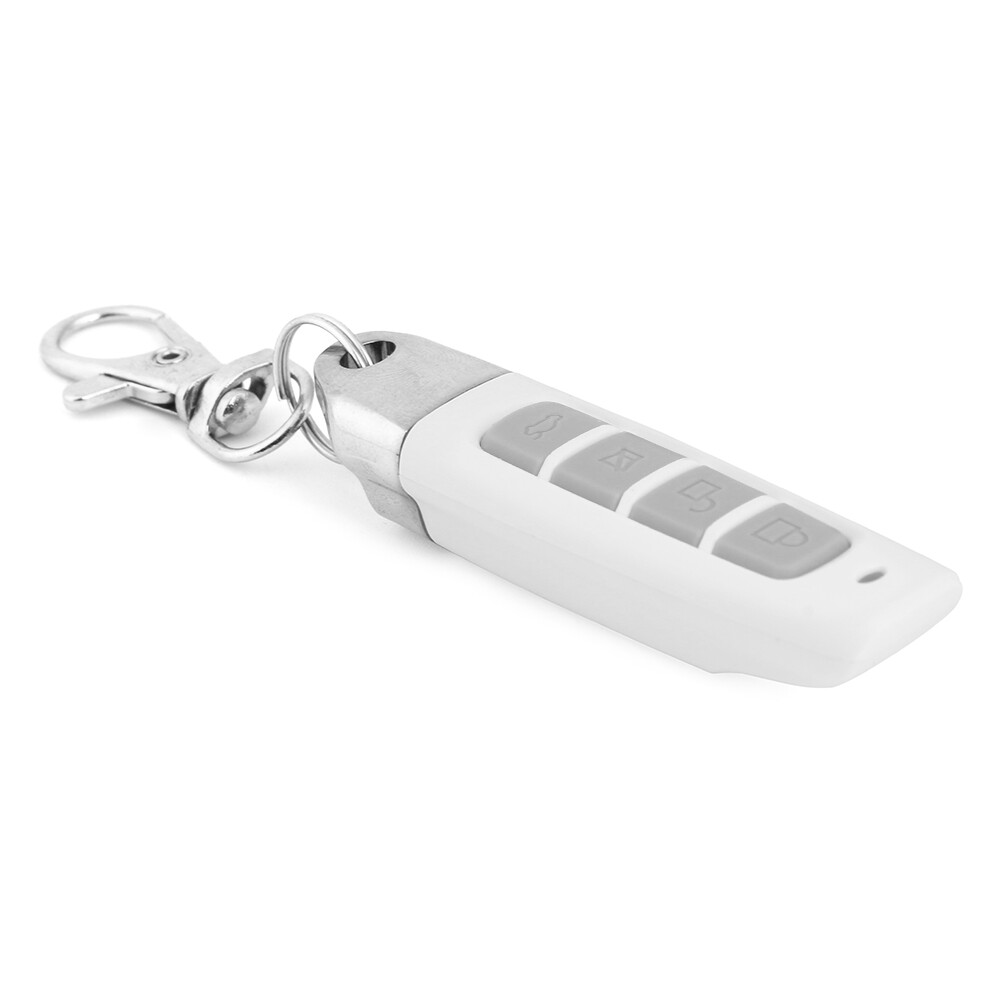

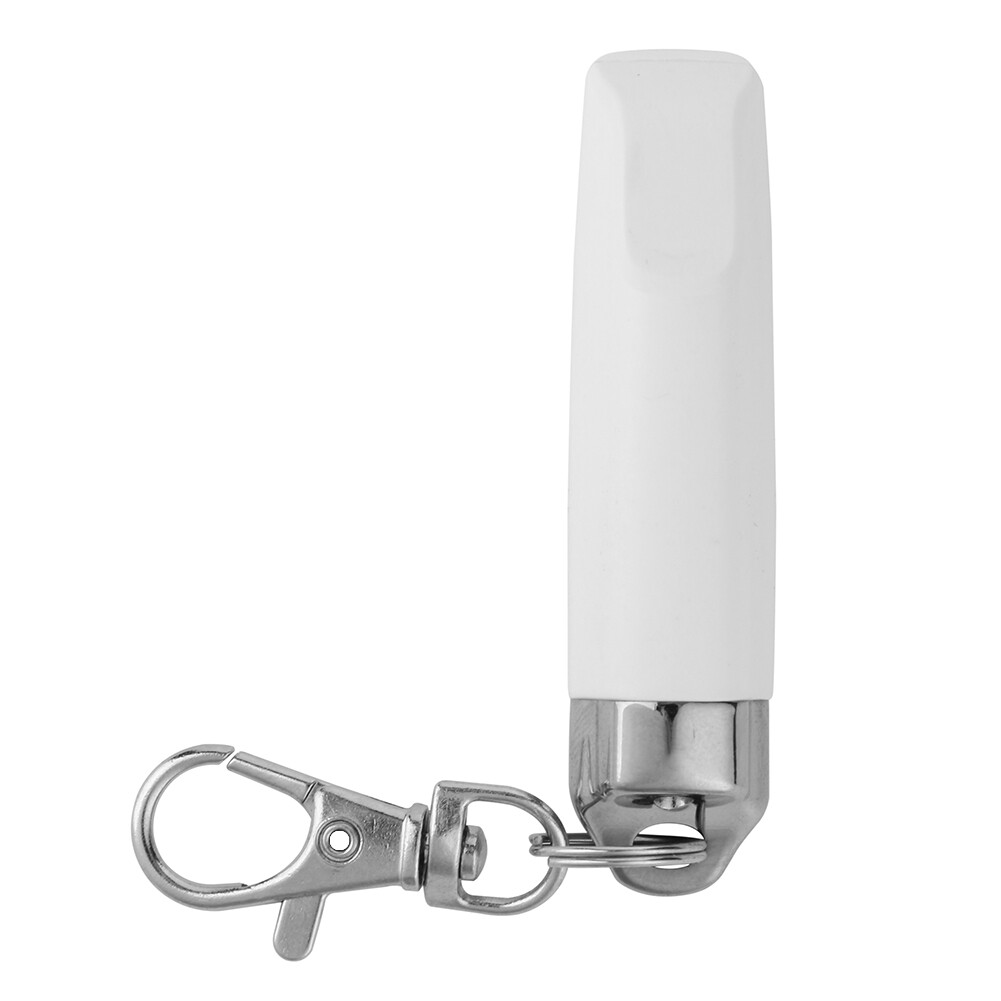

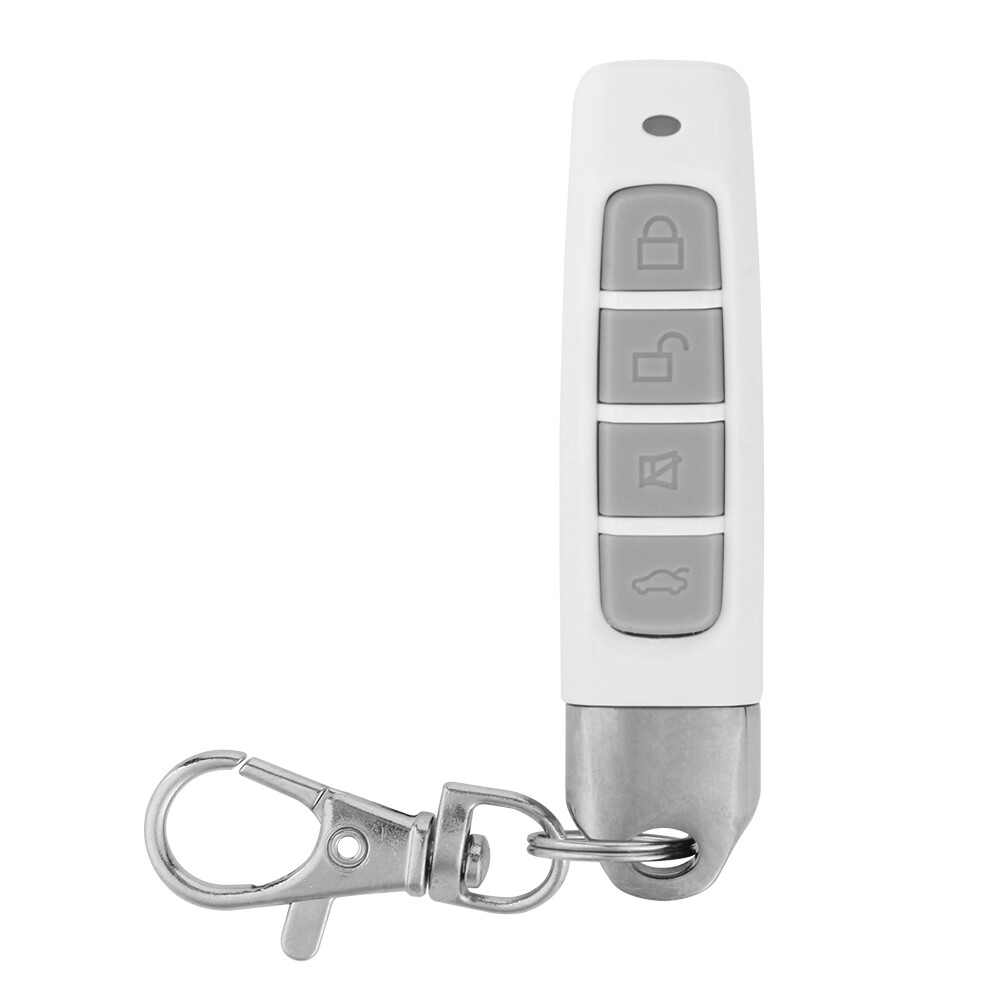

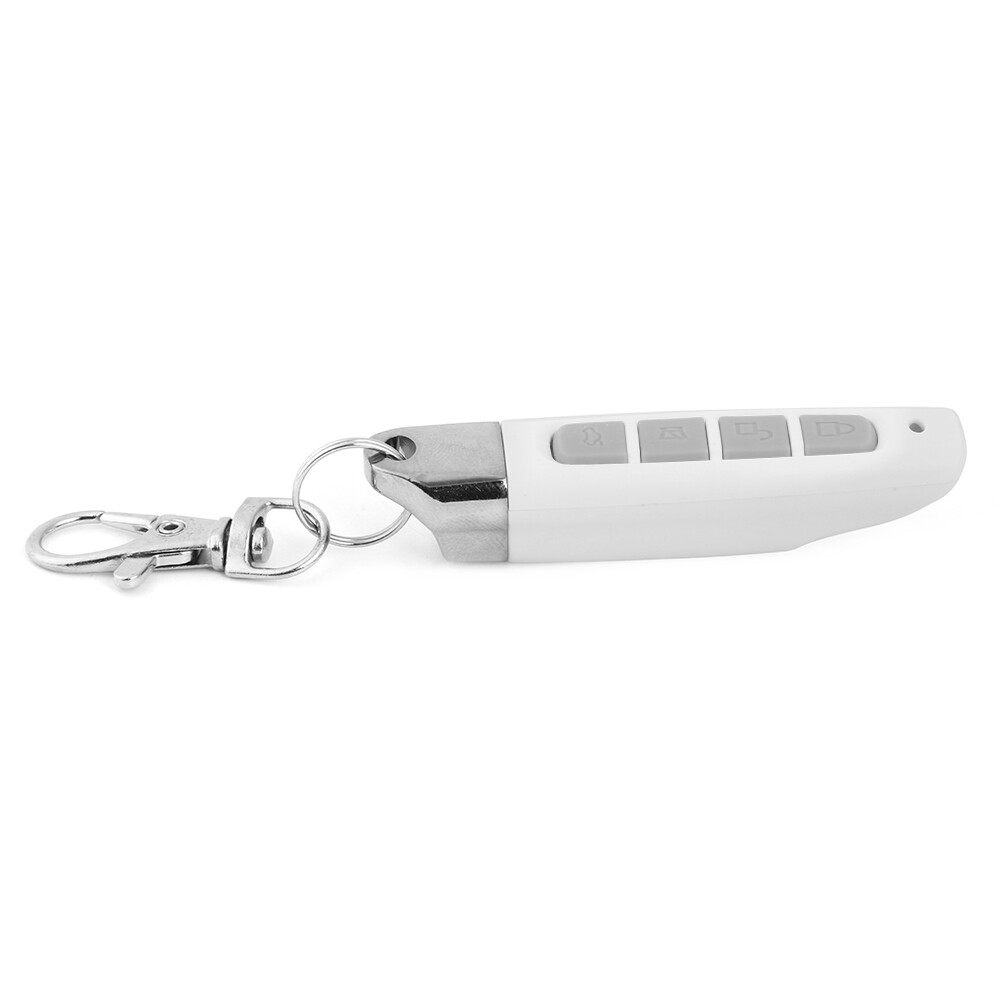

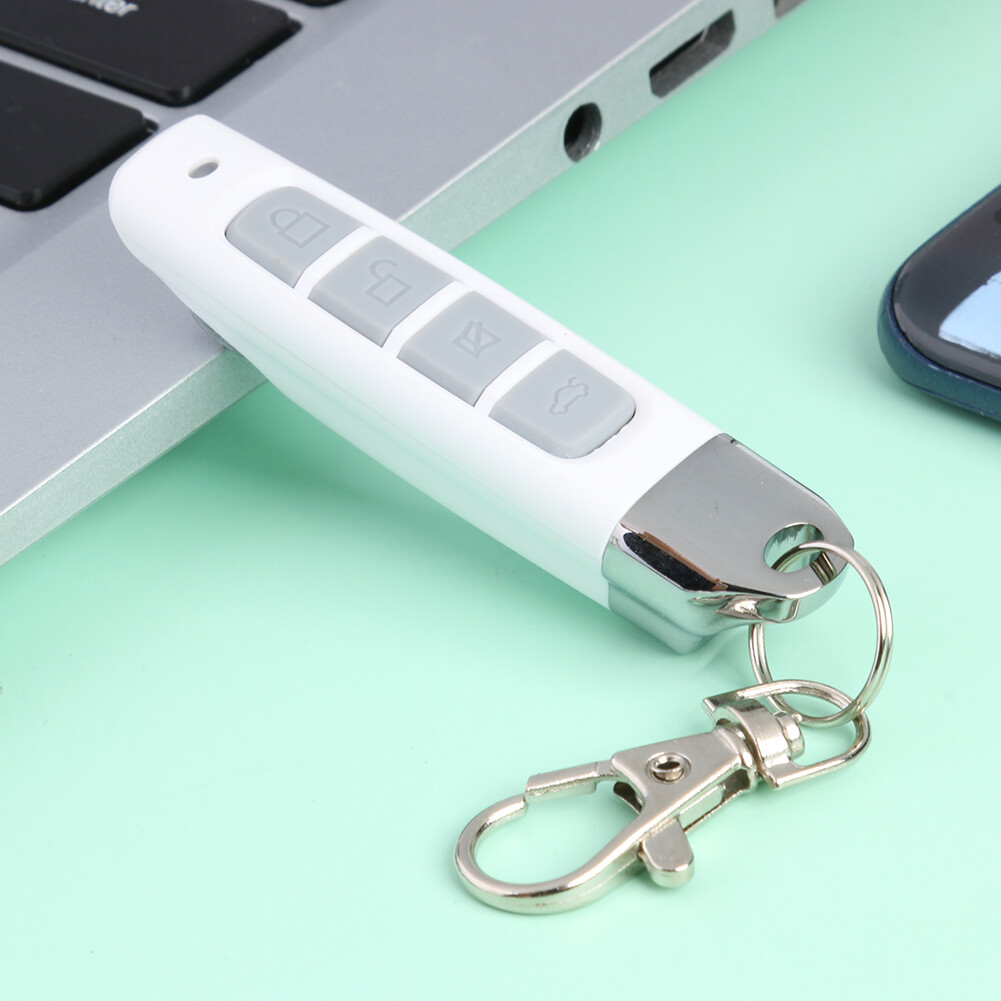

AK-1301A 315/433MHz Copy Remote Control 4 Keys Garage Gate Wireless Switch

AK-1301A 315/433MHz 4 Buttons Electric Copy Remote Control for Motorcycle Garage Gate Door Opener Universal Wireless Switch Duplicator Controller
Feature:
1. Adopt high-performance radio frequency chip, crystal frequency stabilization, accurate frequency.
2. Long transmission distance, no directivity, high transmission sensitivity, no signal blocking.
3. Can copy most of the fixed code and learning code wireless remote control, fast copy speed, simple operation.
4. After copying, the original remote control is NOT affected.
5. The copy is automatically coded and used directly without coding.
6. Scope of Application: Rolling Doors, Retractable Doors, Road Gates, Garage Doors, Sliding Doors, Electric Doors, Electric Cars, Alarms, etc.

Specification:
Product Model: AK-1301A
Working Voltage: 12V
Encoding Type: Duplication, Copy
Working Frequency: 433MHz/315MHz(Optional)
Modulation Method: ASK
Number Of Keys: 4 Keys
Launch Distance: 50m/164.04ft (Under Open Environment)

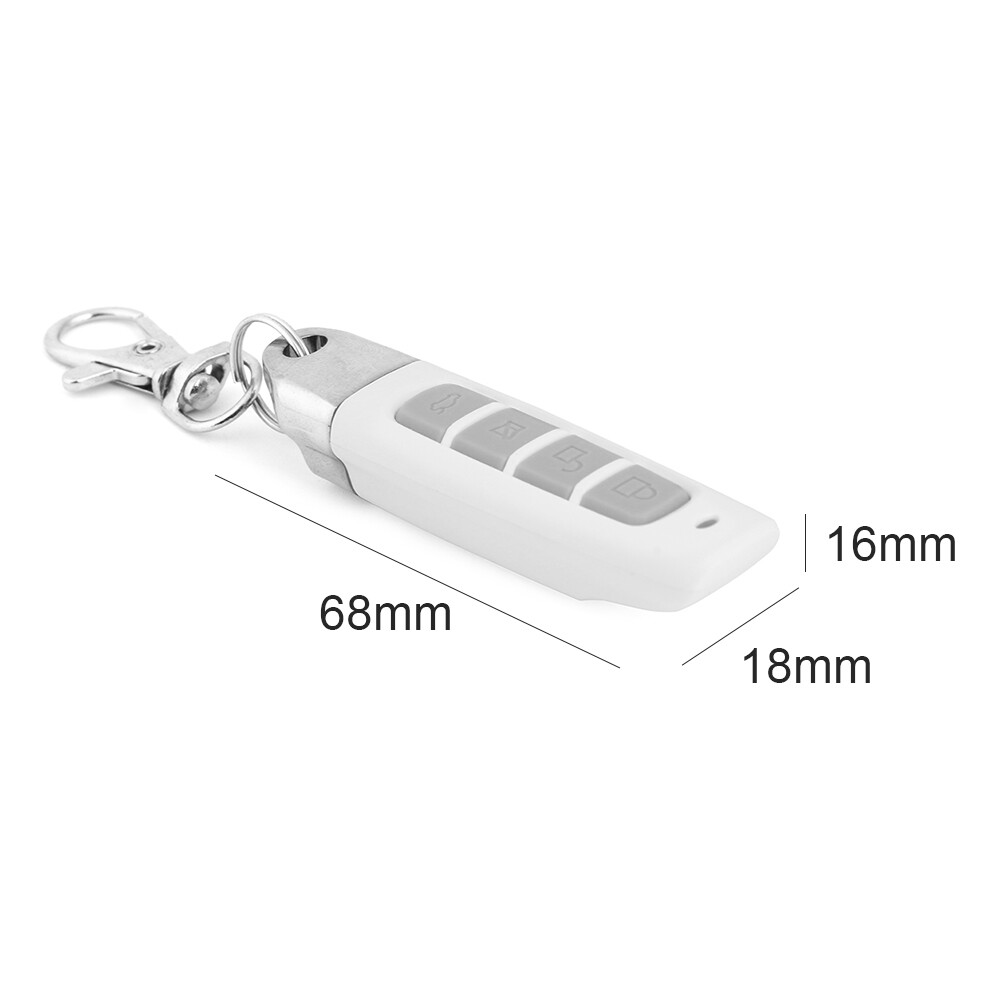

Product Size: 68 X 18 X 16mm/2.68 X 0.71 X 0.63"

Copyable Chip Model:
1.PT2242, 2.PT2260, 3.PT2262, 4.EV1527, 5.527, 6.PT2240, 7.SMC918, 8.HT-12E, 9.AX5326-3, 10.AX5326-4, 11.AX5026, 12. HT600, 13.HT680, 14.HT6207, 15.HT6010, 16.HT6012, 17.HT6014, 18.MC145026, 19.HT640, 20.SMC926, 21.HT12D and Other Fixed Code and Learning Code Wireless Remote Control

Instruction:
1. Clear Code: Press and hold the two buttons on the front (upper) at the same time, the LED indicator flashes three times, release any one of the buttons (the other keeps pressing and holding), press the released button three times, the LED indicator enter the fast flashing state, indicating that the code is cleared. (The cleared code remote control, short press, the LED indicator does not light).
2. Copying: Holding the original remote control, while the other holding the copying remote control, the two remote controls should be placed as closely as possible. Press the required copying button respectively, the LED indicator flashes three times quickly and then constant light, indicating copying Successful, other key copying operation methods are the same.
3. Recovery Instructions: If the useful codes are cleared by mistake, you can press the two buttons on the back of the controller (below) at the same time when without copying the other remote controllers. After the indicator flashes 3 times quickly, the recovery is successful.

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
