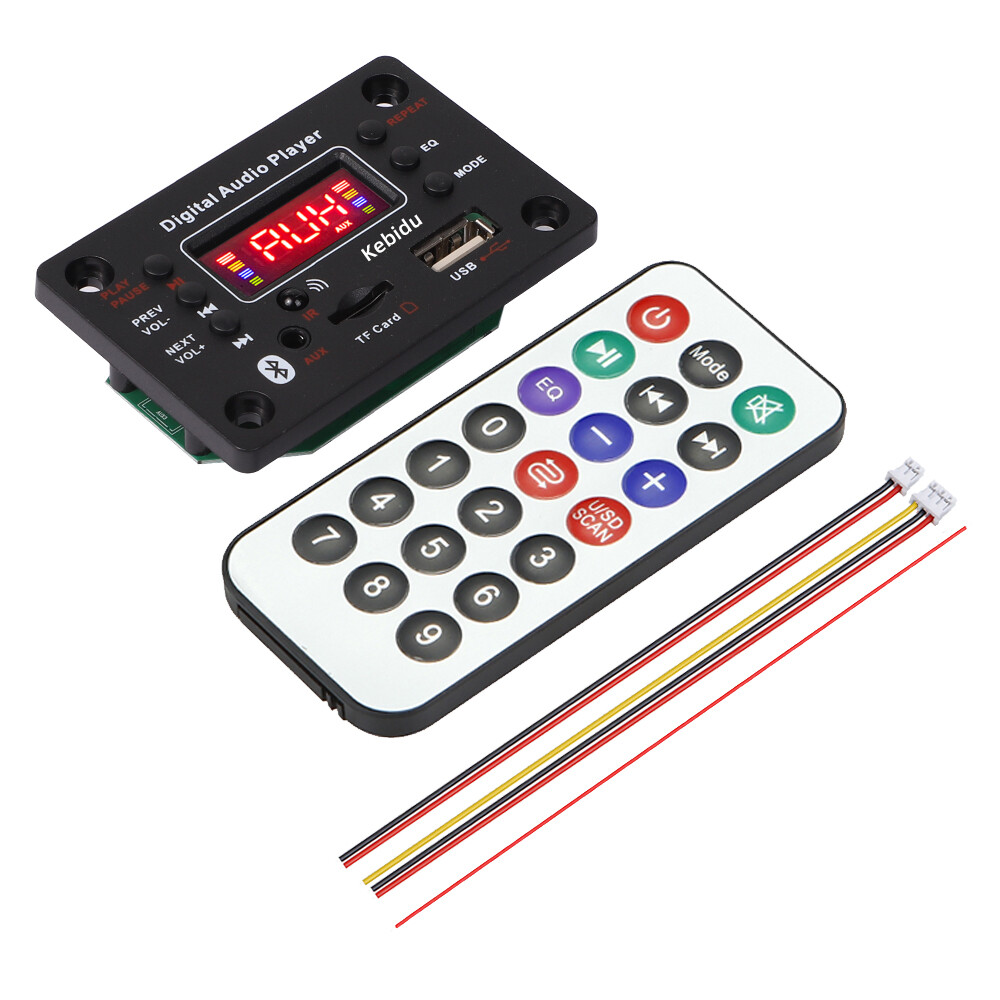

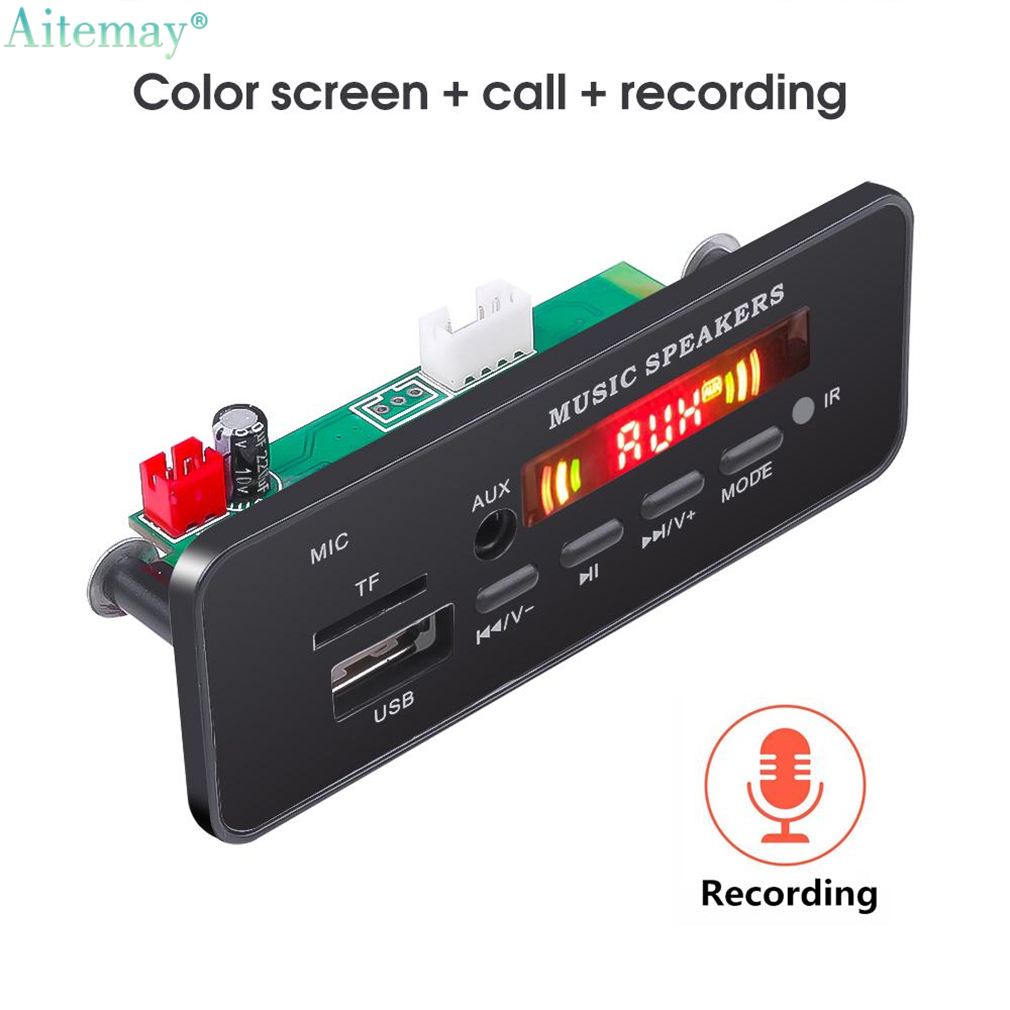

Aitemay Bluetooth 5.0 Decoder Board 5-12V Wireless MP3 Player Module USB TF FM Radio AUX Handsfree Call Recording With Remote Control

Description:
With Bluetooth audio receiver module, when cell phone and Bluetooth module matching condition, the MP3 or nondestructive APE files via Bluetooth sent to the product of the Bluetooth receiver module to play, which has greatly helped the function of the product and entertainment. This product also is like an ordinary MP3 decoder board, play U disk or TF card MP3 files, as well as the radio broadcast.

Functions:
USB: Connect USB flash drive (maximum support 32GB)
LED color screen: digital screen display, showing red Infrared receiving module
TF: Connect TF memory card (maximum support 32GB)
AUX: an audio input interface
VOL-: Short press is to select the previous song; the long press is to decrease the volume
PLAY/PAUSE: Short press is the switch between pause and play; the long press is the FM FM automatic station
VOL+: Short press is to select the next song; the long press is to increase the volume
MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH

Specificiation:
Main control IC: AC6926
Bluetooth IC: AC6926 Bluetooth5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Power: 2*3W, connect 2 3W speakers
Radio FM frequency: 87.5-107.5 MHZ
Support function: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/DC 12V

Recording Function:
1. Press and hold the MODE button to start recording. Press and hold the MODE button again to cancel the recording function.
2. Press and hold the PLAY/PAUSE button to play the recording file.
3, when recording, you need to connect a storage device, such as U disk or TF card

Package included:

1 x Color Screen Decoder Board

1 x Romote Control

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
