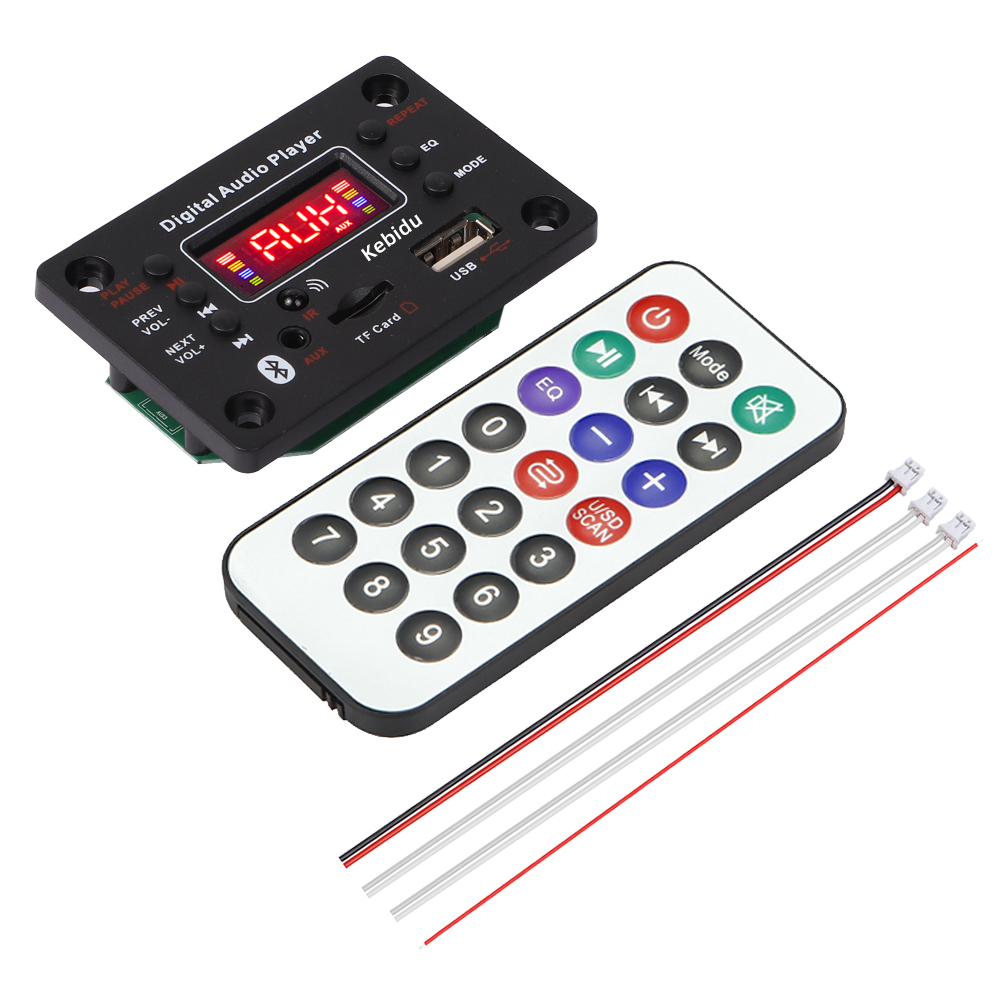

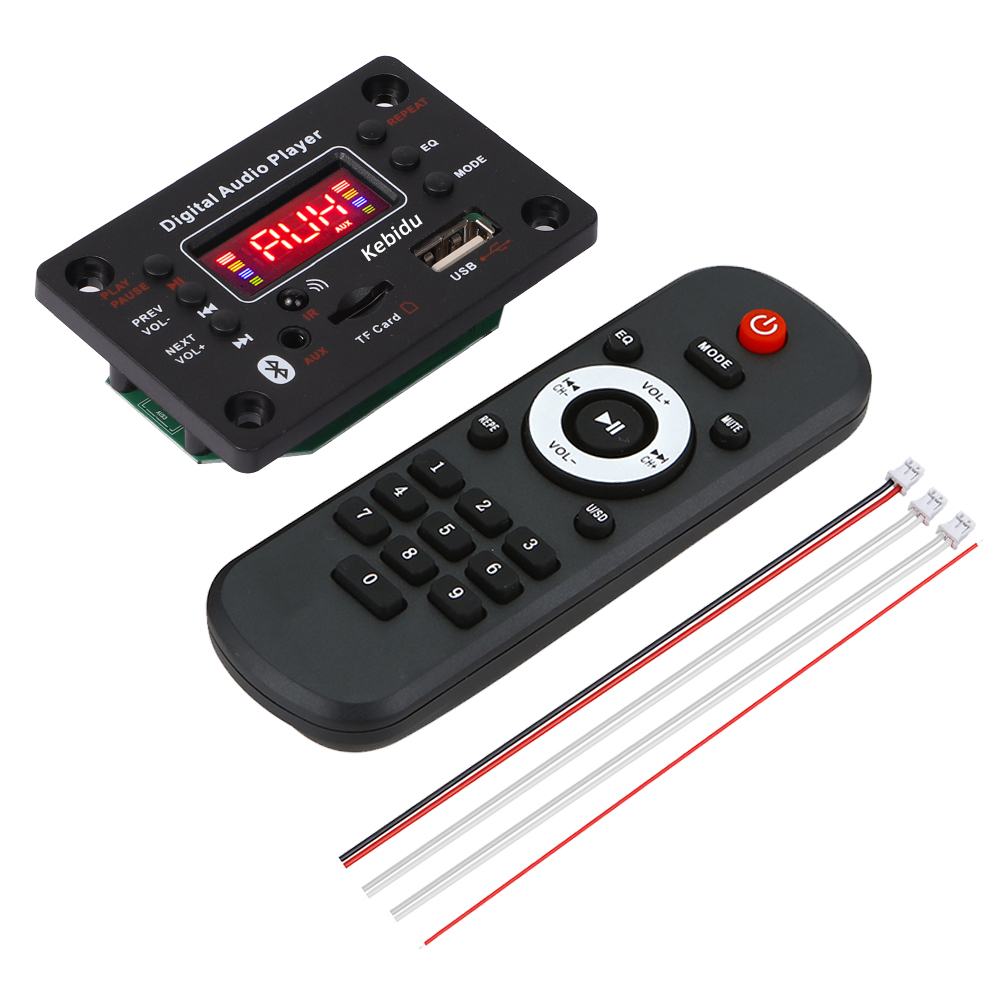

Description:

Bluetooth version 5.0, power 2*40W

Recording microphone functionMusic format: MP3/WMA/WAV/FLAC/APE lossless music format

Radio FM frequency: 87.5—108 MHZ

Folder switching function

Function: support MP3/USB/TF/LINEIN/FM/Bluetooth/remote control /DC 12V (voltage range 7V-25V, current not less than 2A)

About structure:

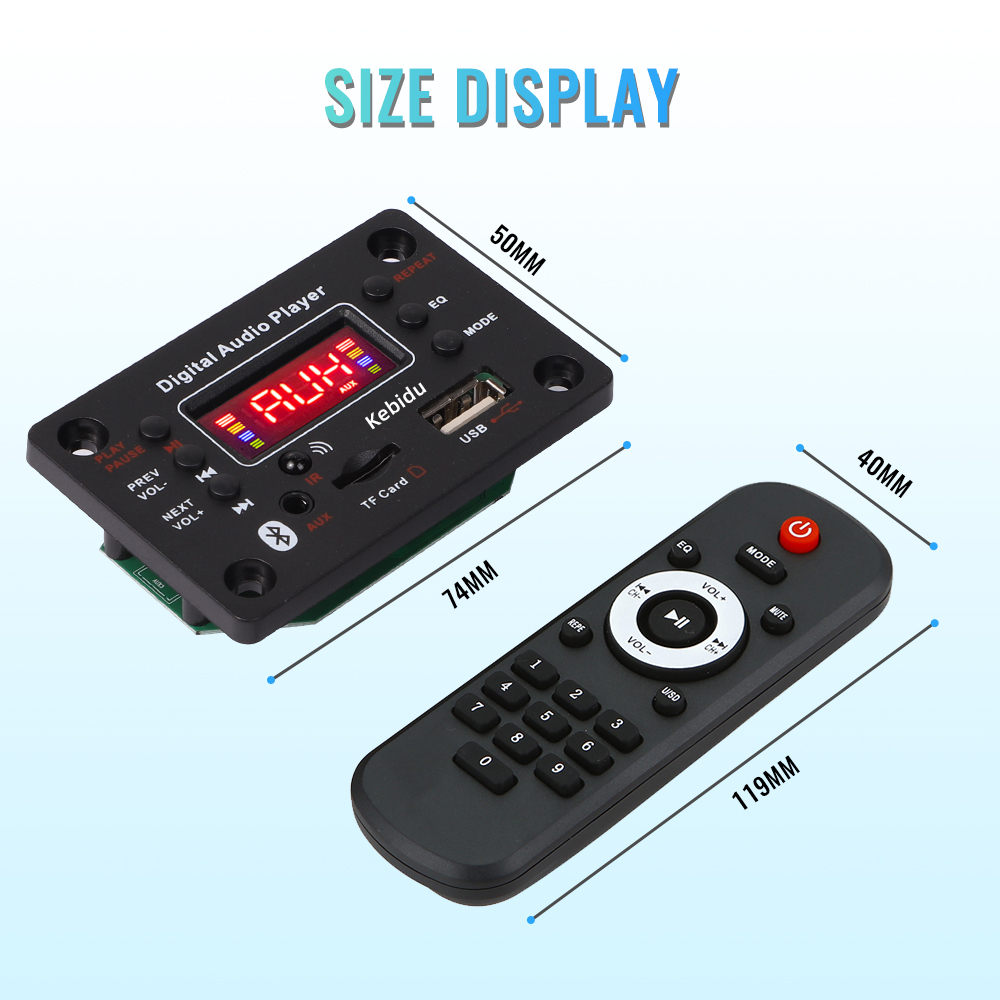

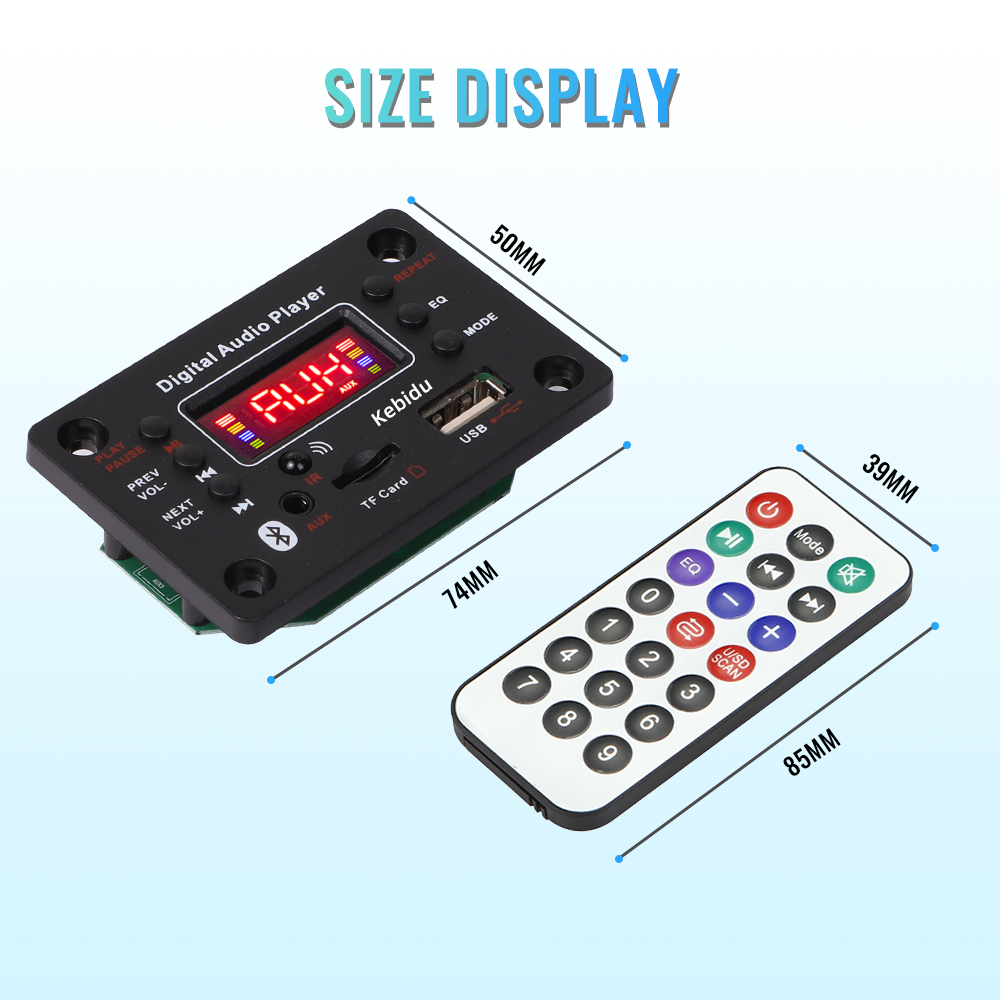

Panel size: length 75 * width 50 MM, screw holes around the panel, and the depth of the panel is 23 mm.

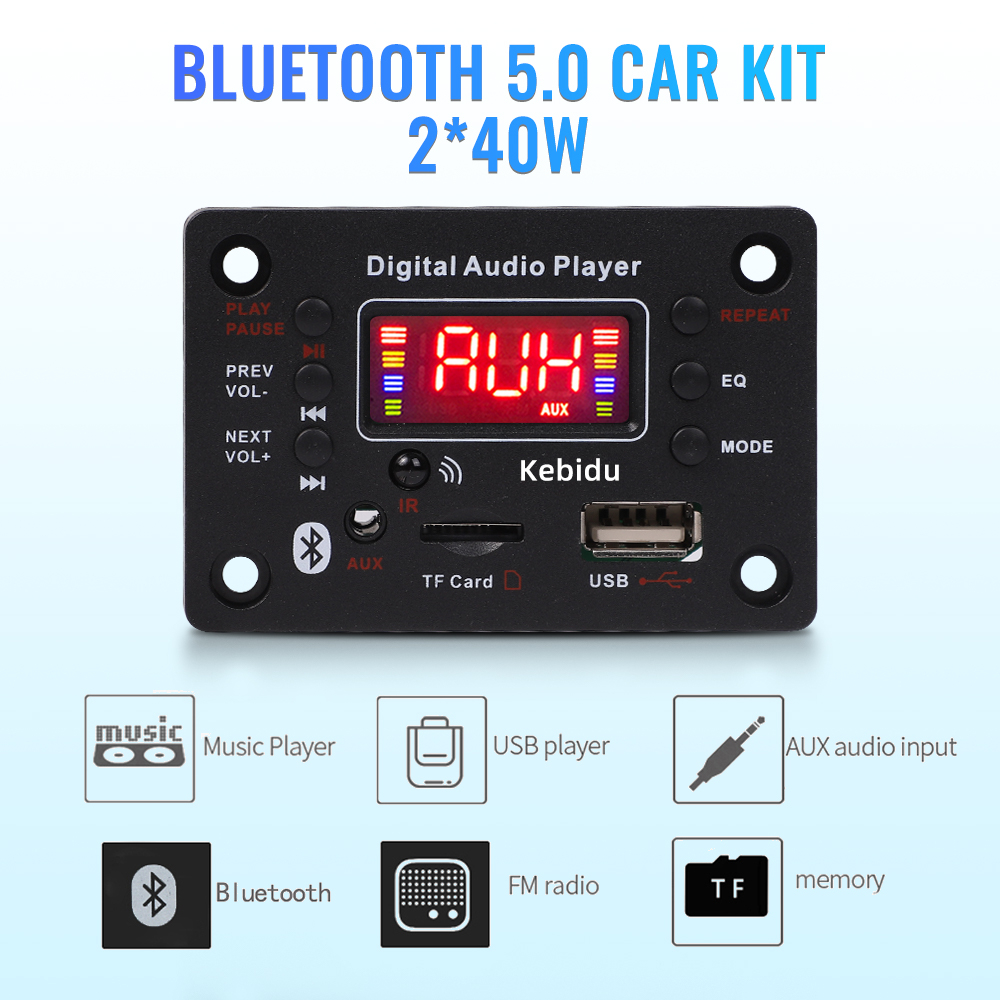

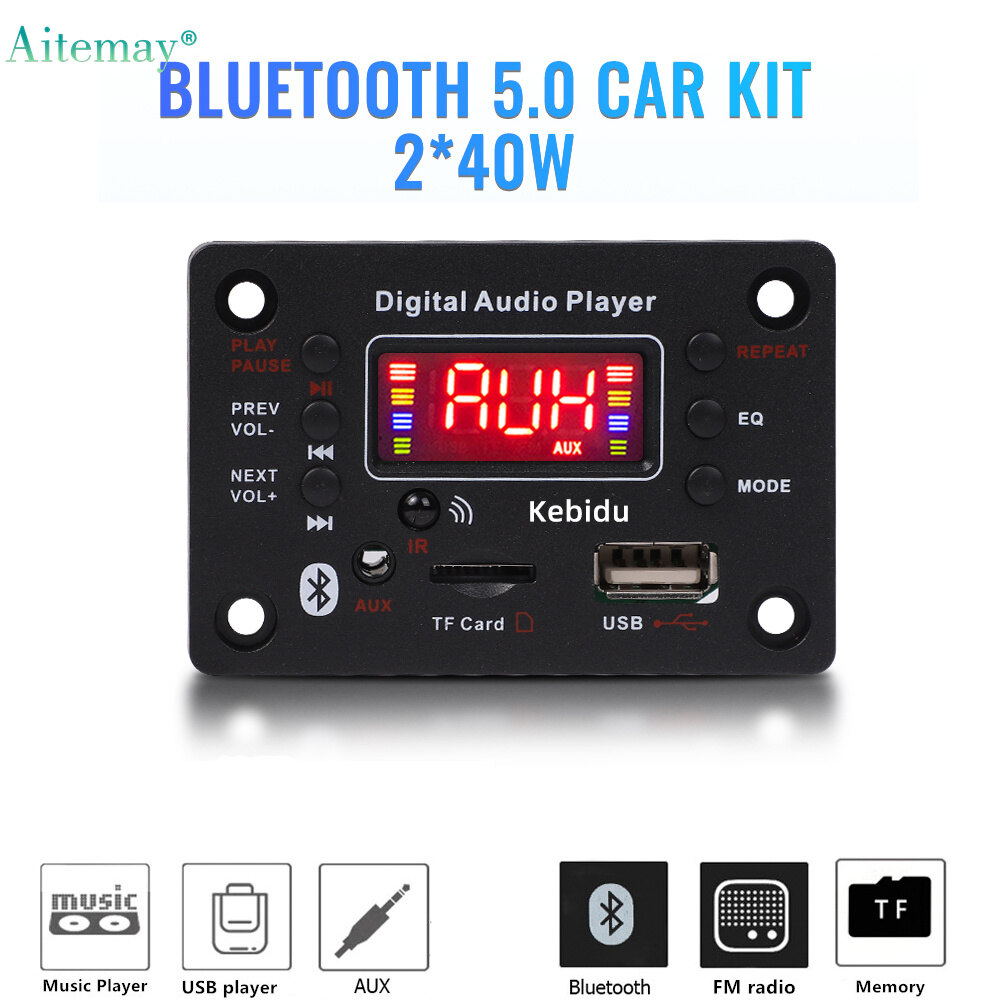

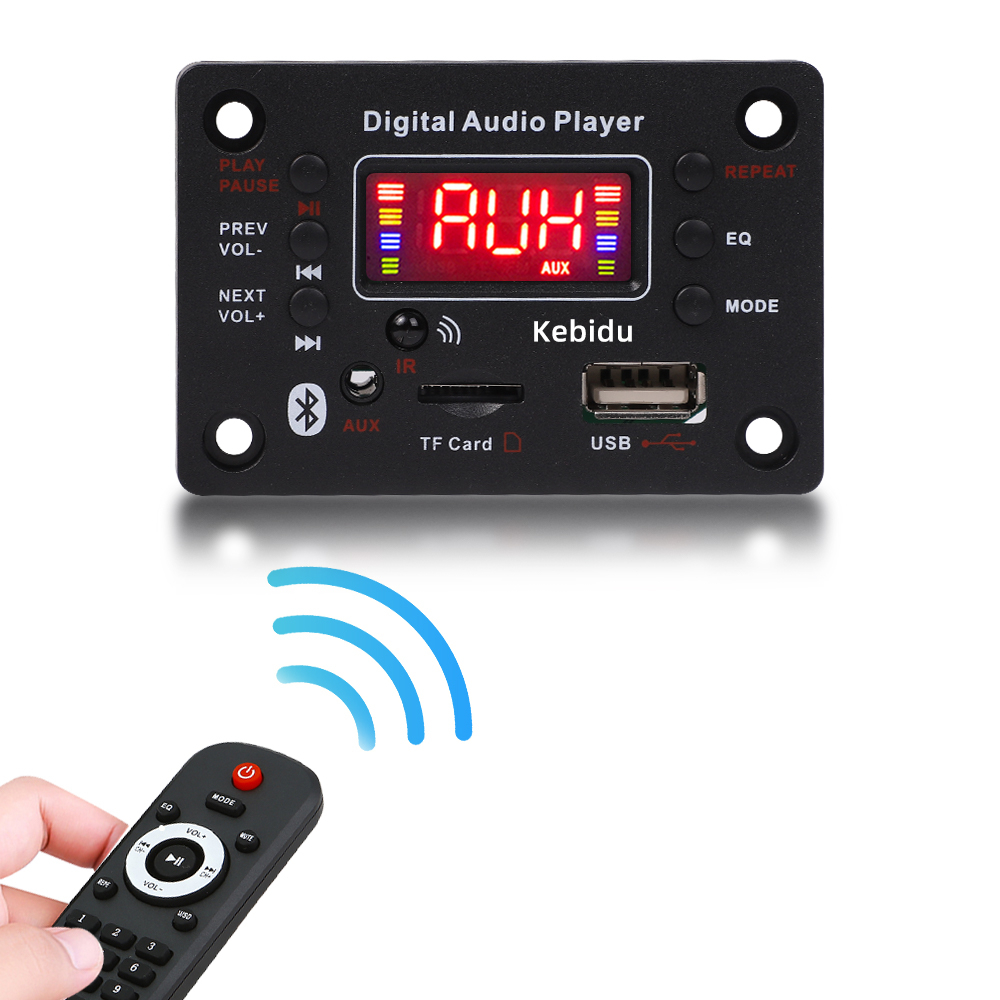

Keys and interface functions

1. PLAY/PAUSE: short press is the switch between pause and play; Long press is FM automatic radio station;

2. PREV/VOL-: Short press is to select the previous song; Press long to decrease the volume; Double click to switch to the previous folder;

3. NEXT/VOL+: Short press is to select the next song; Press long to increase the volume; Double click to switch to the next folder;

4. LED: Digital screen display, showing red.

5. REPEAT: Press once for single loop, and then press once to cancel single loop.

6. EQ: Sound field mode, testing 6 kinds of sound quality; (Classical) (Jazz) (Rock) (Bass) (Pop) (Normal)

7. Mode: Switch between USB/TF/FM/LINE IN/Bluetooth

8. AUX: Audio input interface

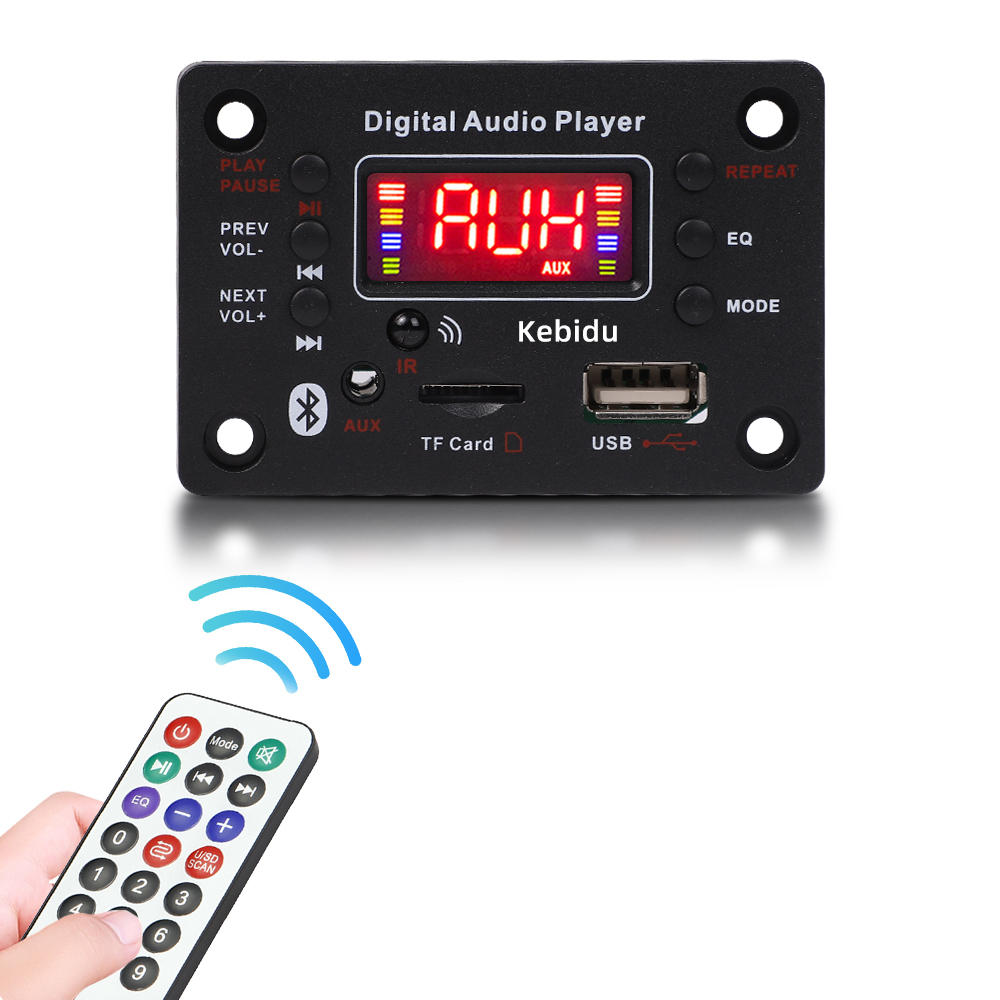

9. IR: infrared receiving module

10. TF: Connect TF memory card (maximum support is 32GB)

11. USB: Connect USB flash drive (maximum support is 32GB)
