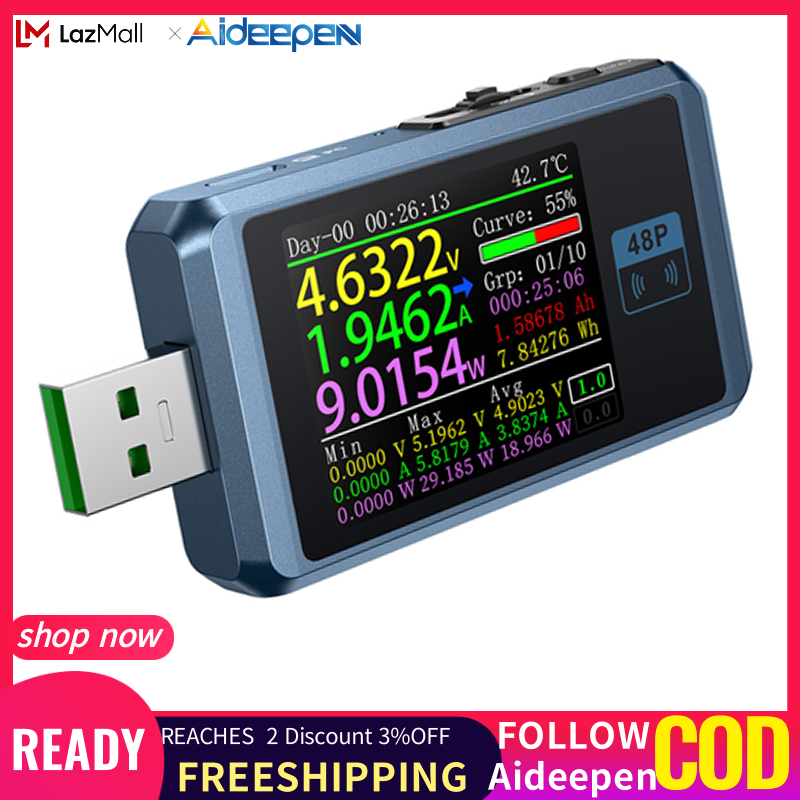

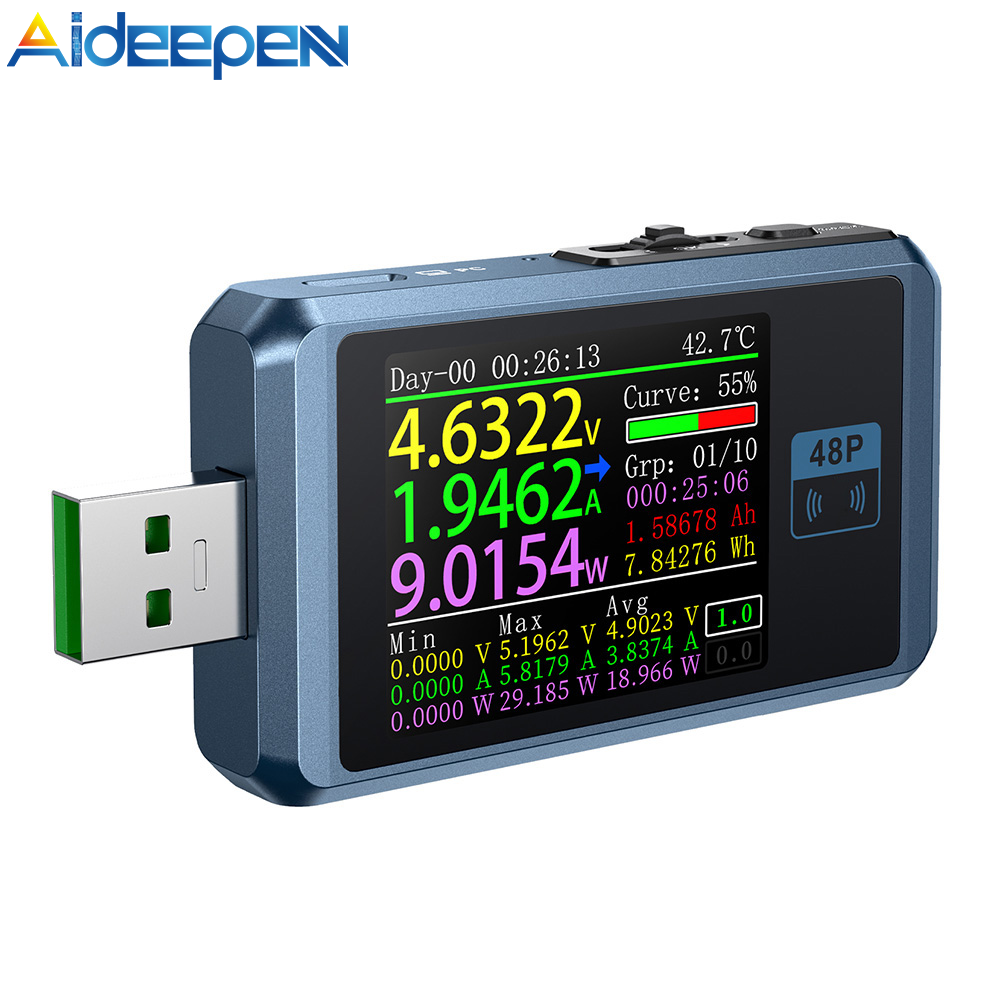

Aideepen USB Power Meter USB Voltage Meter and Current Tester LCD Display Power Tester Multimeter Ammeter Voltmeter

Features:

1.6.5A large current, maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging

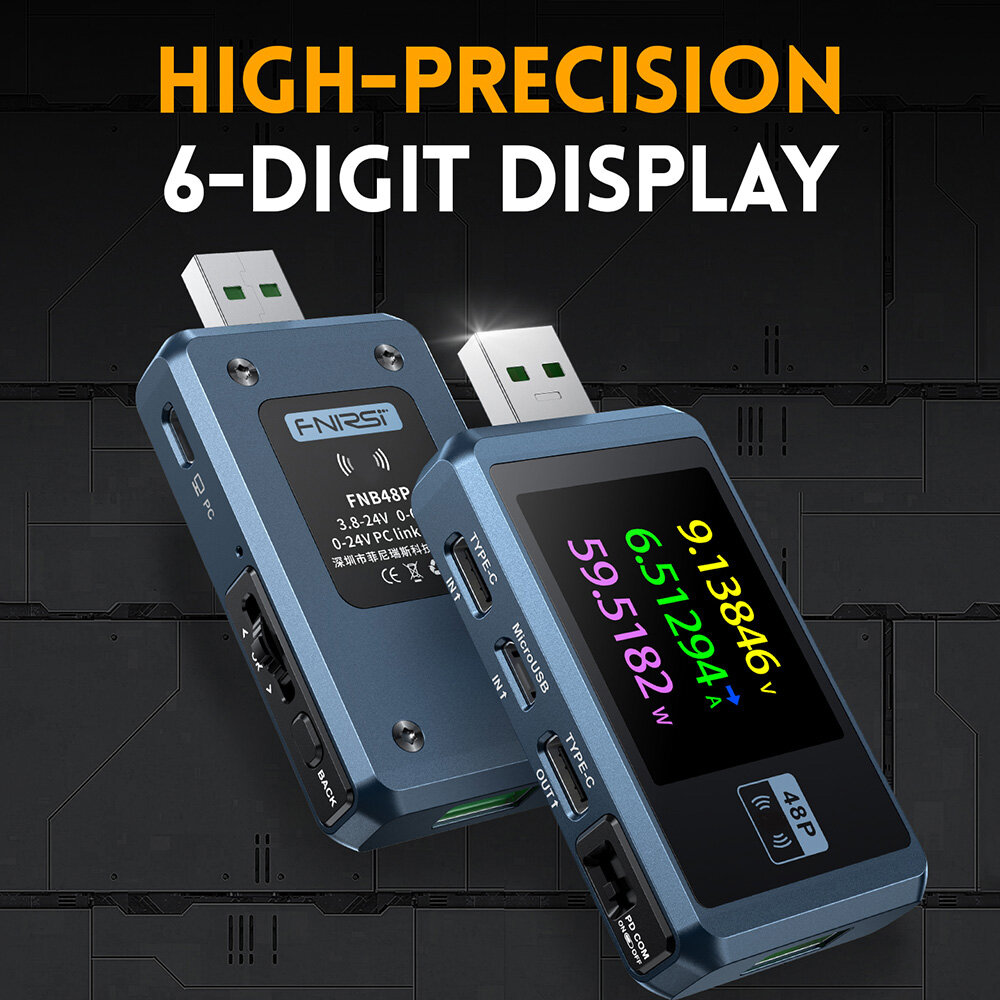

2.6 Digits display high precision, supporting multiple fast charging protocols

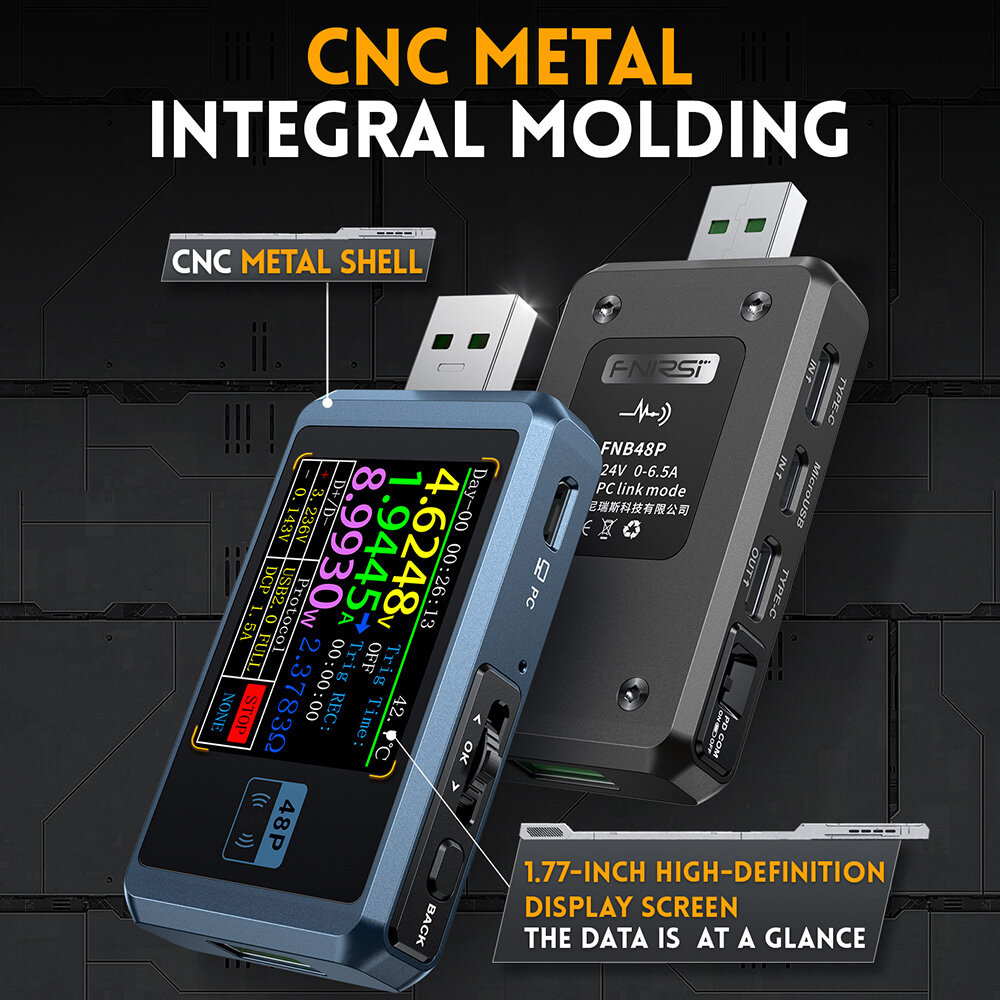

3.CNC metal shell design, light and delicate touch, with 1.77-inch high-definition display screen, multiple displays on one screen, and clear data at a glance

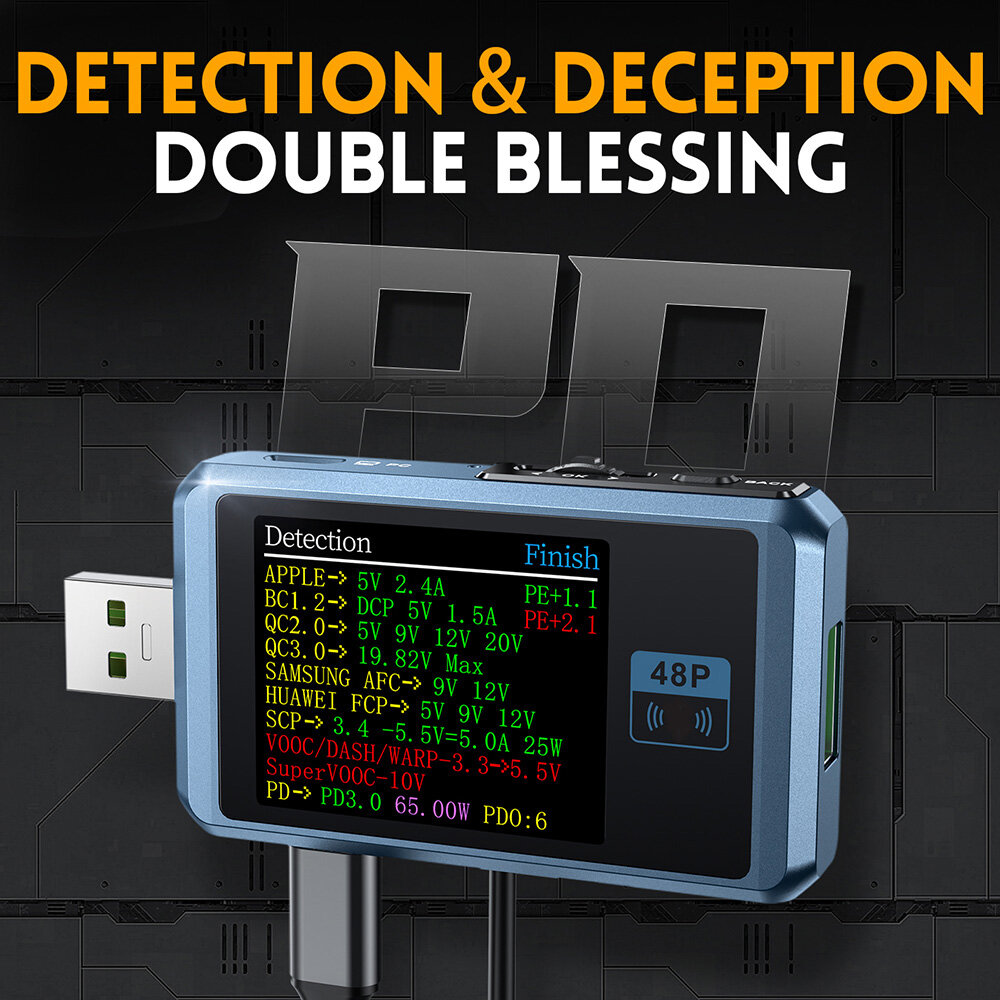

4.The mainstream fast charging protocol can detect deception

5.Equipped with gravity sensing function, 360-degree rollover is comprehensive and supports closing/opening

6.10 Group data intelligent recording

7.Multi-USB port compatibility

Parameters:

Monitoring voltage: 4~24V, resolution: 0.00001V, accuracy: ± (0.2%+2)

Monitoring current: 0~6.5A, resolution: 0.00001A, accuracy: ± (0.5%+2)

Monitoring power: 0~156W, resolution: 0.00001W, accuracy: ± (0.5%+2)

Load equivalent internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω, accuracy: ± (0.5%+2)

D+/D-voltage: 0~3.3V, resolution: 0.001 V, accuracy: ± (1.0%+2)

Equipment temperature: ℃, resolution: 1 ℃, accuracy: ± (1.2%+3), ℉, resolution: 1 ℉, accuracy: ± (1.2%+4)

Capacity: 0~9999.99Ah, resolution: 0.00001Ah

Power consumption: 0~9999.99Wh, resolution: 0.00001Wh

Cable internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω

Running time: 99 days, 23 hours, 59 minutes, 59 seconds, resolution: 1 second

Recording time: 999 hours, 59 minutes, 59 seconds, resolution: 1 second

Package include：

Carton packaging

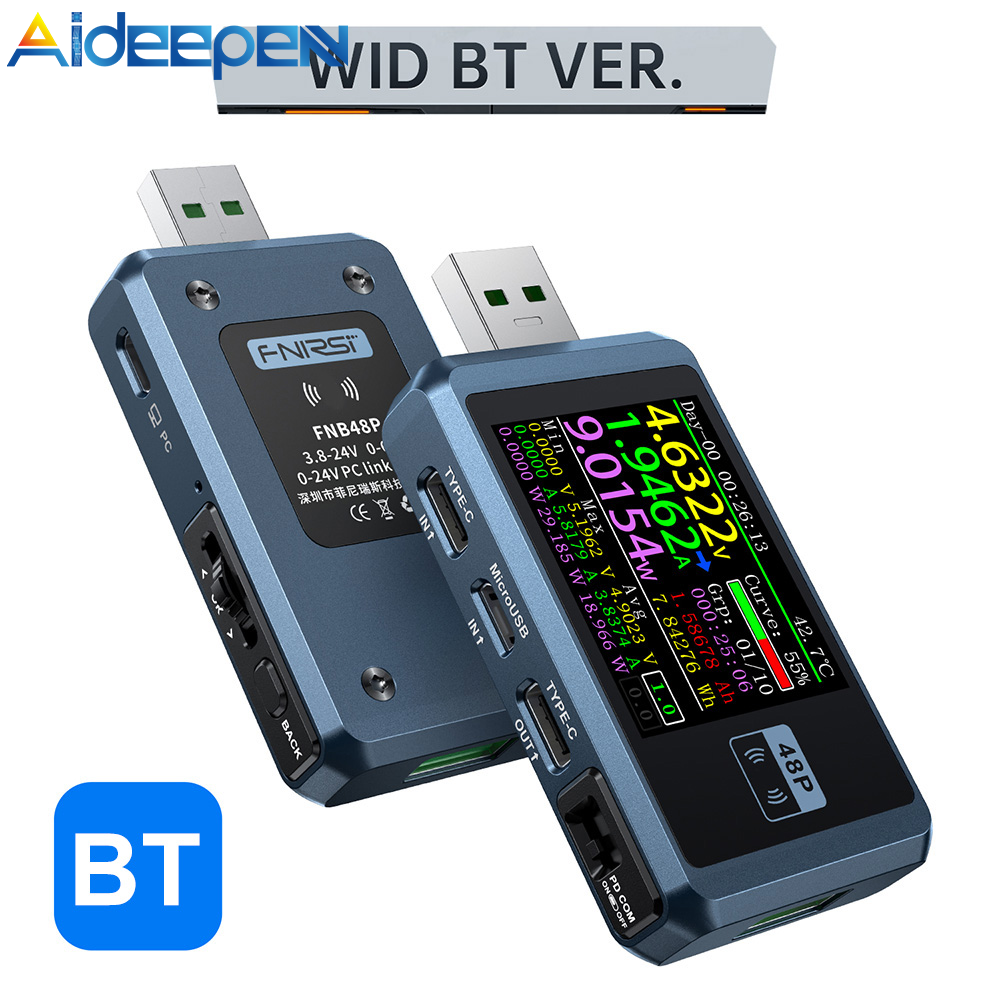

FNB48P BT version USB charging tester * 1

FNB48P does not include Bluetooth ordinary USB charging tester * 1
